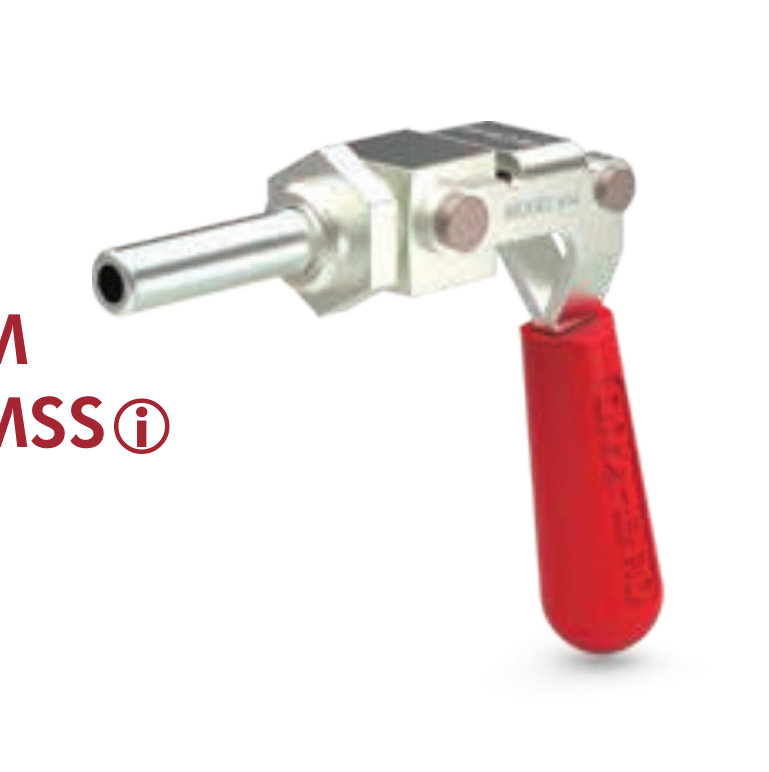

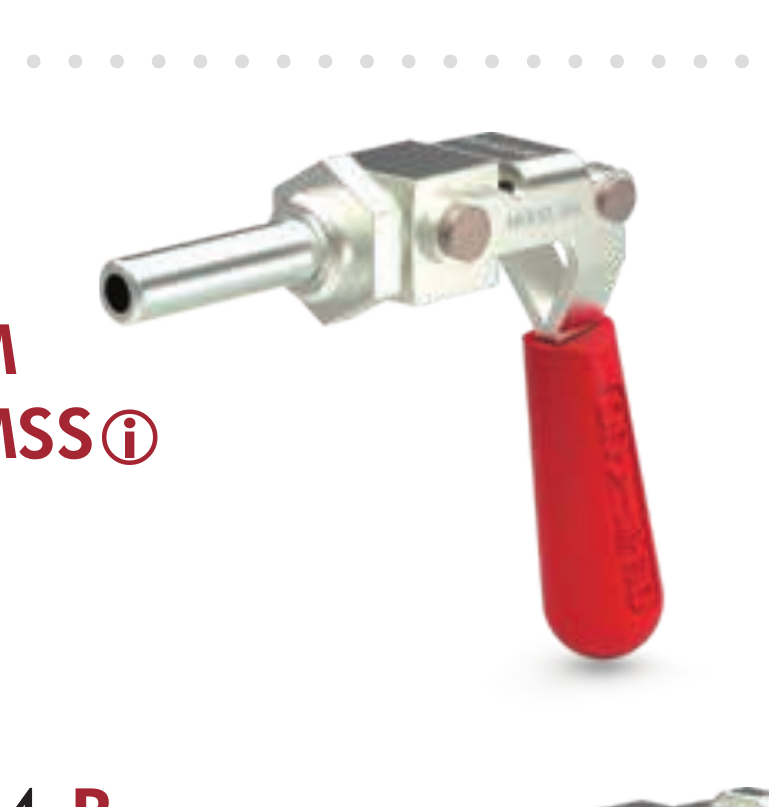

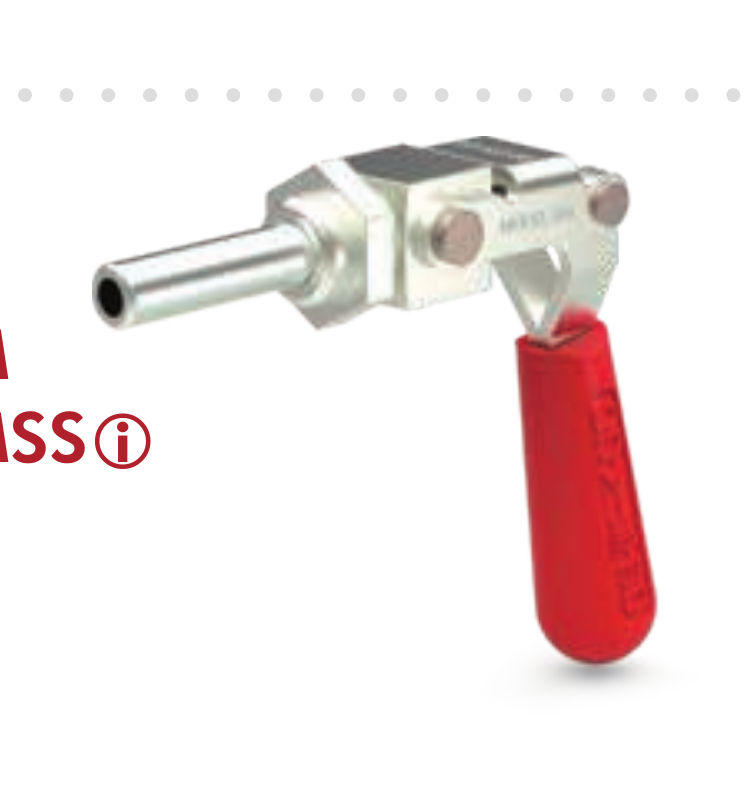

In stockStraight Line Action Clamp with Threaded Body and Through-Hole Mount
Destaco · 604

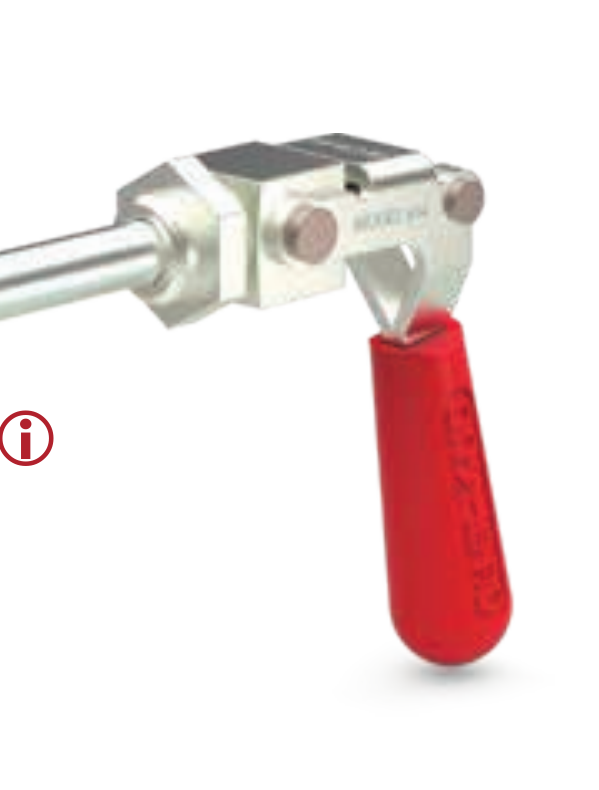

Straight Line Action Clamp with Threaded Body and Through-Hole Mount

$ 37.61per unit · ex. VAT
Compact straight line action clamp with threaded body for through-hole mounting. Locks in both retracted and extended positions. Designed for use in assembly, welding fixtures, and tensioning applications. Features a 300 lbf holding capacity and dual mechanical advantage ratios for pushing and pulling forces.

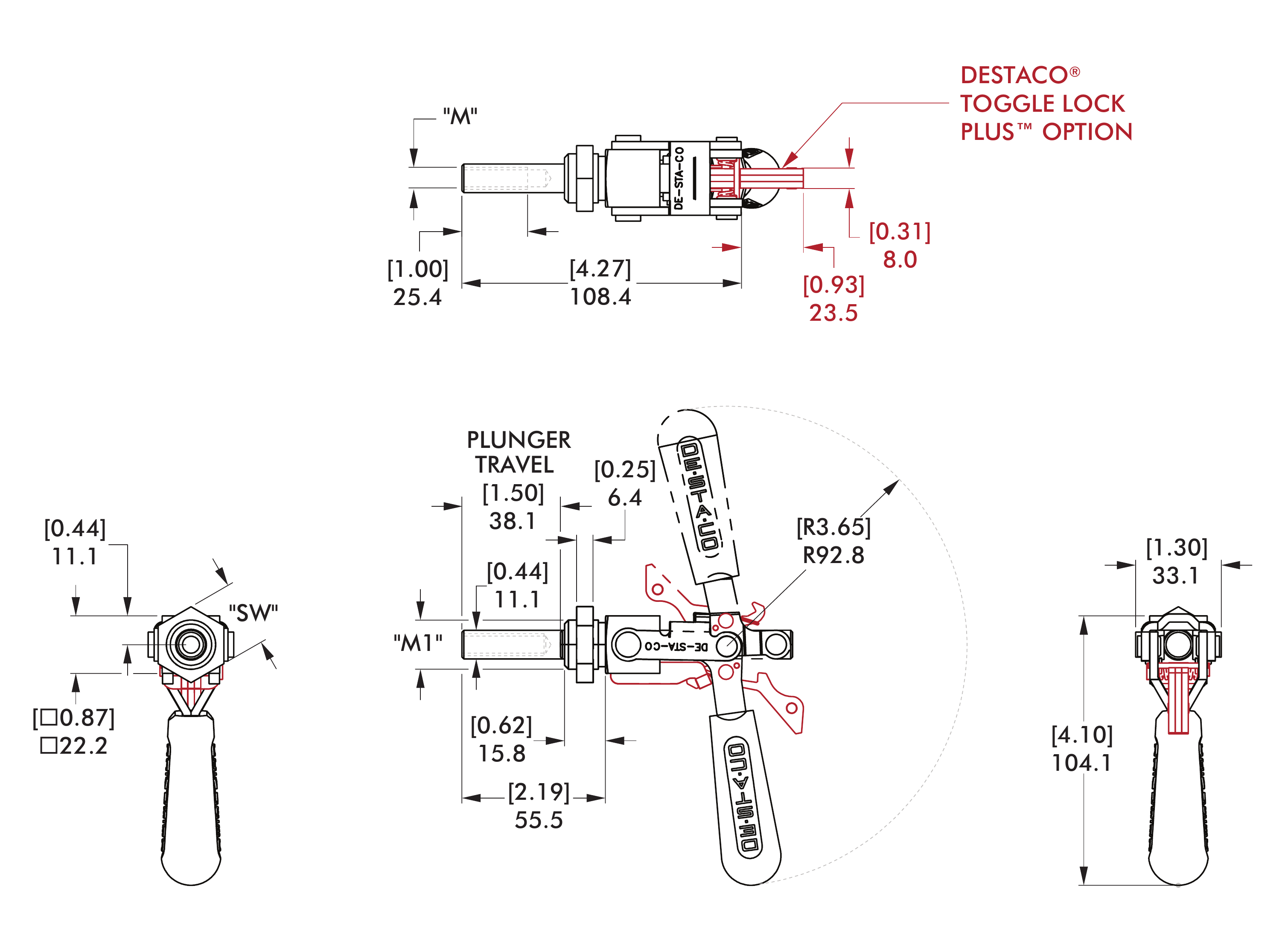

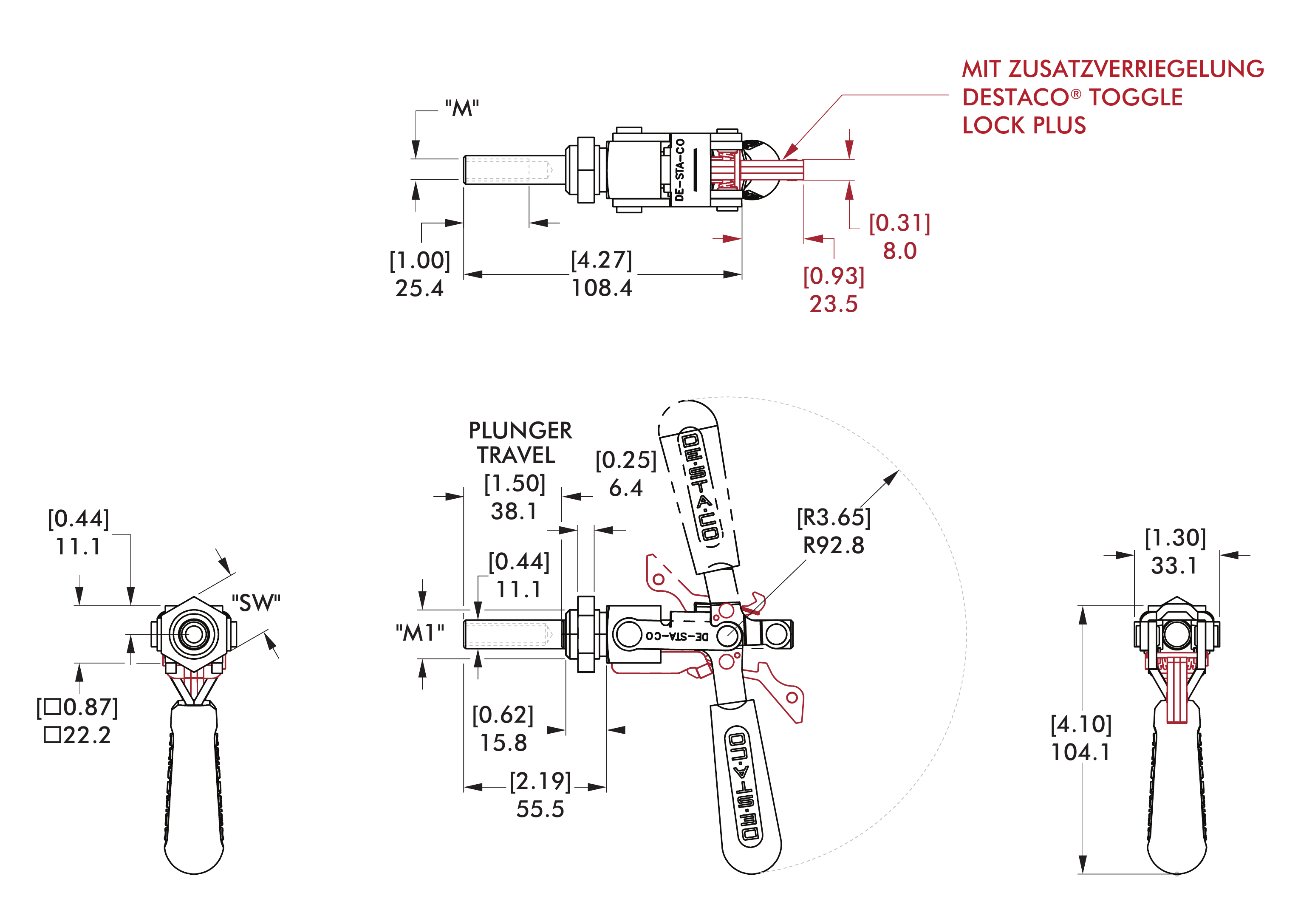

Plunger Travel
1.50 inch (38 mm)
Max. Holding Capacity
300 lbf (1330 N)
Plunger Thread
5/16-18

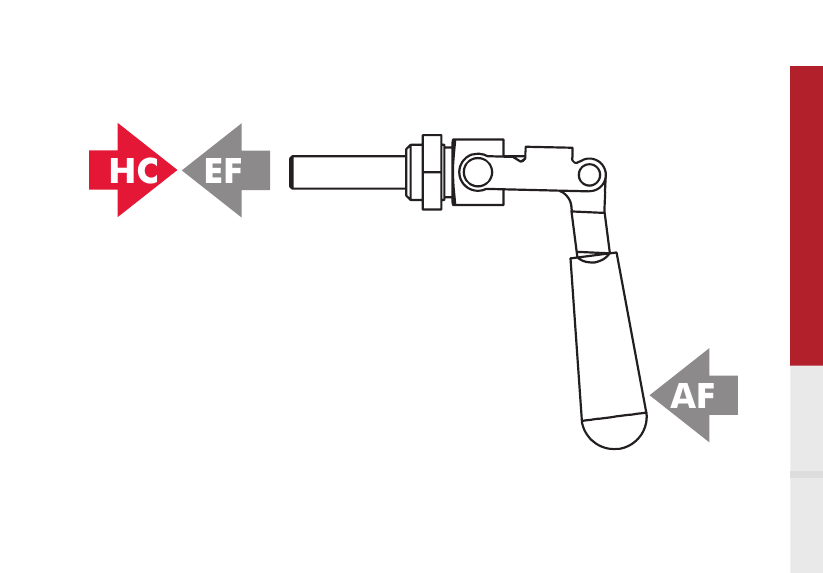

EF:AF (Pushing / Pulling)
45:1 / 26:1
Weight
0.44 lb (0.20 kg)
Plunger Travel1.50 inch (38 mm)
Max. Holding Capacity300 lbf (1330 N)
Plunger Thread5/16-18
EF:AF (Pushing / Pulling)45:1 / 26:1
Body MaterialSteel
Mounting StyleThrough-Hole
Locking PositionExtended, Retracted
Includes Mounting NutYes
Recommended Mounting Nut Model Number606104
ApplicationAssembly, Checking Fixtures, Tensioning Devices, Welding Fixtures
