The Destaco 603-MSS is in our catalogue: Material Stainless Steel, Max Holding Capacity 840 lbf (3740 N), Plunger Travel 1.25 in (31.8 mm).

ChatMRO can make mistakes, so double check it

In stockStraight Line Action Clamp with 1.25 in Plunger Travel, M8 Thread
Destaco · 603-MSS

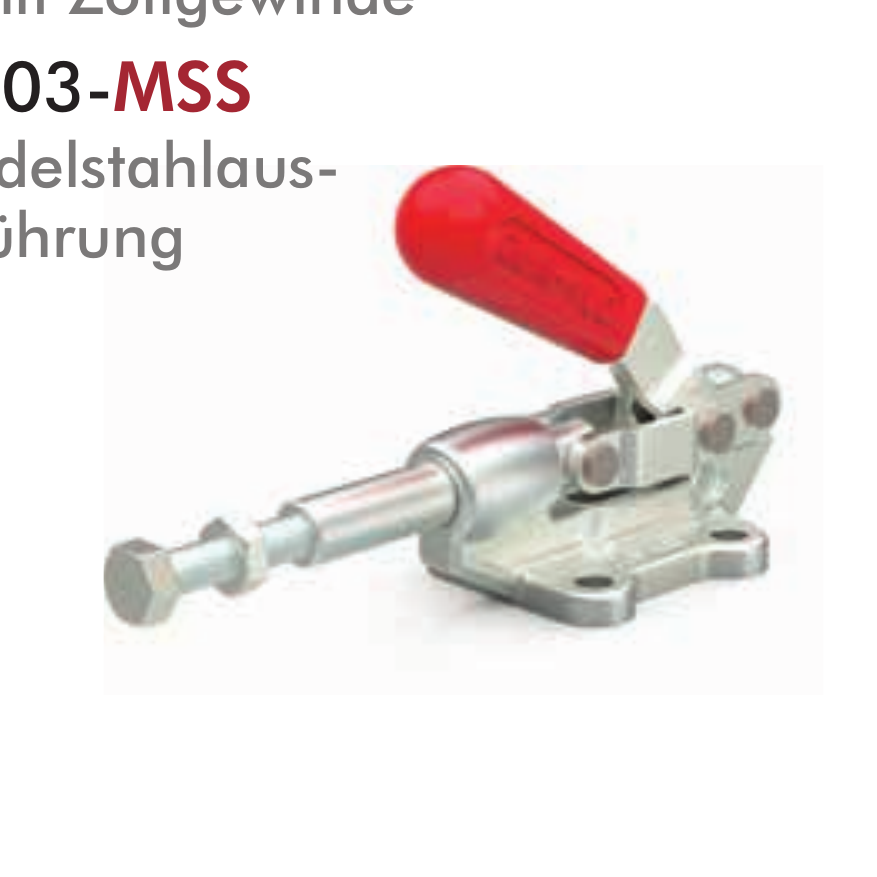

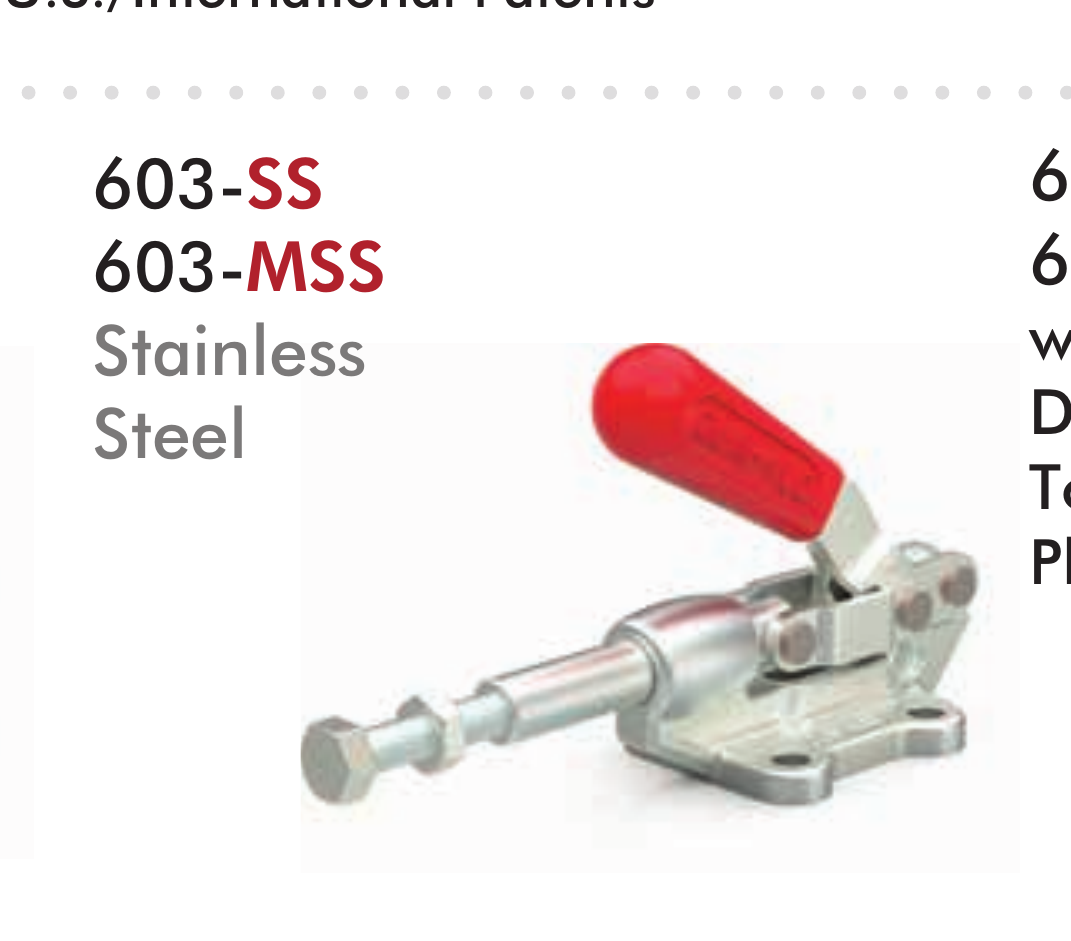

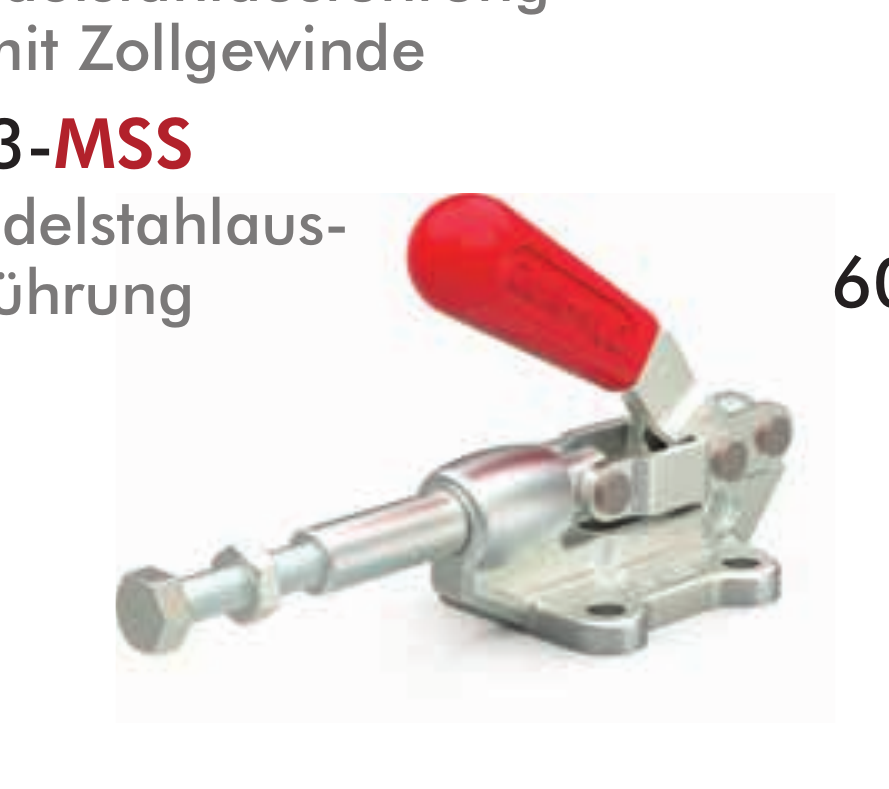

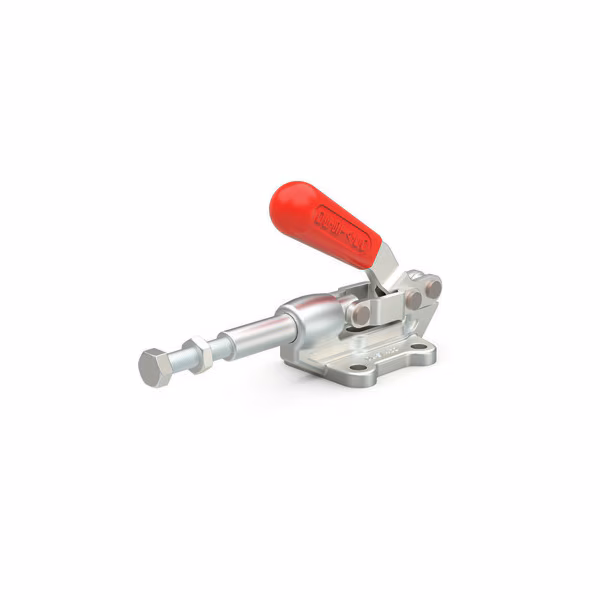

Straight Line Action Clamp with 1.25 in Plunger Travel, M8 Thread

$ 144.70per unit · ex. VAT
Stainless steel straight line action clamp with 1.25 in (31.8 mm) plunger travel, 840 lbf (3740 N) holding capacity, and M8 plunger thread. Features a flange mounting base and a mechanical advantage of 23:1 (pushing) and 34:1 (pulling). Designed for industrial clamping applications requiring corrosion resistance.
Material
Stainless Steel
Max Holding Capacity
840 lbf (3740 N)
Plunger Travel
1.25 in (31.8 mm)
Weight
0.83 lb (0.38 kg)

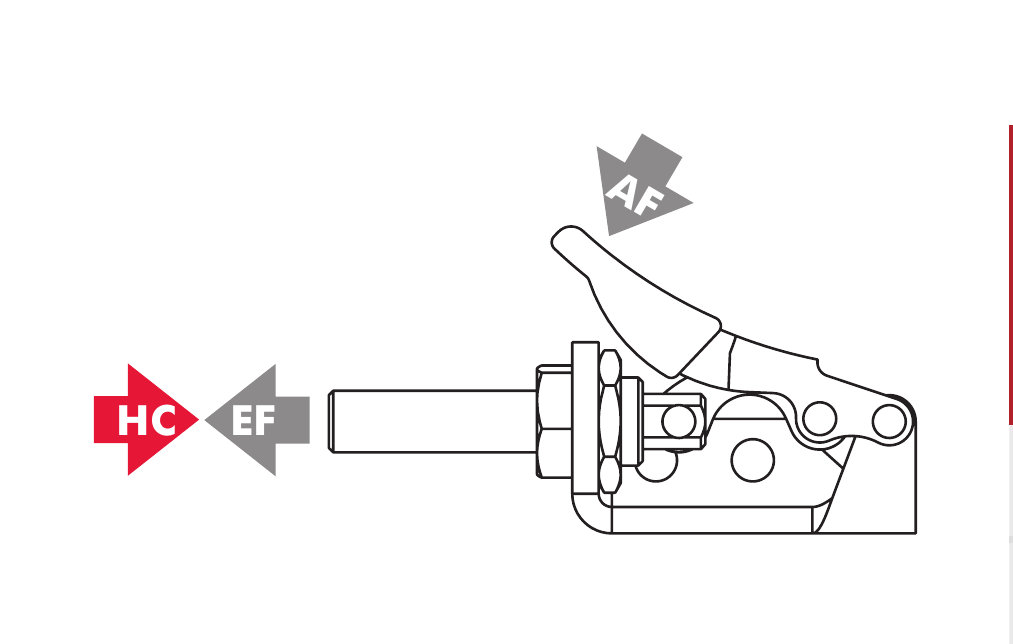

Mechanical Advantage
23:1 (pushing), 34:1 (pulling)
MaterialStainless Steel
Max Holding Capacity840 lbf (3740 N)
Plunger Travel1.25 in (31.8 mm)
Mechanical Advantage23:1 (pushing), 34:1 (pulling)
Mounting BaseFlange
Handle StyleStraight

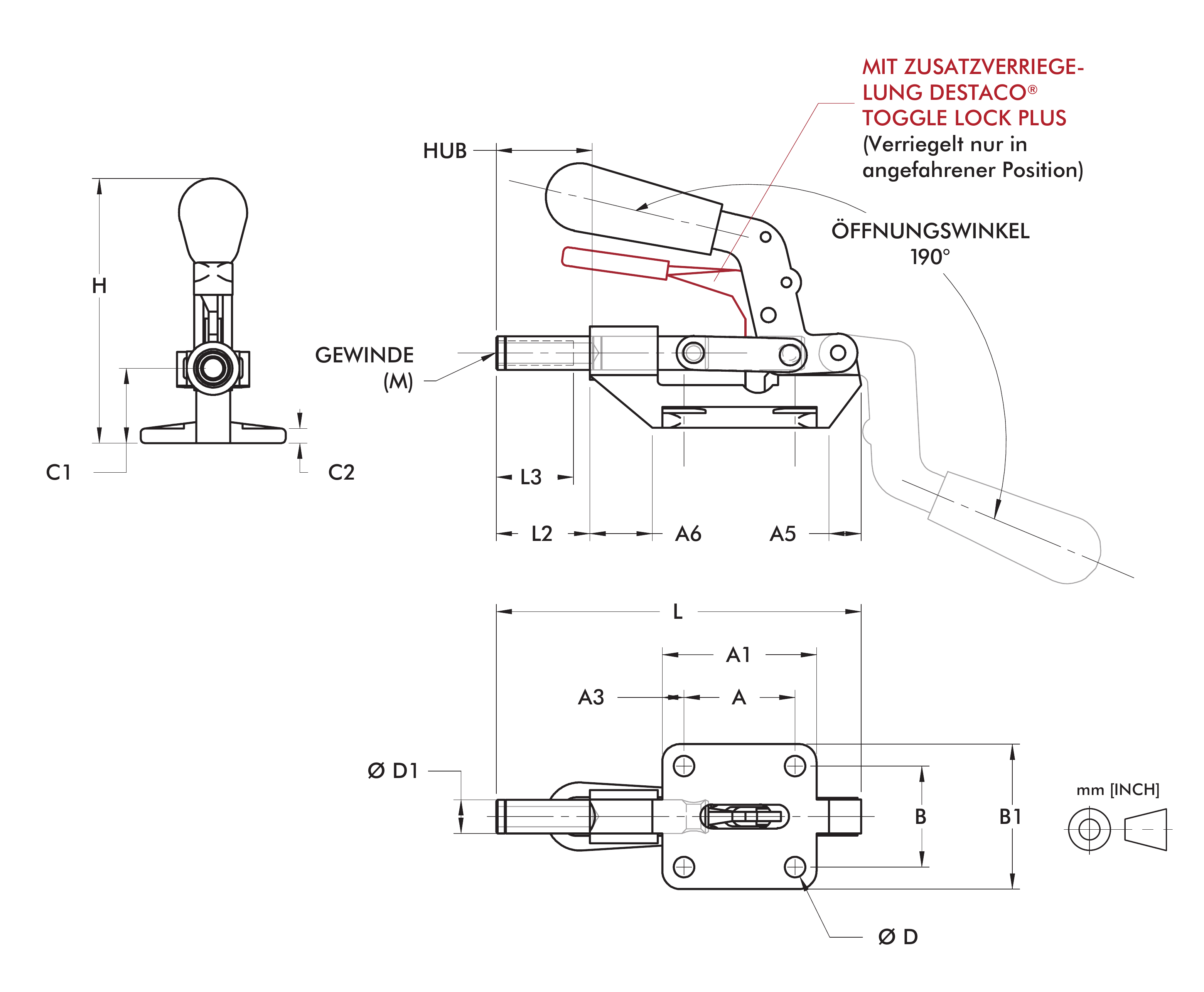

Base Width1 22/25 in
Base Length2 in
Overall Height3.47 in
Plunger Height1 1/4 in
Plunger ShapeRound
Package Quantity1
