The Destaco 533-L is in our catalogue: Max Holding Capacity 7000 N [1575 lbf], Clamp Bar Opening Angle 120 degree (+10°), Handle Opening Angle 90 degree (+10°).

ChatMRO can make mistakes, so double check it

In stockHeavy-Duty Vertical Hold Down Clamp with Flanged Base and Solid Bar
Destaco · 533-L

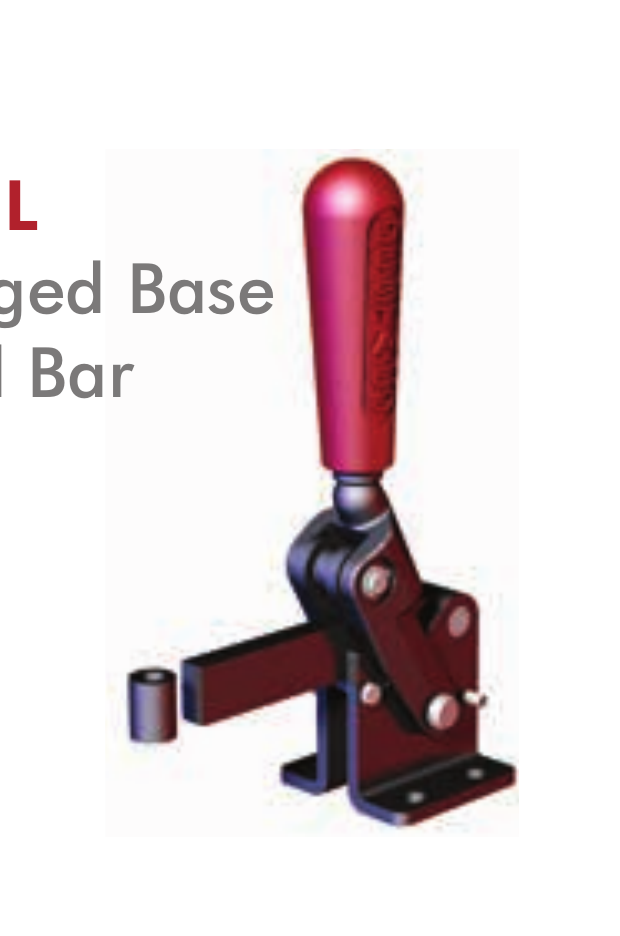

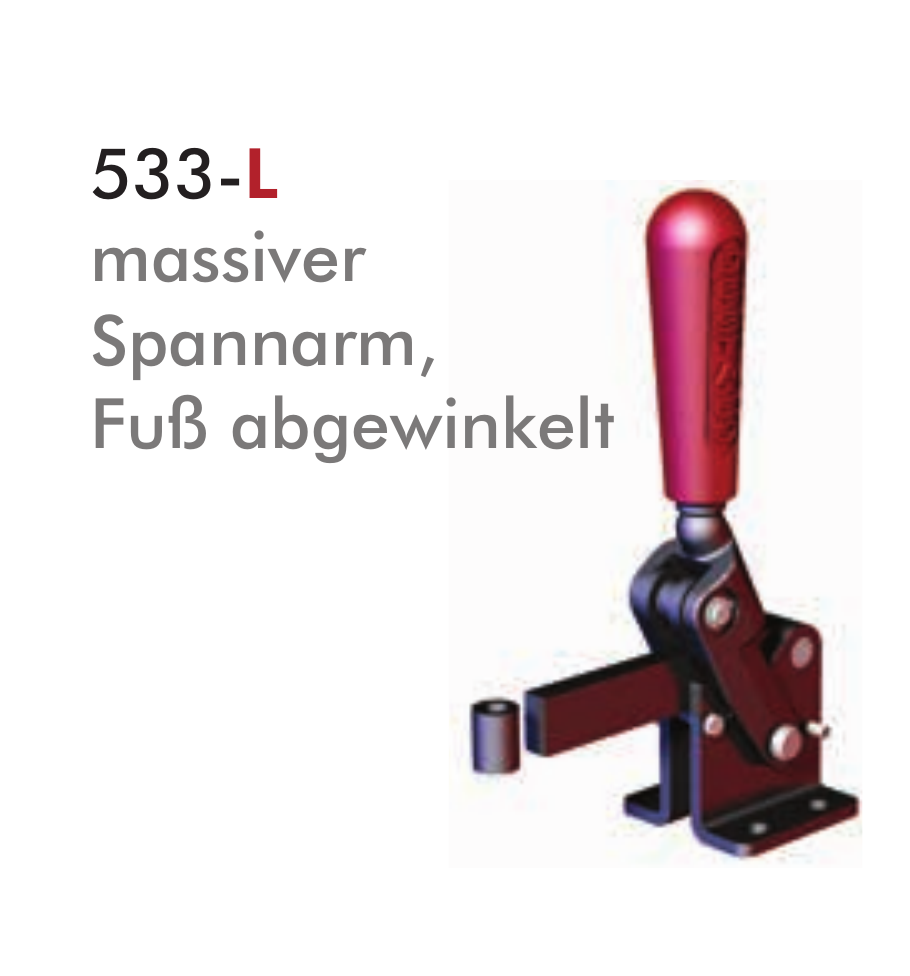

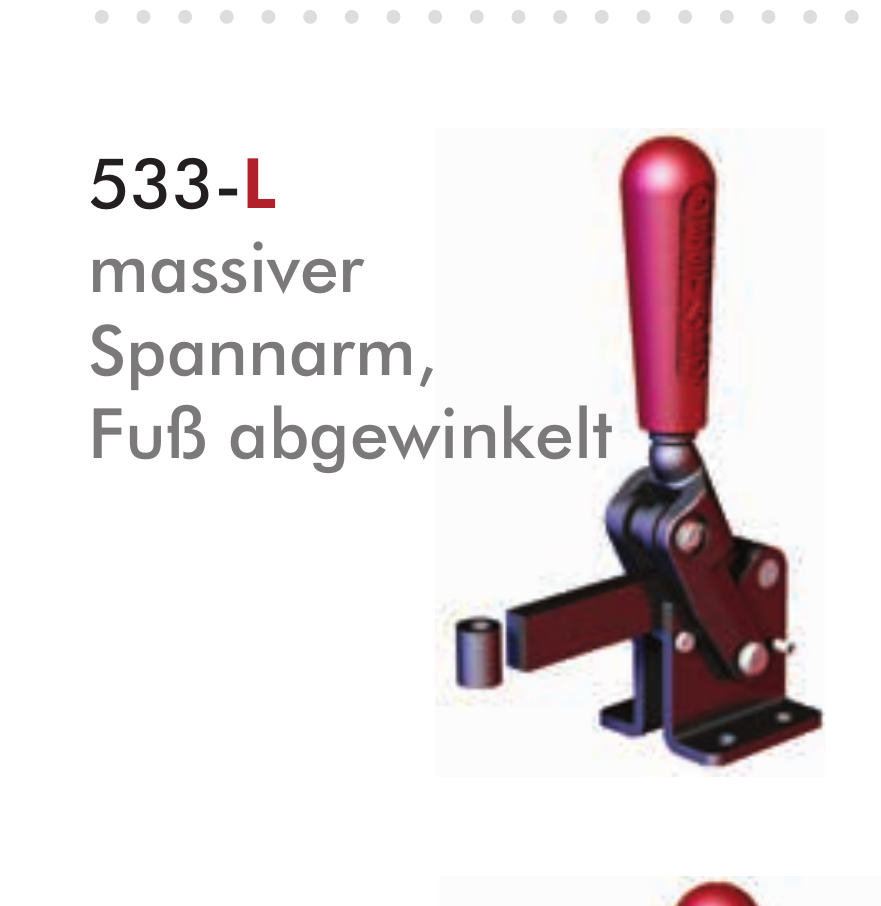

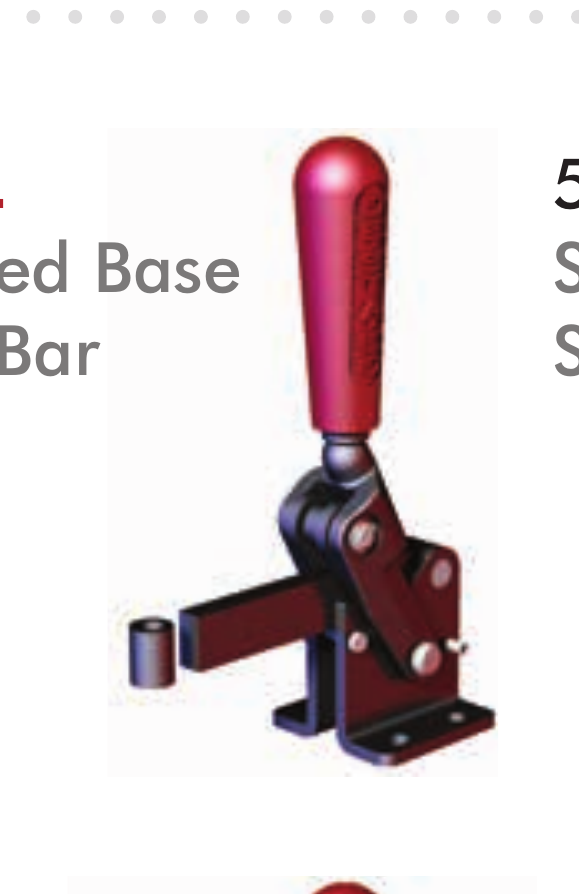

Heavy-Duty Vertical Hold Down Clamp with Flanged Base and Solid Bar

$ 269.27per unit · ex. VAT
Heavy-duty vertical hold down clamp with flanged base and solid bar design. Features a 120-degree clamp bar opening angle and 90-degree handle opening angle. Constructed for high-force applications with a maximum holding capacity of 7000 N (1575 lbf). Includes reinforced construction for industrial use.
Weight
1.00 kg [2.20 lbs]
Max Holding Capacity
7000 N [1575 lbf]
Clamp Bar Opening Angle
120 degree (+10°)
Handle Opening Angle
90 degree (+10°)

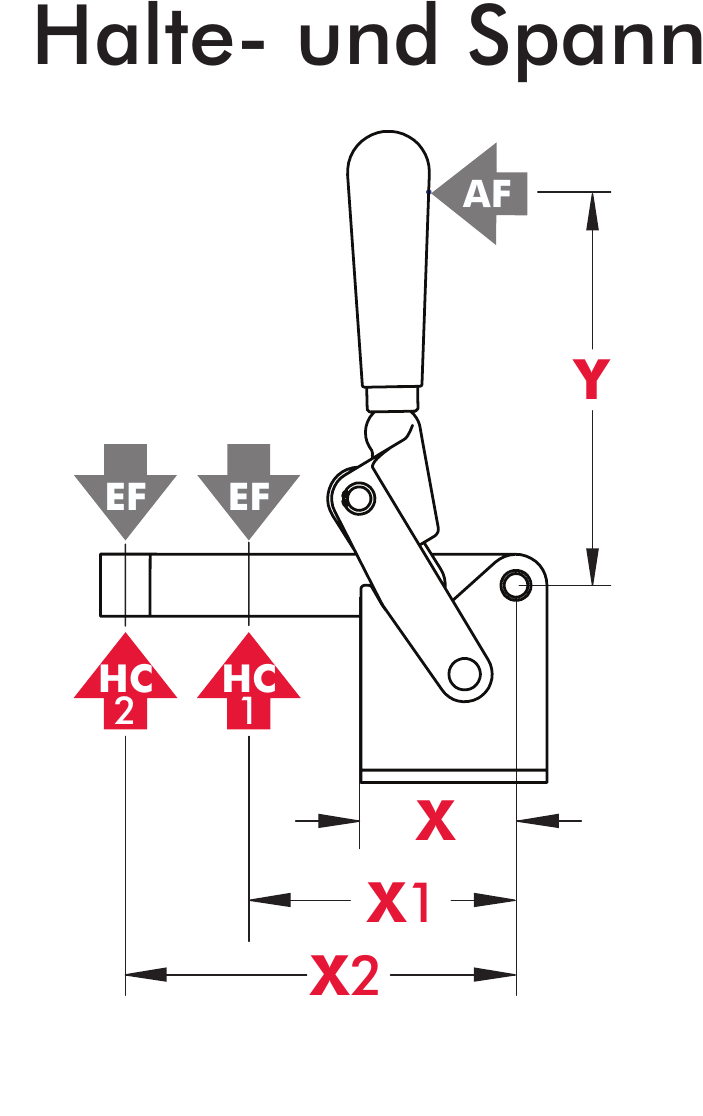

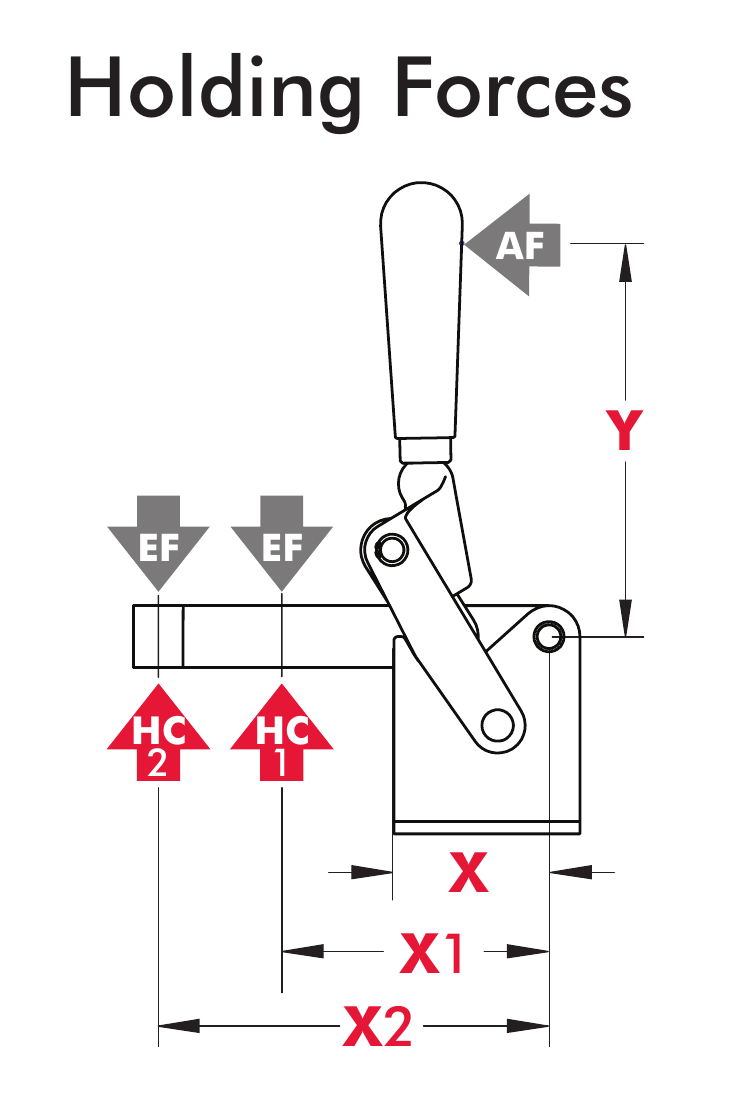

Mechanical Advantage at X1
9:1
Max Holding Capacity7000 N [1575 lbf]
Clamp Bar Opening Angle120 degree (+10°)
Handle Opening Angle90 degree (+10°)
Mechanical Advantage at X19:1
Mechanical Advantage at X25:1

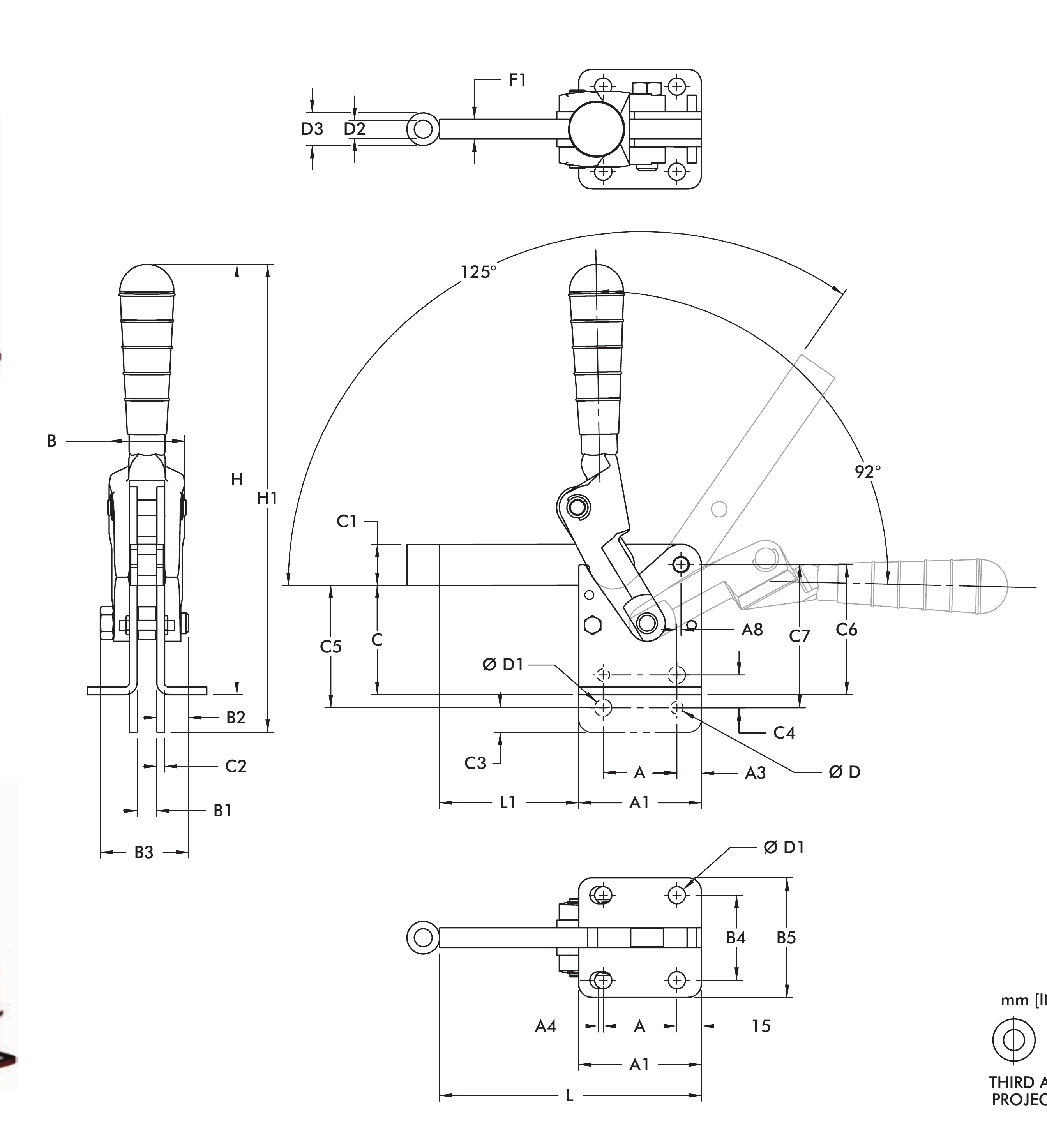

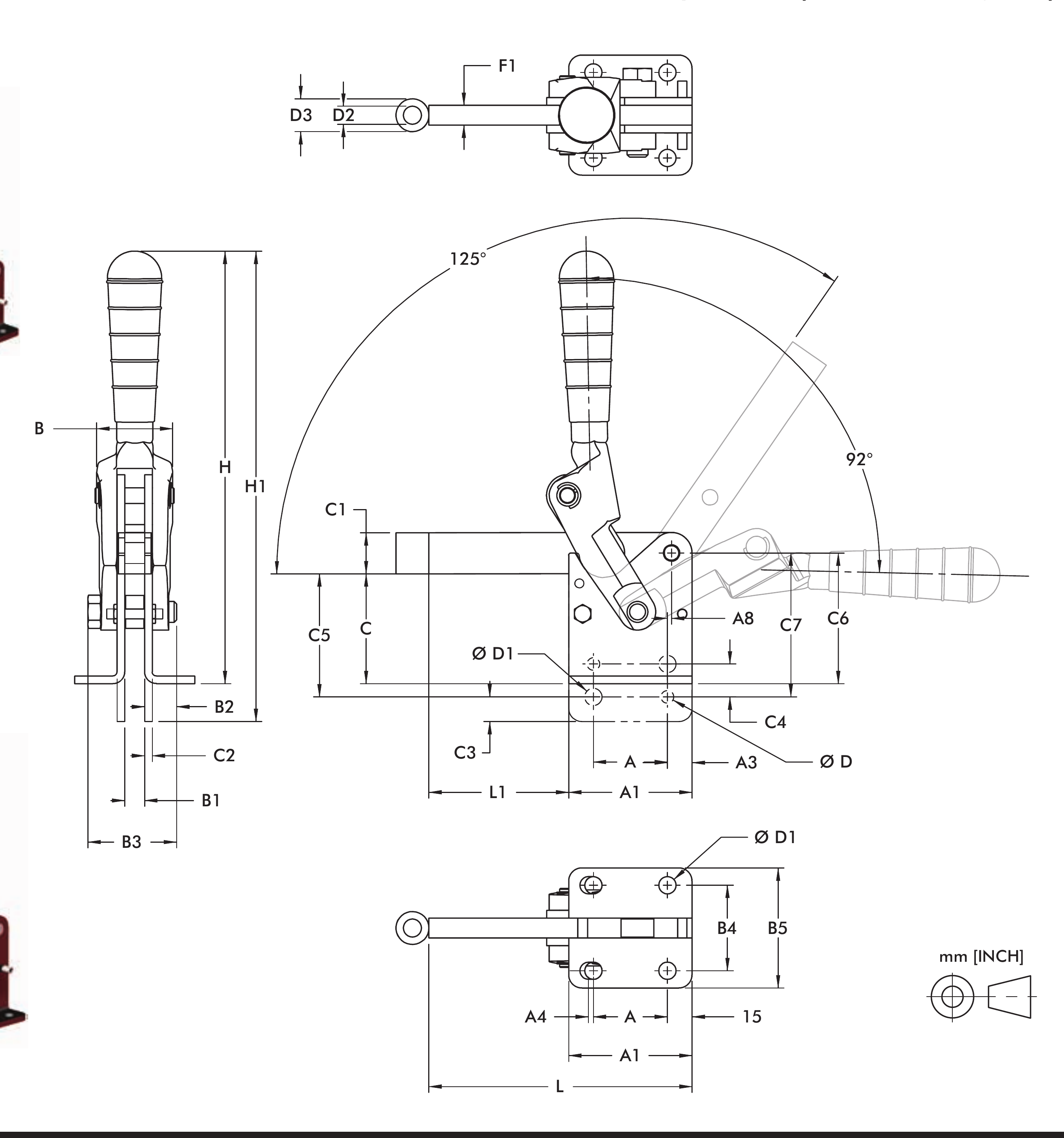

Base Width1 3/4 inch
Base Length2 9/25 inch
Overall Height8 3/5 inch
Bar Width0.79 inch
Clamp Arm Length2 14/25 inch
Height Under Clamp Arm1.86 inch
