In stockHeavy-Duty Vertical Hold Down Clamp with Flanged Base
Destaco · 5110

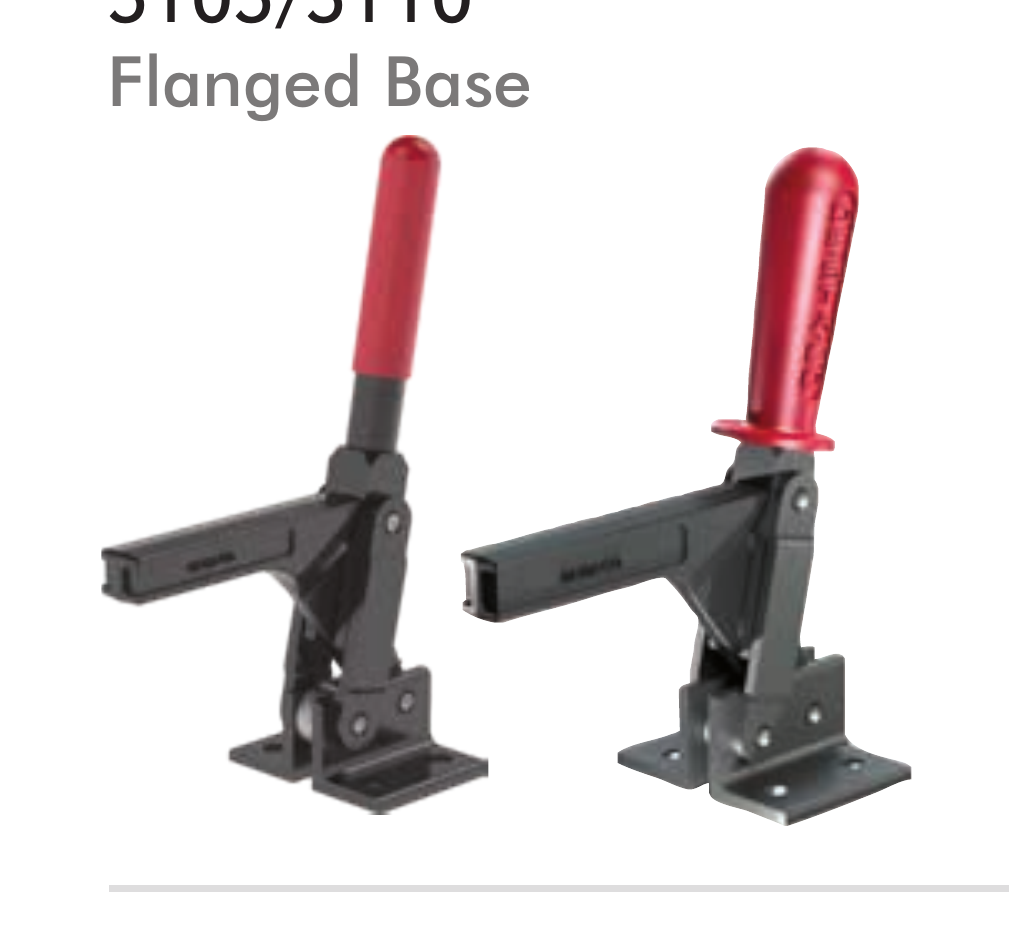

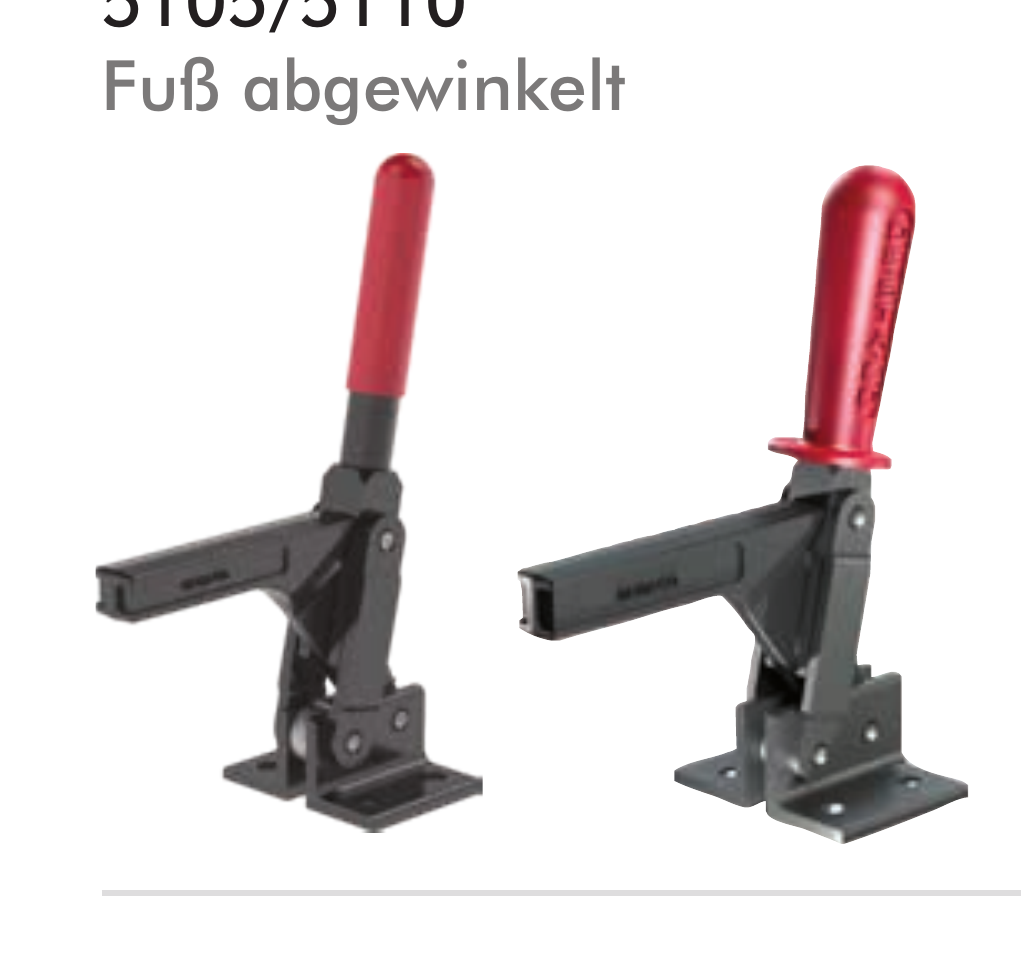

Heavy-Duty Vertical Hold Down Clamp with Flanged Base

$ 101.17per unit · ex. VAT
Heavy-duty vertical toggle clamp with flanged base, forged steel construction, and 1150 lbf maximum holding capacity. Features a 74-degree clamp bar opening and 138-degree handle opening for reliable mechanical advantage in industrial clamping applications.
Max Holding Capacity
1150 lbf (5100 N)
Holding Capacity HC1
1150 lbf (5100 N)
Holding Capacity HC2
700 lbf (3100 N)

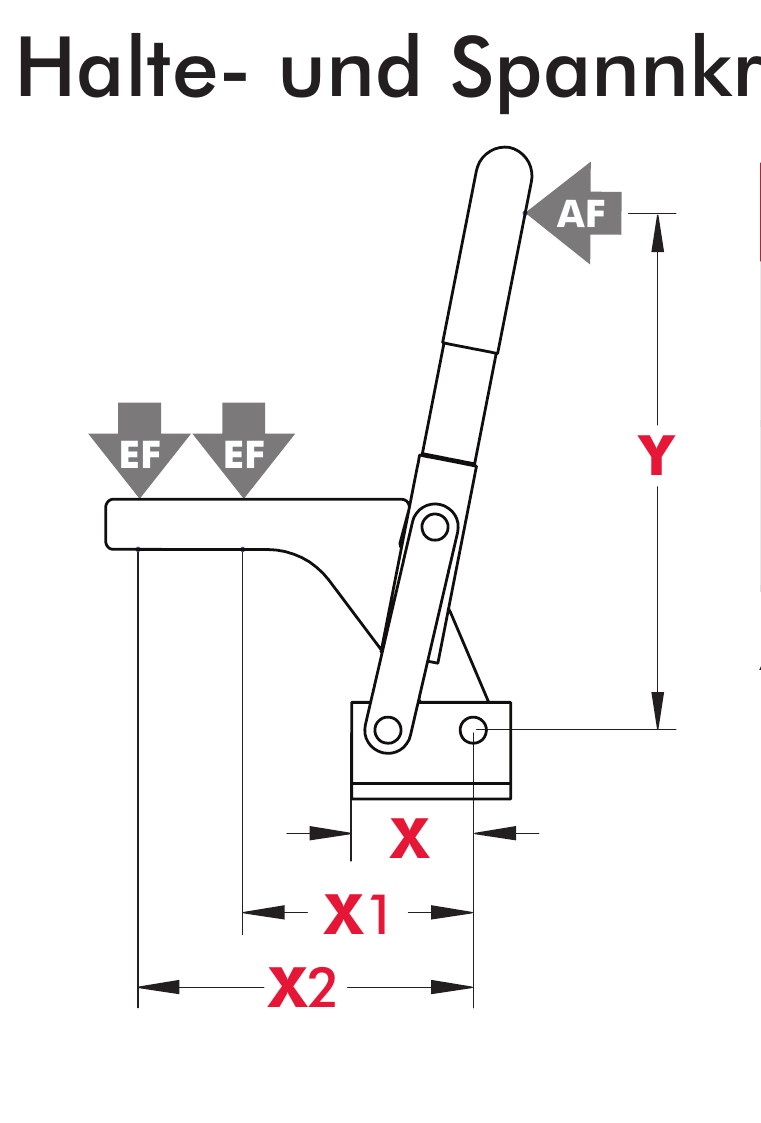

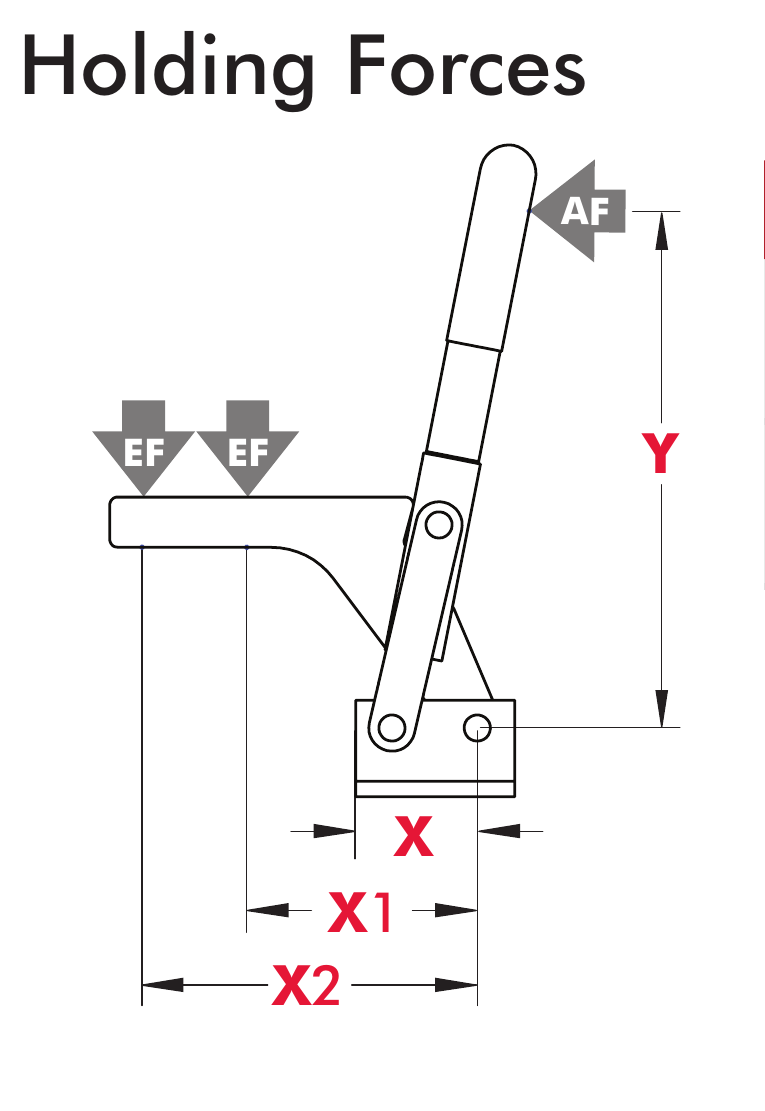

Mechanical Advantage EF(X1):AF
15:1
Mechanical Advantage EF(X2):AF
10:1
Max Holding Capacity1150 lbf (5100 N)
Holding Capacity HC11150 lbf (5100 N)
Holding Capacity HC2700 lbf (3100 N)
Mechanical Advantage EF(X1):AF15:1
Mechanical Advantage EF(X2):AF10:1

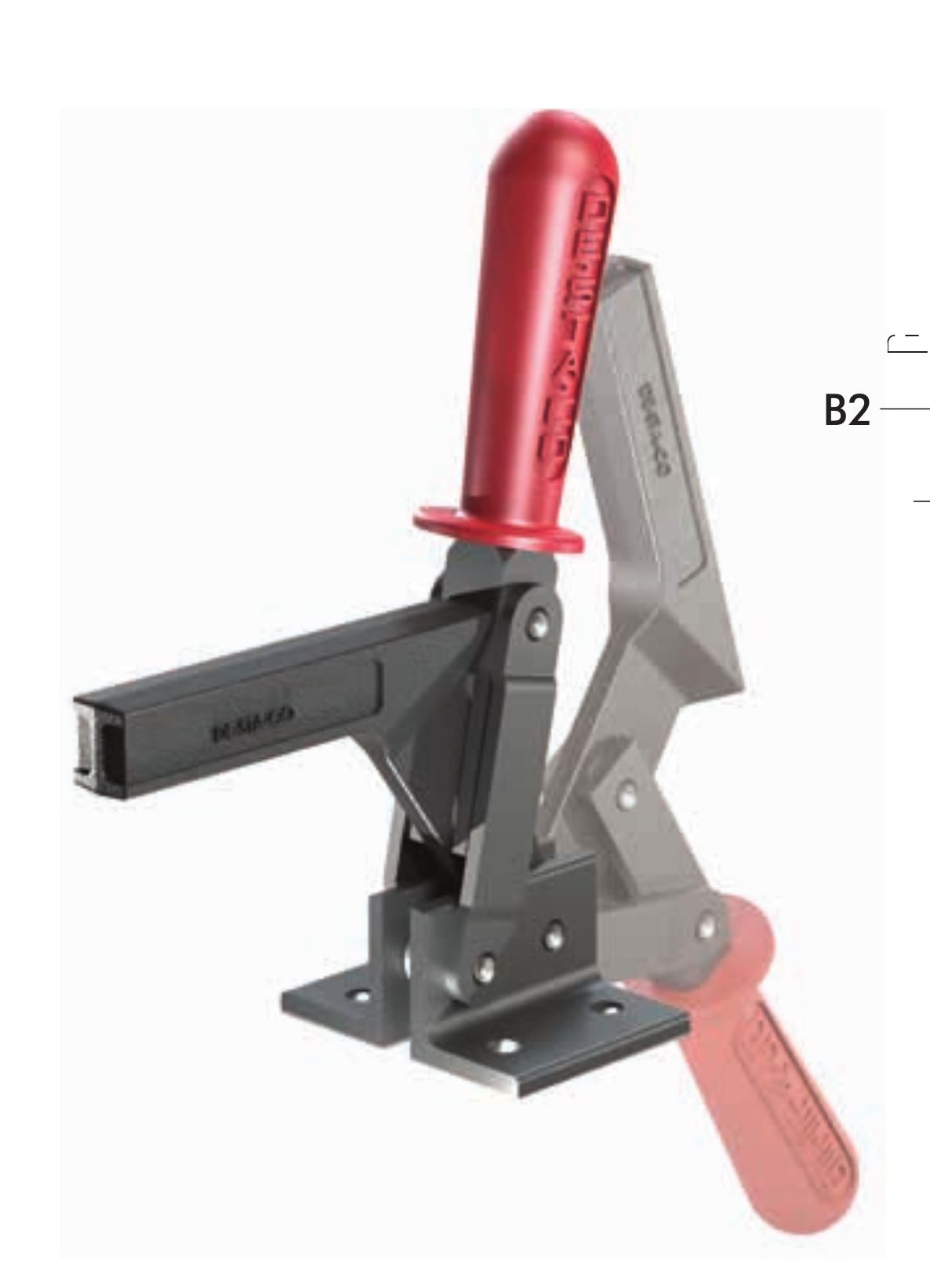

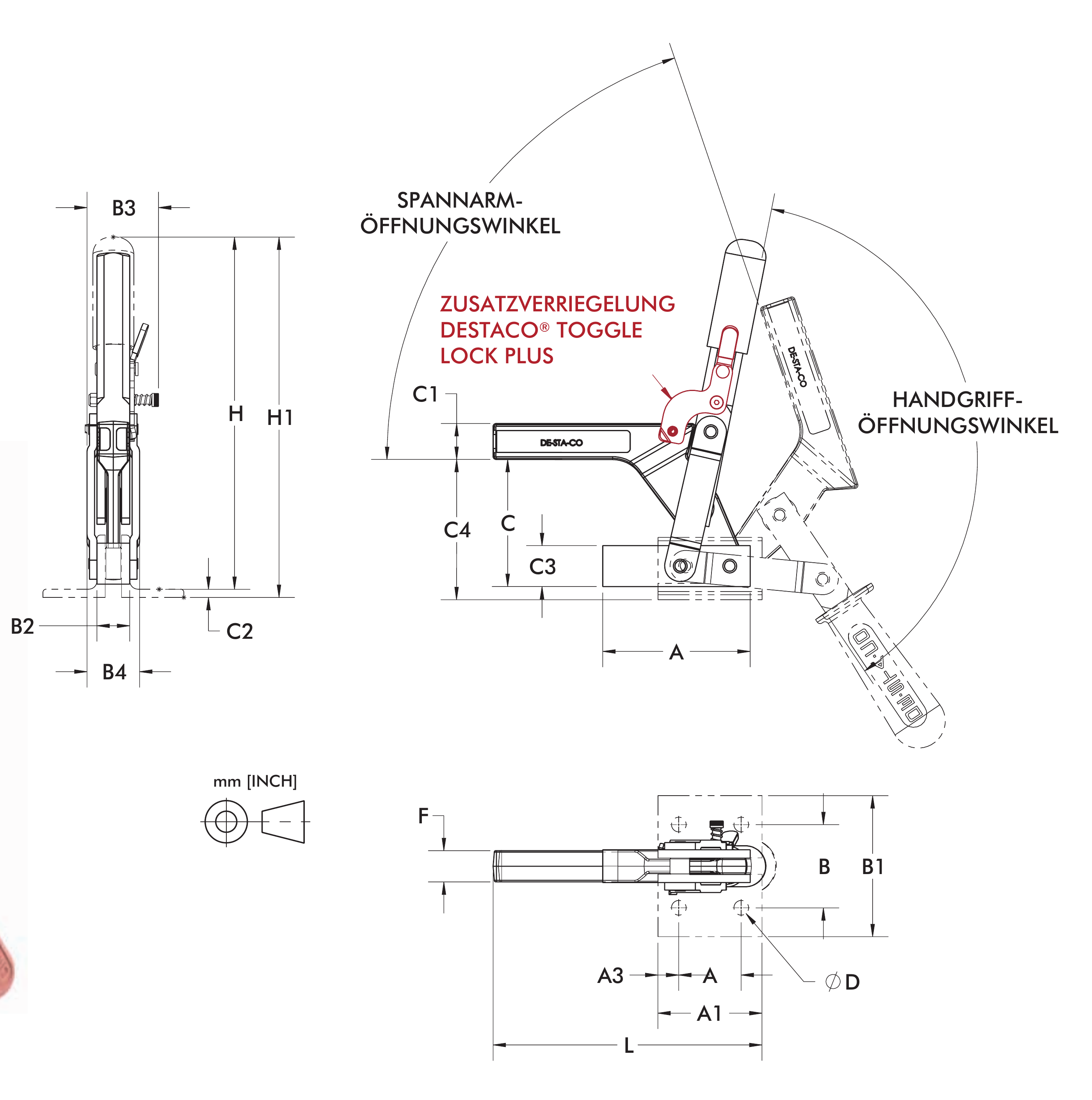

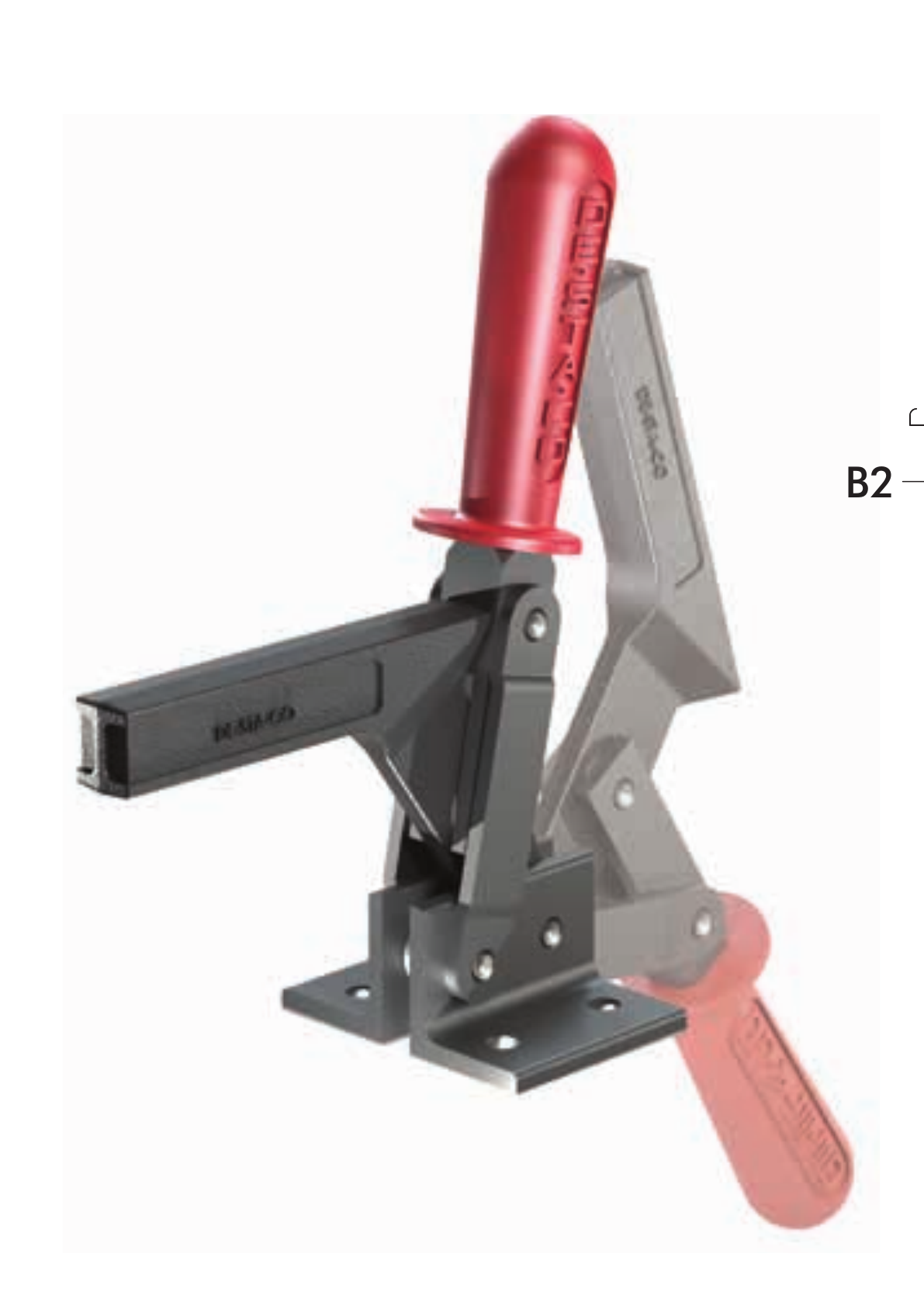

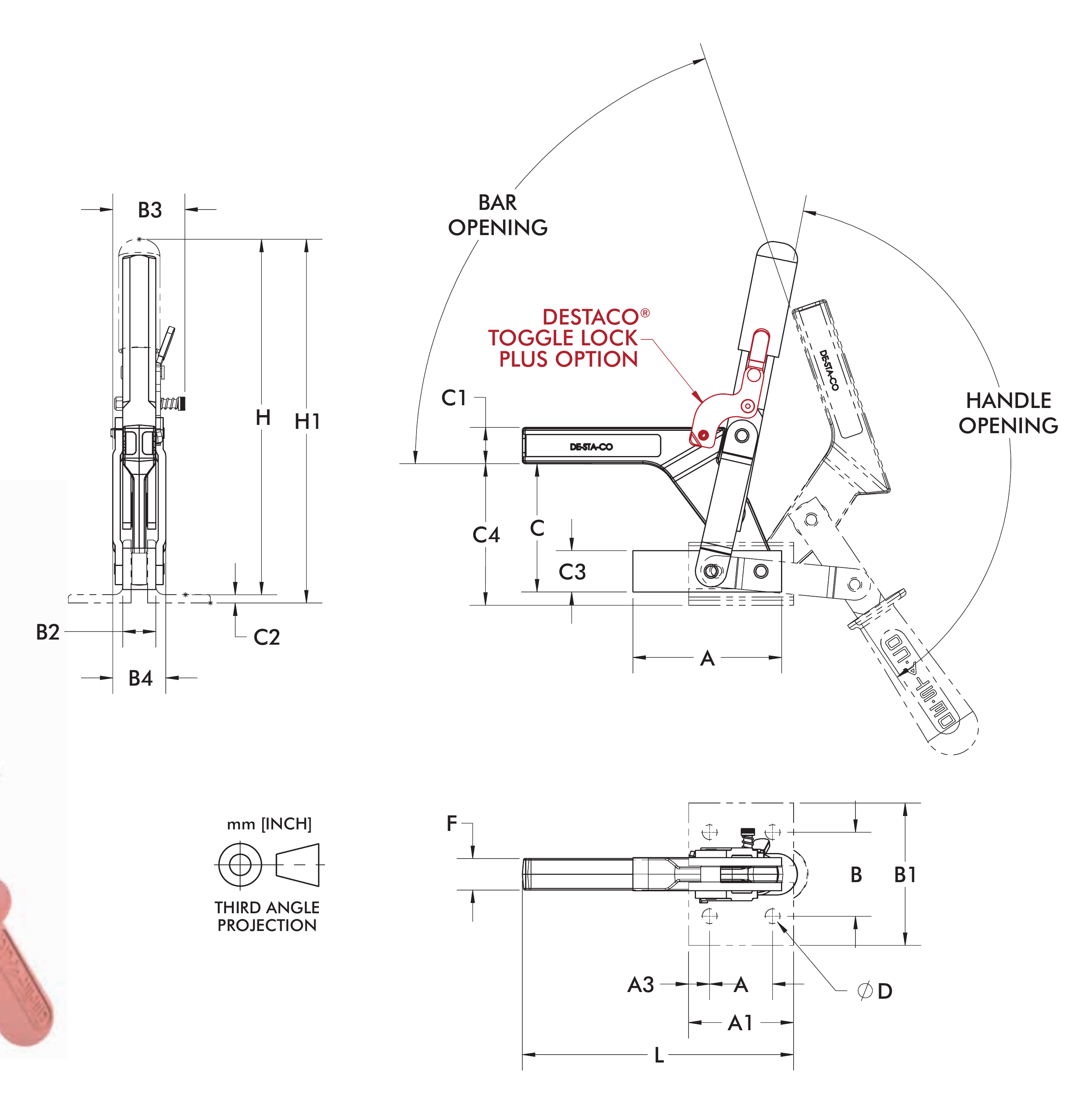

Handle Opening Angle138 degree
Clamp Bar Opening Angle74 degree
MaterialForged Steel
Arm StyleSolid Bar
Arm Length4.83 inch
Base Length2.5 inch
Base Width2.76 inch
