The Destaco 375-BR is in our catalogue: Mechanical Advantage 44:1, Max Holding Capacity 4000 lbf (17800 N), Hook Adjustable Range 0.81 in (20.5 mm).

ChatMRO can make mistakes, so double check it

In stockPull Action Latch Clamp with Toggle Lock Plus, 4000 lbf Holding Capacity
Destaco · 375-BR

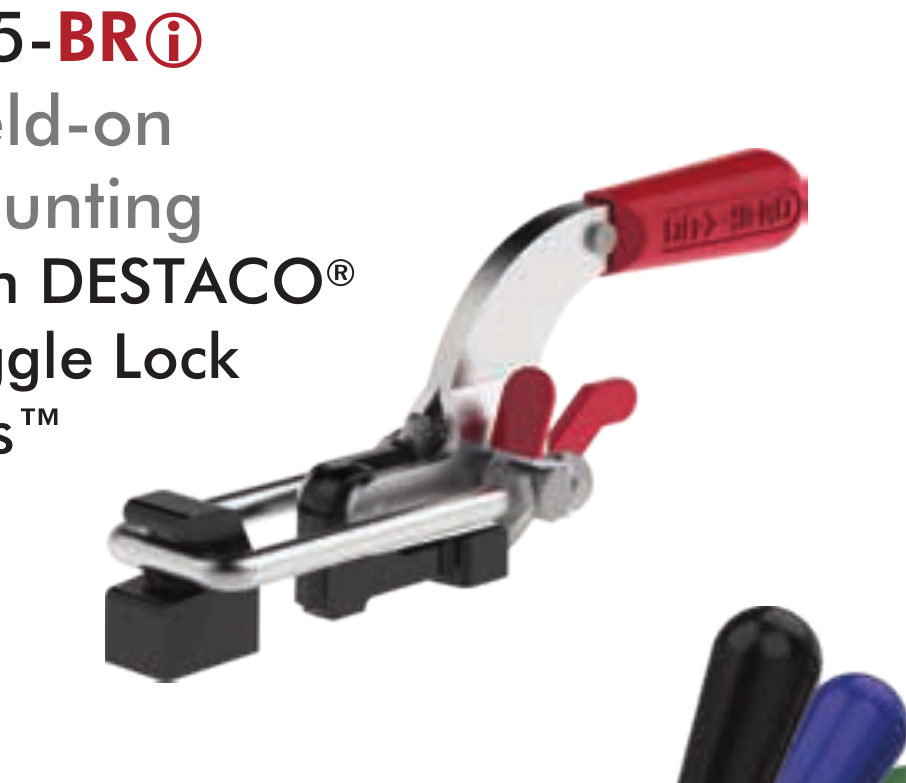

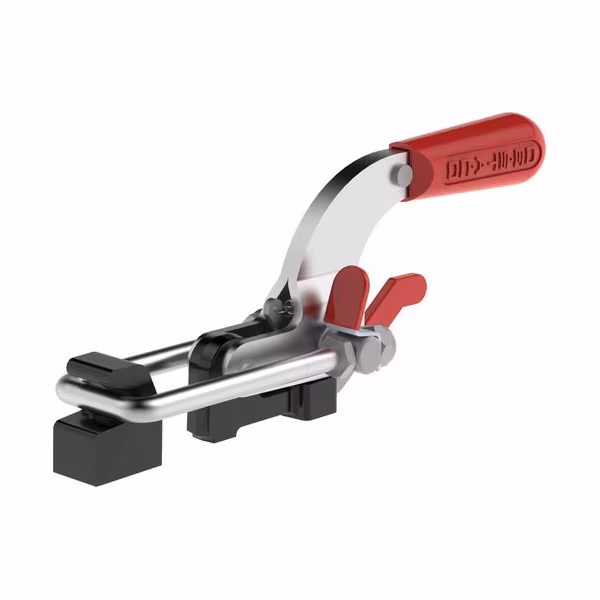

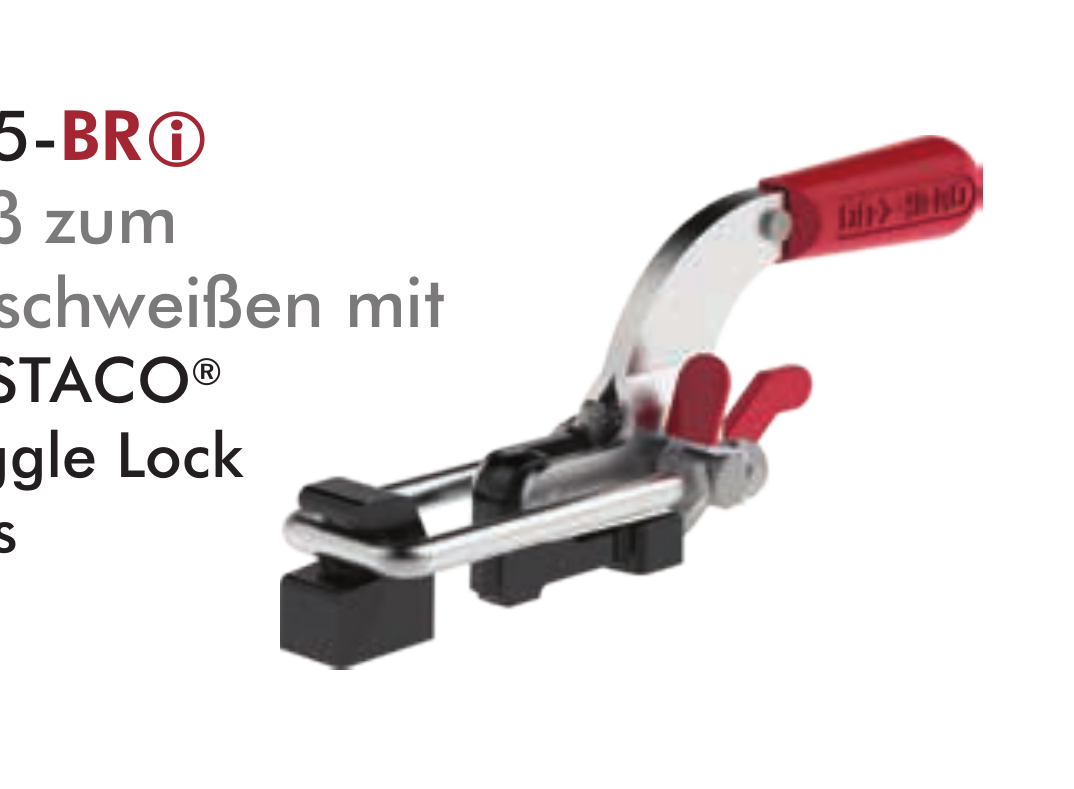

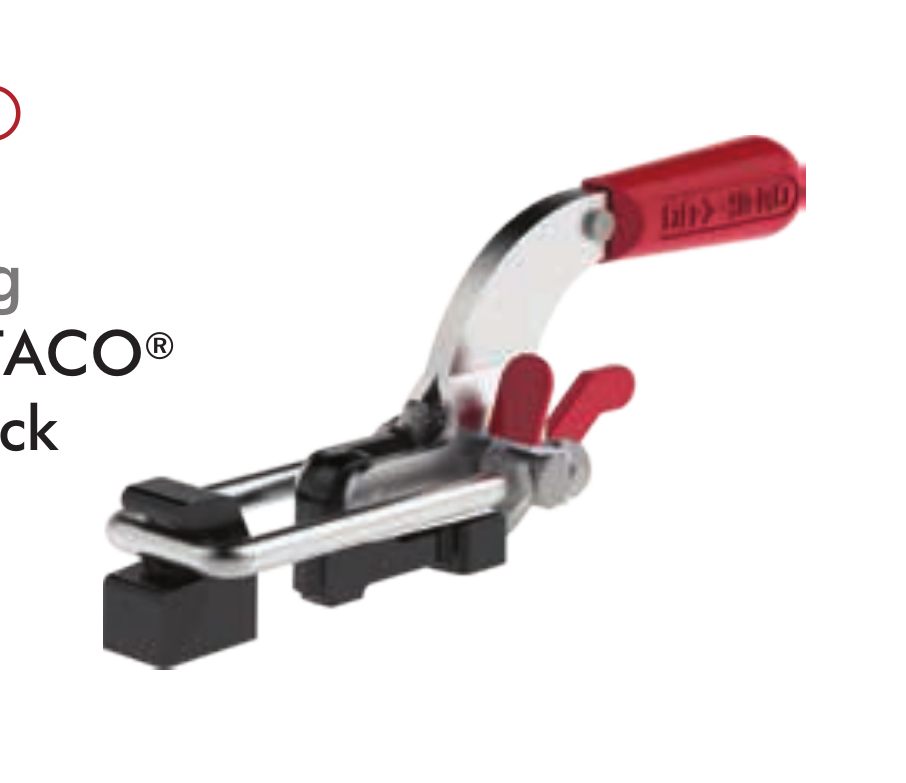

Pull Action Latch Clamp with Toggle Lock Plus, 4000 lbf Holding Capacity

$ 254.01per unit · ex. VAT
DESTACO 375-BR Pull Action Latch Clamp features a weld-on base and Toggle Lock Plus technology for secure locking. It delivers a 4000 lbf holding capacity with a 44:1 mechanical advantage. Designed for industrial applications requiring reliable clamping performance.
Mechanical Advantage
44:1
Max Holding Capacity
4000 lbf (17800 N)
Weight
2.62 lbs (1.19 kg)
Hook Adjustable Range
0.81 in (20.5 mm)
Stroke Length
3.50 in (88.9 mm)
Mechanical Advantage44:1
Max Holding Capacity4000 lbf (17800 N)
Hook Adjustable Range0.81 in (20.5 mm)
Stroke Length3.50 in (88.9 mm)
MaterialSteel
Mounting TypeWeld-On Base
Toggle Lock PlusYes
