The Destaco 375 is in our catalogue: Max Holding Capacity 4000 lbf (17800 N), Drawing Movement 3.50 inch (88.9 mm), Hook Adjustable Range 0.81 inch (20.5 mm).
ChatMRO can make mistakes, so double check it
In stock
Destaco · 375

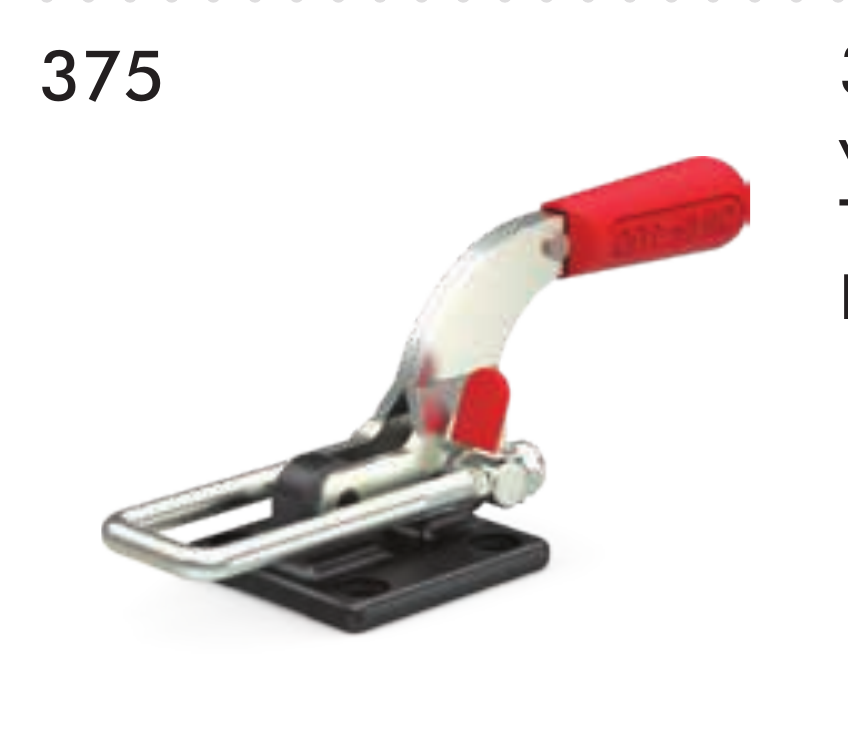

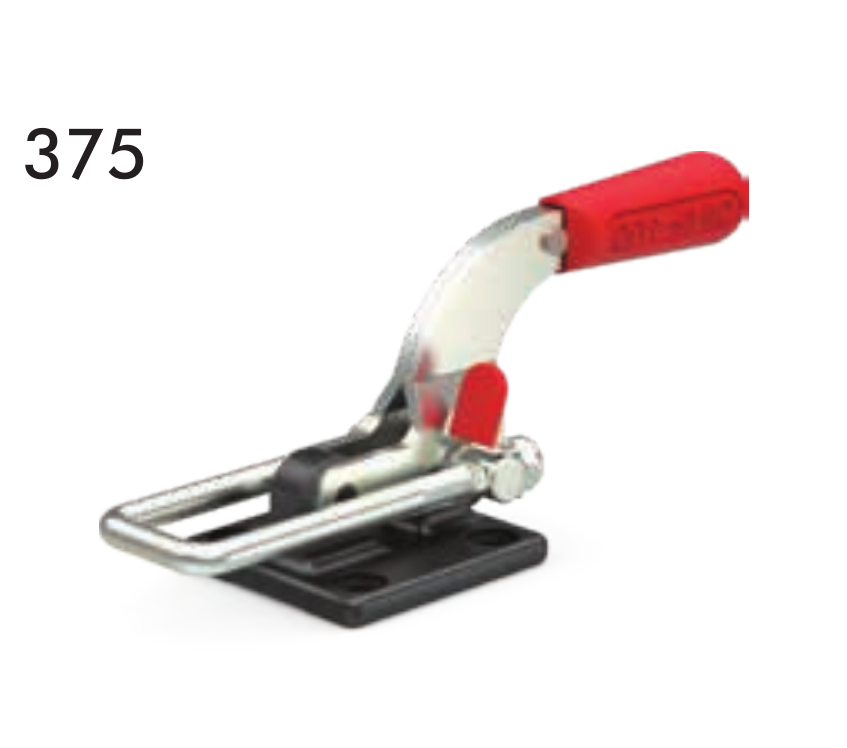

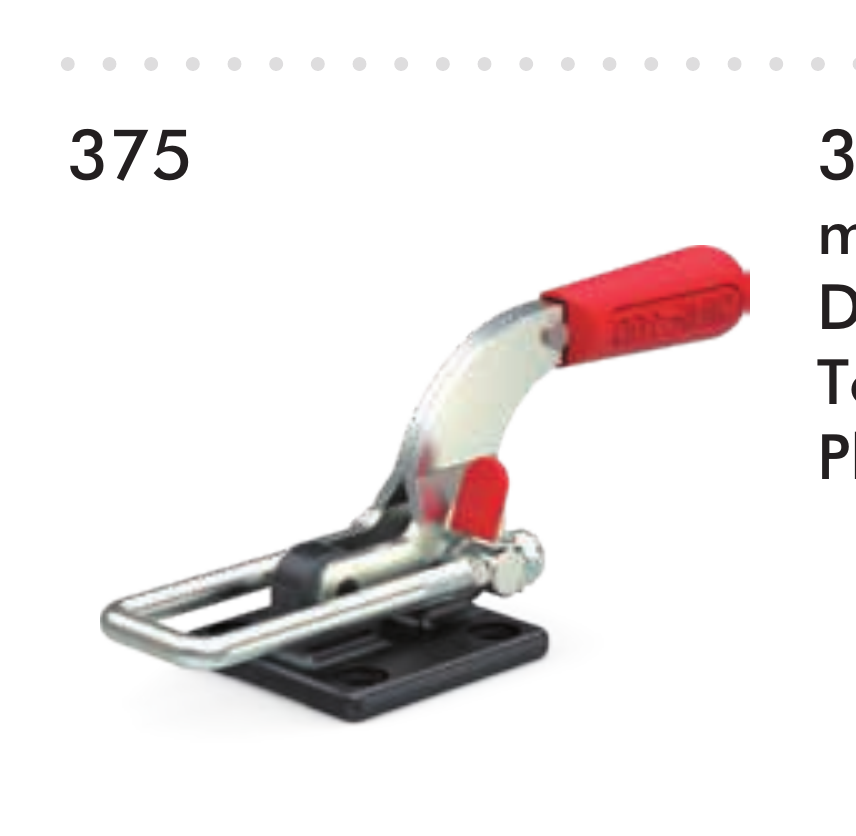

Pull Action Latch Clamp With U-Hook And Flanged Base
$140.94per unit · ex. VAT
Heavy-duty pull action latch clamp with U-hook and flanged base, designed for high holding capacity and easy one-handed operation. Features a threaded U-hook for simple adjustment and a patented lifter mechanism. Constructed from steel for durability in industrial applications.
Max Holding Capacity
4000 lbf (17800 N)
Drawing Movement
3.50 inch (88.9 mm)
Hook Adjustable Range
0.81 inch (20.5 mm)
Mechanical Advantage
44:1
Weight
2.94 lbs (1.33 kg)
Max Holding Capacity4000 lbf (17800 N)
Drawing Movement3.50 inch (88.9 mm)
Hook Adjustable Range0.81 inch (20.5 mm)
Mechanical Advantage44:1
Base Mounting StyleFlange
Handle OrientationHorizontal
Lever TypeThumb Control, Locking Release
IncludesThreaded U-Hook, Patented Thumb Control Lever
Weight2.98 lb
Dimensions9.3 in × 15 in × 4 in
MOQ1
Drawings

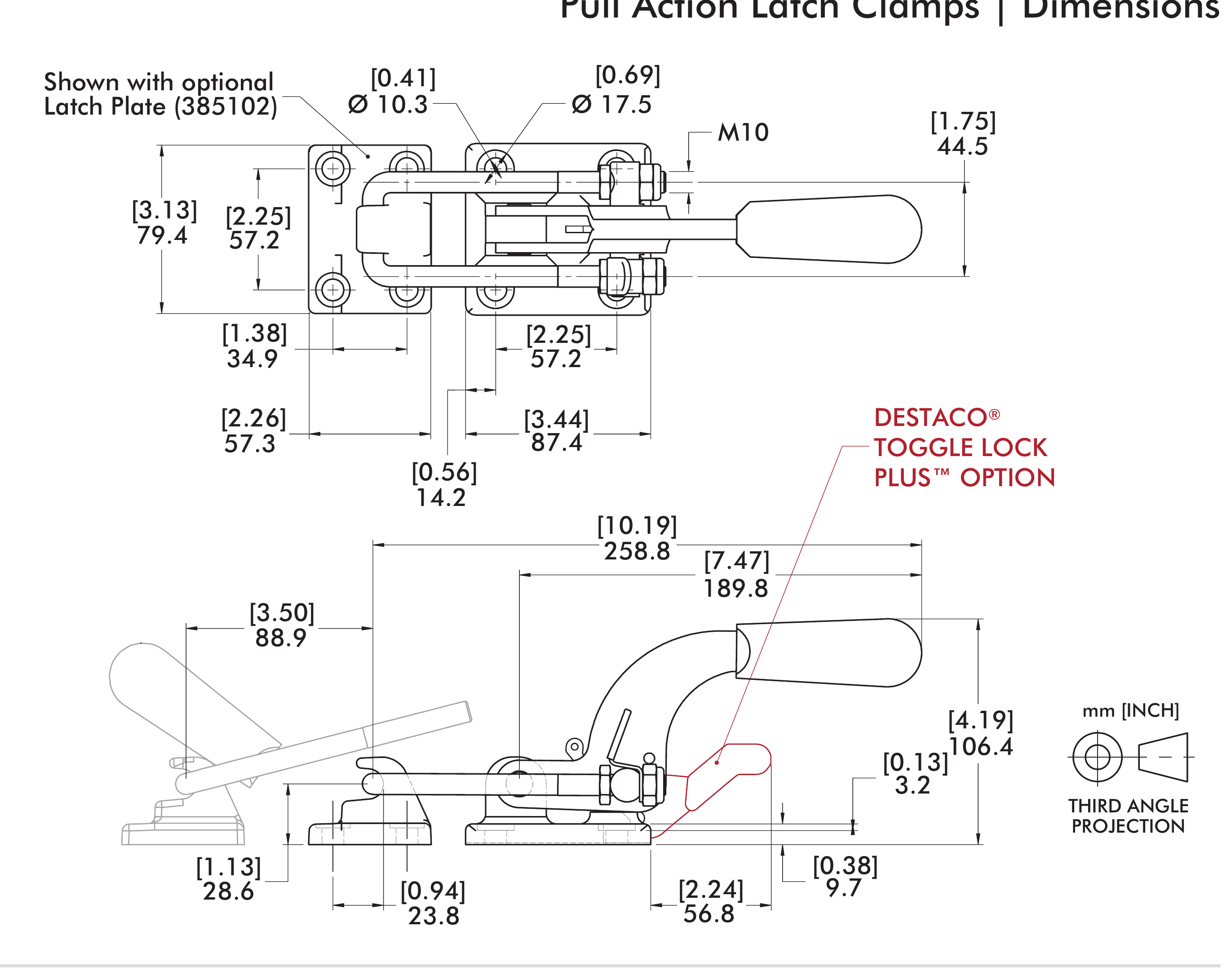

Engineering diagram for models 375 and 375-R with dimensions
Drawings

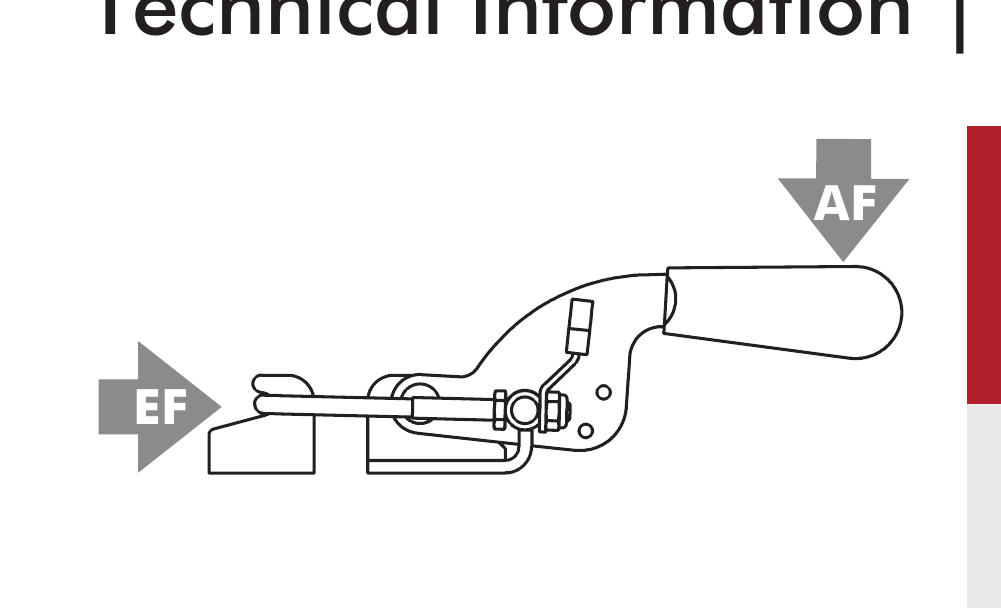

Diagram showing Exerting Force (EF) and Applied Force (AF)
Drawings

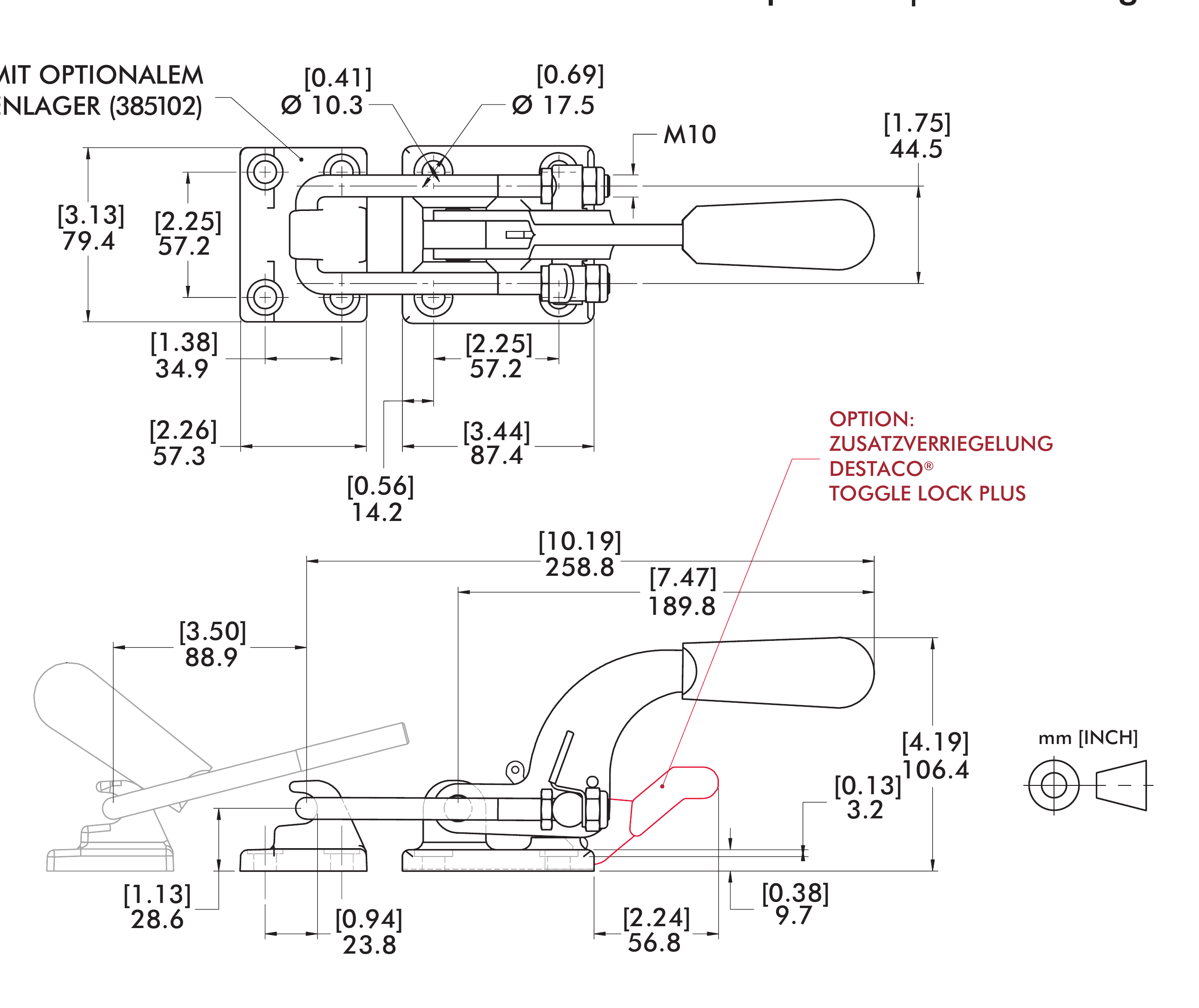

Engineering diagram for models 375 and 375-R with dimensions
