The Destaco 331-RSS is in our catalogue: Max. Holding Capacity 720 lbf (3200 N), EF:AF 32:1, Hook Adj. Range 0.87 in (22.1 mm).

ChatMRO can make mistakes, so double check it

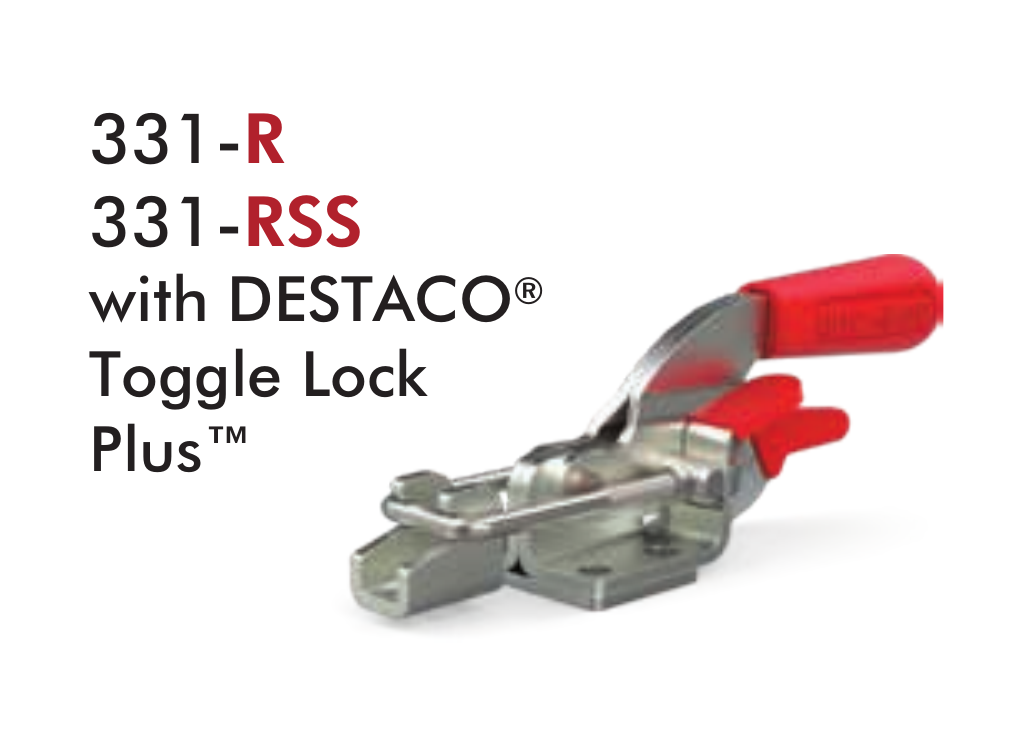

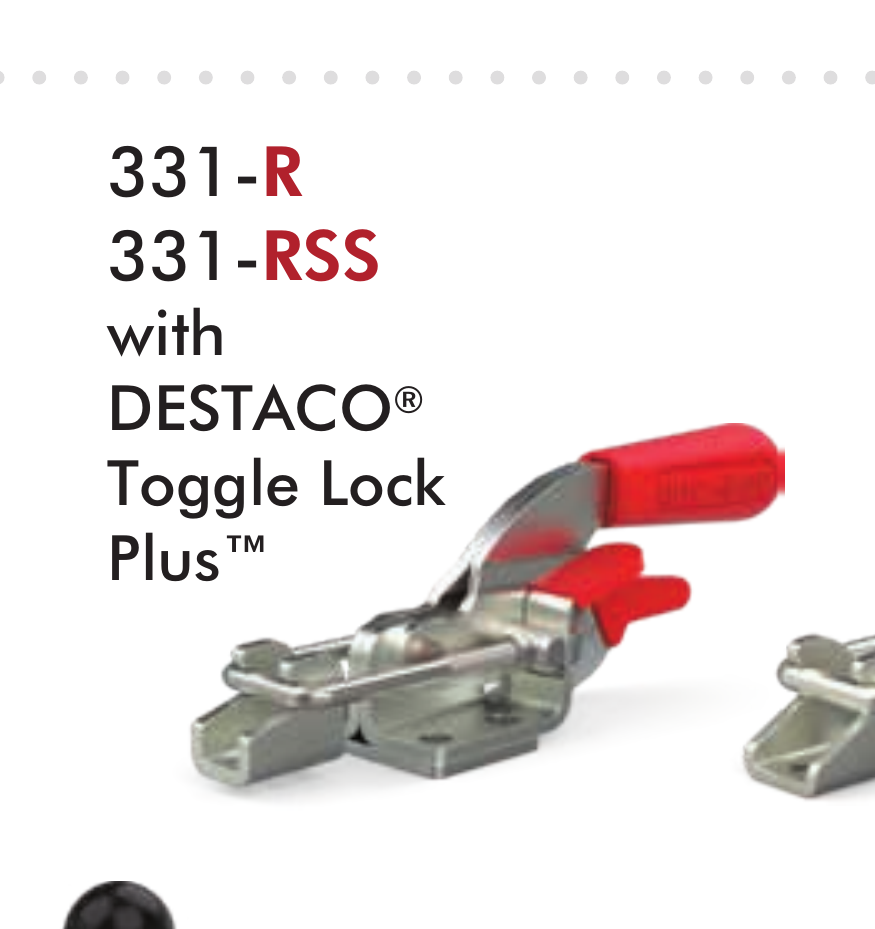

In stockPull Action Latch Clamp with Toggle Lock Plus and Stainless Steel Construction
Destaco · 331-RSS

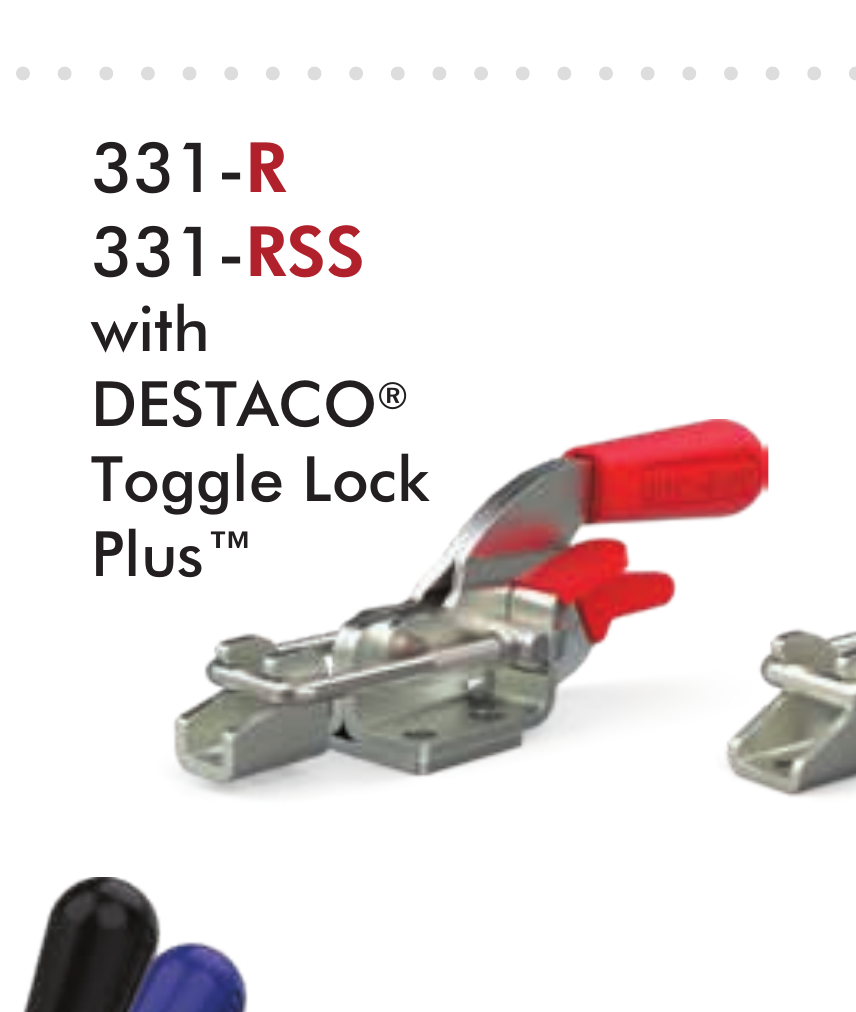

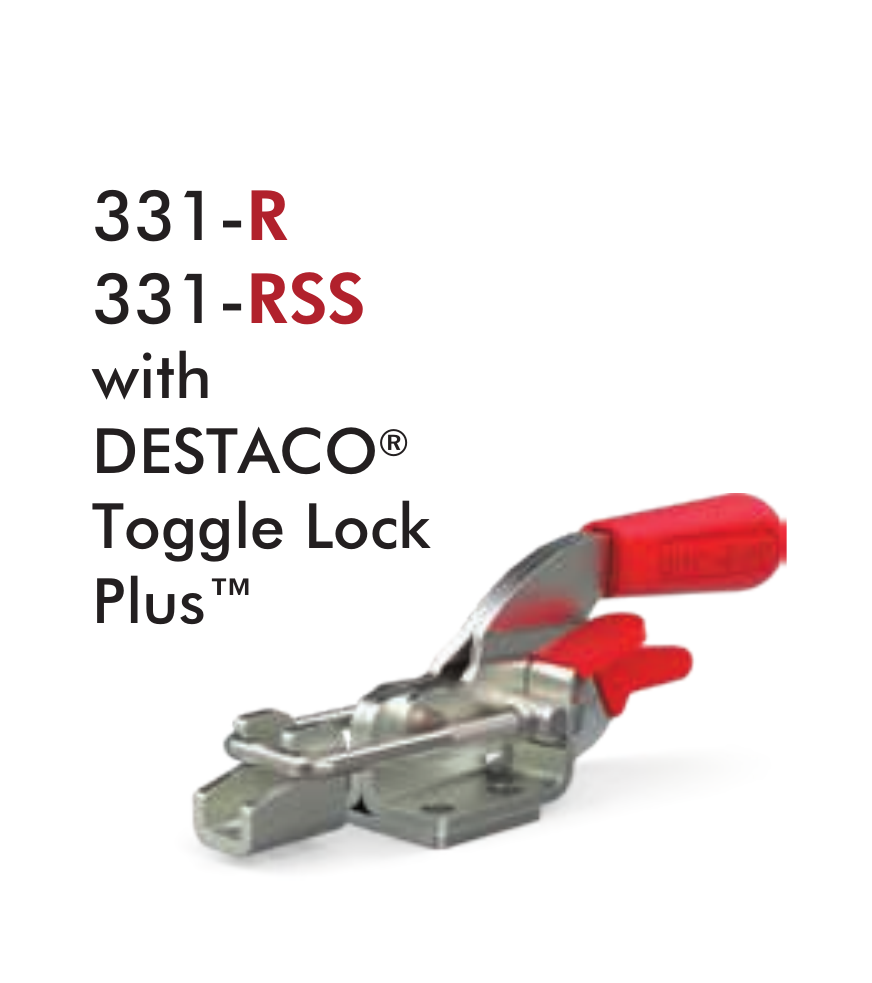

Pull Action Latch Clamp with Toggle Lock Plus and Stainless Steel Construction

$ 111.66per unit · ex. VAT
U-hook style latch clamp featuring DESTACO® Toggle Lock Plus™ technology and stainless steel construction. Designed for one-handed operation with a patented thumb control lever. Includes latch plate and threaded U-hooks for adjustable positioning. Offers a 32:1 mechanical advantage and 720 lbf maximum holding capacity.
Max. Holding Capacity
720 lbf (3200 N)
EF:AF
32:1
Weight
0.56 lbs (0.25 kg)
Hook Adj. Range
0.87 in (22.1 mm)

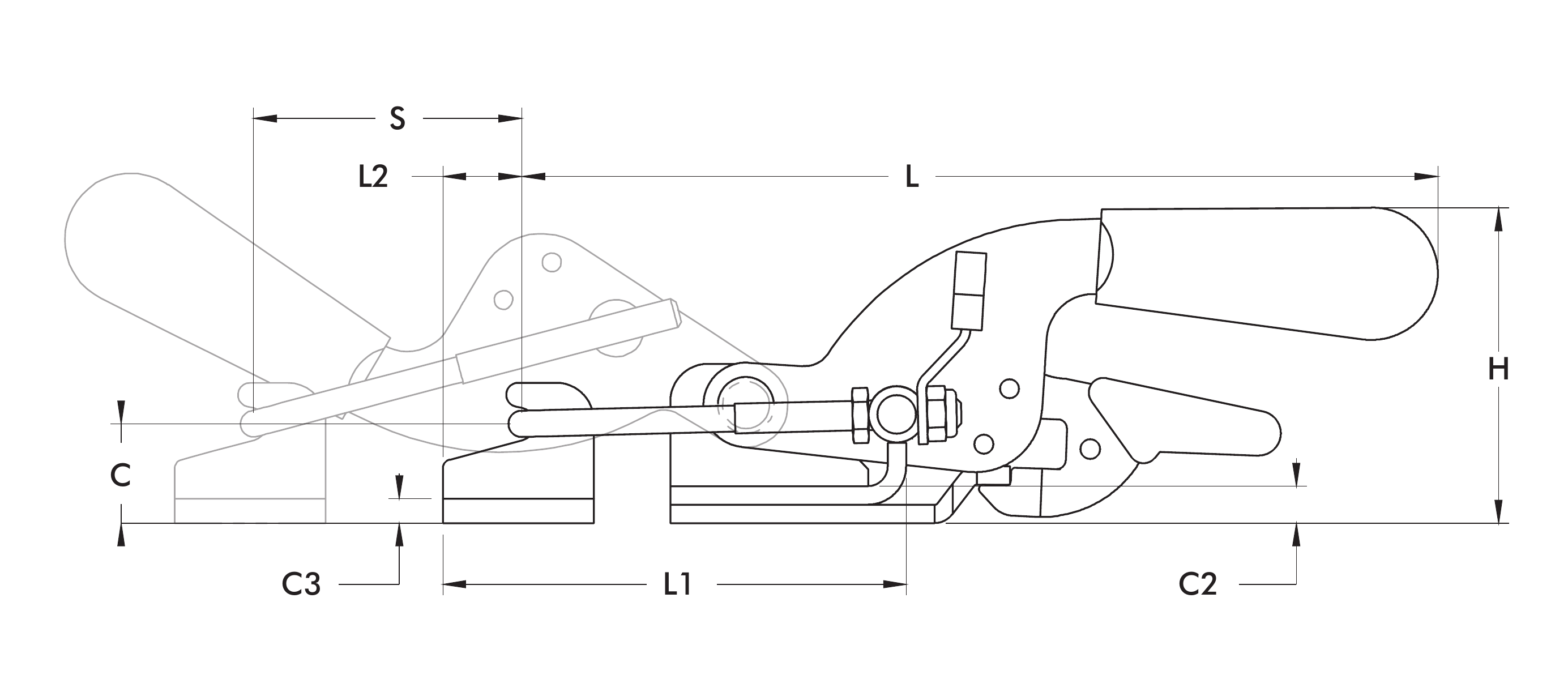

Drawing Movement
1.75 in (44.5 mm)
Max. Holding Capacity720 lbf (3200 N)
EF:AF32:1
Hook Adj. Range0.87 in (22.1 mm)
Drawing Movement1.75 in (44.5 mm)
MaterialStainless Steel
Mounting StyleFlange
Handle OrientationHorizontal
Includes Latch PlateYes
Toggle Lock PlusYes
Overall Height2.01 in
Diameter0.27 in
