The Destaco 323-R-M-25 is in our catalogue: Max. Holding Capacity 360 lbf (1600 N), Drawing Movement 1.17 in (29.7 mm), Hook Adj. Range 0.36 in (9.1 mm).

ChatMRO can make mistakes, so double check it

In stockPull Action Latch Clamp with 25mm Longer Hook
Destaco · 323-R-M-25

Pull Action Latch Clamp with 25mm Longer Hook

$ 66.21per unit · ex. VAT

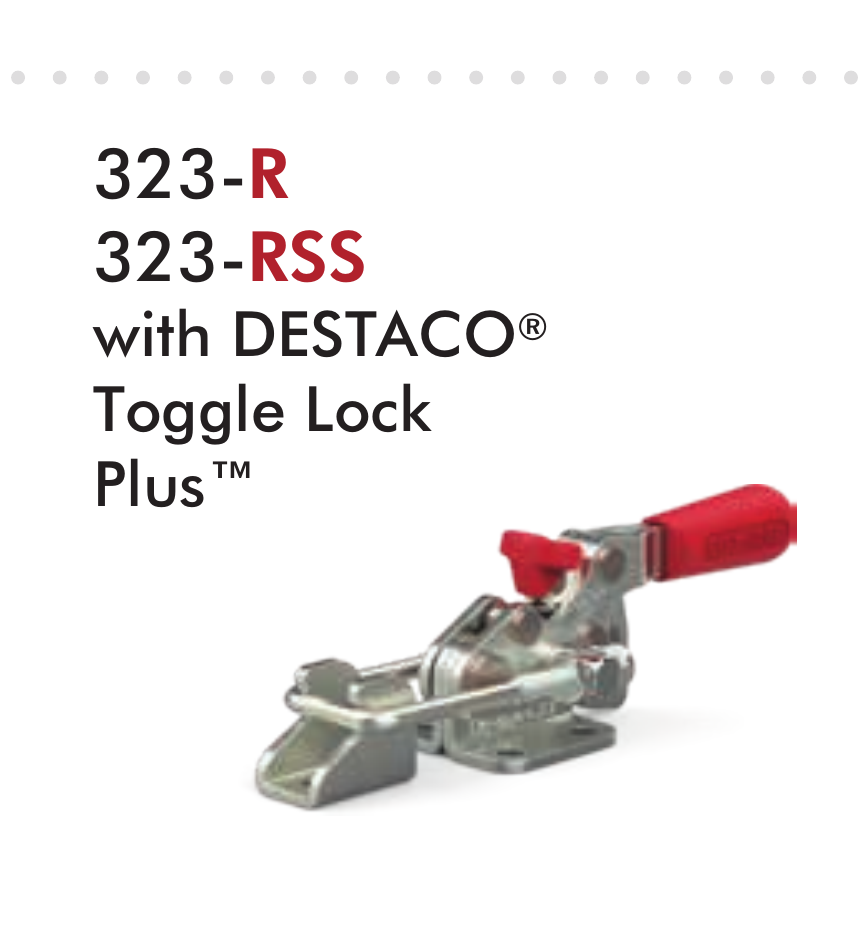

U-hook style pull action latch clamp featuring DESTACO® Toggle Lock Plus™ technology, designed for one-handed operation. Includes threaded U-hook for easy adjustment, latch plate, and patented thumb control lever. This variant has a hook extended by 25mm compared to standard length. Constructed from steel for durability.
Max. Holding Capacity
360 lbf (1600 N)
Drawing Movement
1.17 in (29.7 mm)
Hook Adj. Range
0.36 in (9.1 mm)
Weight
0.15 lbs (0.07 kg)
EF:AF
27:1
Max. Holding Capacity360 lbf (1600 N)
Drawing Movement1.17 in (29.7 mm)
Hook Adj. Range0.36 in (9.1 mm)
EF:AF27:1
MaterialSteel
Base Length1.02 inch
Base Width1.1 inch
Overall Height1.19 inch
Bar Width3/4 inch
Handle StyleStraight
Toggle Lock PlusYes
Package Quantity1
