The Destaco 323 pull action latch clamp is in our catalogue — U-hook style, flange base, 360 lbf holding capacity, with thumb control lever and 27:1 mechanical advantage.

ChatMRO can make mistakes, so double check it

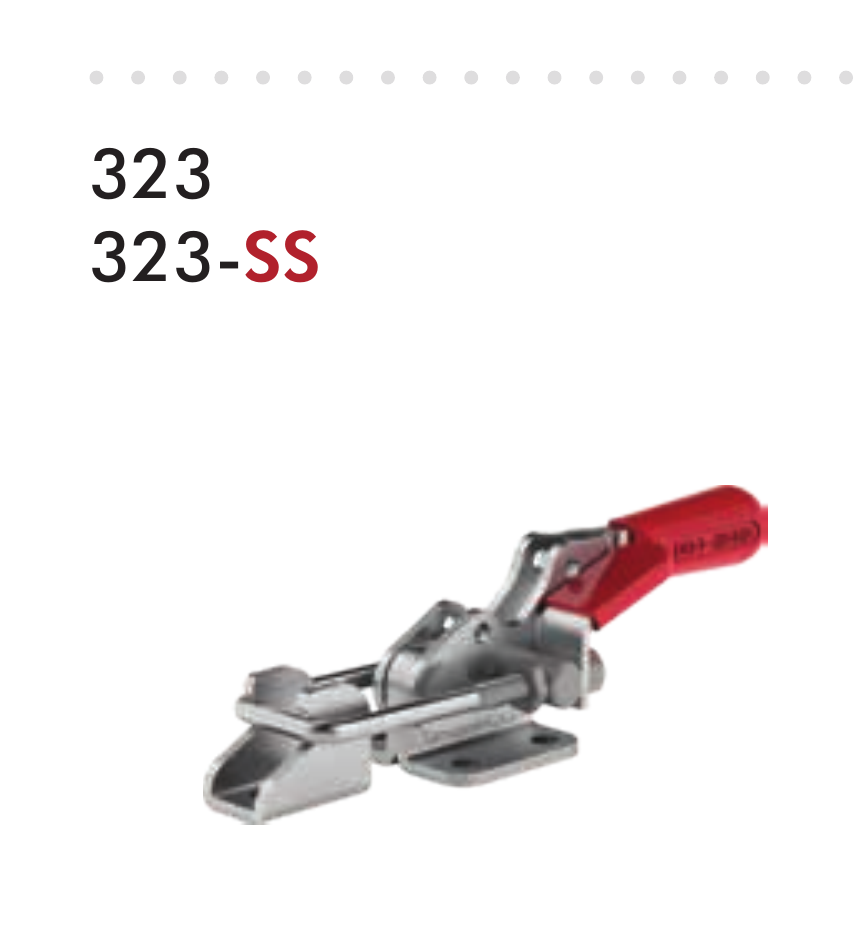

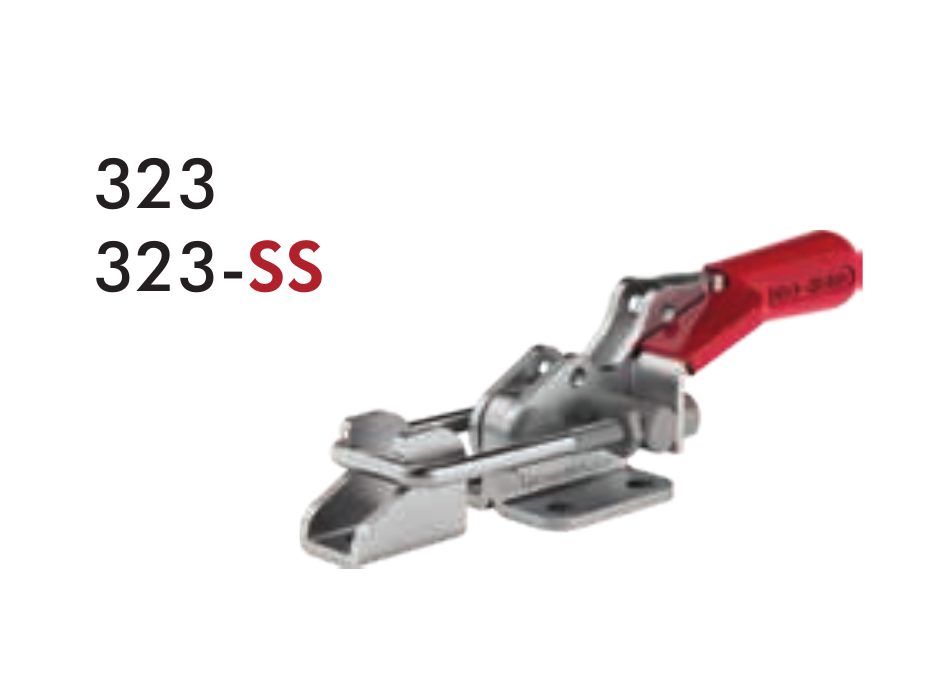

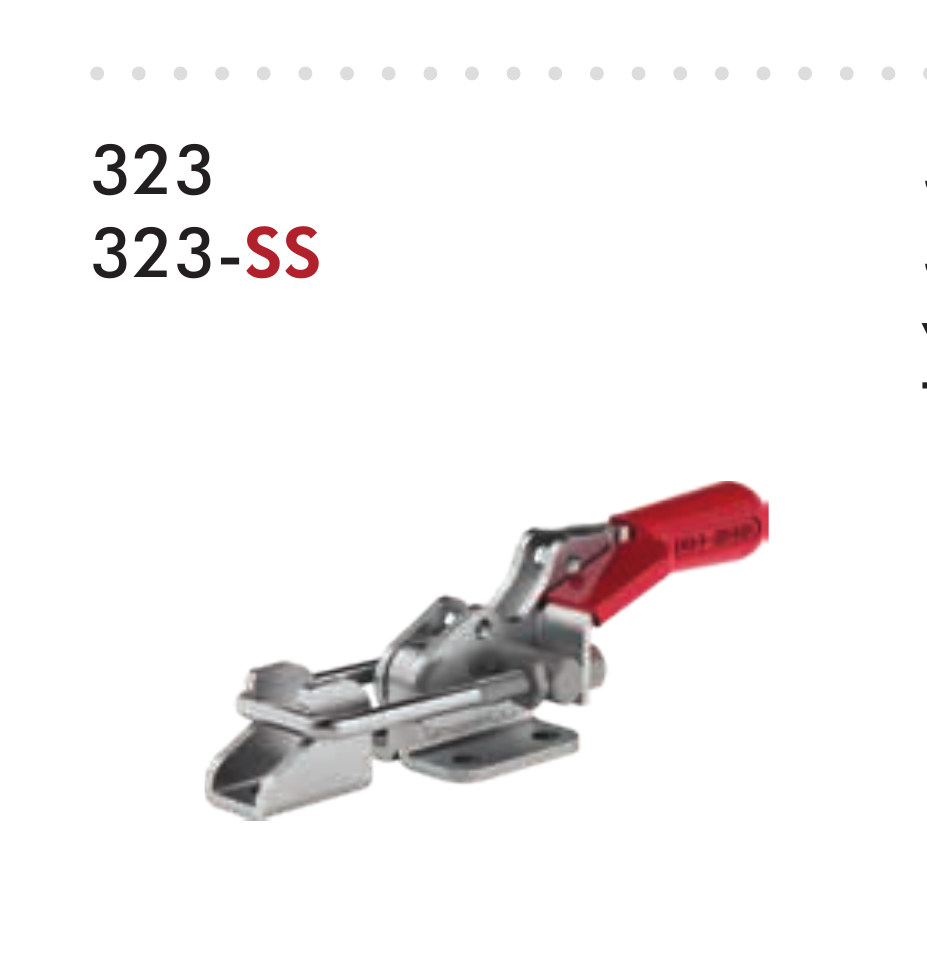

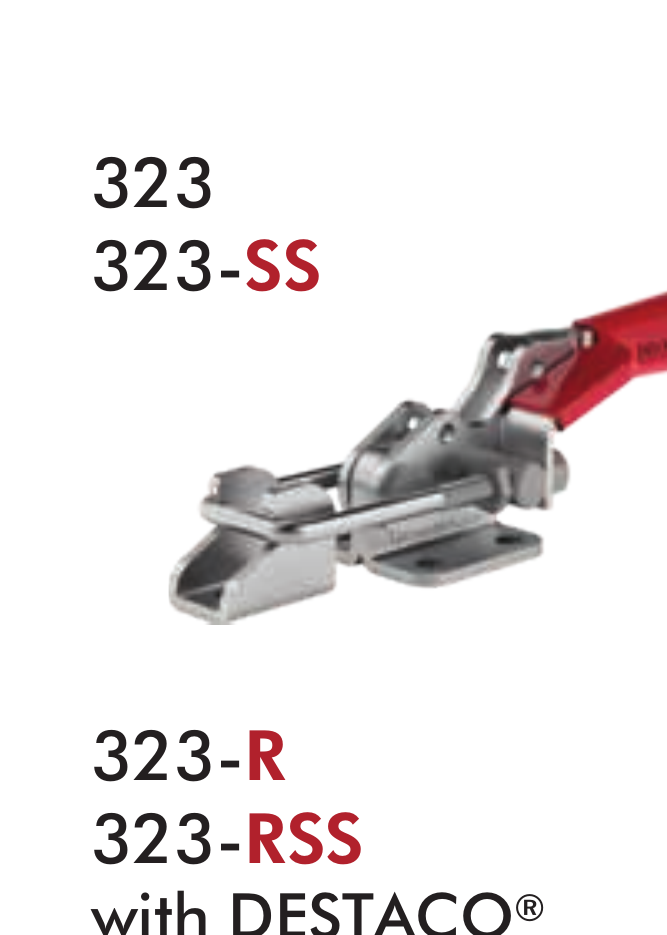

In stockPull Action Latch Clamp with U-Hook and Flange Base
Destaco · 323

Pull Action Latch Clamp with U-Hook and Flange Base

$ 30.94per unit · ex. VAT

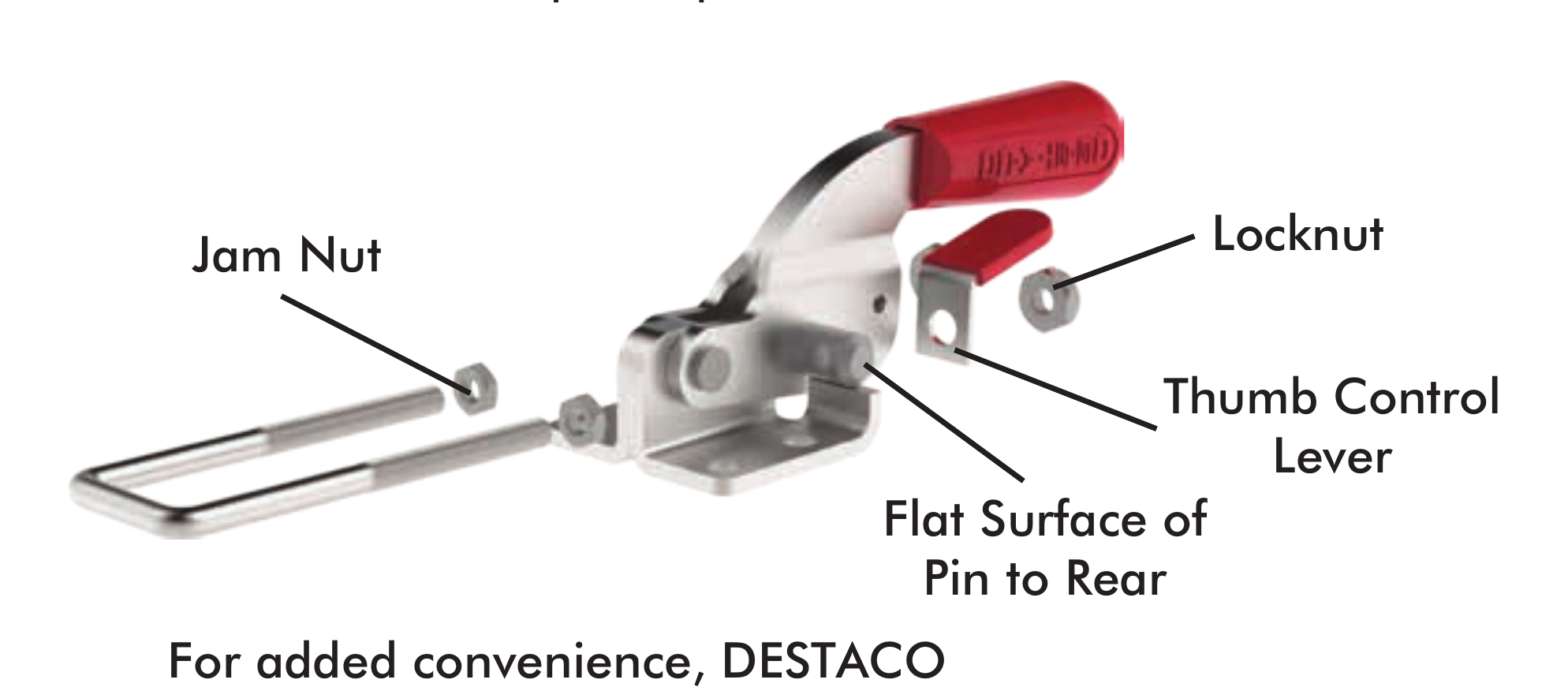

U-hook style pull action latch clamp with threaded U-hook for easy adjustment, flange base mounting, and patented thumb control lever for one-handed operation. Features a 27:1 mechanical advantage and 360 lbf maximum holding capacity. Constructed with steel body and carbon steel components.
Mechanical Advantage
27:1
Weight
0.15 lbs (0.07 kg)
Hook Adjustable Range
0.36 in (9.1 mm)
Drawing Movement
1.18 in (30 mm)

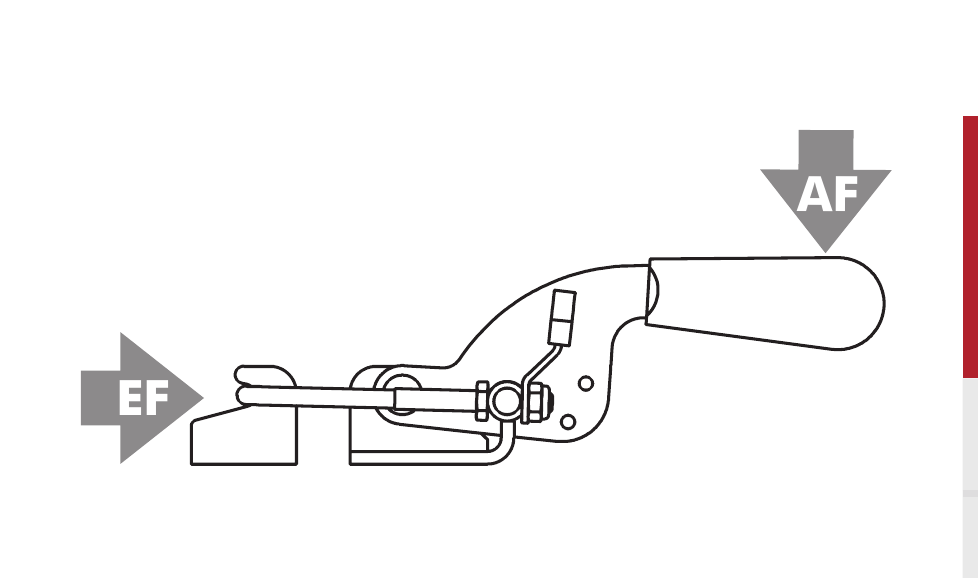

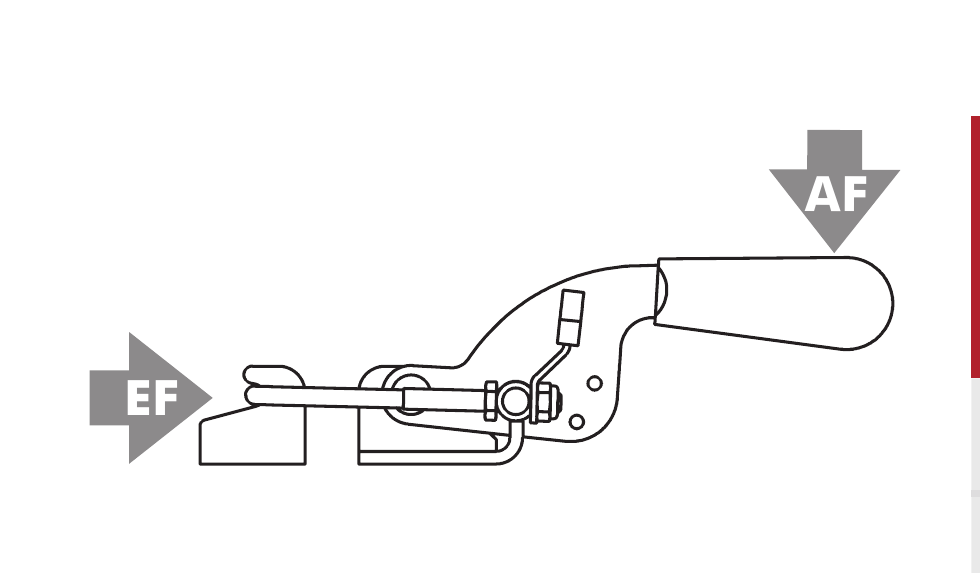

Maximum Holding Capacity
360 lbf (1600 N)
Mechanical Advantage27:1
Hook Adjustable Range0.36 in (9.1 mm)
Drawing Movement1.18 in (30 mm)
Maximum Holding Capacity360 lbf (1600 N)
Diameter0.17 in (4.2 mm)
Body MaterialSteel

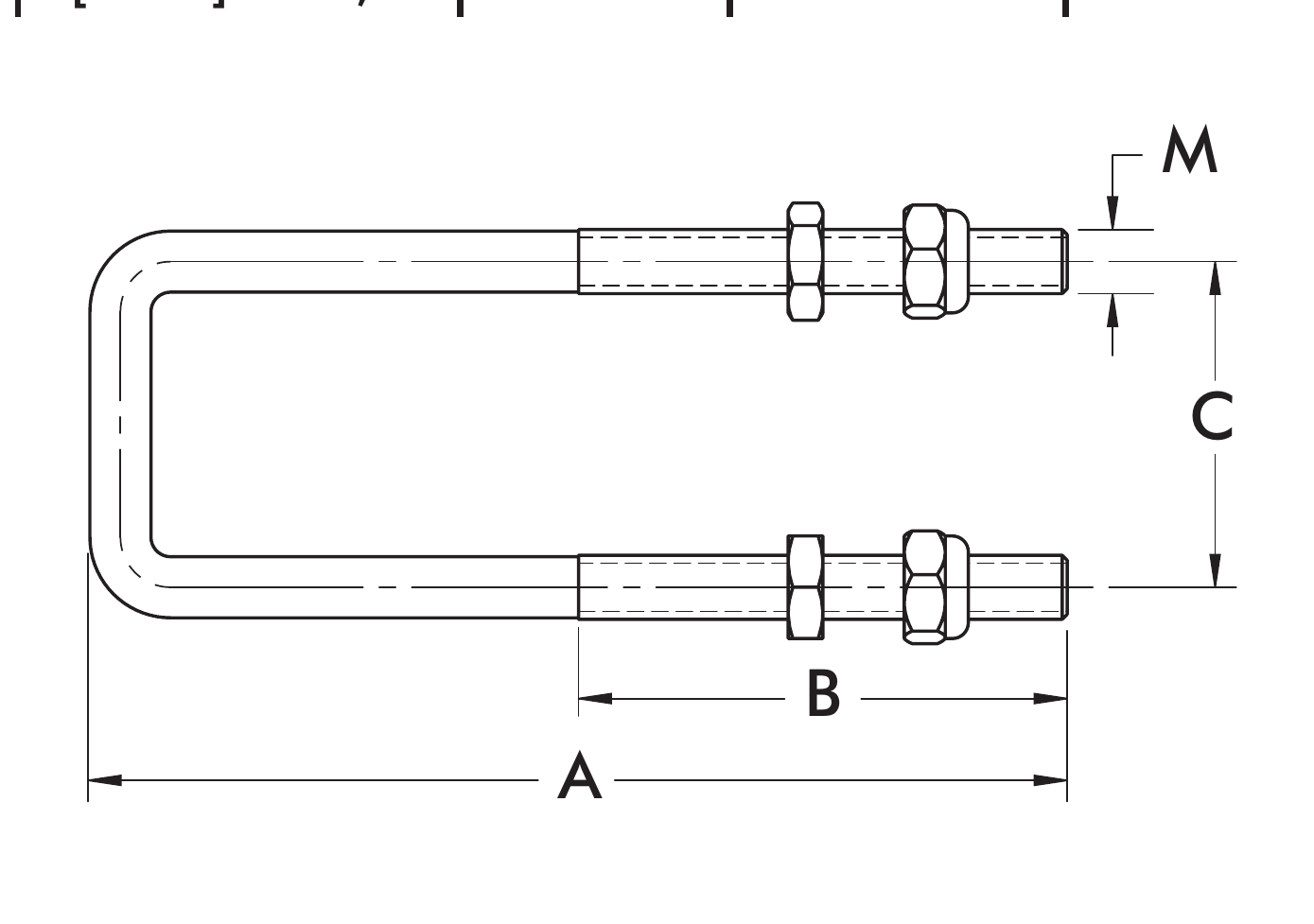

Hook TypeHorizontal U
Base Mounting StyleFlange
Handle OrientationHorizontal
Latch Release StyleManual Latch Release
Includes Latch PlateYes
Overall Depth1.19 in
