The Destaco 3051 is in our catalogue: Max Holding Capacity 1500 lbf (6700 N), Drawing Movement 0.75 in (19.1 mm), Hook Adjust Range 0.55 in (14 mm).

ChatMRO can make mistakes, so double check it

In stockPull Action Latch Clamp with J-Hook and Flanged Base
Destaco · 3051

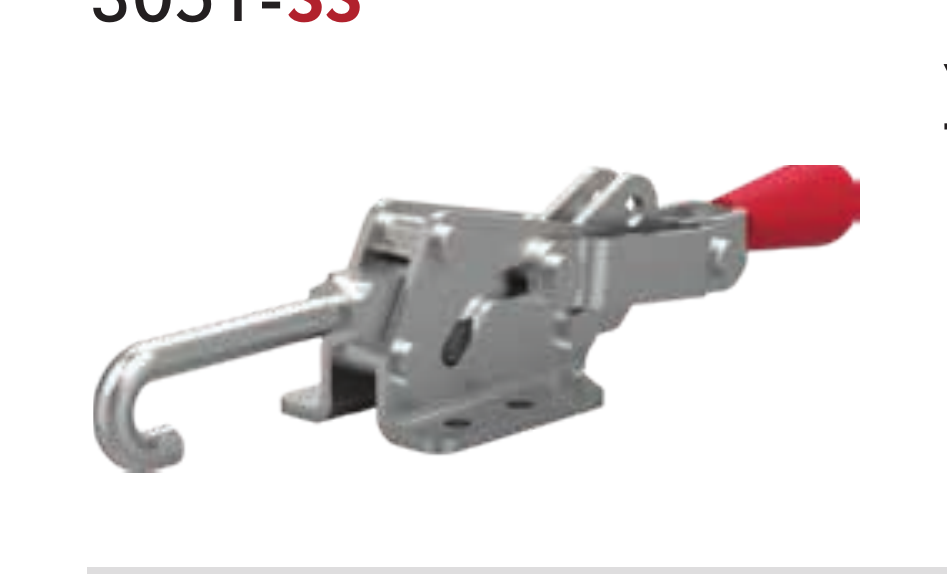

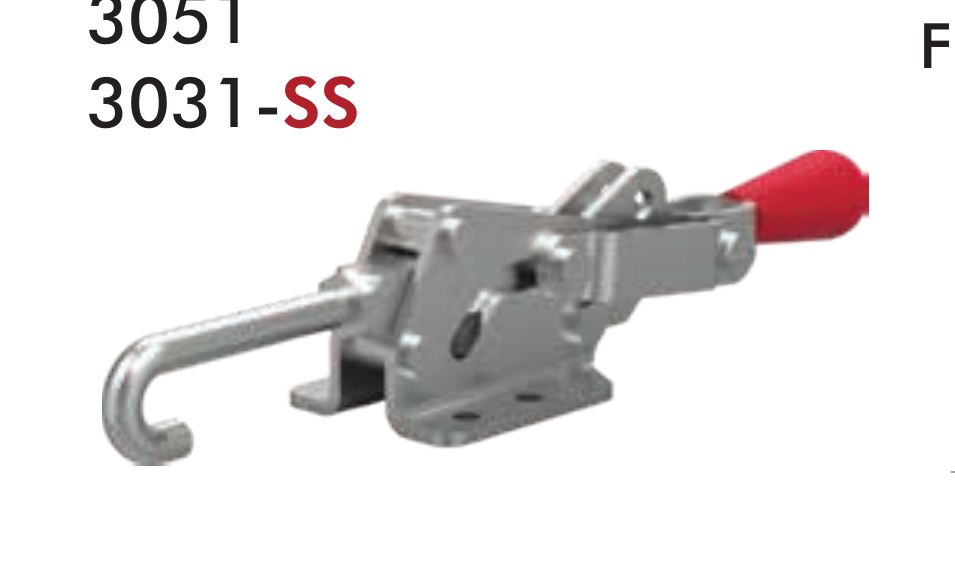

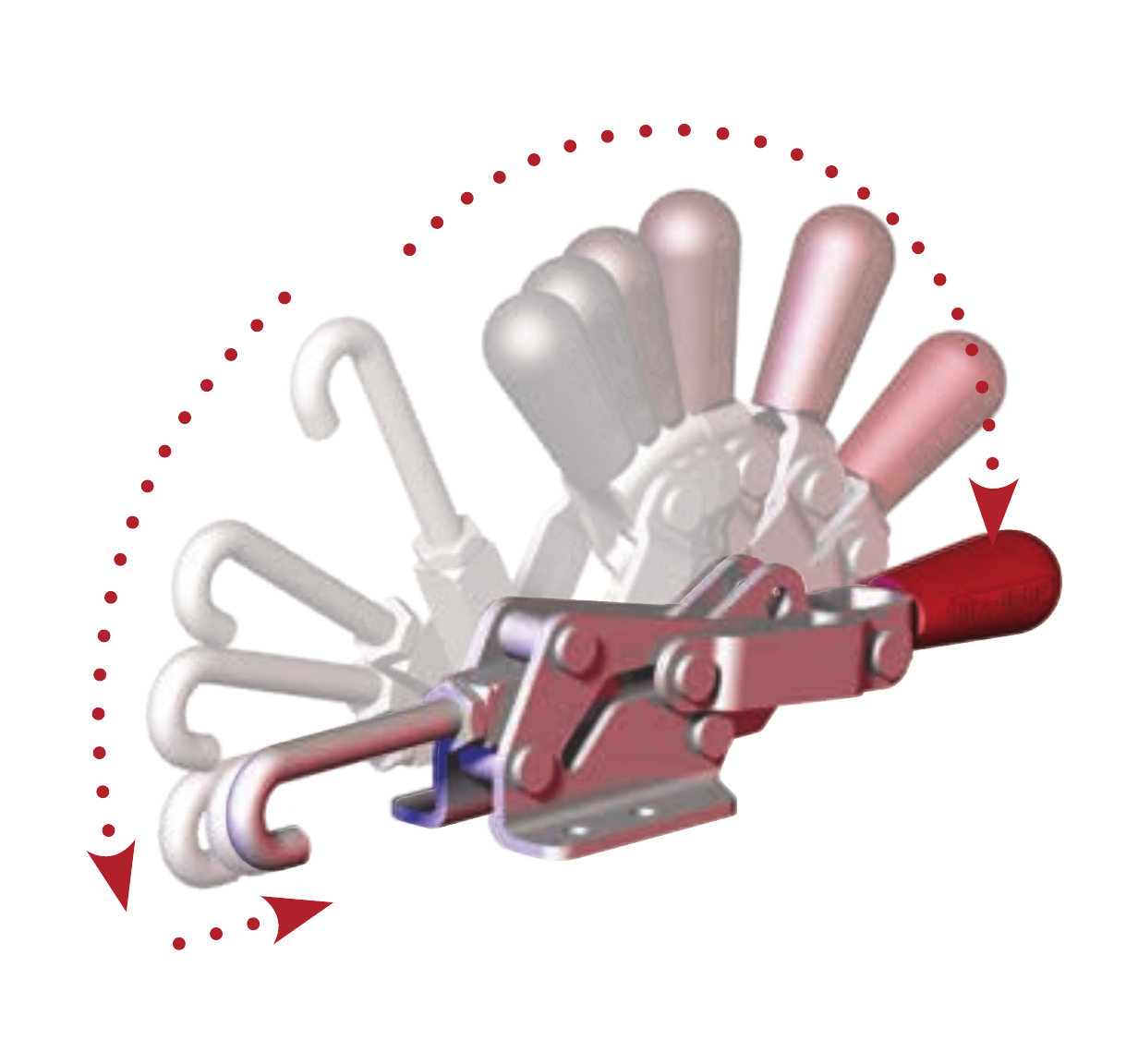

Pull Action Latch Clamp with J-Hook and Flanged Base

$ 93.59per unit · ex. VAT
DESTACO 3051 Pull Action Latch Clamp designed for secure fastening in tooling, container, and fixture applications. Features a J-Hook configuration, flanged base, and steel construction with a maximum holding capacity of 1500 lbf (6700 N). Offers a drawing movement of 19.1 mm and adjustable hook range of 14 mm.

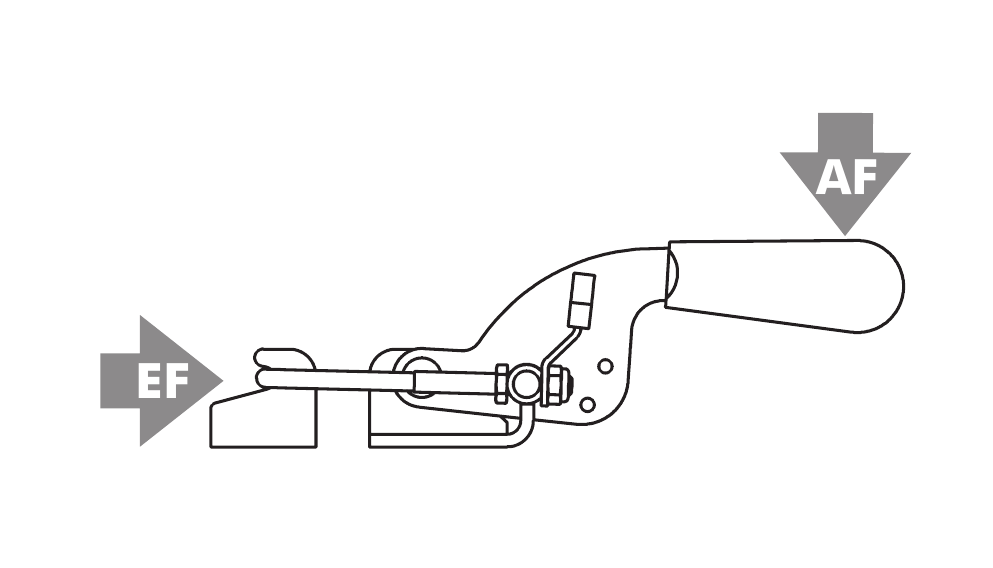

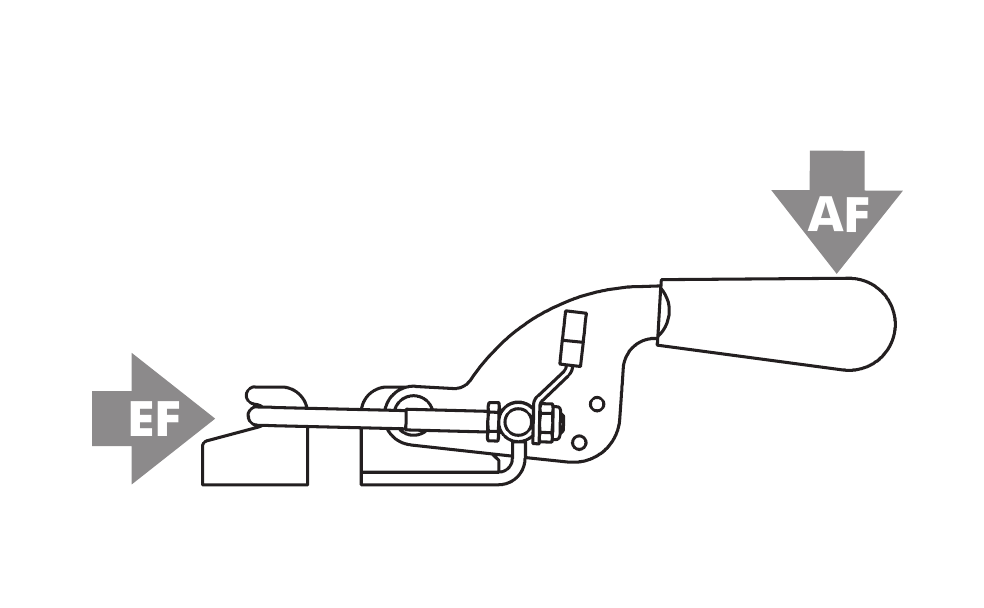

Max Holding Capacity
1500 lbf (6700 N)

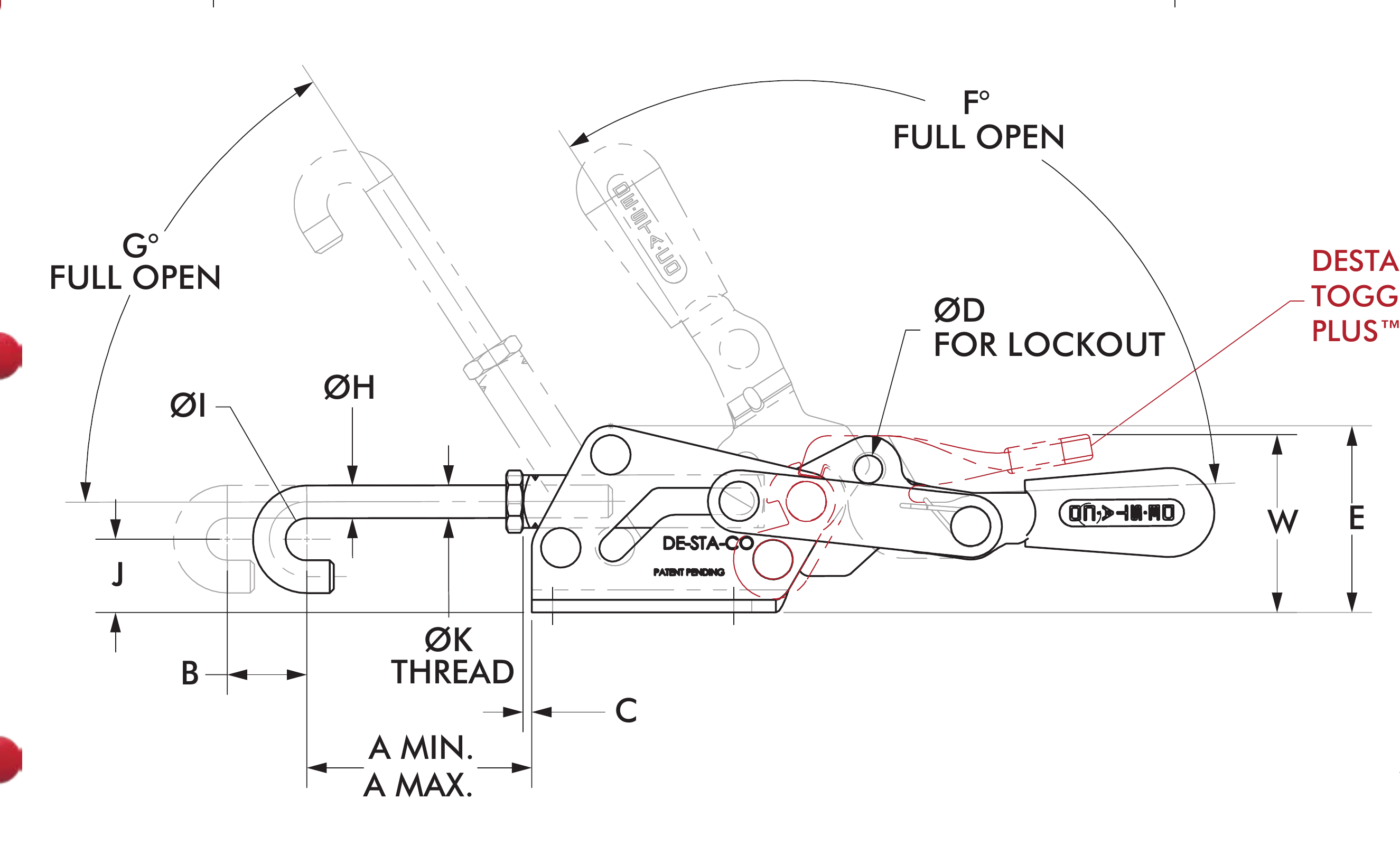

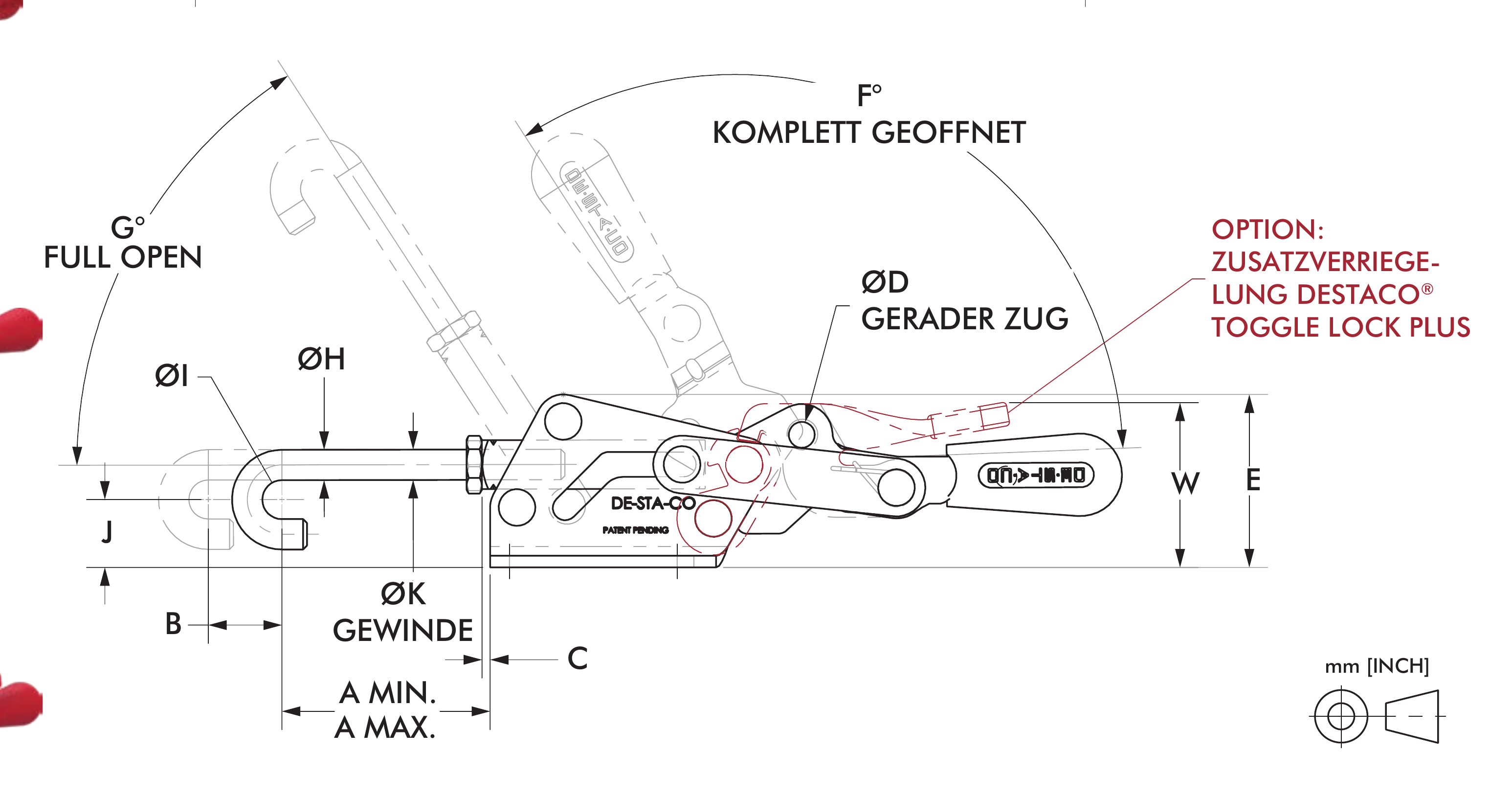

Drawing Movement
0.75 in (19.1 mm)
Hook Adjust Range
0.55 in (14 mm)
Weight
1.0 lbs (0.50 kg)
Mechanical Advantage
12:1
Max Holding Capacity1500 lbf (6700 N)
Drawing Movement0.75 in (19.1 mm)
Hook Adjust Range0.55 in (14 mm)
Mechanical Advantage12:1
Hook TypeJ-Hook
Mounting BaseFlange

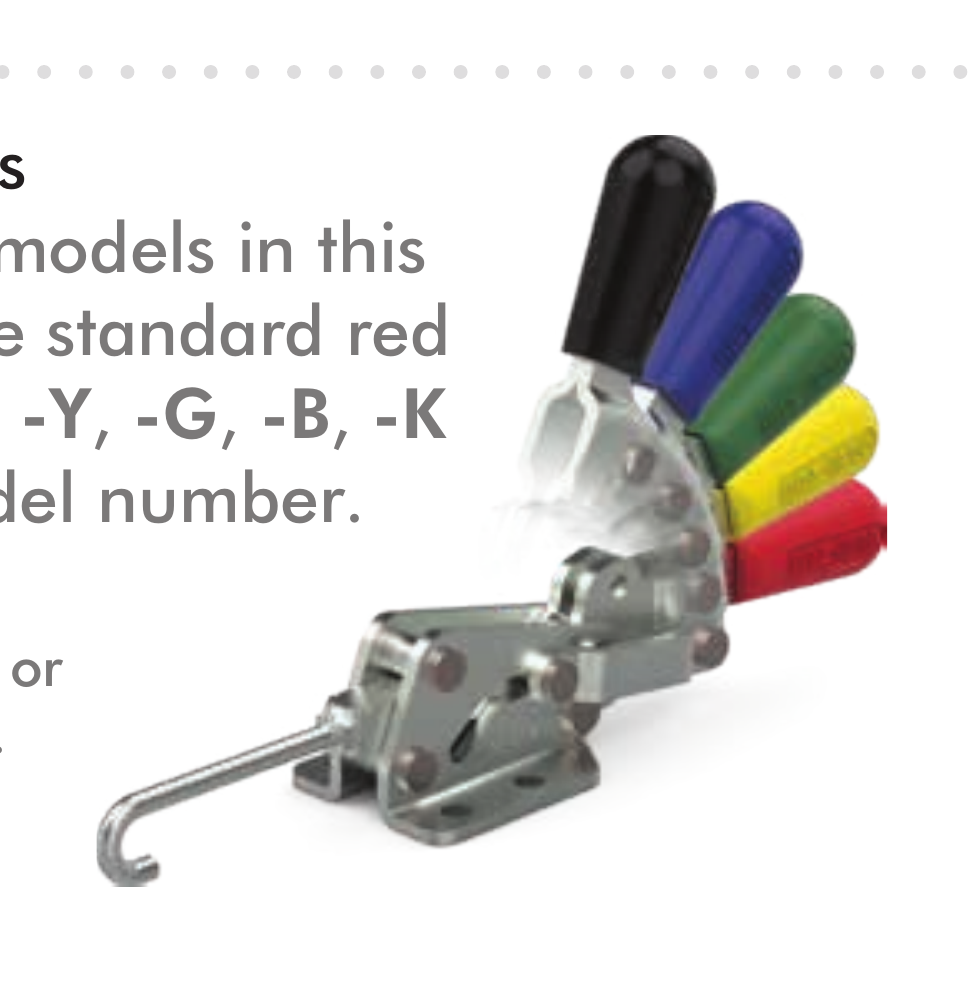

Handle StyleStraight

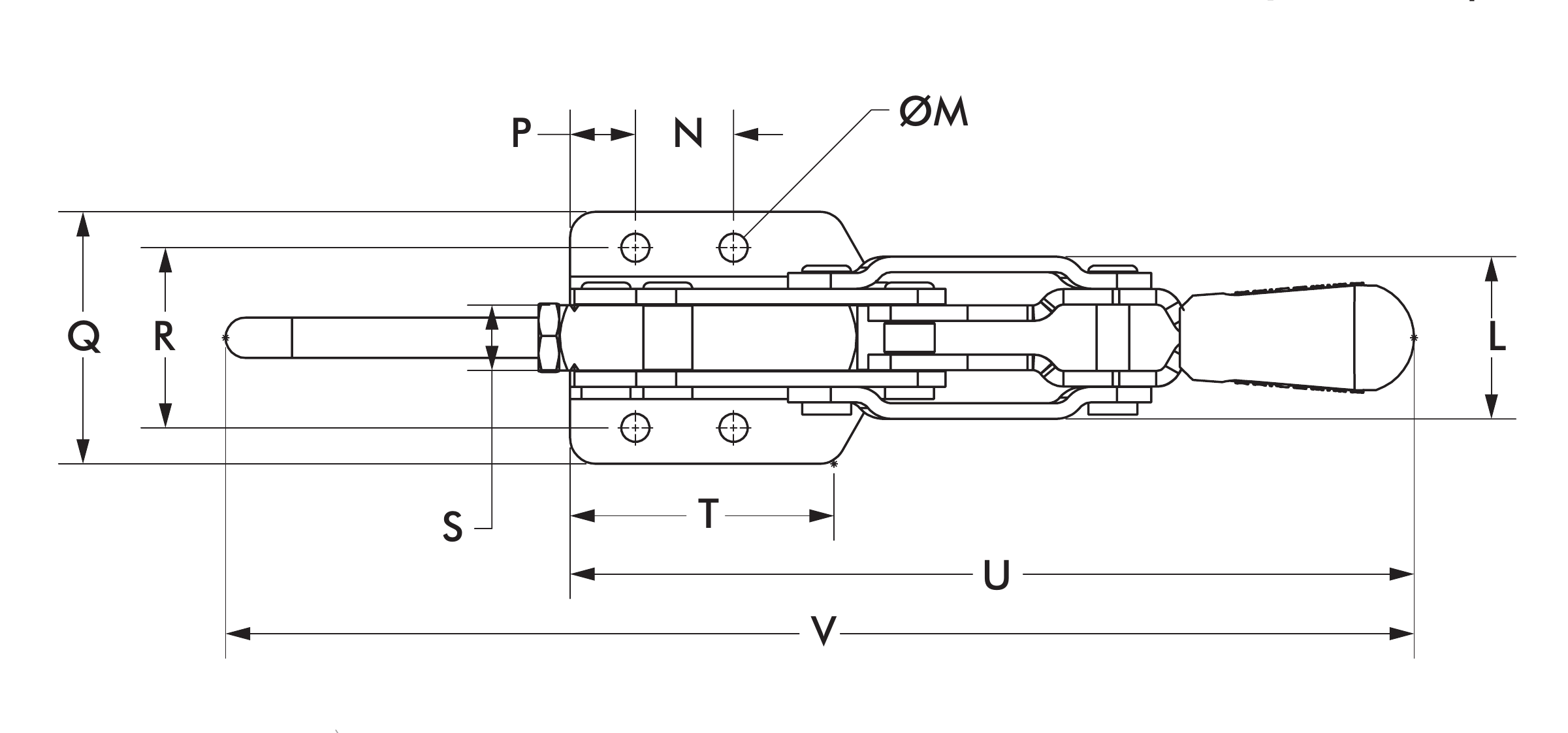

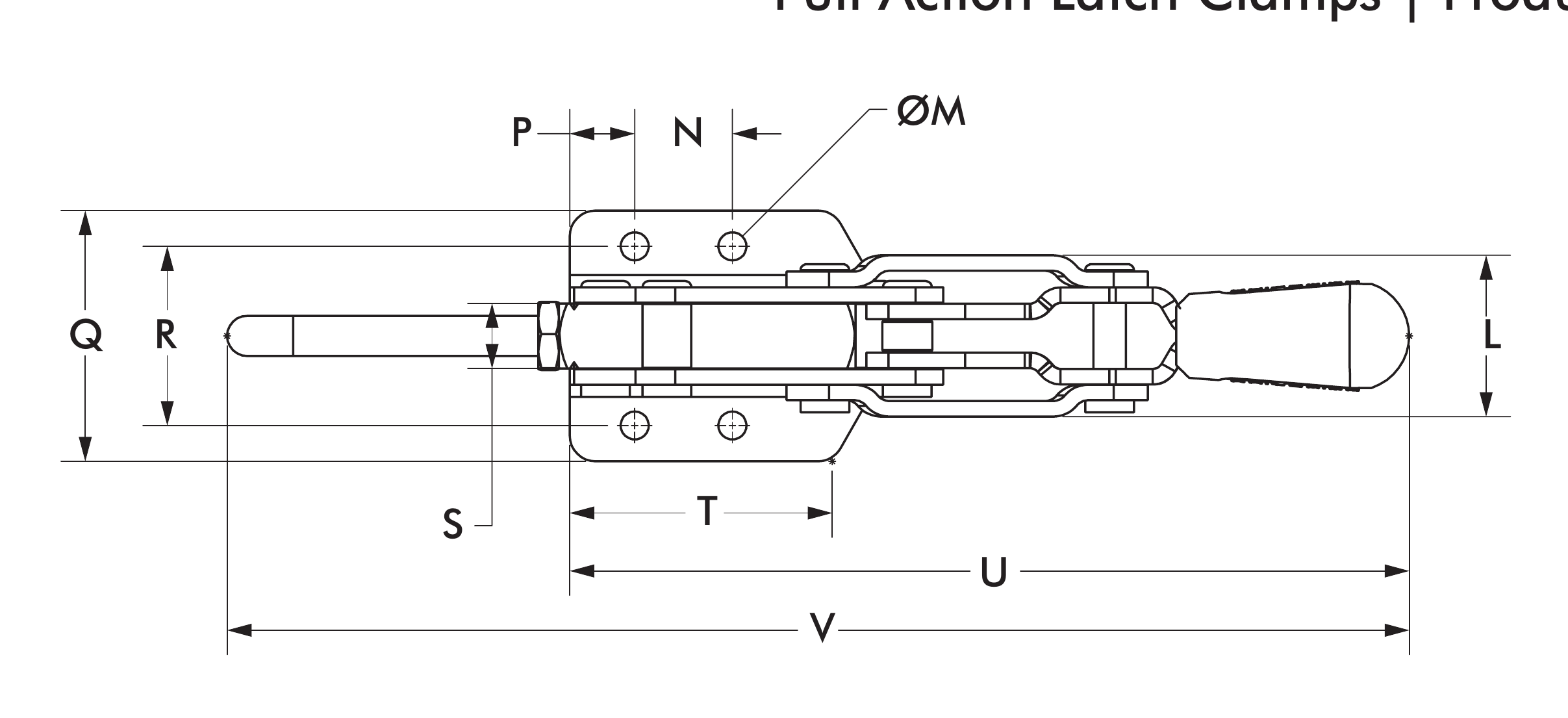

Base Width1.93 in
Base Length2.03 in
Overall Height1.77 in
Bar Width0.31 in
Arm Length2.500 in
