Destaco 305-ur
ChatMRO

The Destaco 305-UR is in our catalogue: Max Holding Capacity 670 N [150 lbf], Clamp Bar Opening 90 degree, Arm Style U Bar.

ChatMRO can make mistakes, so double check it

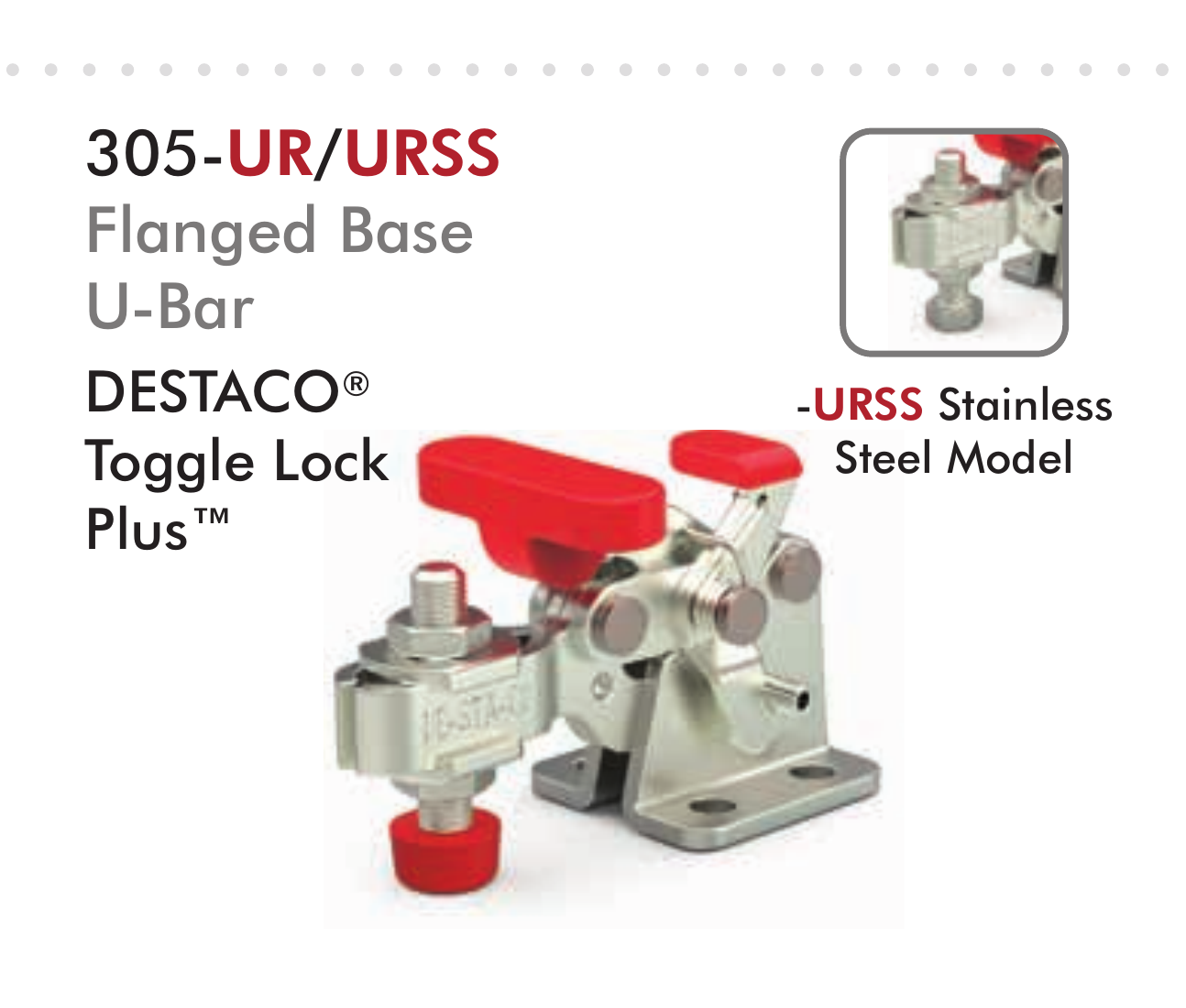

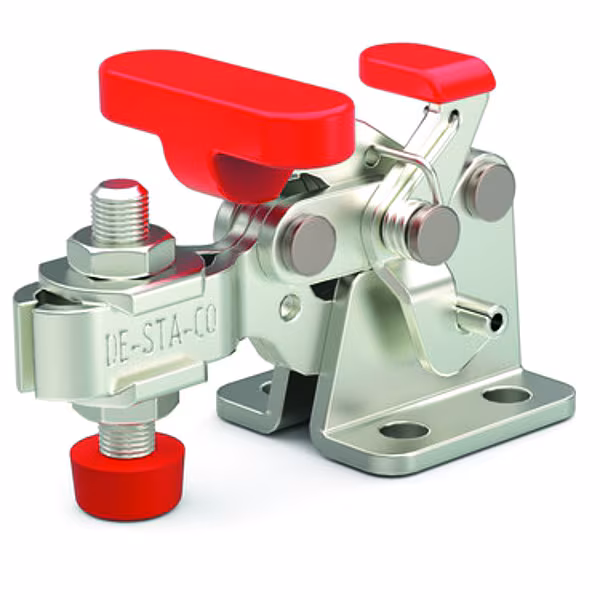

In stockHorizontal Hold Down Clamp with U-Bar Arm and Flanged Base
Destaco · 305-UR

Horizontal Hold Down Clamp with U-Bar Arm and Flanged Base

$ 57.20per unit · ex. VAT
Compact horizontal hold down clamp with U-bar arm, flanged base, and Toggle Lock Plus technology. Designed for use in confined spaces and under vibrating conditions. Offers 150 lbf maximum holding capacity with 90° clamp arm opening and 170° handle opening.
Max Holding Capacity
670 N [150 lbf]
Clamp Bar Opening
90 degree
Weight
0.06 kg [0.13 lb]
Arm Style
U Bar
Mounting Base
Flange
Max Holding Capacity670 N [150 lbf]
Clamp Bar Opening90 degree
Arm StyleU Bar
Mounting BaseFlange
Body MaterialSteel
Tip MaterialNeoprene
SpindleFlat Cushion Neoprene
Overall Width1.02 inch
Overall Height1.43 inch
Height Under Arm0.48 inch
Mounting Holes Center to Center - Long Side0.62 inch
Mounting Holes Center to Center - Short Side0.53 inch
