The Destaco 210-S is in our catalogue: Mechanical Advantage (X2):AF 9:1, Mechanical Advantage (X1):AF 11:1, Max Holding Capacity 3340 N [750 lbf].

ChatMRO can make mistakes, so double check it

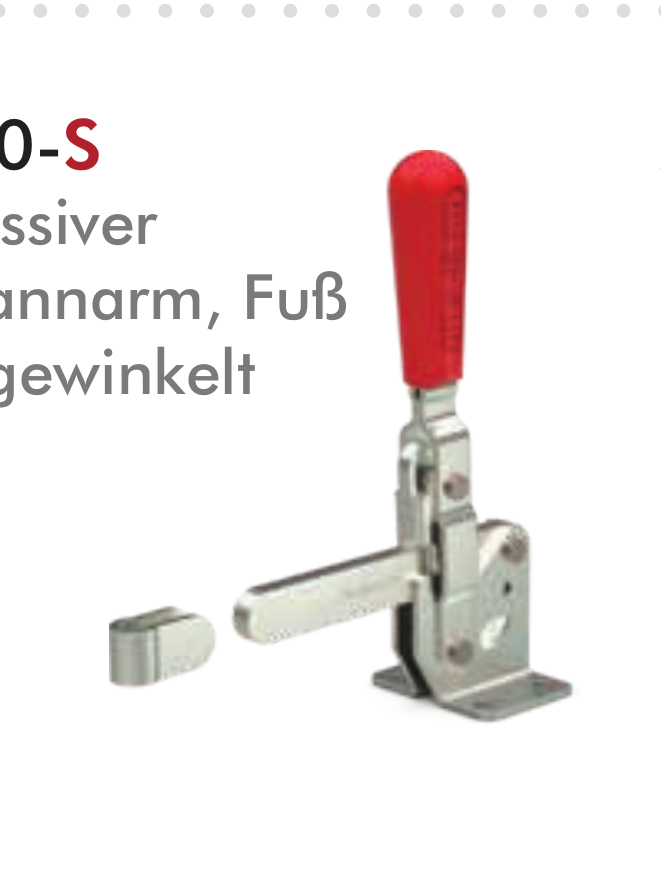

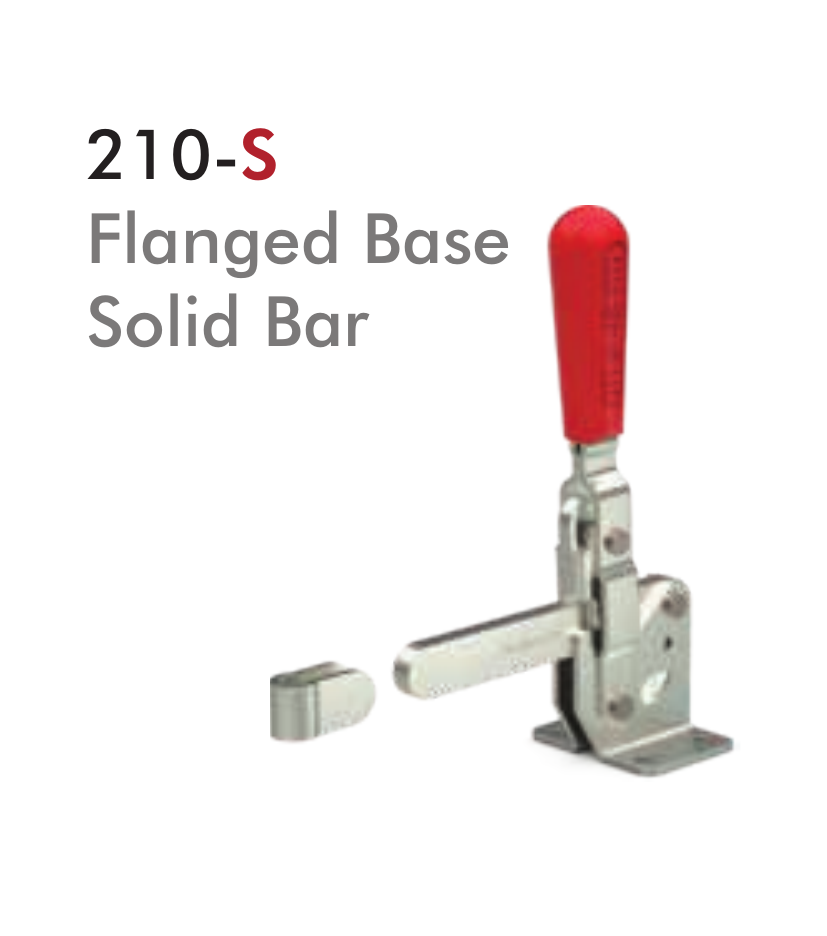

In stockFlanged Base Solid Bar Vertical Hold Down Clamp
Destaco · 210-S

Flanged Base Solid Bar Vertical Hold Down Clamp

$ 60.33per unit · ex. VAT
Flanged base solid bar vertical hold down clamp with 750 lbf (3340 N) maximum holding capacity. Features a 103-degree clamp arm opening angle and 58-degree handle opening angle. Constructed from steel with a flanged mounting base for secure installation.
Weight
0.59 kg [1.29 lbs]

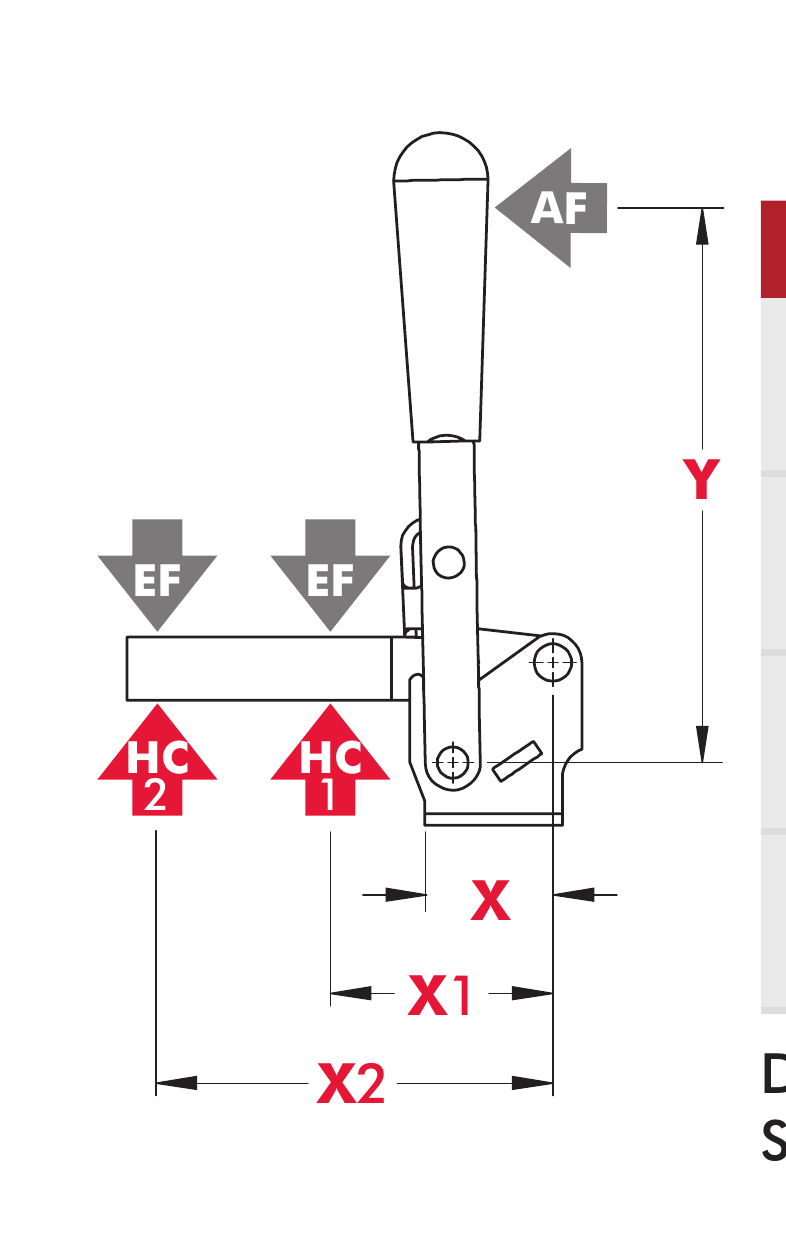

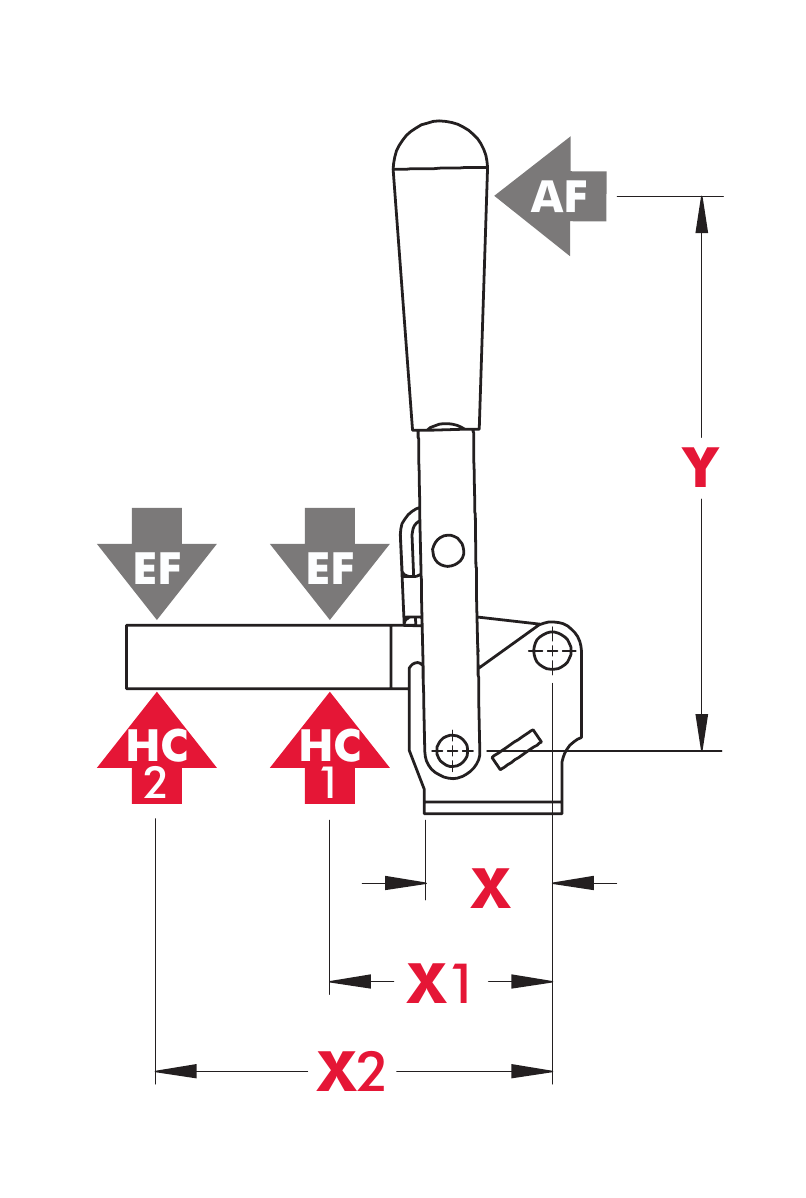

Mechanical Advantage (X2):AF
9:1
Mechanical Advantage (X1):AF
11:1
Max Holding Capacity
3340 N [750 lbf]
Clamp Arm Opening Angle (+10°)
103 degree
Mechanical Advantage (X2):AF9:1
Mechanical Advantage (X1):AF11:1
Max Holding Capacity3340 N [750 lbf]
Clamp Arm Opening Angle (+10°)103 degree
Handle Opening Angle (+10°)58 degree
Body MaterialSteel
Mounting BaseFlange
Arm StyleSolid Bar

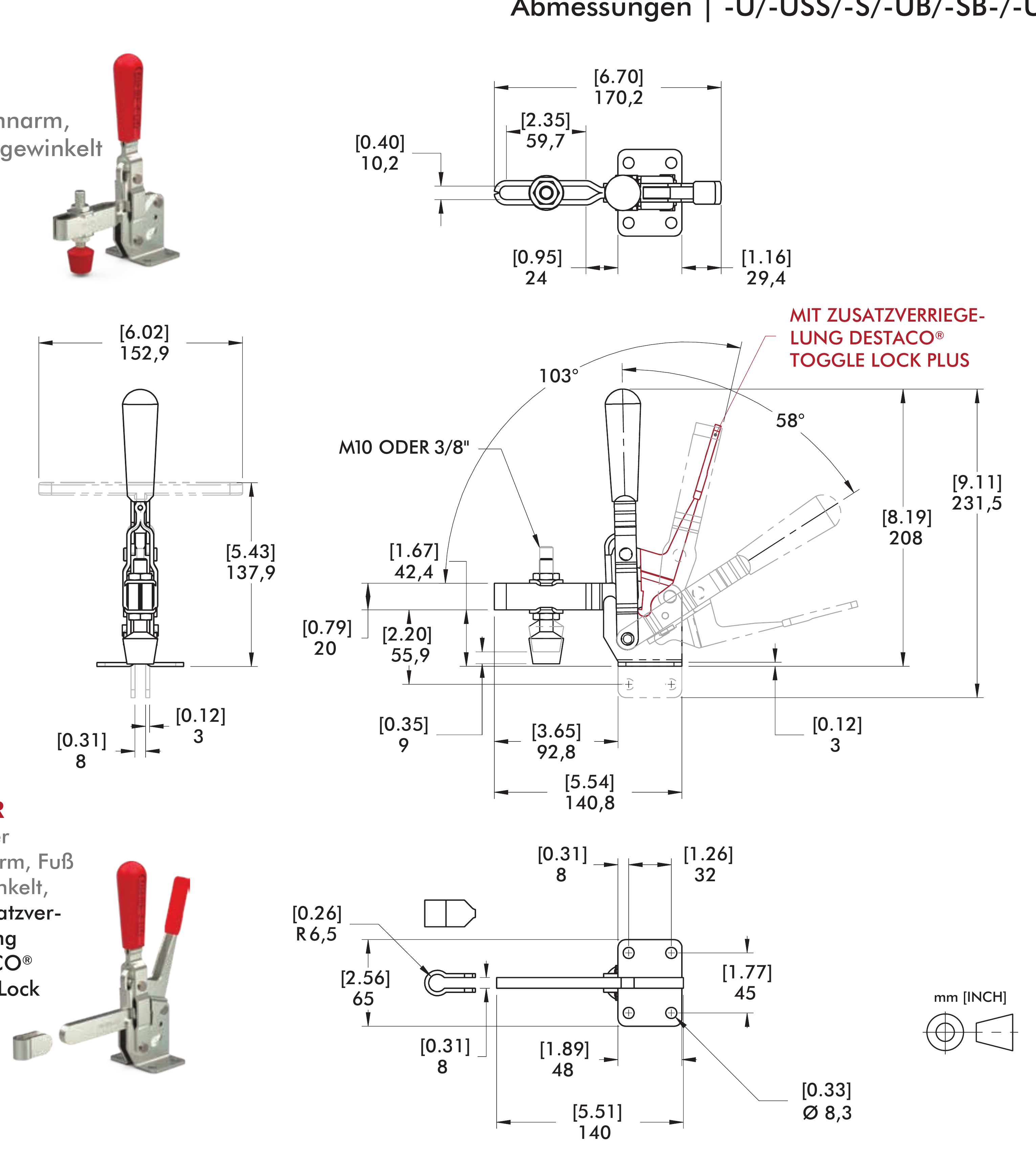

Overall Height8.19 inch
Overall Width6.02 inch
Height Under Arm1.67 inch
Mounting Hole Spacing (Long Side)1.77 inch
