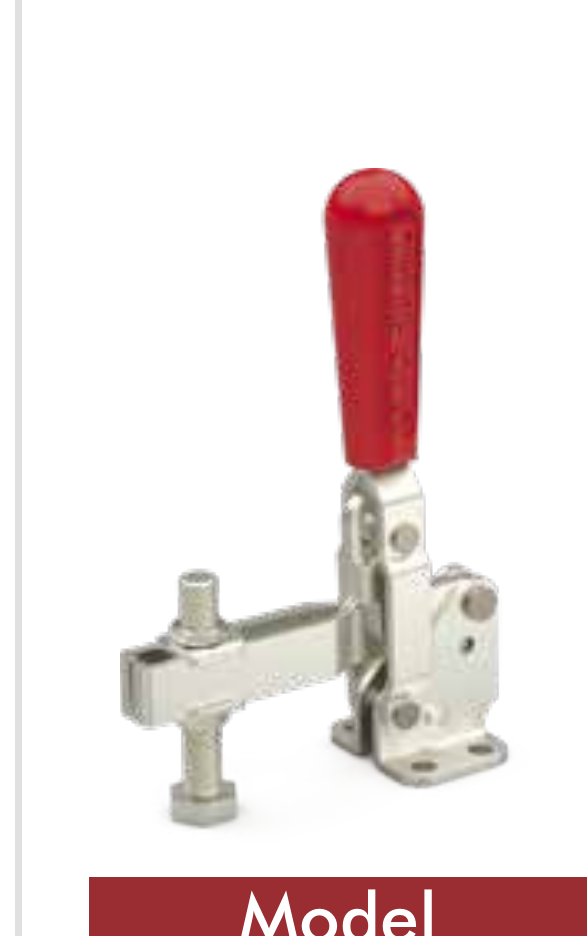

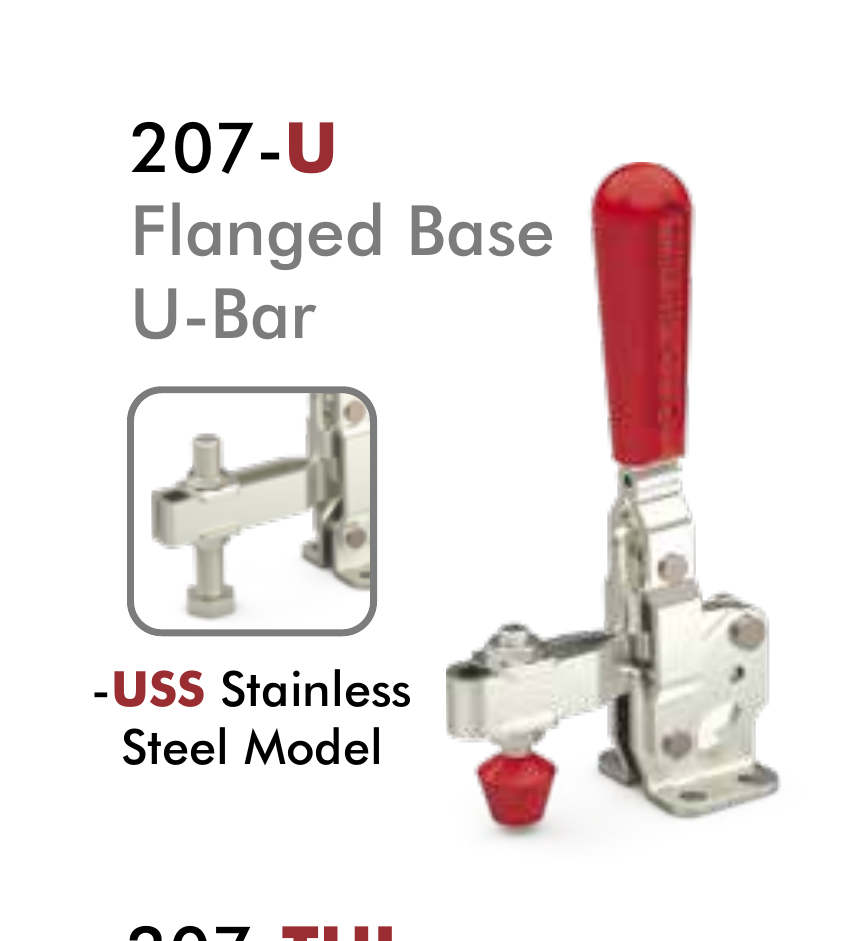

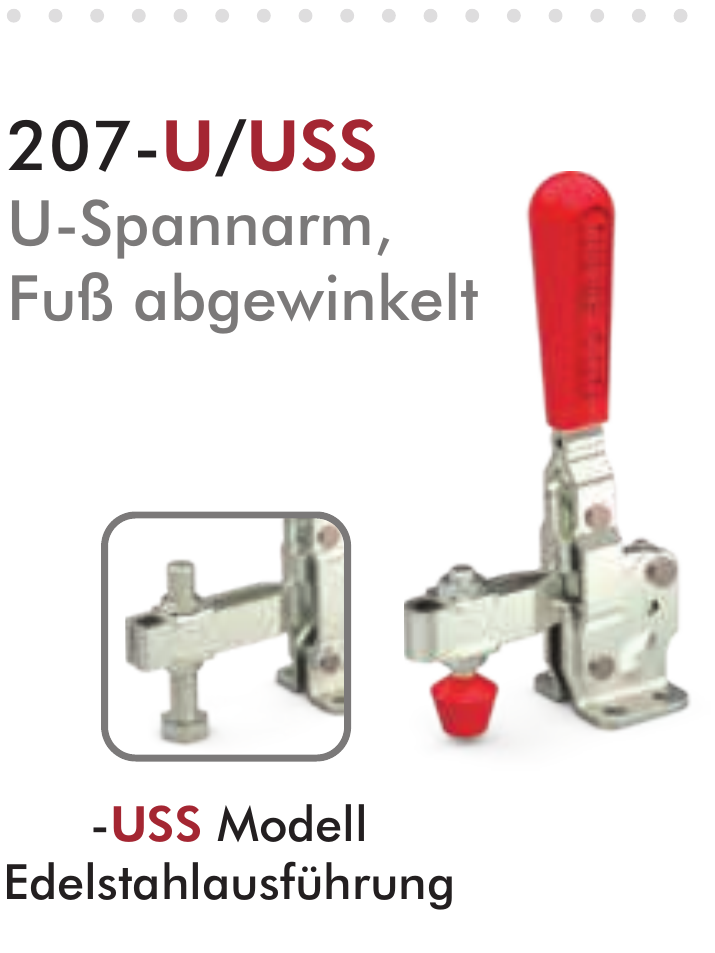

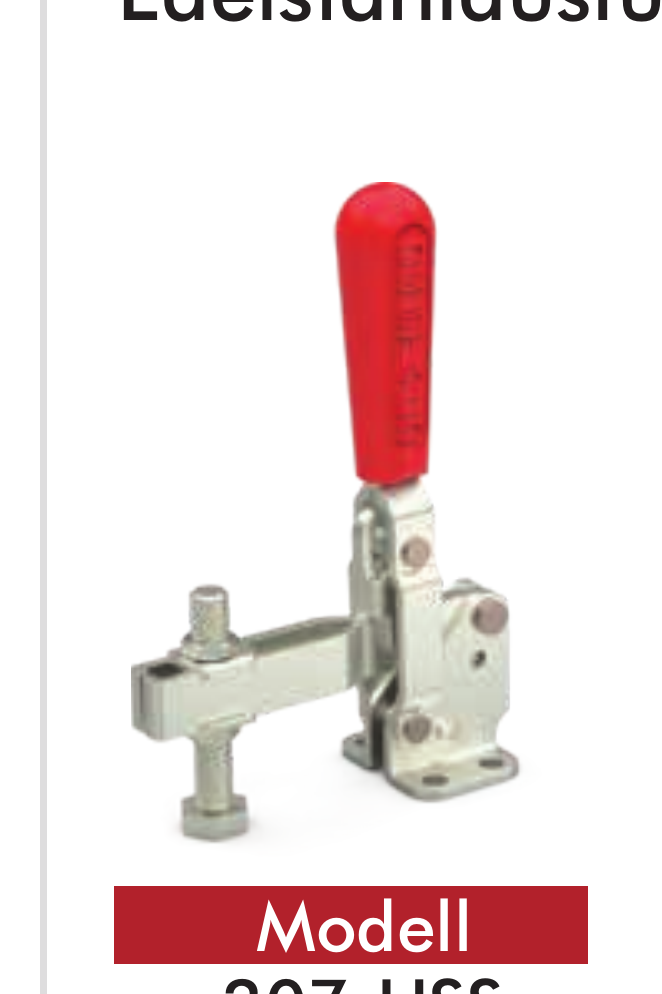

In stockVertical Hold Down Clamp with U-Bar, Flanged Base, Stainless Steel
Destaco · 207-USS

Vertical Hold Down Clamp with U-Bar, Flanged Base, Stainless Steel

$ 97.74per unit · ex. VAT
Stainless steel vertical hold down clamp with U-bar and flanged base. Features a maximum holding capacity of 2000 N (450 lbf), 99-degree clamp bar opening, and 57-degree handle opening. Designed for industrial workholding applications requiring corrosion resistance.

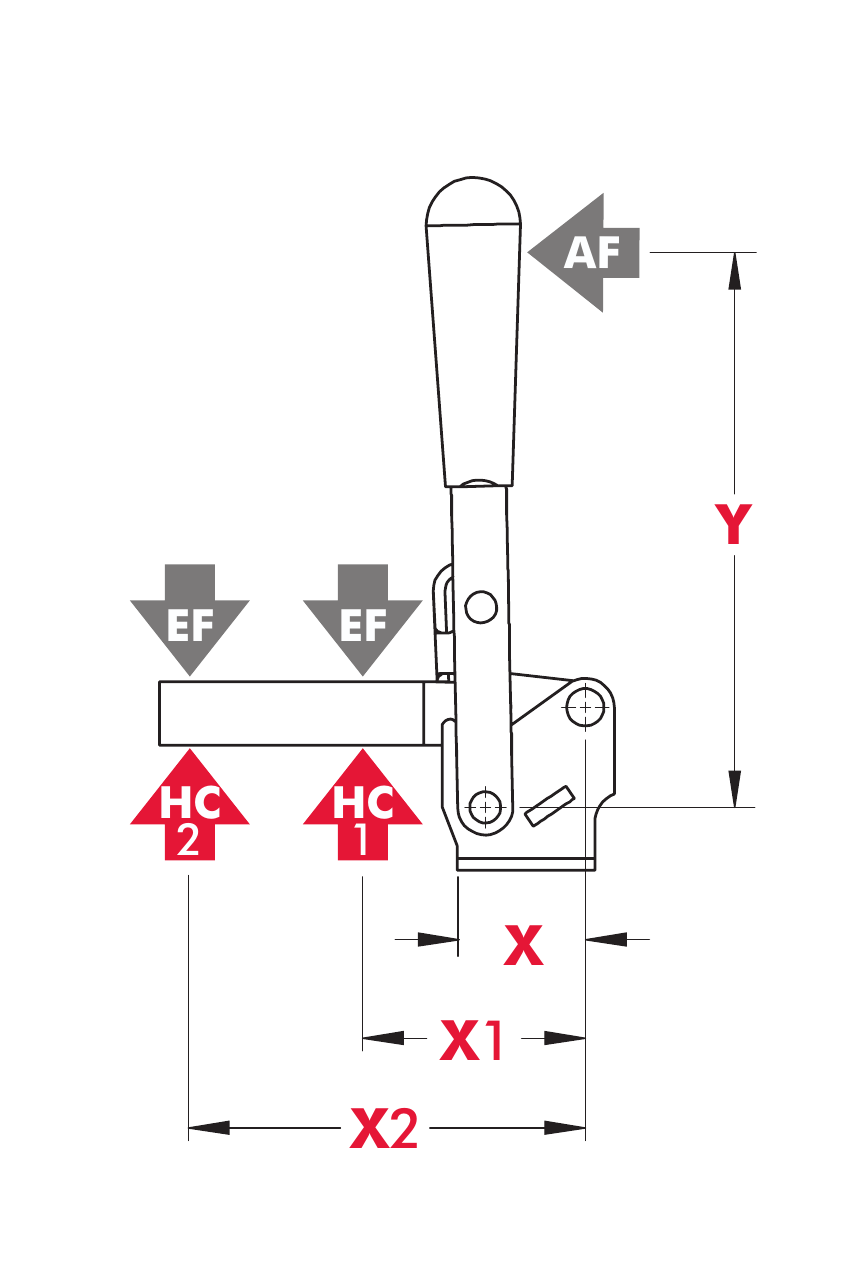

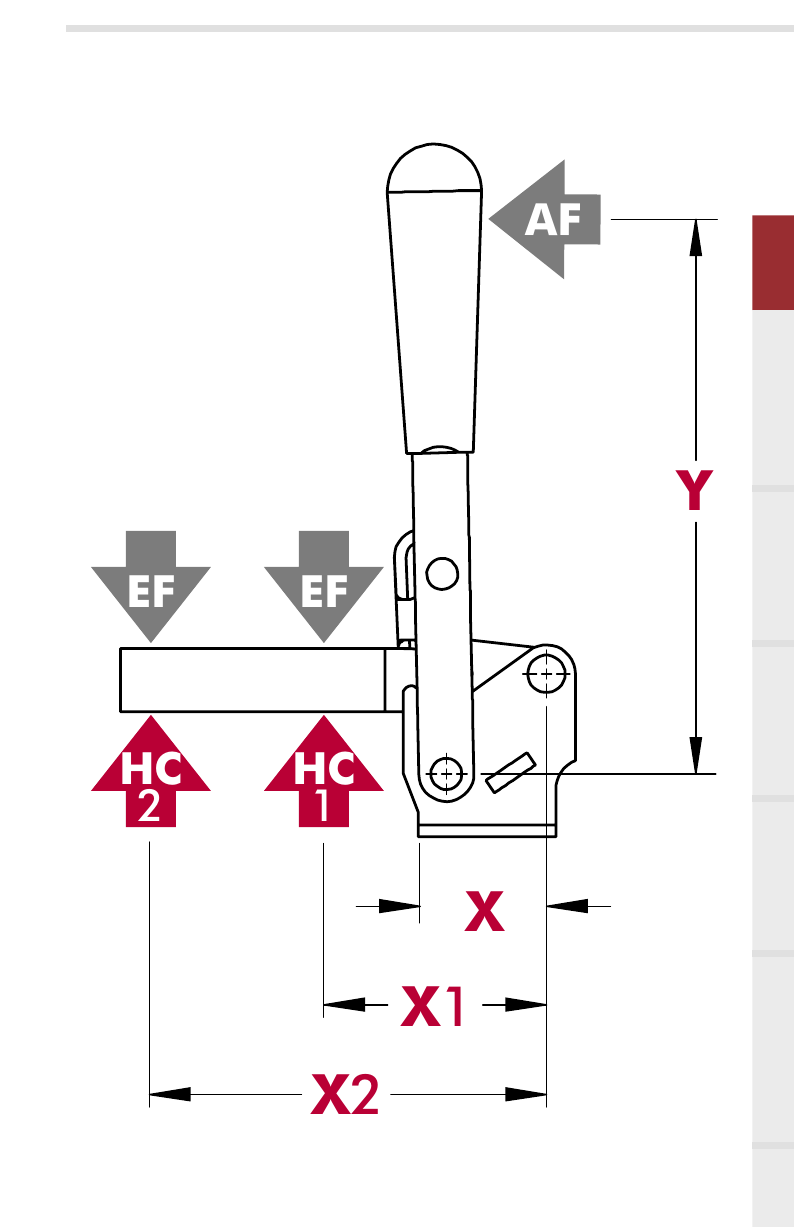

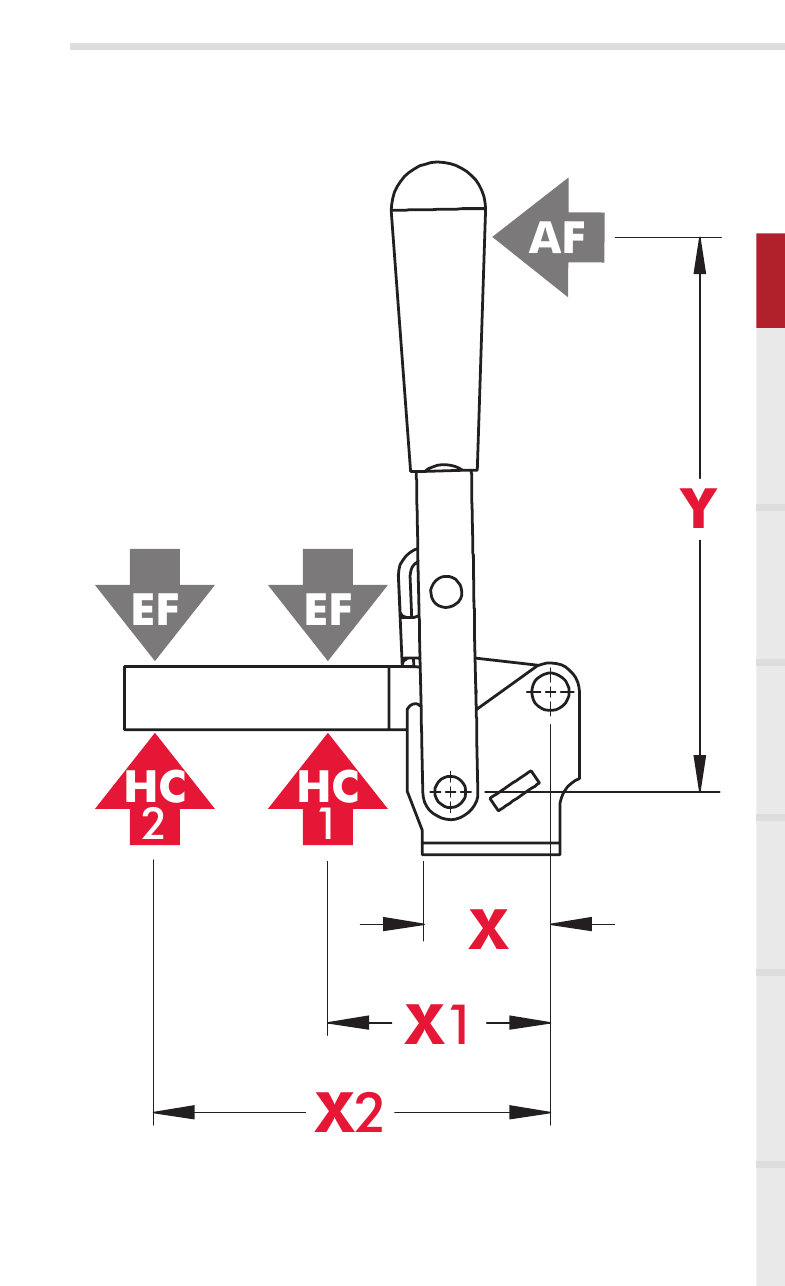

Max. Holding Capacity
2000 N [450 lbf]
Handle Opening (+10°)
57 degree
Clamp Bar Opening (+10°)
99 degree
Weight
0.32 kg [0.70 lb]
Material
Stainless Steel

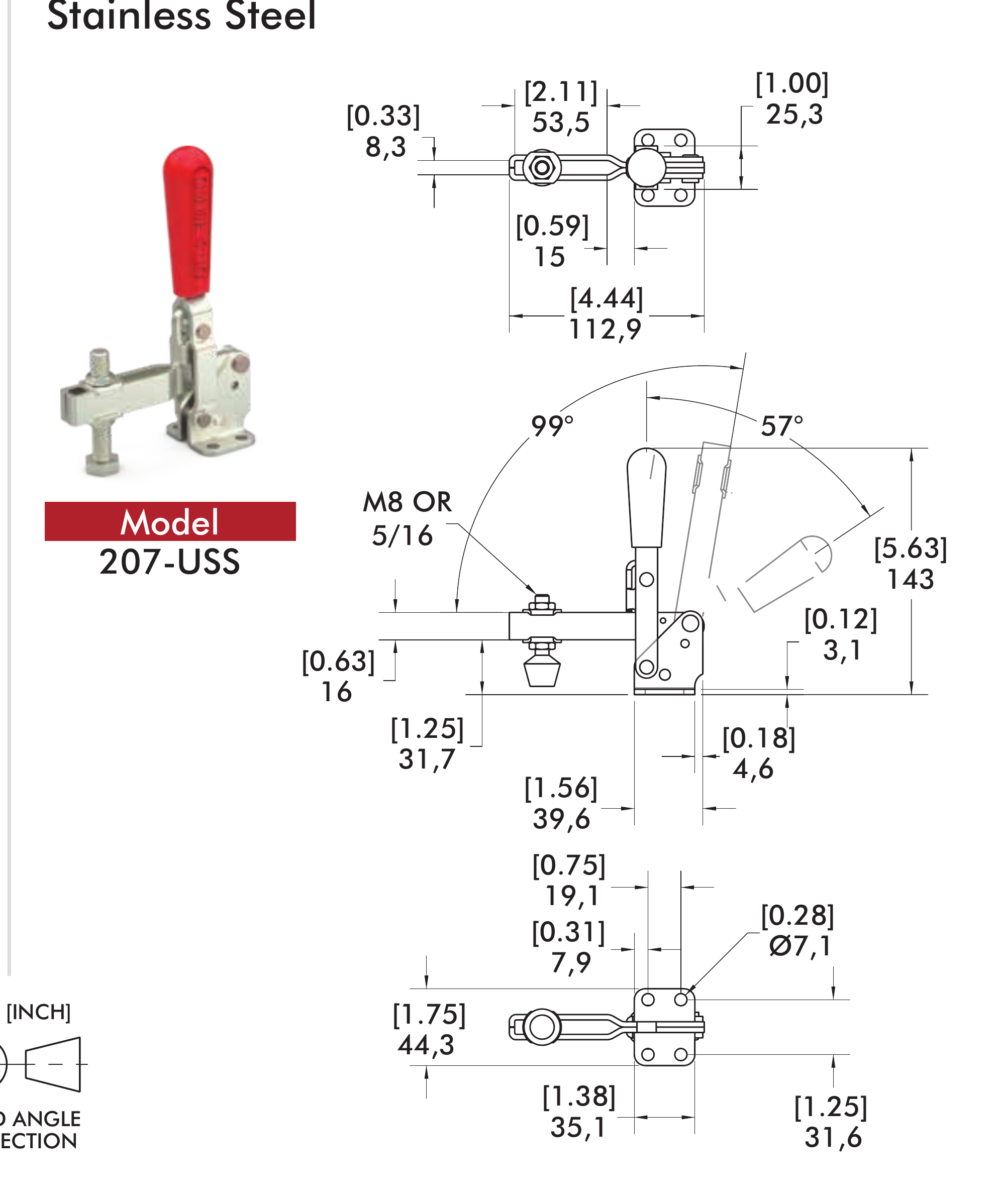

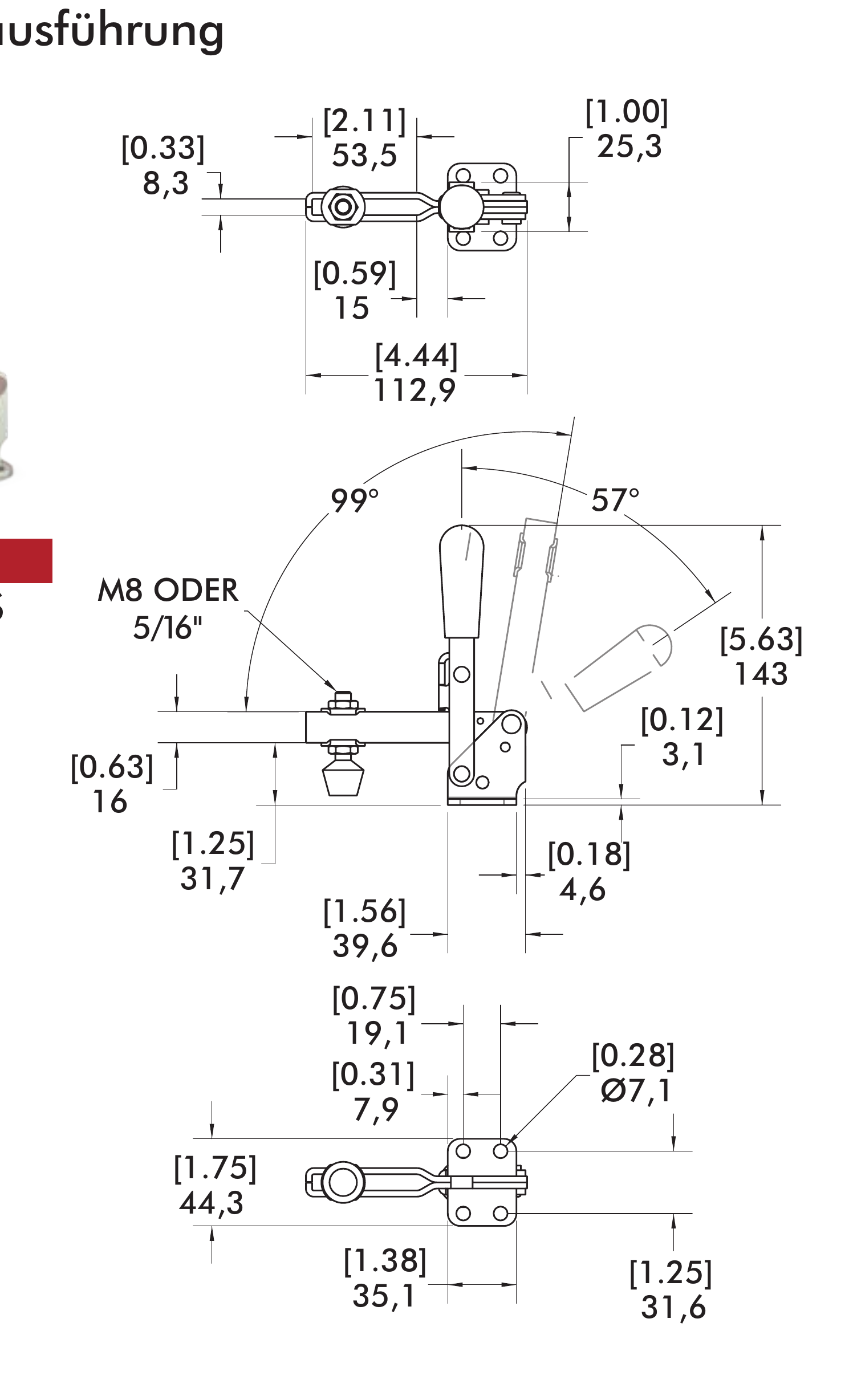

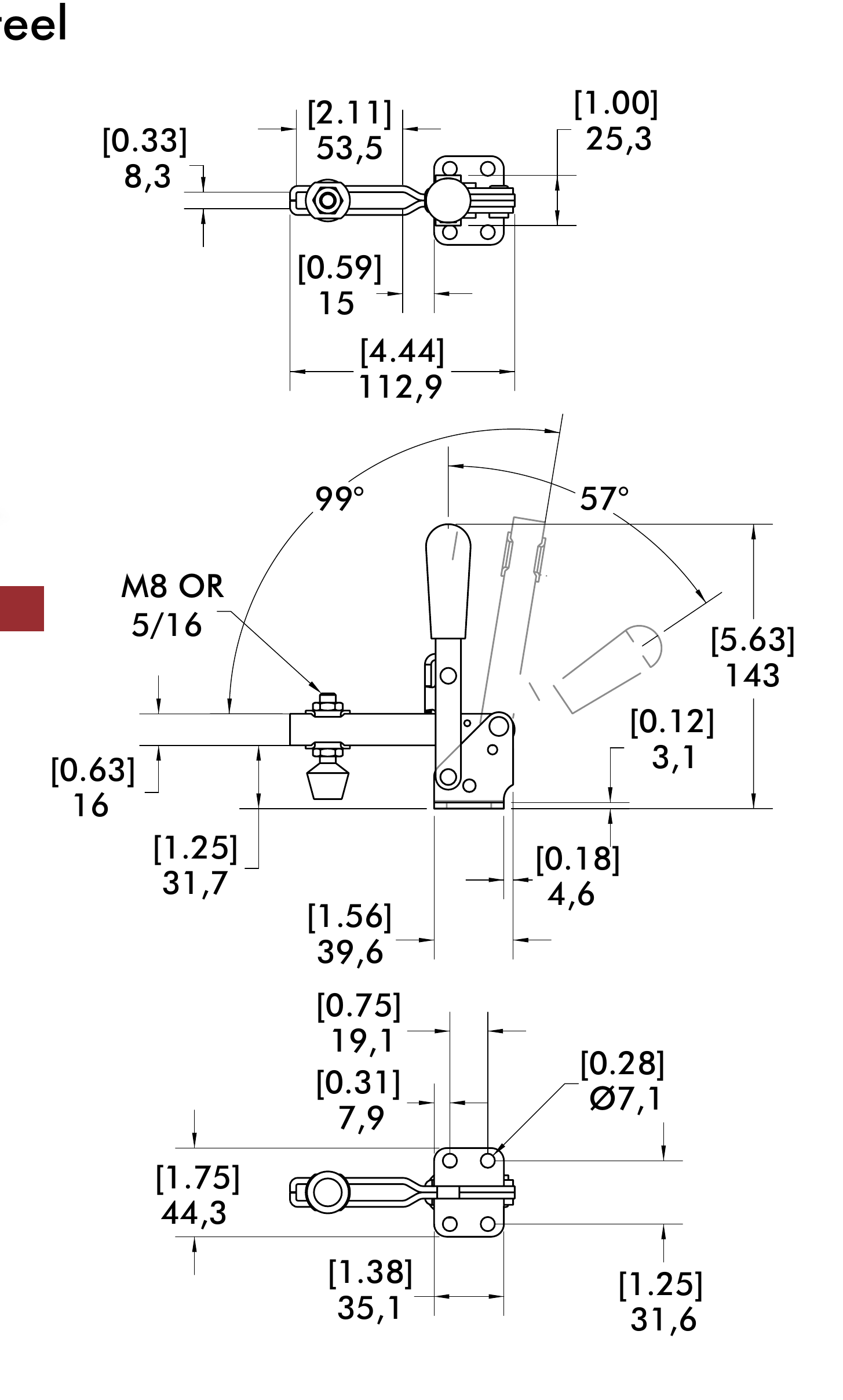

Max. Holding Capacity2000 N [450 lbf]
Handle Opening (+10°)57 degree
Clamp Bar Opening (+10°)99 degree
MaterialStainless Steel
Arm StyleU Bar
Mounting BaseFlange
Overall Height5.63 inch
Height Under Arm1.25 inch
Mounting Hole Spacing - Long Side1.25 inch
Mounting Hole Spacing - Short Side0.75 inch
Spindle Thread SizeM8, 5/16-18
ApplicationFor use in the chemical and food industries
