The Destaco 2002-UR is in our catalogue: Max Holding Capacity 600 lbf (2700 N), Clamp Arm Opening Angle 75 degree, Handle Opening Angle 66 degree.

ChatMRO can make mistakes, so double check it

In stockVertical Hold Down Toggle Clamp with U-Bar Arm and Flanged Base
Destaco · 2002-UR

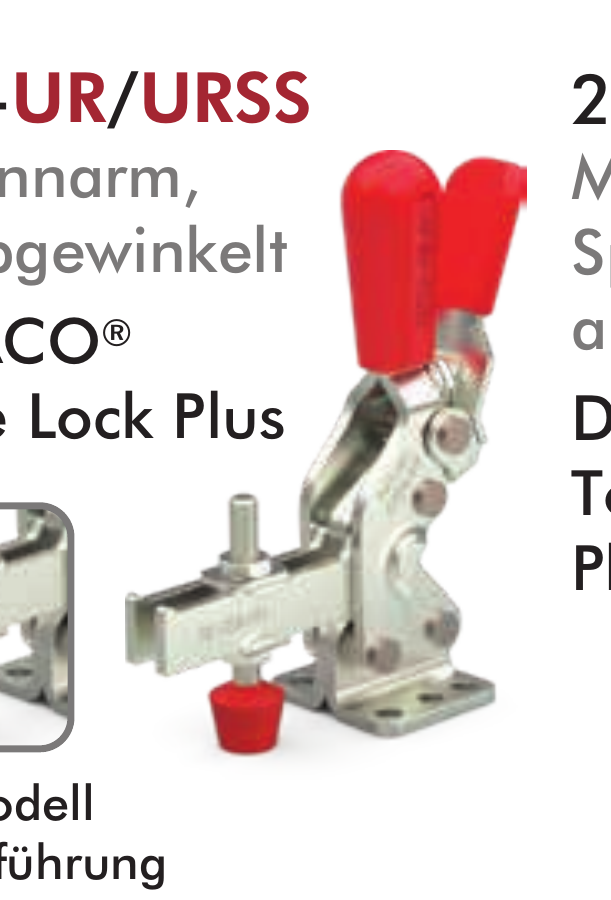

Vertical Hold Down Toggle Clamp with U-Bar Arm and Flanged Base

$ 61.34per unit · ex. VAT
DESTACO 2002-UR is a vertical handle hold down toggle clamp with a U-bar arm and flanged base. It delivers a maximum holding capacity of 600 lbf (2700 N) with a 75-degree clamp arm opening angle and 66-degree handle movement. Designed for industrial workholding applications, it features a steel body, neoprene tip, and zinc finish for durability.
Max Holding Capacity
600 lbf (2700 N)
Clamp Arm Opening Angle
75 degree
Handle Opening Angle
66 degree
Weight
0.25 kg
Body Material
Steel
Max Holding Capacity600 lbf (2700 N)
Clamp Arm Opening Angle75 degree
Handle Opening Angle66 degree
Body MaterialSteel
Finish CoatingZinc
Spindle IncludedYes
Toggle Lock PlusYes
Accommodates Workpiece VariationNo
Mounting Hole Diameter0.22 inch
Mounting Holes Center to Center - Long Side1.06 inch
Mounting Holes Center to Center - Short Side0.5 inch
Maximum Mechanical Advantage11:01; 05:01
