The 3M AK020A1 is in our catalogue: Finish Anodized gold finish, Material High strength aluminum alloy, Strength 10,000 lbs..
ChatMRO can make mistakes, so double check it
In stock
3M · AK020A1
Confined Space Pulley with Carabiner
$ 317.58per unit · ex. VAT
The 3M AK020A1 Confined Space Pulley is designed for use with fall arrest, work positioning, personnel riding, and rescue systems. Constructed from high-strength aluminum alloy with an anodized gold finish, it features a self-closing/locking steel carabiner and supports a 420 lb weight capacity. It is compatible with 0.5 inch diameter ropes and meets ANSI and OSHA standards.
Finish
Anodized gold finish
Weight
1.2 lbs. (with carabiner)
Material
High strength aluminum alloy
Strength
10,000 lbs.
Weight Capacity
420 lb
FinishAnodized gold finish
MaterialHigh strength aluminum alloy
Strength10,000 lbs.
Weight Capacity420 lb
Tensile Strength10,000 lb
For Maximum Rope Diameter0.5 inch
For Minimum Rope Diameter0.5 inch
Bearing MaterialBronze
SeriesPRO
StandardsANSI, OSHA
FeaturesSelf Closing/Locking Steel Carabiner
ApplicationConfined Space
Product Weight2
Package Quantity1
CertificationsCapital Safety Gen. Mfg. Req.
Country of OriginTaiwan, Province of China
Weight0.54 kg
Dimensions1.2" × 1.0" × 0.5"
MOQ1
Drawings

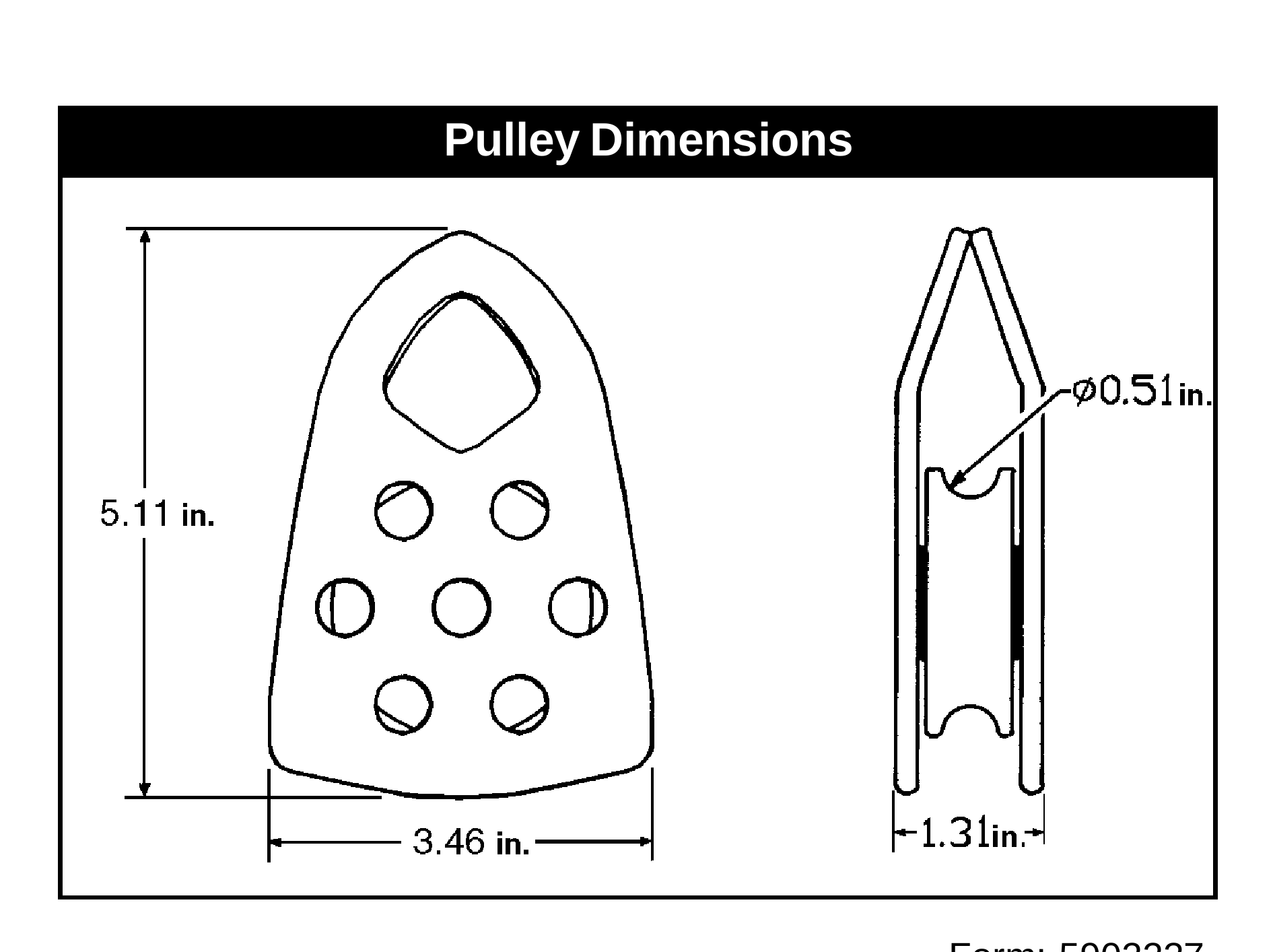

Pulley Dimensions showing height 5.11 in., width 3.46 in., depth 1.31 in., and hole diameter 0.51 in.
Product

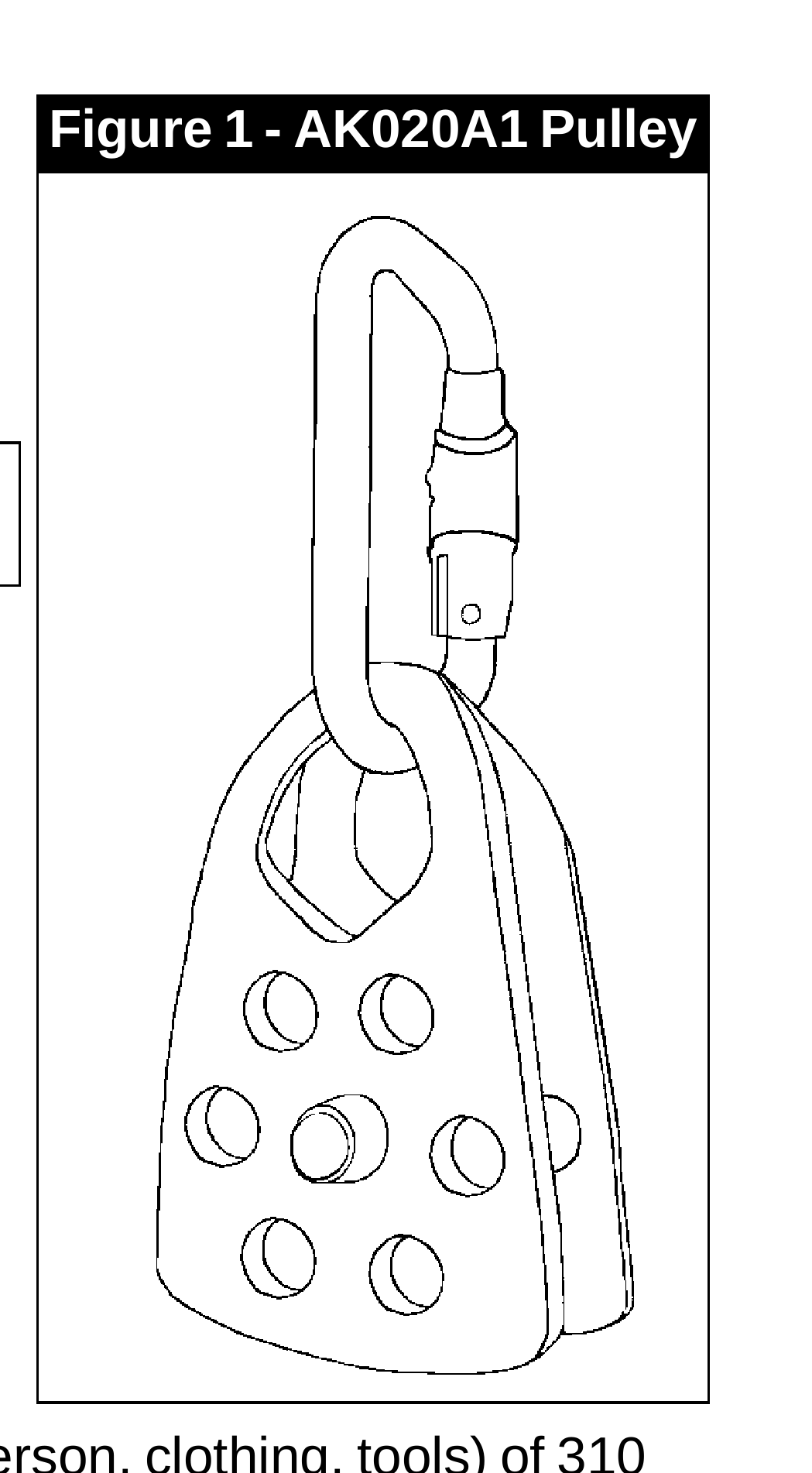

Figure 1 - AK020A1 Pulley showing the pulley and attached carabiner.
