The Pulsafeeder J63063 is in our catalogue: Capacity 15 gallon, Material UV resistant polyethylene (PE), Pump Type Chem-Tech.
ChatMRO can make mistakes, so double check it
In stock
Pulsafeeder · J63063
Integrated Tank System with 15 Gallon UV-Resistant Polyethylene Tank
$ 461.89per unit · ex. VAT
The Pulsafeeder ITS System is a fully integrated 15-gallon chemical storage tank constructed of UV-resistant polyethylene, designed for residential and commercial water treatment applications. The translucent tank features 5-gallon increment markings and a low-level indicator for visual chemical monitoring. It includes bulkhead fittings, a child-proof lid, float assembly, and mounting hardware for Chem-Tech XP series diaphragm and peristaltic chemical metering pumps. The system allows easy access to the pump's liquid end and control panel.
Capacity
15 gallon
Material
UV resistant polyethylene (PE)
Pump Type
Chem-Tech
Pump Series
XP / XPV
Tube Connection Size
1/4 inch
Capacity15 gallon
MaterialUV resistant polyethylene (PE)
Pump TypeChem-Tech
Pump SeriesXP / XPV
Tube Connection Size1/4 inch
Approximate Weight11-lbs (5kg)
Overall Dimensions16.0 x 16.0 x 28.1 inch (40.6 x 40.6 x 71.4cm)
Height to Pump Mounting Plate7.5 inch (19.1cm)
MountingVertical
IncludesBulkhead Fittings, Chemical Tank with Lid, Feeder Mounting Hardware, Float Assembly, Liquid Level Indicator
Special FeaturesUV Resistant
Compatible With Pump TypeDiaphragm Chemical Metering Pump, Peristaltic Chemical Metering Pump
Country of OriginUnited States
Weight6.75 kg
Dimensions19.0" × 19.0" × 29.2"
MOQ1
Drawings

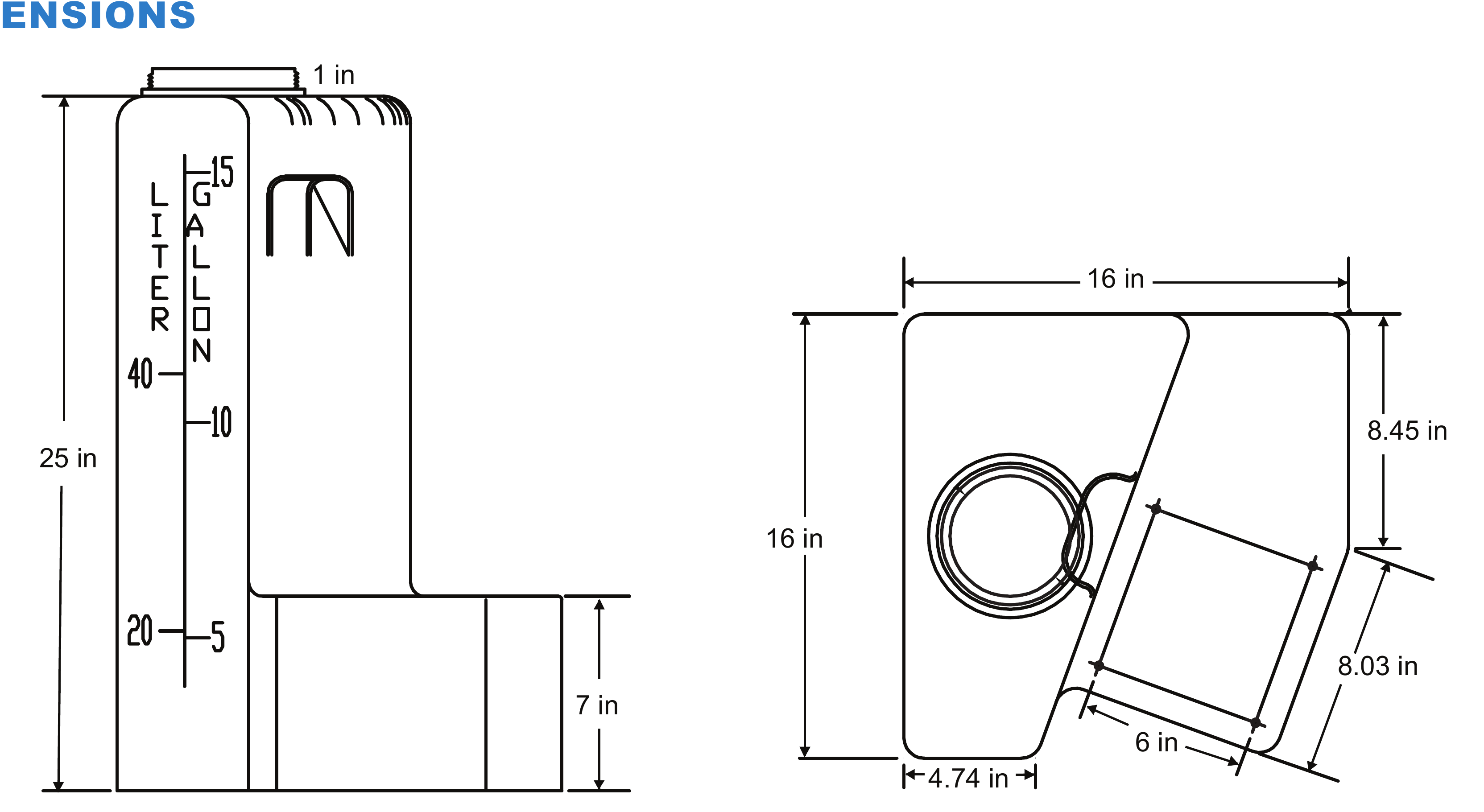

Engineering diagram showing dimensions of the Integrated Tank System.
Drawings

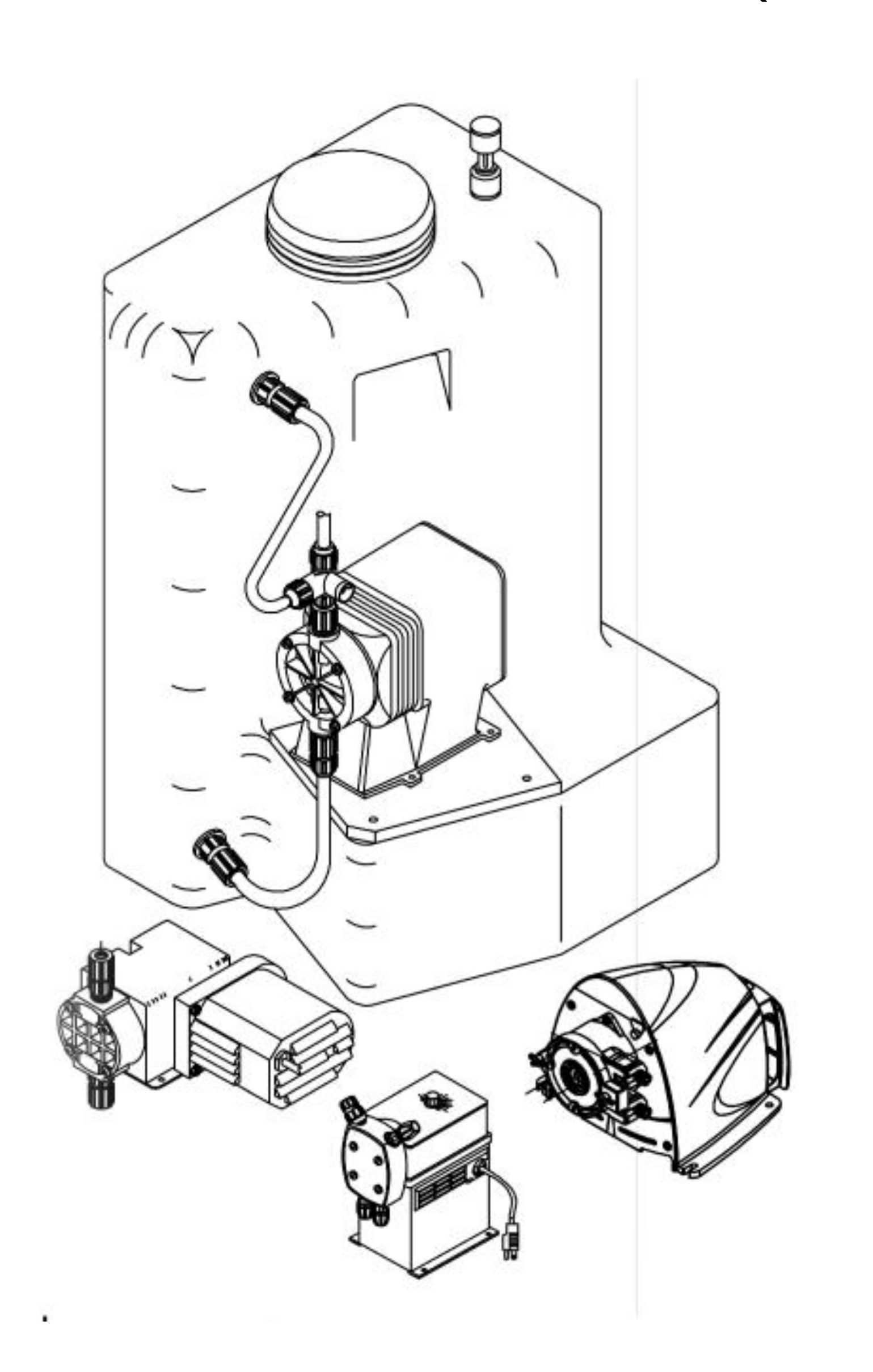

Engineering diagram of the ITS System tank with various pump attachments.
Drawings
Engineering diagram of the ITS System tank with dimensions (16.0, 28.1, 7.5) and part callouts.
Product

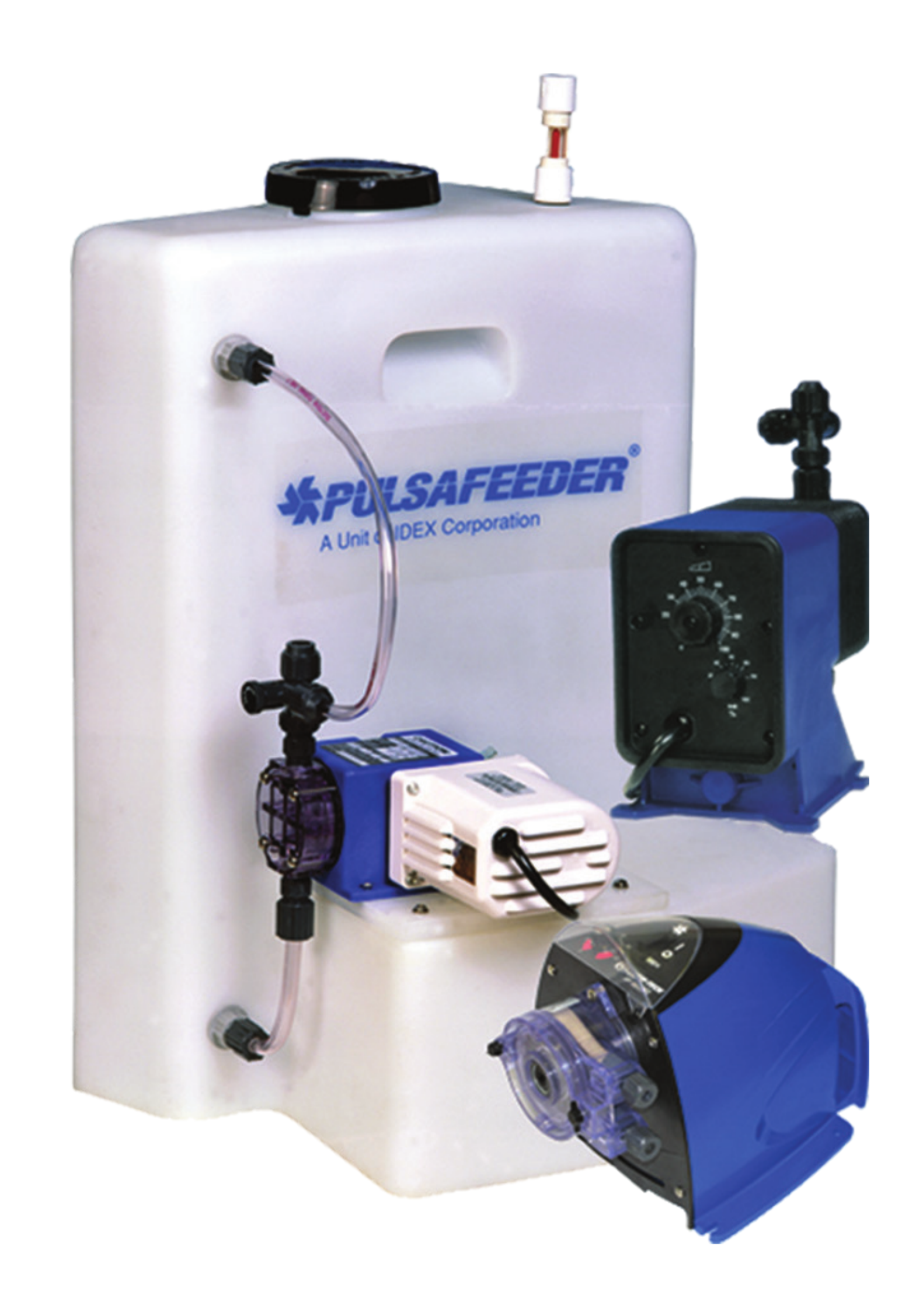

Product photo of the Integrated Tank System with mounted pumps.
Product
MPNDescriptionPrice
J39390Part - 15-GALLON TANK—
1
J40489Variant - Pump Series Series 100 | Tube Connection Size 3/8”—
1
J40490Variant - Pump Series Series 100 | Tube Connection Size 1/2”$ 913.38
