The Eaton TCF17-1/2RN is in our catalogue: Amperage Rating 17.5 A, Voltage Rating AC 600 Vac, Voltage Rating DC 300 Vdc.

ChatMRO can make mistakes, so double check it

In stockTime-Delay Low-Peak CUBEFuse - 17.5 A, 600 VAC, 300 VDC
Eaton · TCF17-1/2RN

Time-Delay Low-Peak CUBEFuse - 17.5 A, 600 VAC, 300 VDC

$ 47.42per unit · ex. VAT
The Eaton Bussmann Series TCF17-1/2RN is a time-delay, non-indicating, Class CF CUBEFuse with a 17.5 A current rating, 600 VAC and 300 VDC voltage ratings. It features dual-element construction for withstand of inrush currents and current-limiting performance with 300 kA RMS symmetrical interrupting rating at 600 VAC. Designed for finger-safe operation, it is suitable for industrial branch circuit protection in compact enclosures.
Amperage Rating
17.5 A
Voltage Rating AC
600 Vac
Voltage Rating DC
300 Vdc
Interrupting Rating AC (UL)
300 kA RMS Sym.
Interrupting Rating AC (CSA)
200 kA RMS Sym.
Amperage Rating17.5 A
Voltage Rating AC600 Vac
Voltage Rating DC300 Vdc
Interrupting Rating AC (UL)300 kA RMS Sym.
Interrupting Rating AC (CSA)200 kA RMS Sym.
Interrupting Rating DC100 kA DC
Fuse TypeDual-Element, Time-Delay

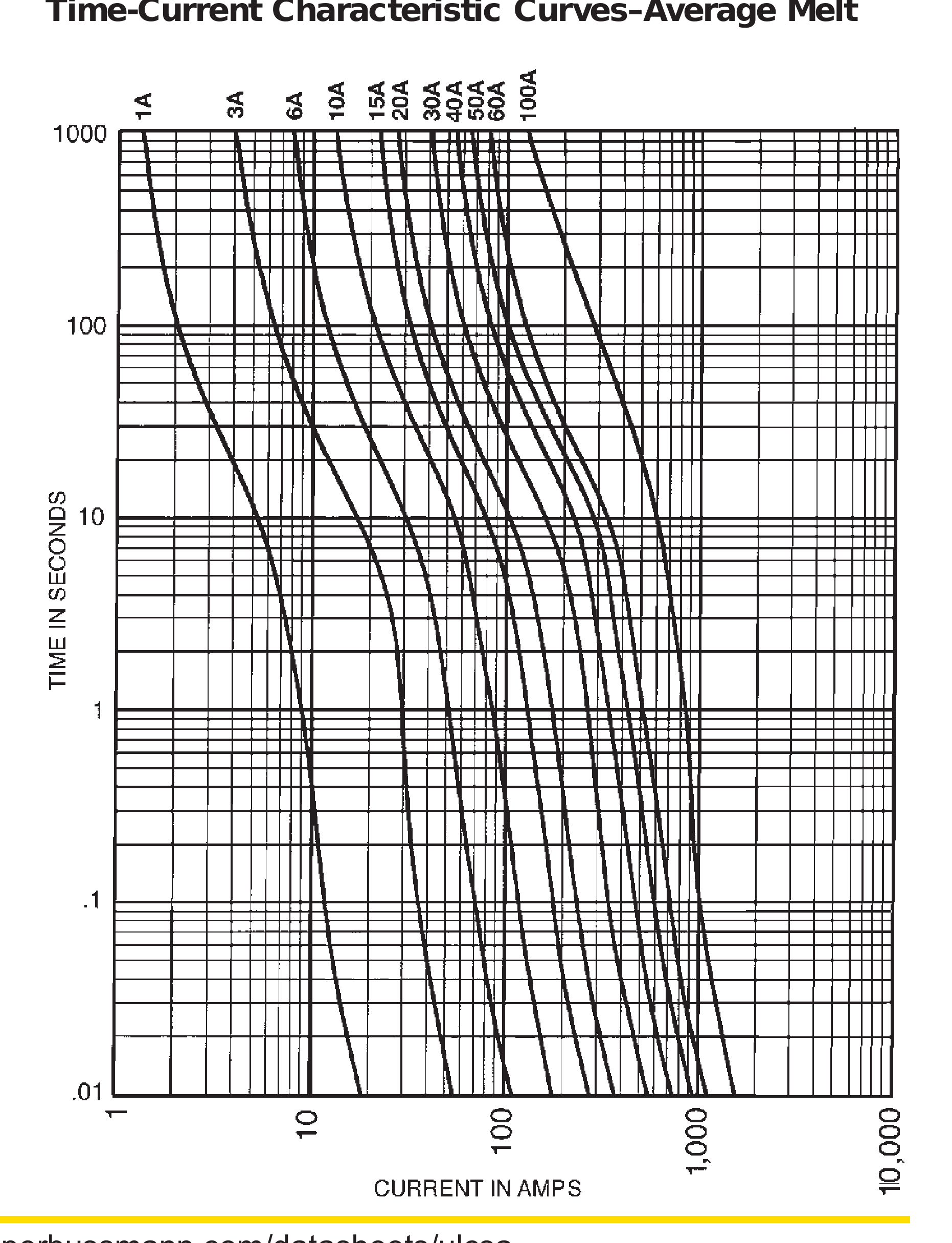

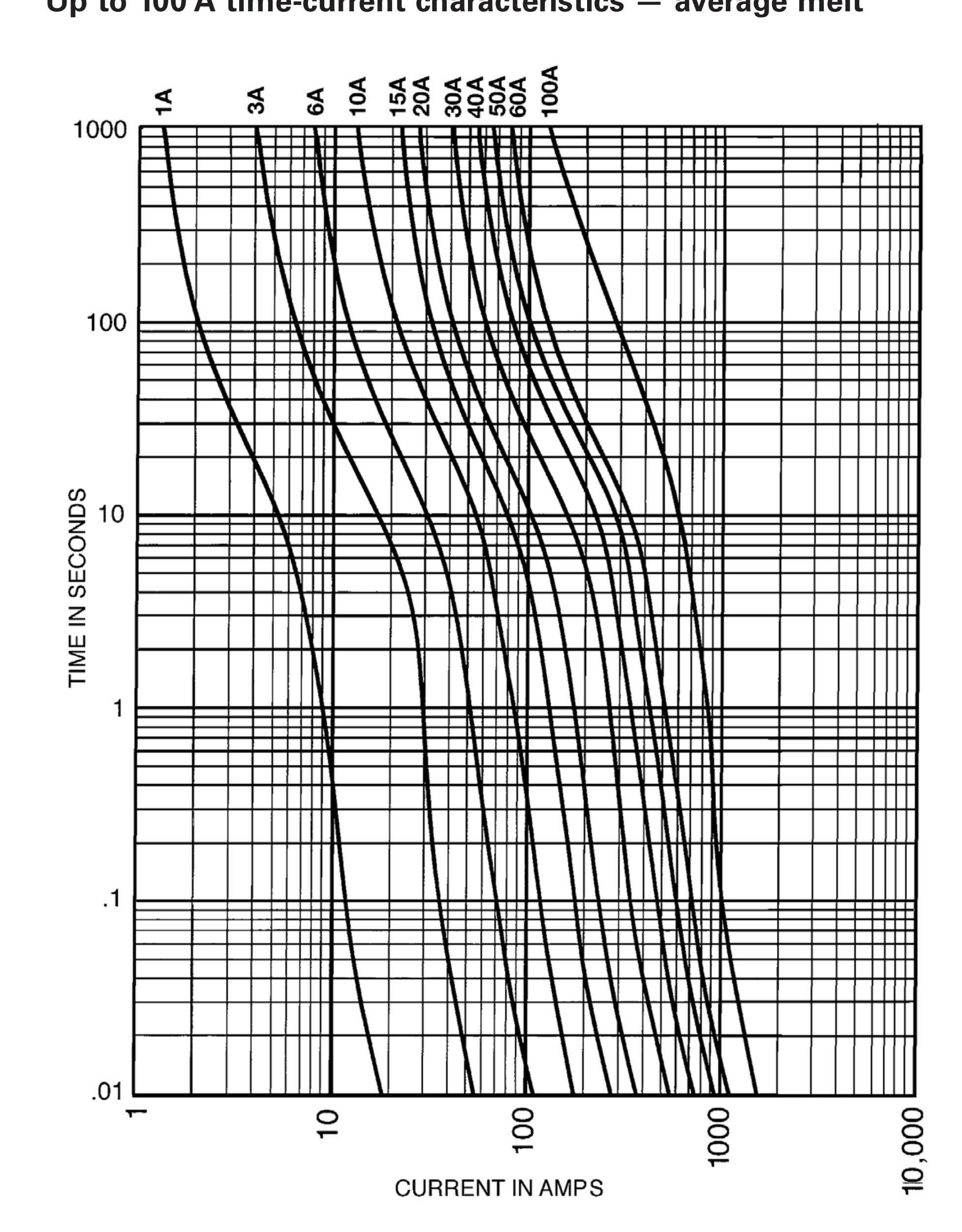

Operating Time at 500% Rated Current10 seconds minimum

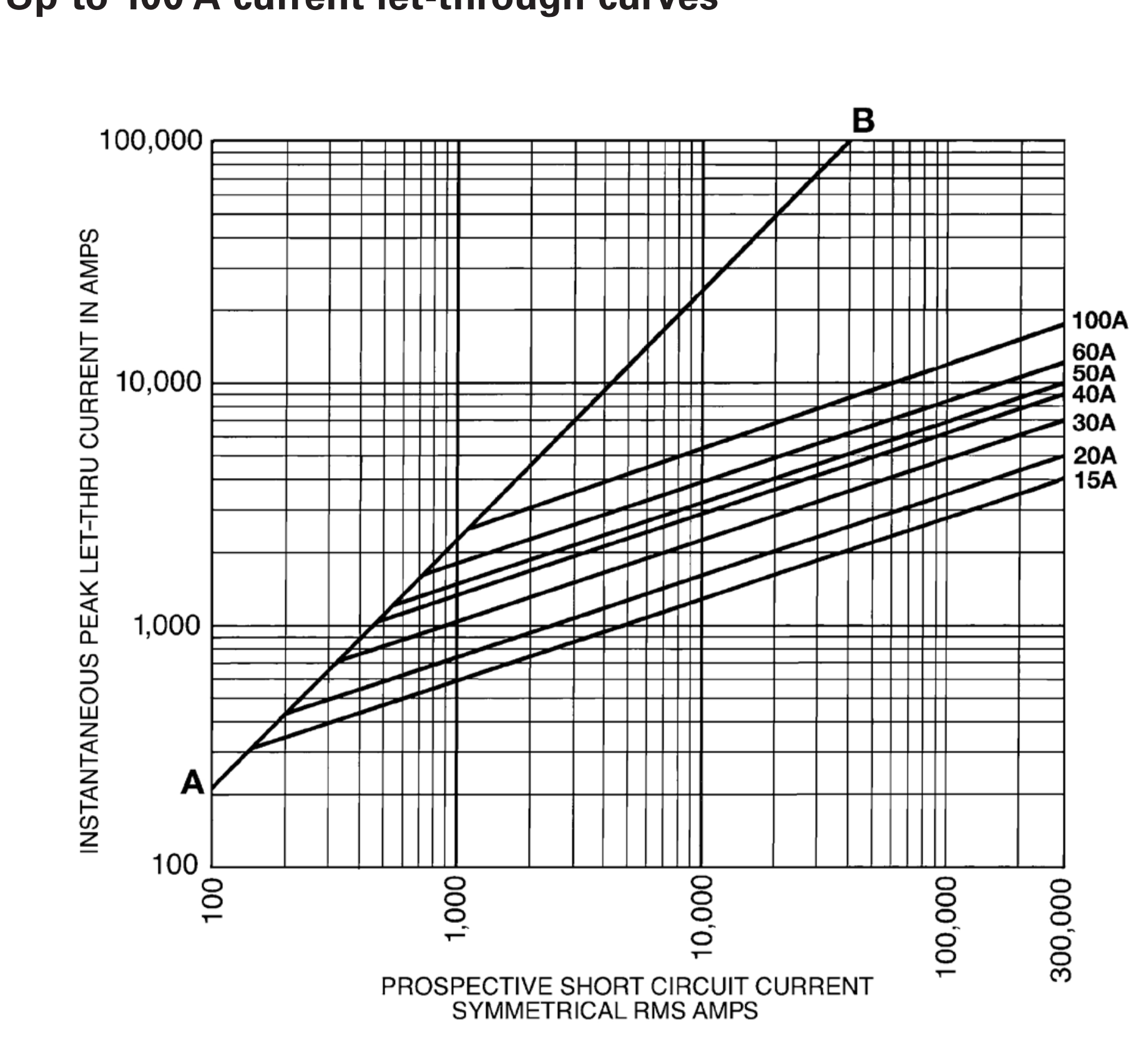

Current-Limiting ClassClass CF with Class J performance
Case MaterialGlass filled PES (Polyethersulfone)
Terminals MaterialCopper alloy
Terminal PlatingElectroless tin
