In stockClass G Time-Delay Fuse 40A 480Vac
Bussmann · SC-40

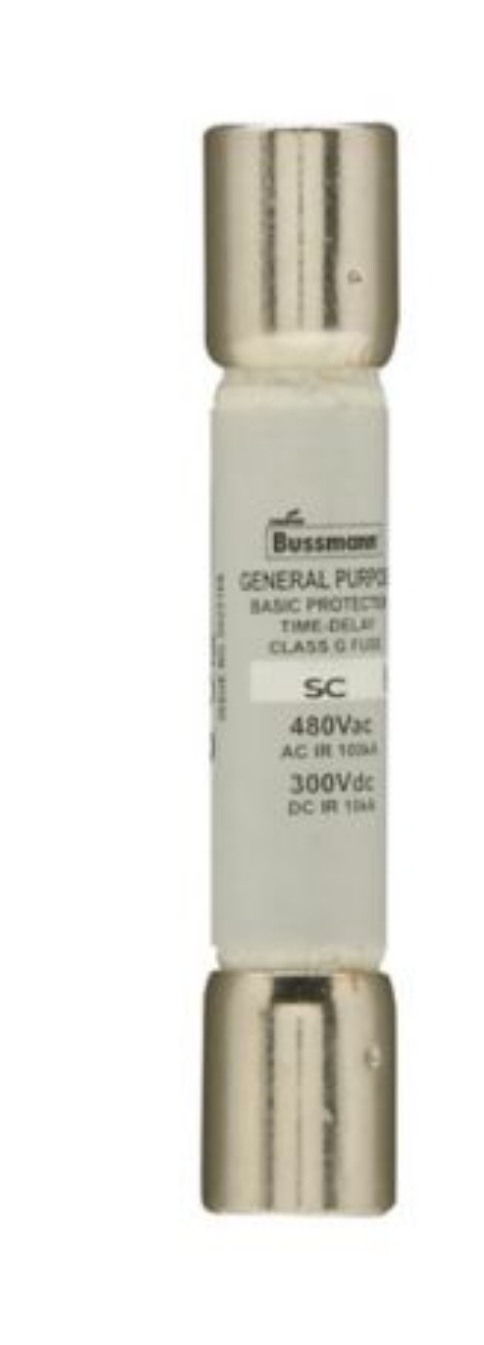

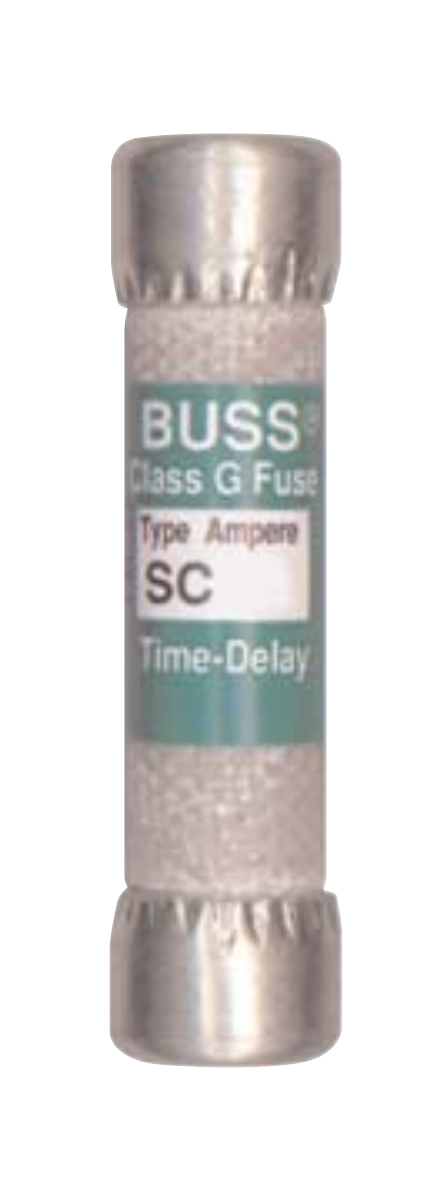

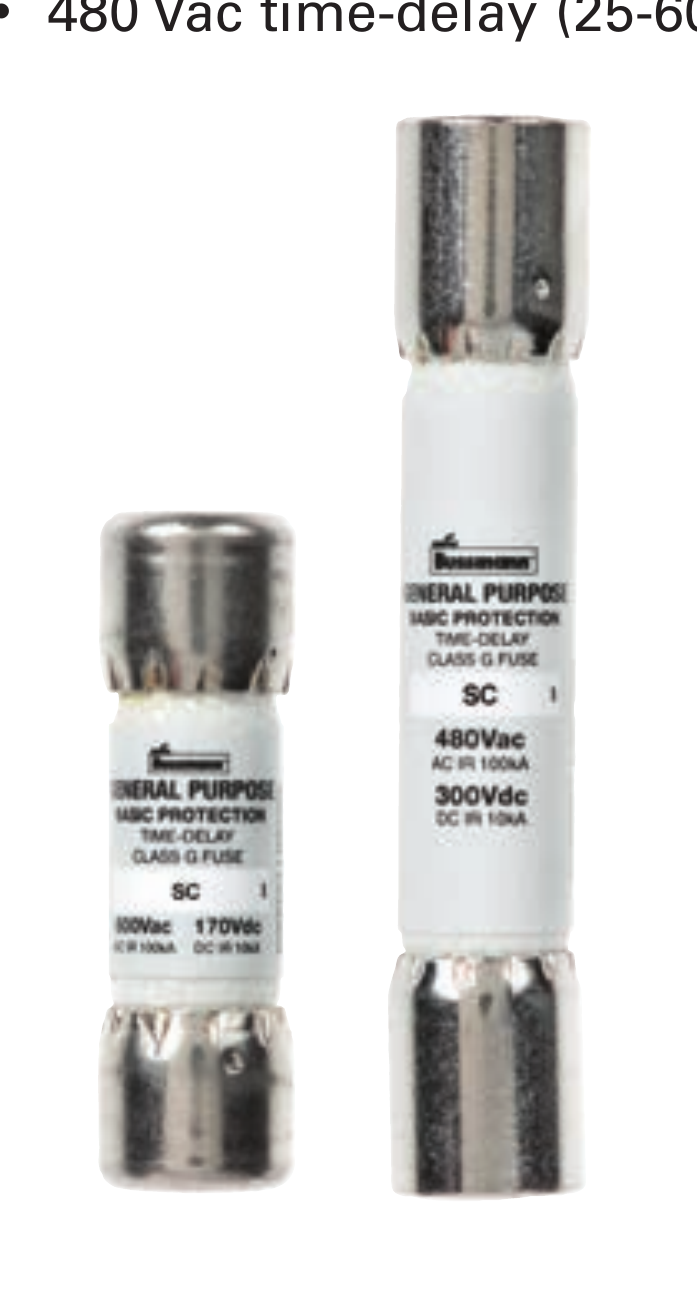

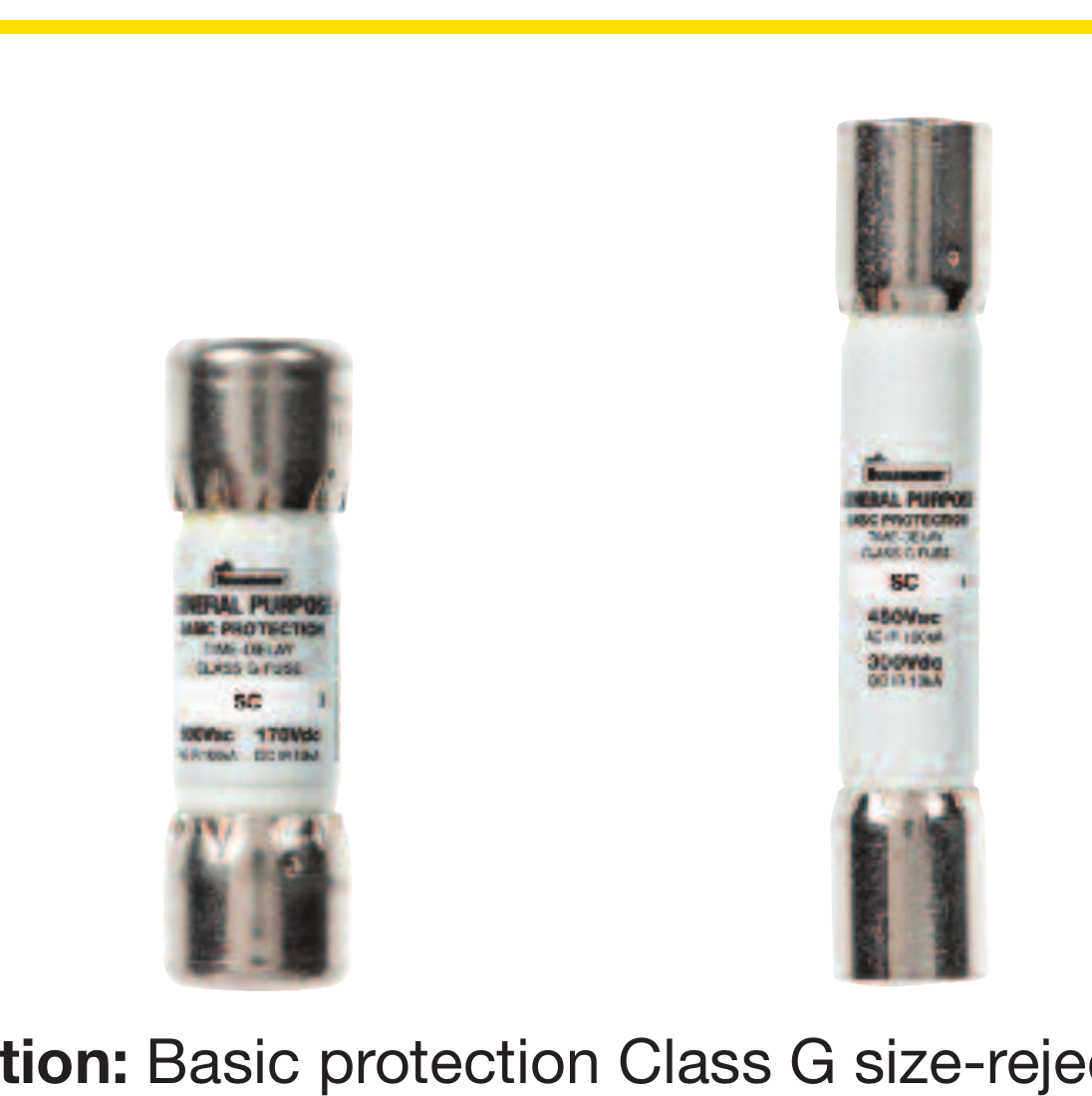

Class G Time-Delay Fuse 40A 480Vac

$ 17.75per unit · ex. VAT
Class G time-delay fuse with 40A current rating and 480Vac/300Vdc voltage rating. Features current-limiting design for branch circuit protection in residential, mobile home, and industrial applications. Includes rejection feature to prevent overfusing.
Ampere Rating
40 A
Voltage Rating AC
480 Vac
Voltage Rating DC
300 Vdc
Interrupting Rating AC
100 kA RMS Sym.
Interrupting Rating DC
10 kA
Ampere Rating40 A
Voltage Rating AC480 Vac
Voltage Rating DC300 Vdc
Interrupting Rating AC100 kA RMS Sym.
Interrupting Rating DC10 kA
Diameter0.41 inch (10.41 mm)
Fuse TypeTime-Delay
Connection TypeFerrule End x Ferrule End
Body MaterialMelamine
Agency ApprovalsUL Listed, CSA Certified, CE Marked, RoHS Compliant
ApplicationBranch Circuit Protection
Packaging TypeStandard
