The Eaton PDBFS330 is in our catalogue: Amperage Rating 380 A, Voltage Rating 600 Vac, 600 Vdc, Number of Poles 1.

ChatMRO can make mistakes, so double check it

In stockFinger-Safe Enclosed Power Distribution Block 380A 600V 1 Pole
Eaton · PDBFS330

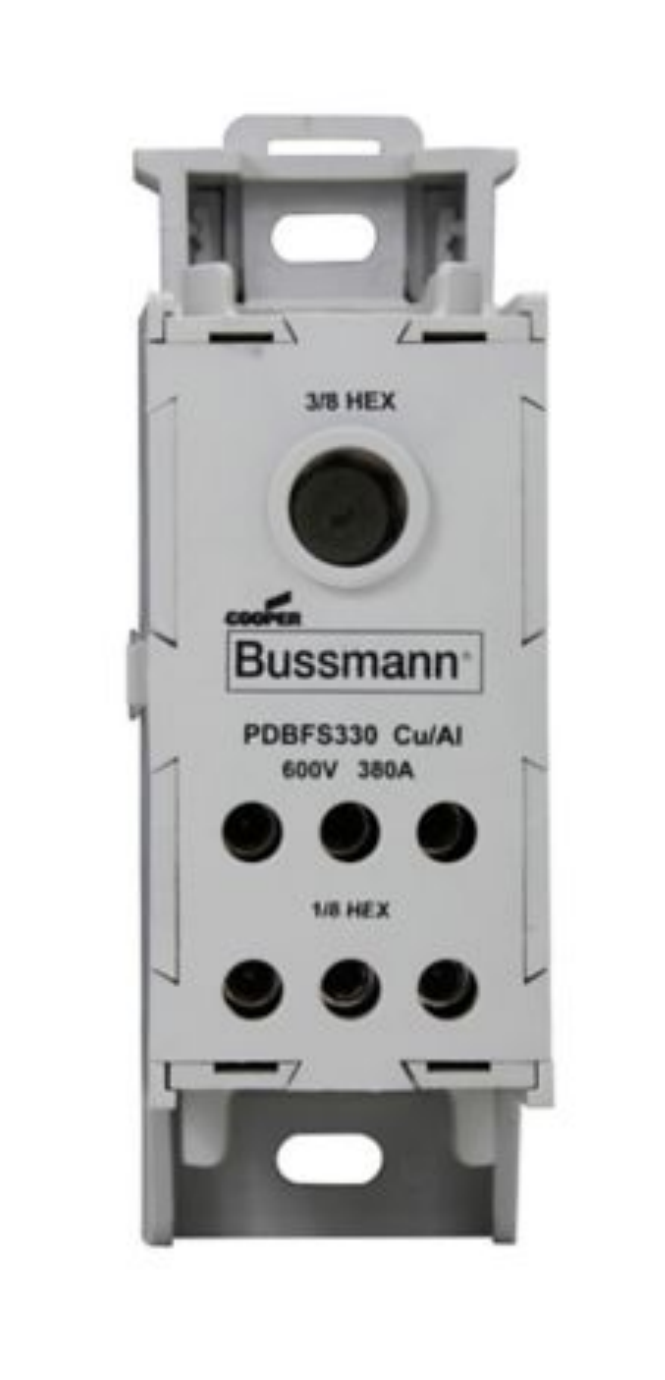

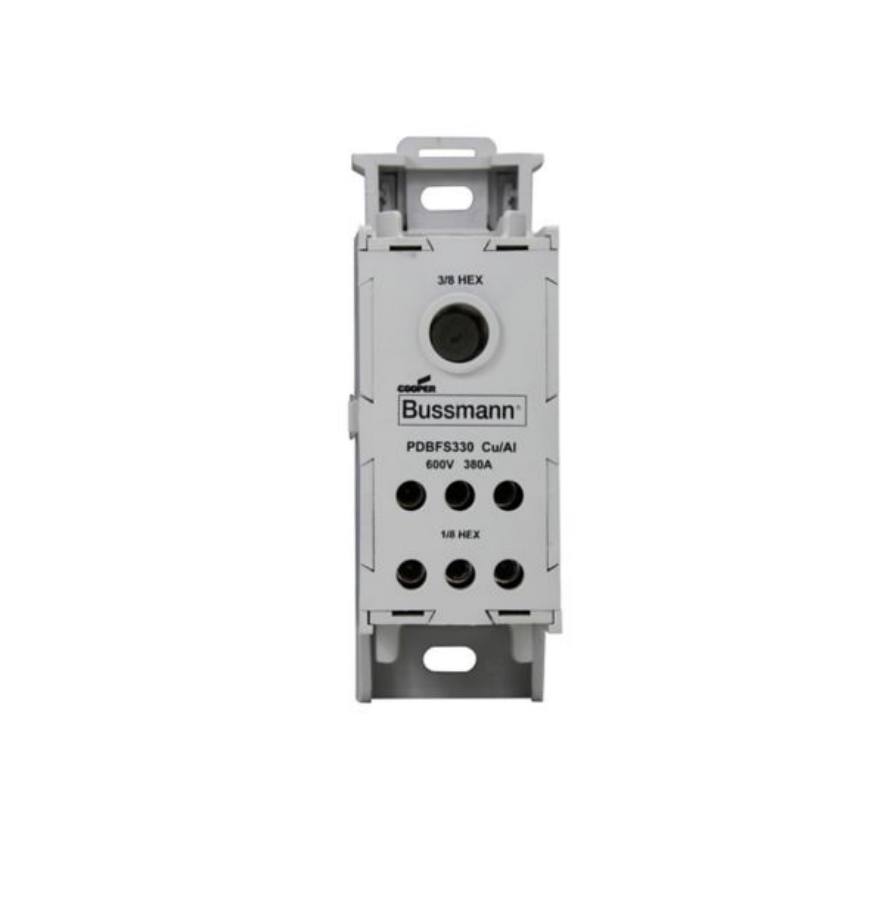

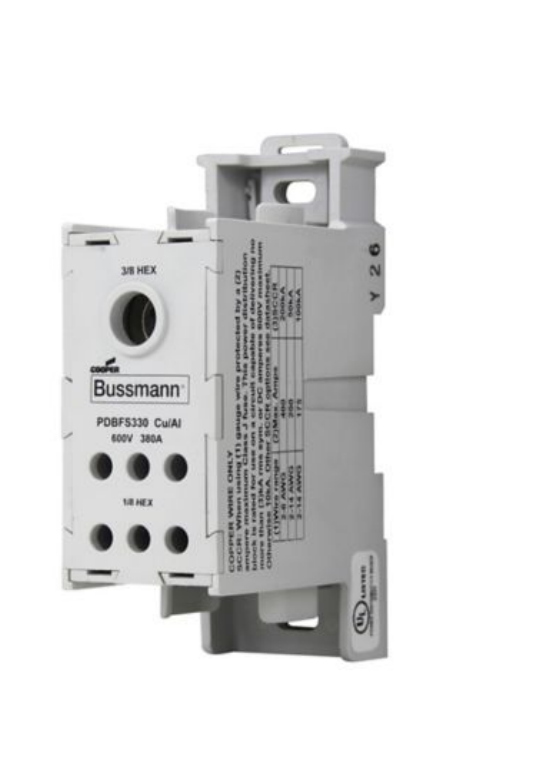

Finger-Safe Enclosed Power Distribution Block 380A 600V 1 Pole

$ 186.63per unit · ex. VAT
Eaton Bussmann series PDBFS finger-safe enclosed power distribution block rated for 380A and 600V AC/DC. Features 1 line and 6 load connections with SCCR up to 200 kA. Designed for panel mounting with IP20 protection under specified wiring conditions. Supports copper and aluminum conductors across dual-wire rated ports.
Amperage Rating
380 A
Voltage Rating
600 Vac, 600 Vdc
Number of Poles
1
Line/Load Ports
1 line, 6 load
Short-Circuit Current Rating (SCCR)
200 kA (6–2 AWG), 100 kA (14–2 AWG)
Amperage Rating380 A
Voltage Rating600 Vac, 600 Vdc
Number of Poles1
Line/Load Ports1 line, 6 load
Short-Circuit Current Rating (SCCR)200 kA (6–2 AWG), 100 kA (14–2 AWG)
Line Side Wire Range500 kcmil to 6 AWG (Cu/Al)
Load Side Wire Range2 to 14 AWG (Cu), 2 to 12 AWG (Al)
MountingPanel
IP RatingIP20 (finger-safe under specific conditions)
Flammability RatingUL 94V0
Terminal MaterialTin-plated aluminum connectors
Product Width1.58 inch
