Bussmann nsd32
ChatMRO

The Bussmann NSD32 is in our catalogue: Ampere Rating 32 A, Rated Voltage 550 V AC, Fuse Class gL/gG.

ChatMRO can make mistakes, so double check it

In stockIndustrial HRC Fuse 32A 550V AC gL/gG Class
Bussmann · NSD32

Industrial HRC Fuse 32A 550V AC gL/gG Class

$ 6.14per unit · ex. VAT

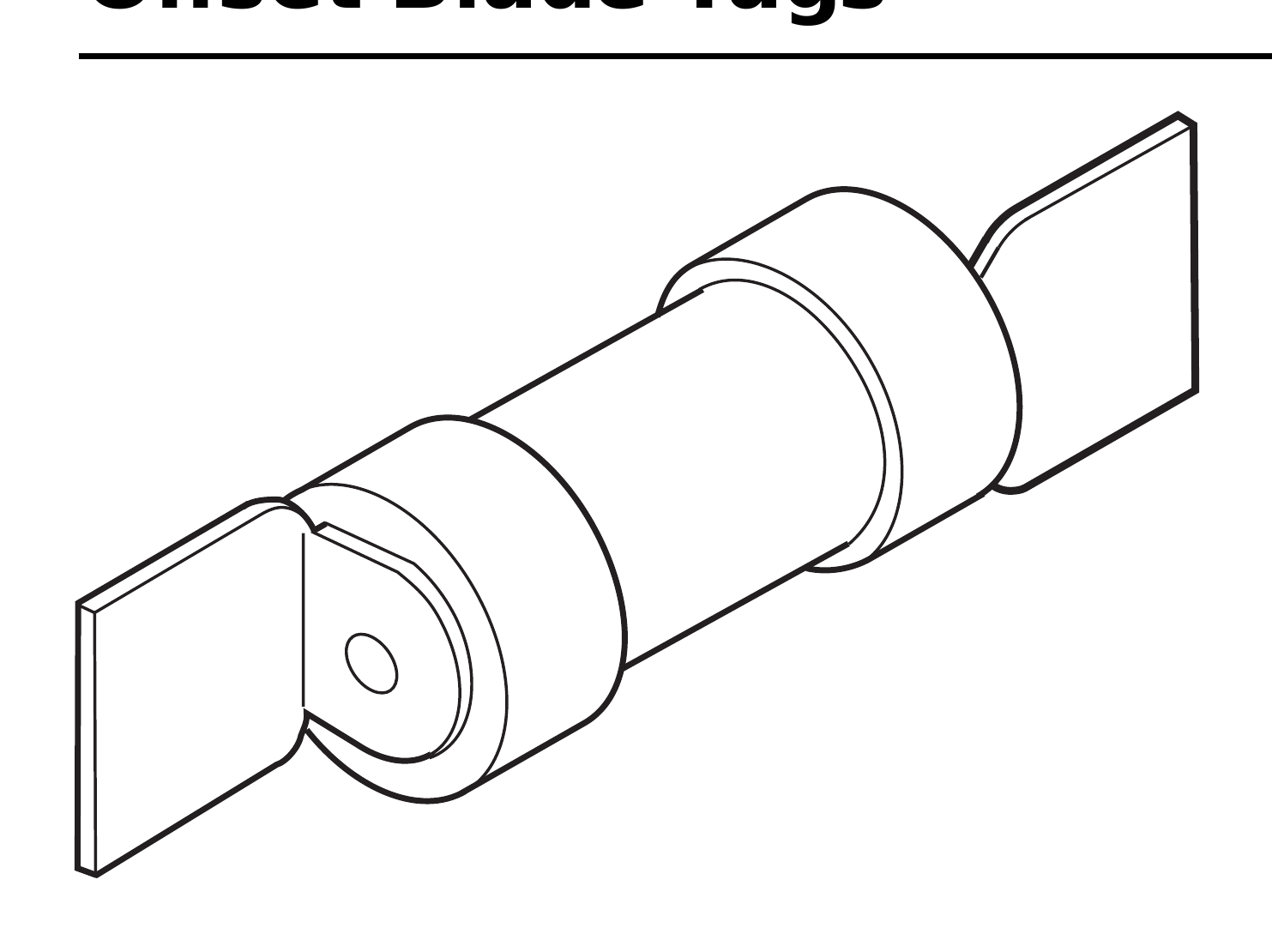

Industrial high rupture capacity (HRC) fuse from the Eaton Bussmann NSD series, rated for 32A and 550V AC. Designed for general industrial applications with gL/gG protection characteristics. Features offset blade termination and rectangular cartridge construction compliant with BS88 and IEC 60269-2 standards.
Ampere Rating
32 A
Rated Voltage
550 V AC
Fuse Class
gL/gG
Fuse Type
BS88
Standards
IEC 60269-2, BS88
Ampere Rating32 A
Rated Voltage550 V AC
Fuse ClassgL/gG
Fuse TypeBS88
StandardsIEC 60269-2, BS88
ComplianceCE Marked, RoHS Compliant
Nom Watts Loss2.9 W
I2T Pre-Arcing710 A²s
I2T Total At 415V3000 A²s
I2T Total At 550V5000 A²s

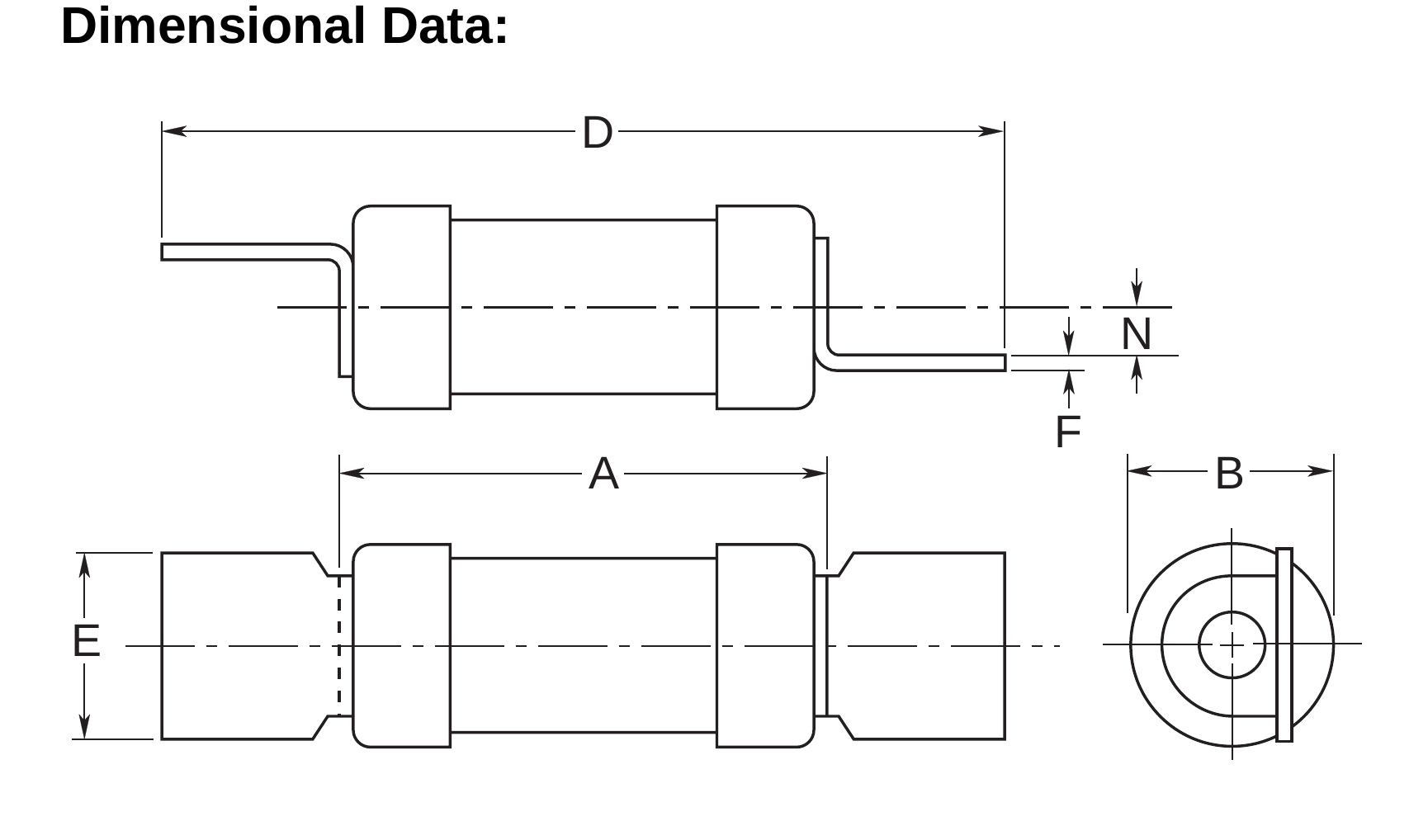

Product Length59 mm
Product Width14 mm
