The Bussmann LP-CC-4 is in our catalogue: Amperage Rating 4 A, Voltage Rating 600 Vac, 150 Vdc, Interrupting Rating 200 kA RMS Sym. at 600 Vac, 20 kA at 150 Vdc.

ChatMRO can make mistakes, so double check it

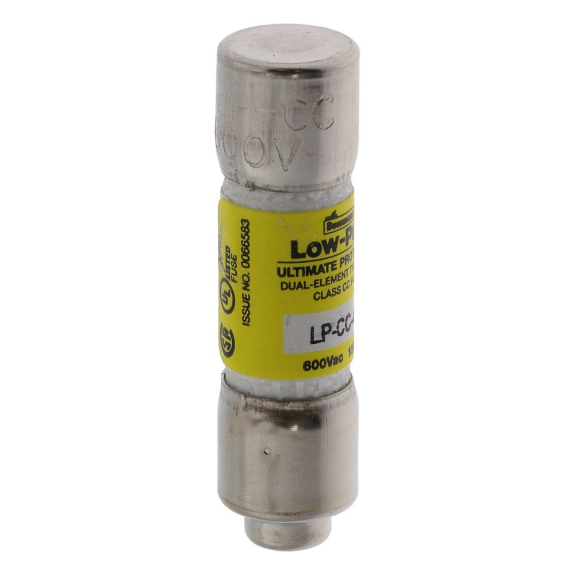

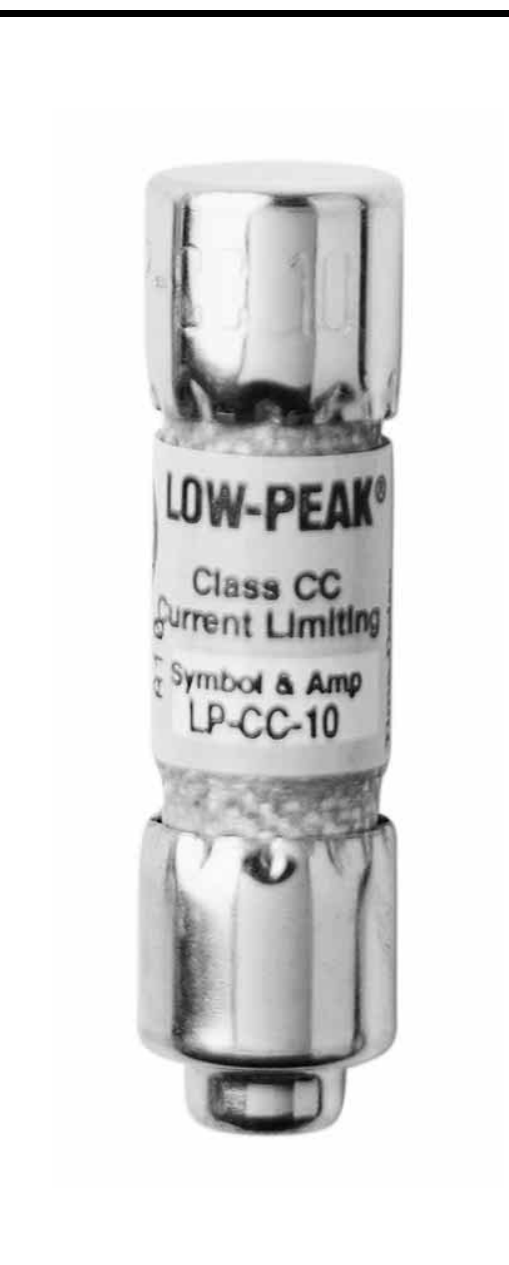

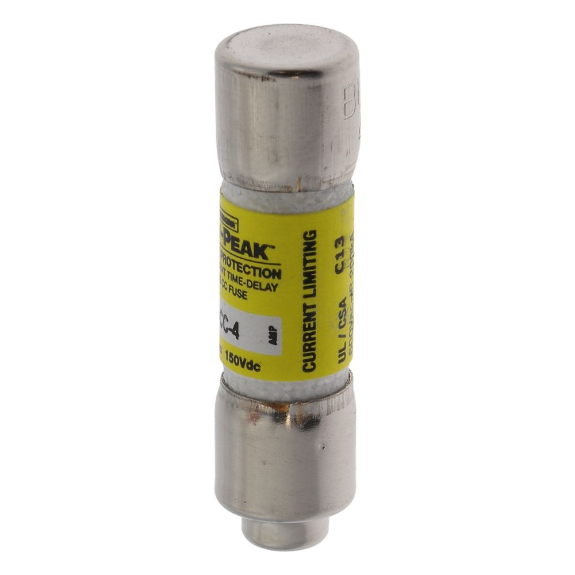

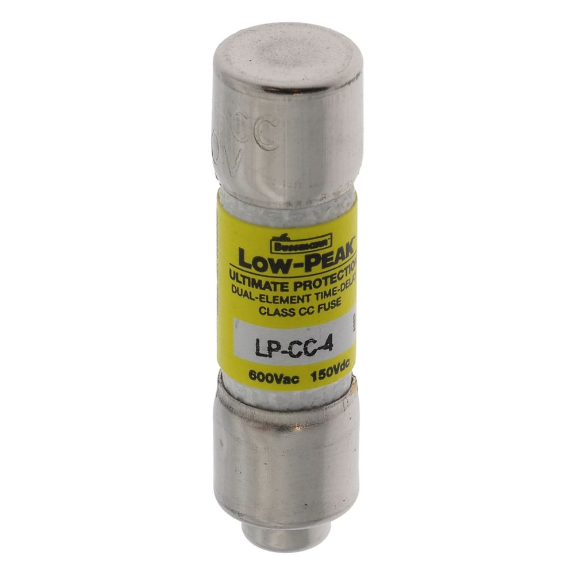

In stockClass CC Time-Delay Current-Limiting Fuse 4 A
Bussmann · LP-CC-4

Class CC Time-Delay Current-Limiting Fuse 4 A

$ 12.47per unit · ex. VAT
Current-limiting, time-delay fuse with 4 A amperage rating, 600 Vac / 150 Vdc voltage rating, and 200 kA interrupting capacity. Features a melamine tube body, ferrule end connections, and rejection style design for industrial control and specialized circuits.
Amperage Rating
4 A
Voltage Rating
600 Vac, 150 Vdc
Interrupting Rating
200 kA RMS Sym. at 600 Vac, 20 kA at 150 Vdc
Type
Current-limiting, Time-delay
Class
Class CC
Amperage Rating4 A
Voltage Rating600 Vac, 150 Vdc
Interrupting Rating200 kA RMS Sym. at 600 Vac, 20 kA at 150 Vdc
TypeCurrent-limiting, Time-delay
ClassClass CC
MaterialMelamine tube
ConnectionFerrule end x ferrule end
ApplicationSpecialized circuits and industrial control

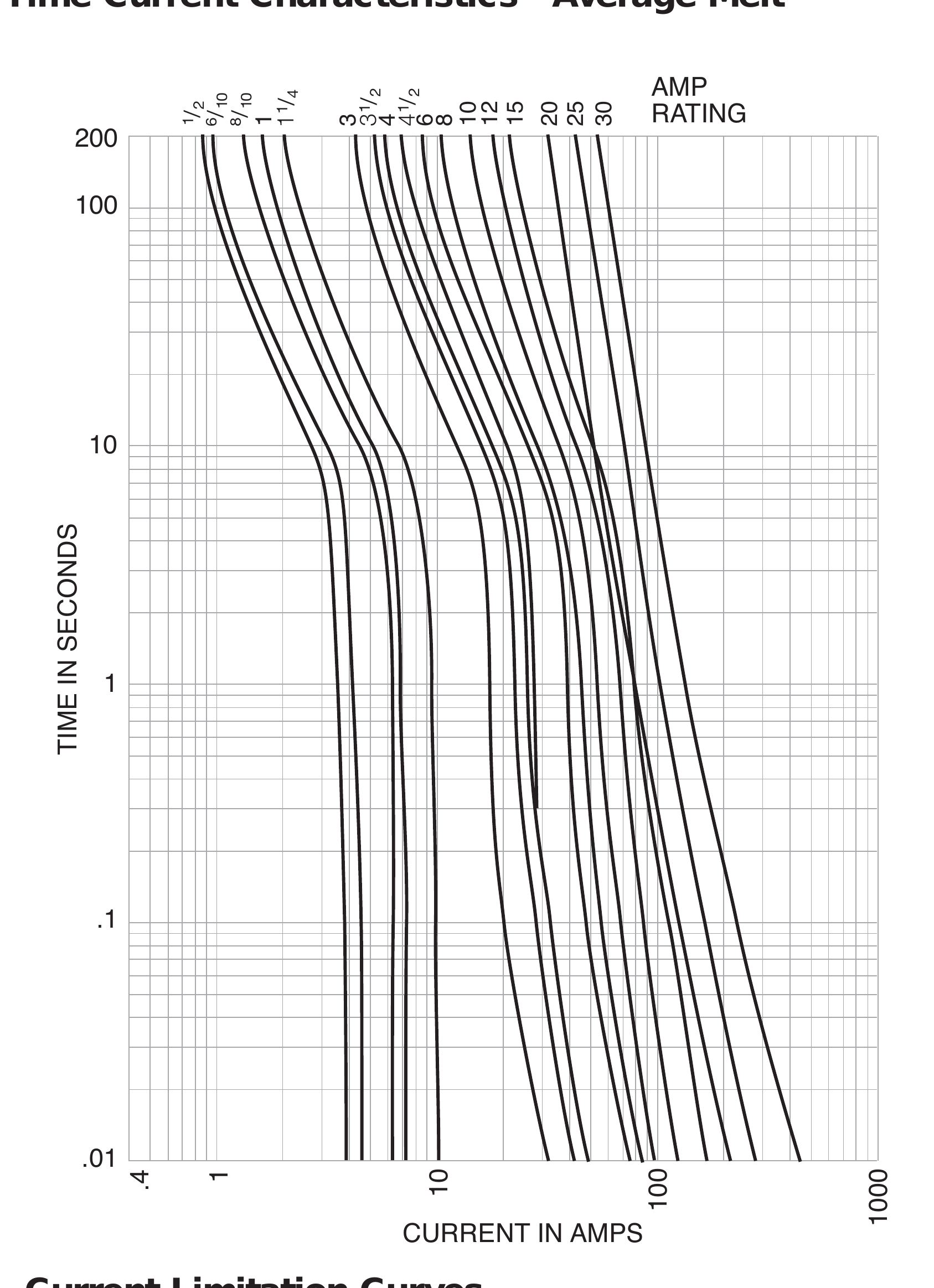

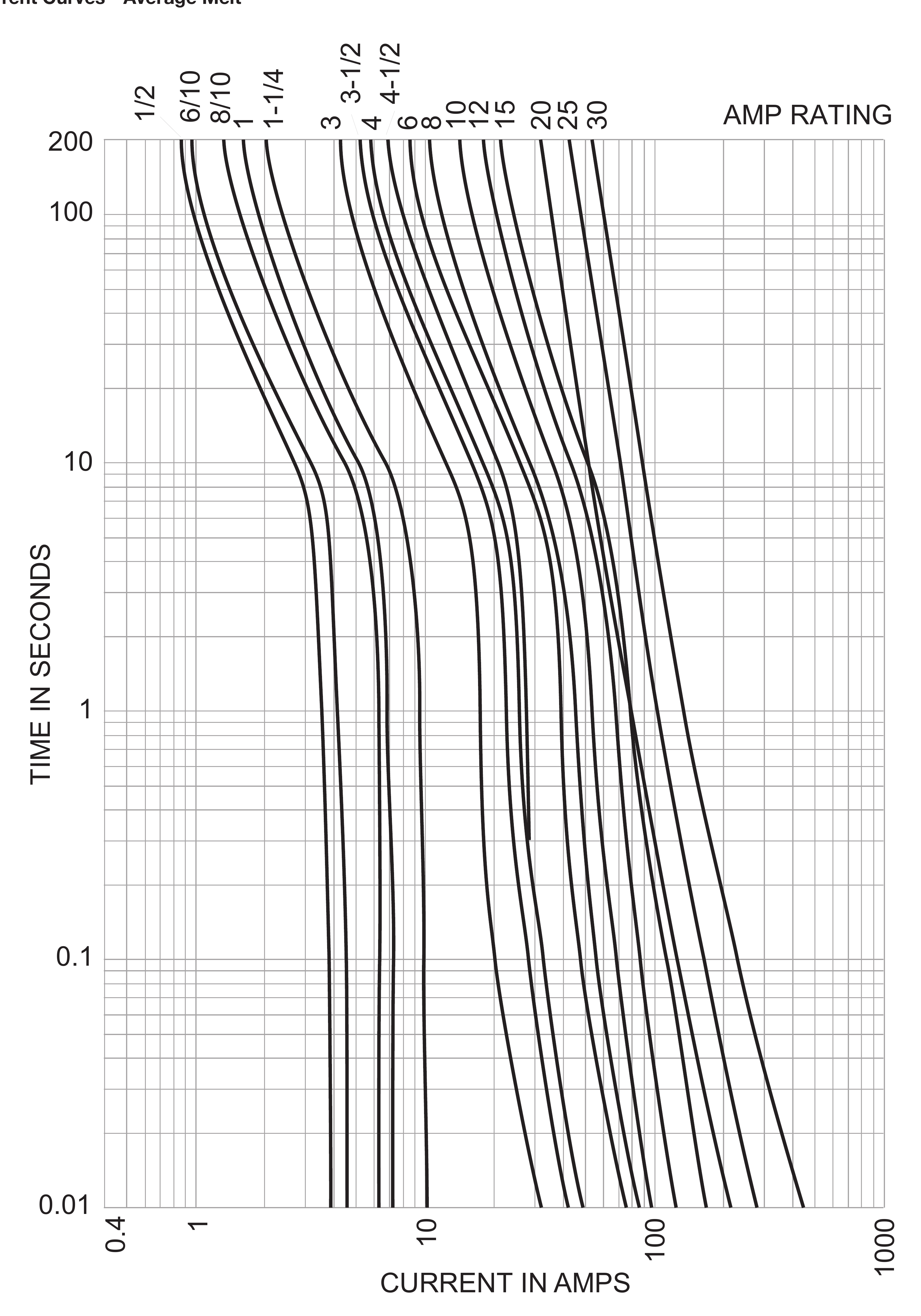

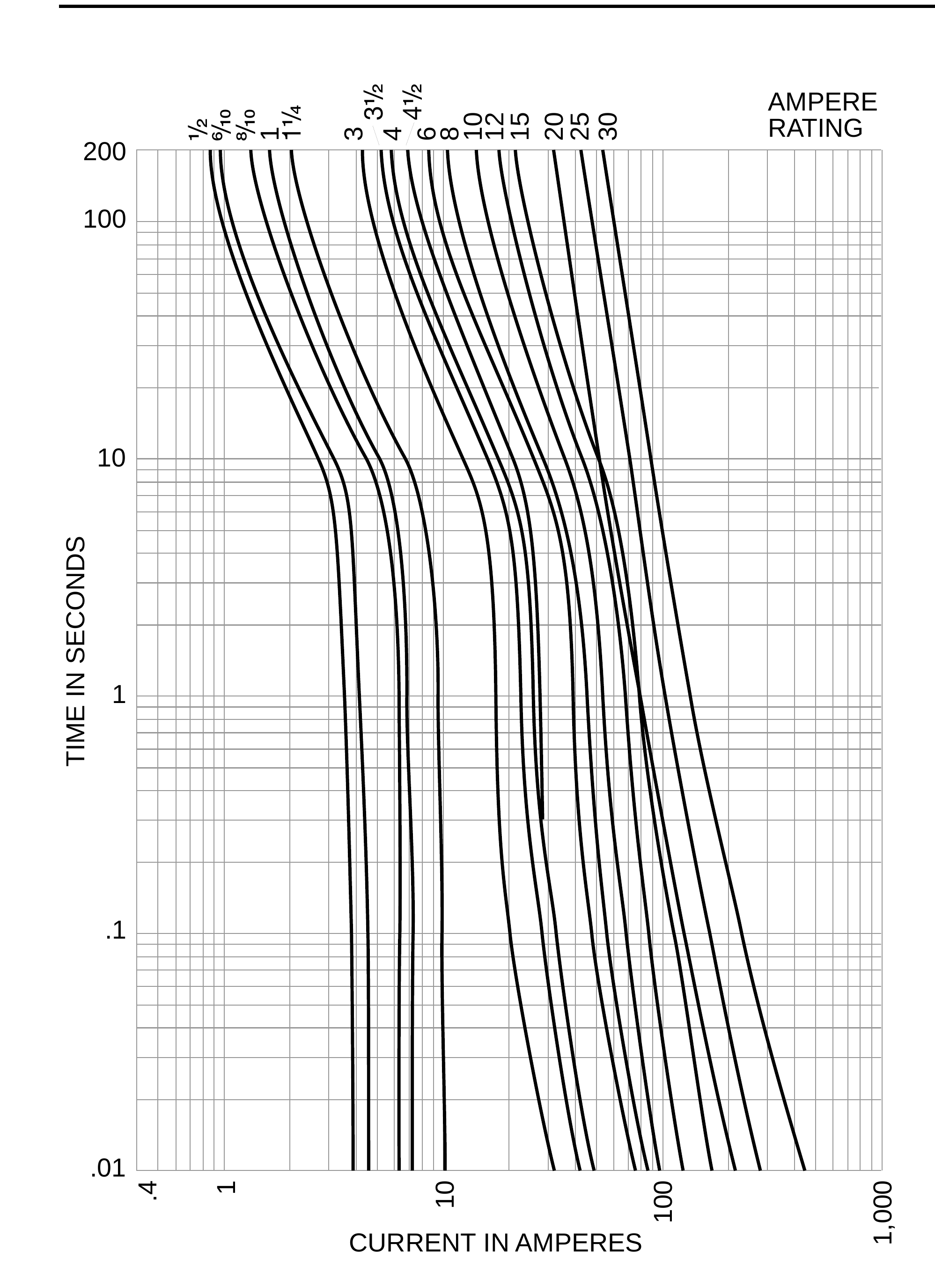

Response Time12 sec at 200 percent
Fuse IndicatorNon-indicating
Number Of ElementsDual

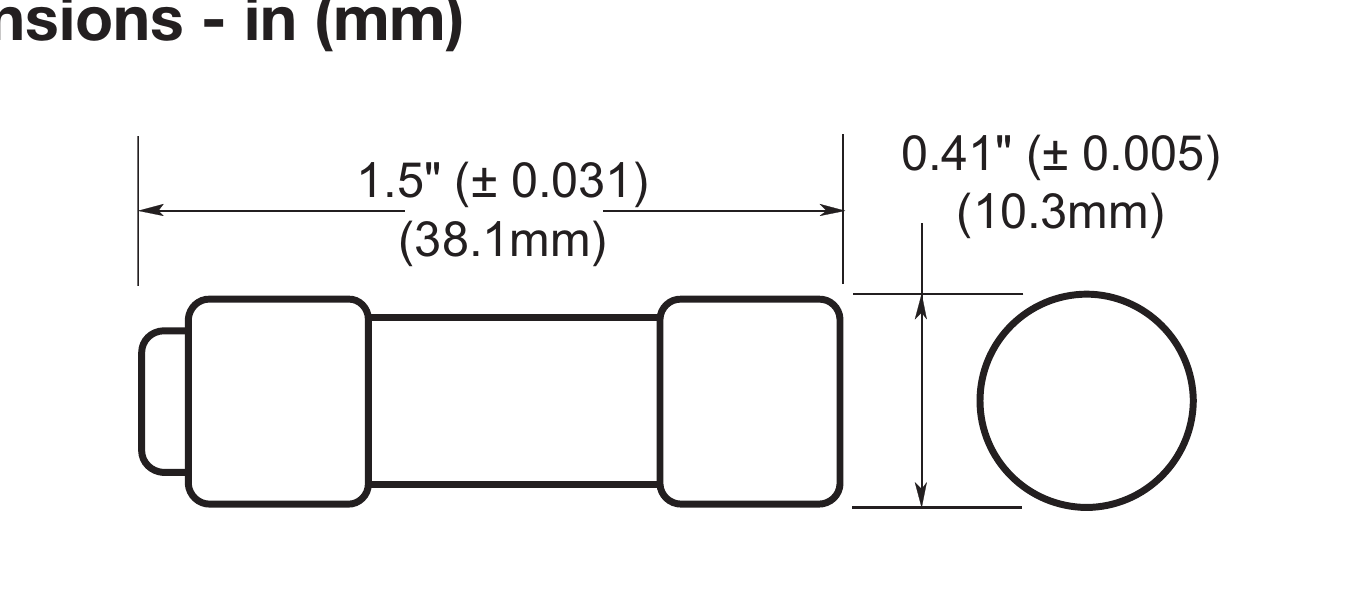

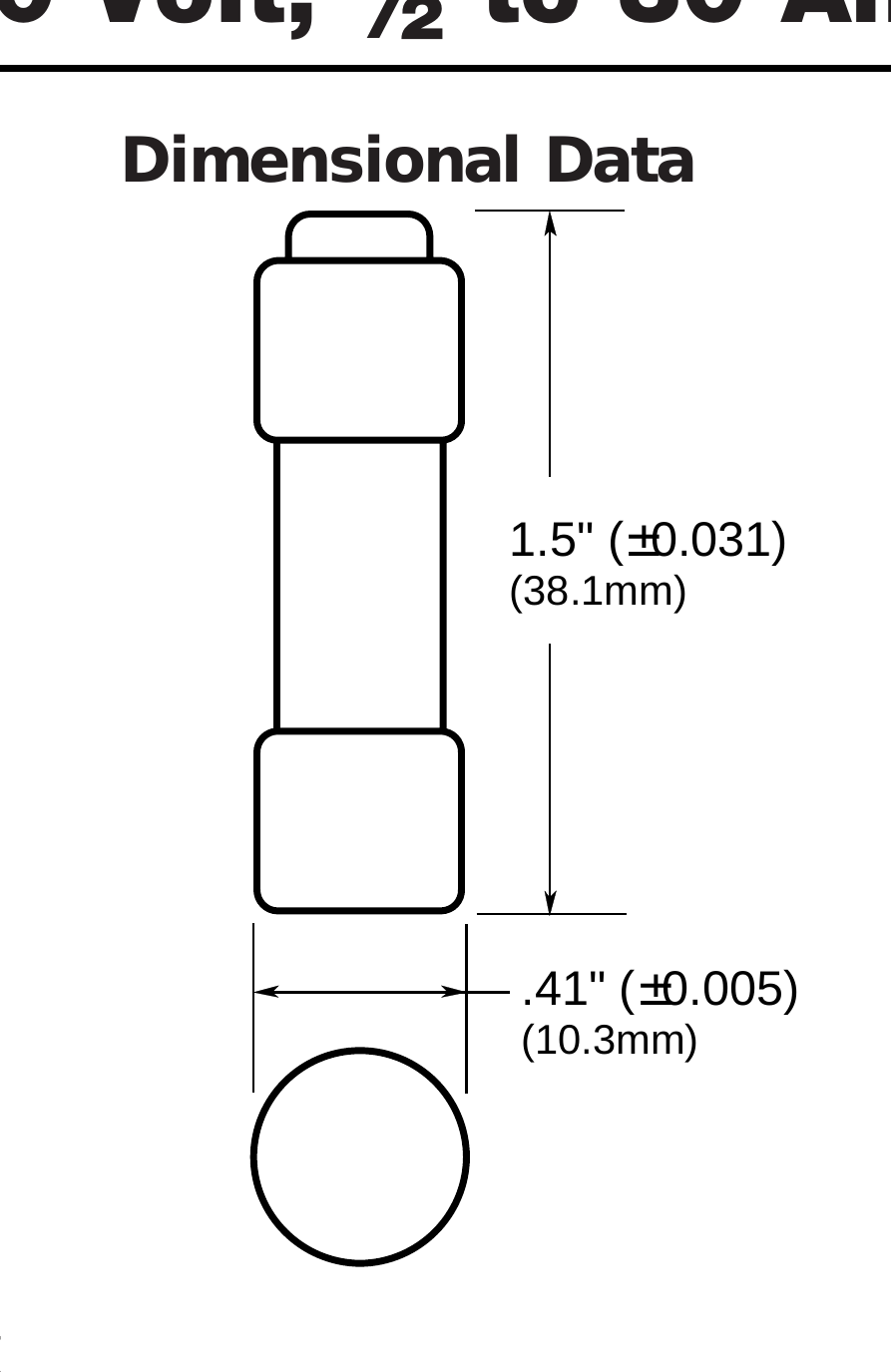

Product Length1.5 inch
