The Eaton KUXSC6 is in our catalogue: Voltage Rating 600 V, Amperage Rating 60 A, Number Of Poles 6.

ChatMRO can make mistakes, so double check it

In stockPanel Mount Terminal Block Connector, Double Row, 6-Pole, 600 V, 60 A
Eaton · KUXSC6

Panel Mount Terminal Block Connector, Double Row, 6-Pole, 600 V, 60 A

$ 36.29per unit · ex. VAT

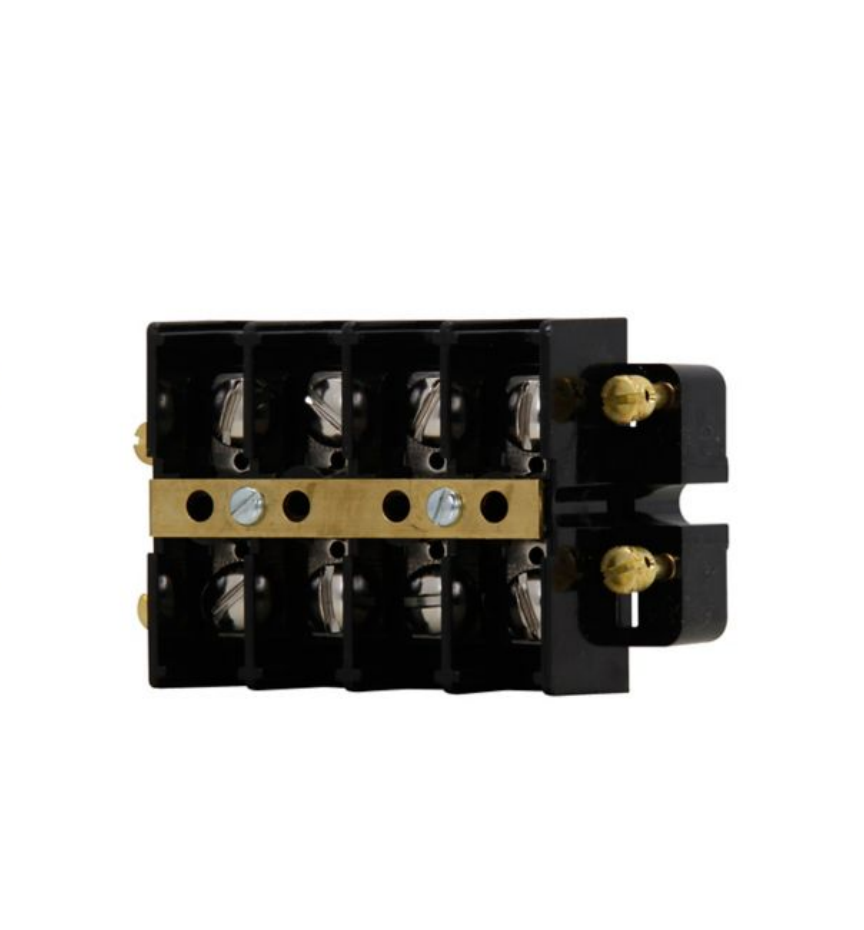

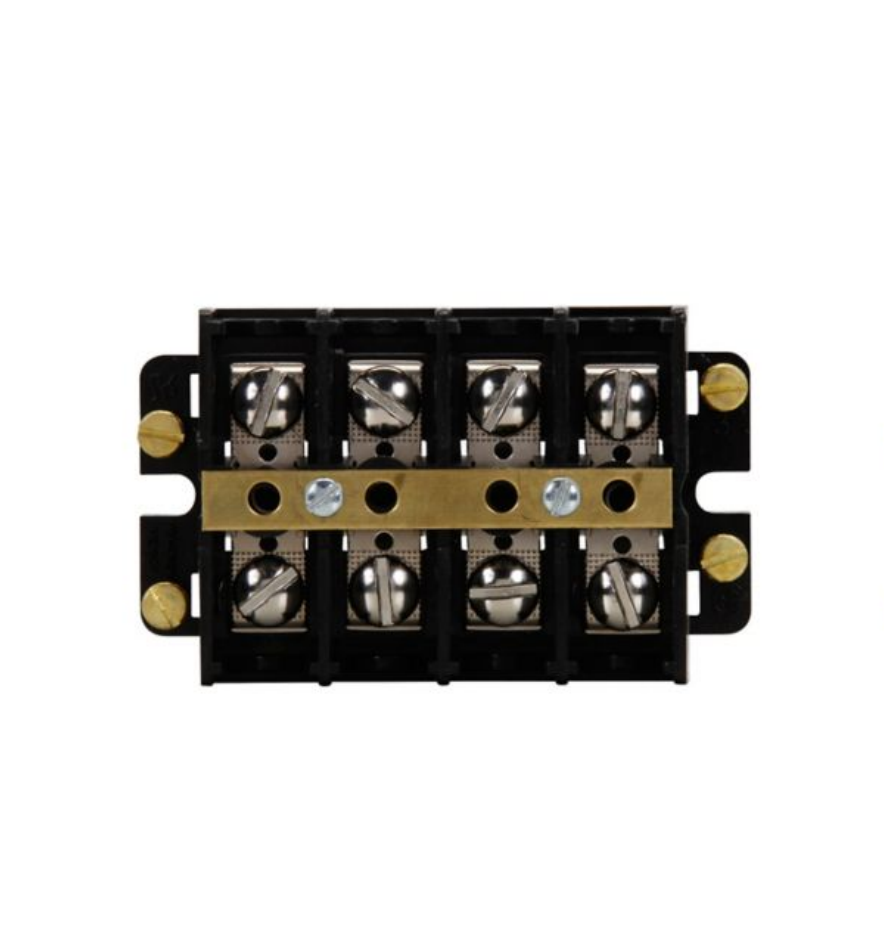

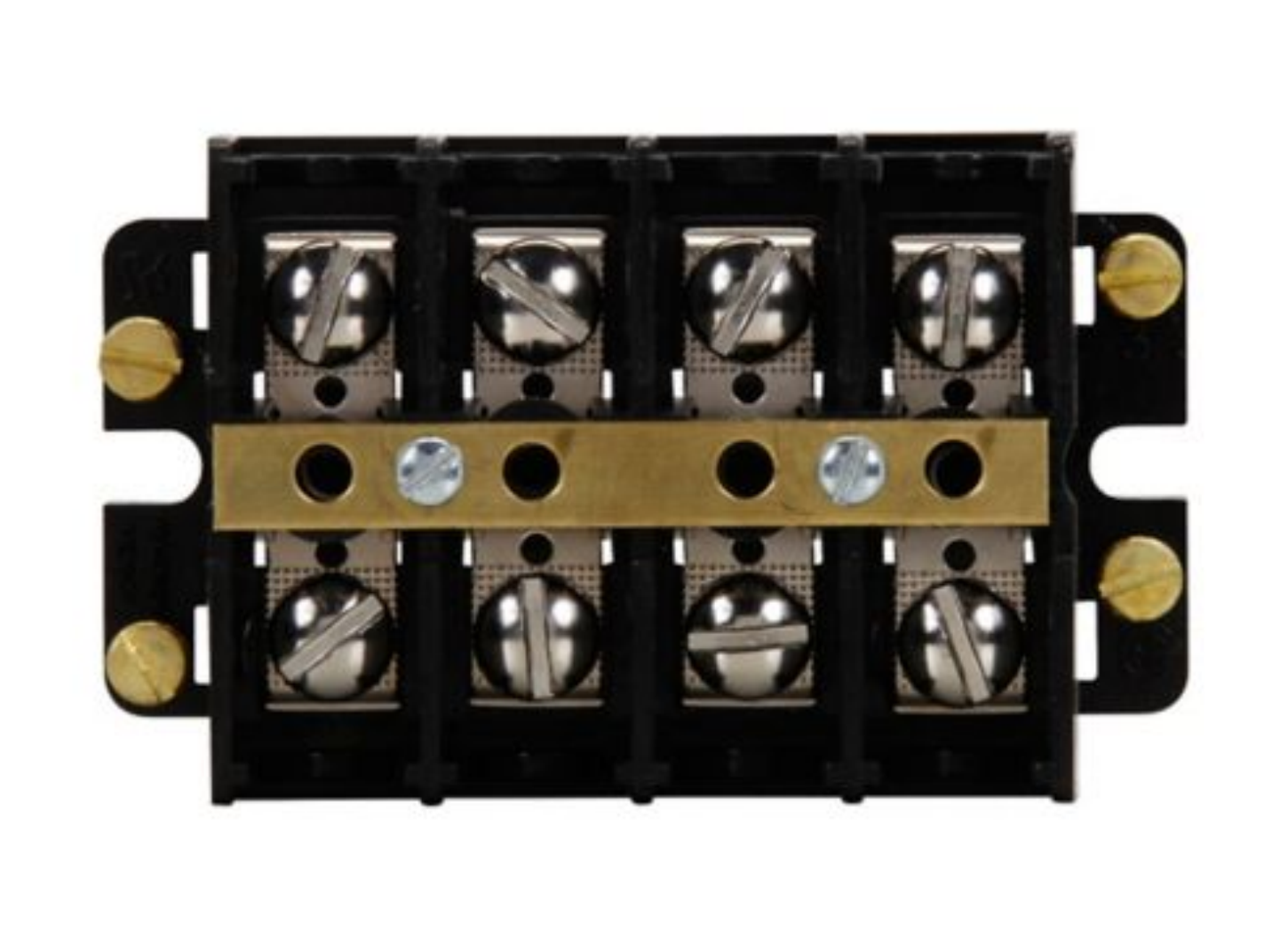

Eaton Bussmann KU series panel mount terminal block connector with double row configuration, 6-pole, 600 V, 60 A rating. Features a shorting strap and four shorting screws. Constructed with nickel-plated brass terminals and black UL-rated 94V1 Noryl base material. Designed for surface or base mounting with #10-32 screws and accepts #6-22 AWG copper wire.
Voltage Rating
600 V
Amperage Rating
60 A
Number Of Poles
6

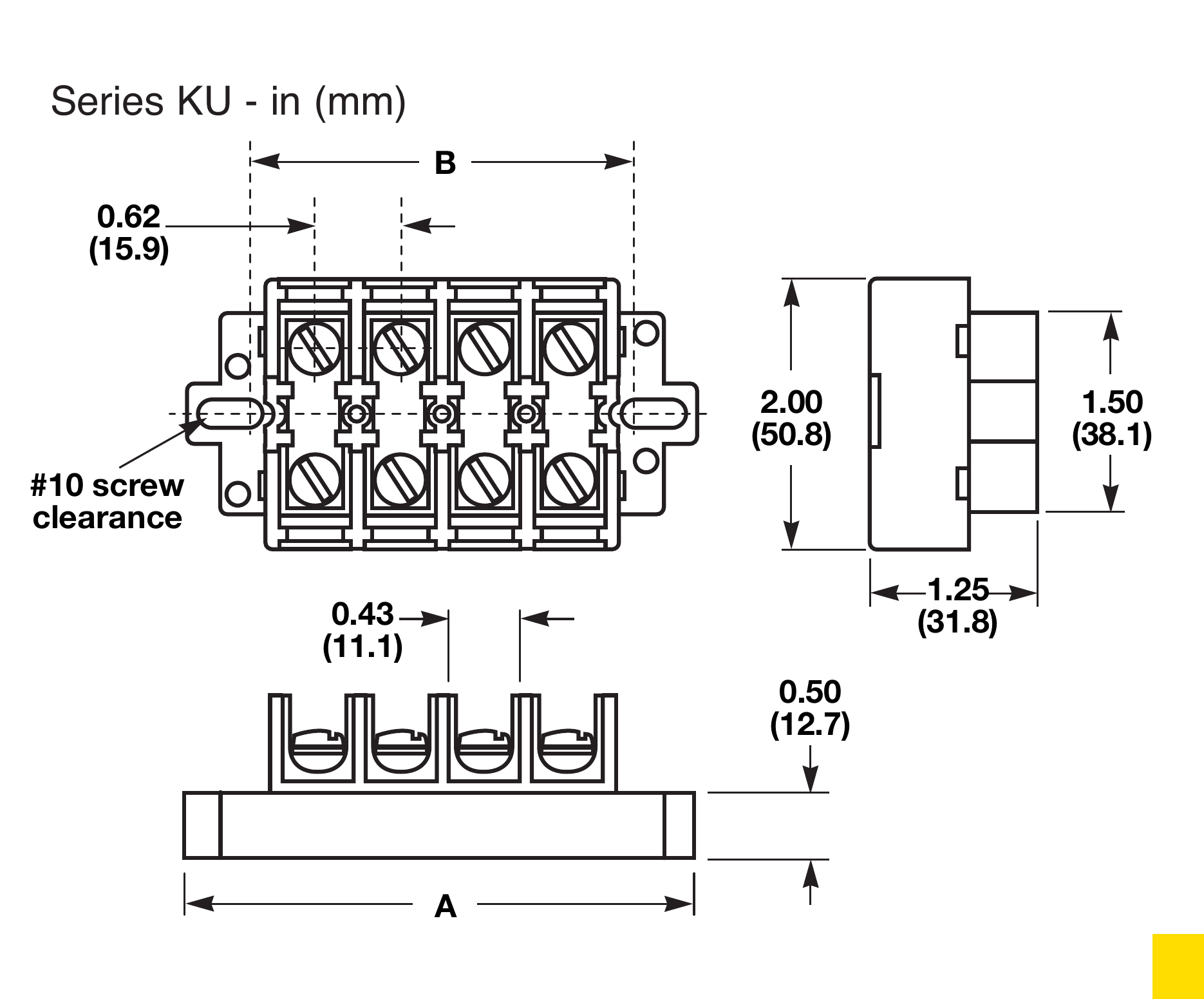

Product Width
2 inch
Product Height
1.25 inch
Voltage Rating600 V
Amperage Rating60 A
Number Of Poles6
Product Width2 inch
Product Height1.25 inch
Product Length/Depth4.5 inch
Product Weight0.22 lb
MountingBase mount
Screw Size#10-32
Wire Range#6-22 AWG Cu
Torque Rating20 lb-in.
Center Spacing0.625 inch (15.88mm)
