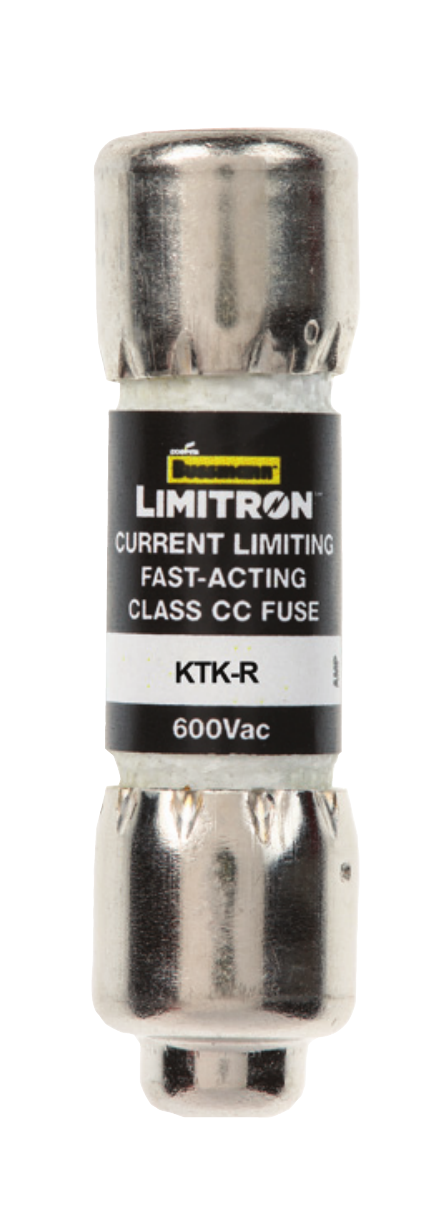

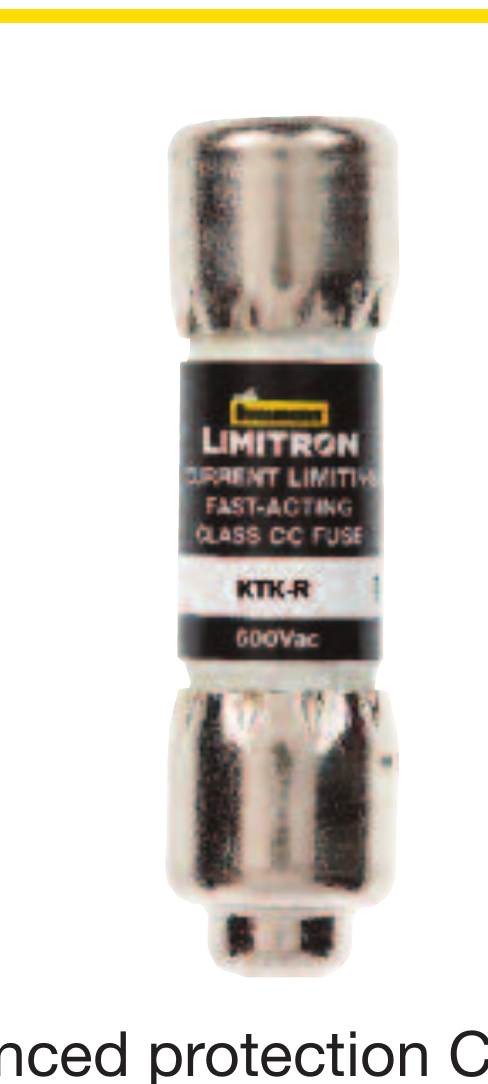

In stockClass CC Fast-Acting Current-Limiting Fuse, 600Vac, 20A, Dual-Element, Rejection Style
Eaton · KTK-R-20

Class CC Fast-Acting Current-Limiting Fuse, 600Vac, 20A, Dual-Element, Rejection Style

$ 13.46per unit · ex. VAT
Eaton Bussmann Series KTK-R Class CC fast-acting, current-limiting fuse with 600Vac voltage rating, 20A amperage rating, and 200kA interrupting capacity. Features a melamine tube body, dual ferrule termination, and rejection-style design for industrial control and specialized circuit protection.
Voltage Rating
600Vac
Amperage Rating
20A
Interrupting Rating
200kA Vac RMS Sym.

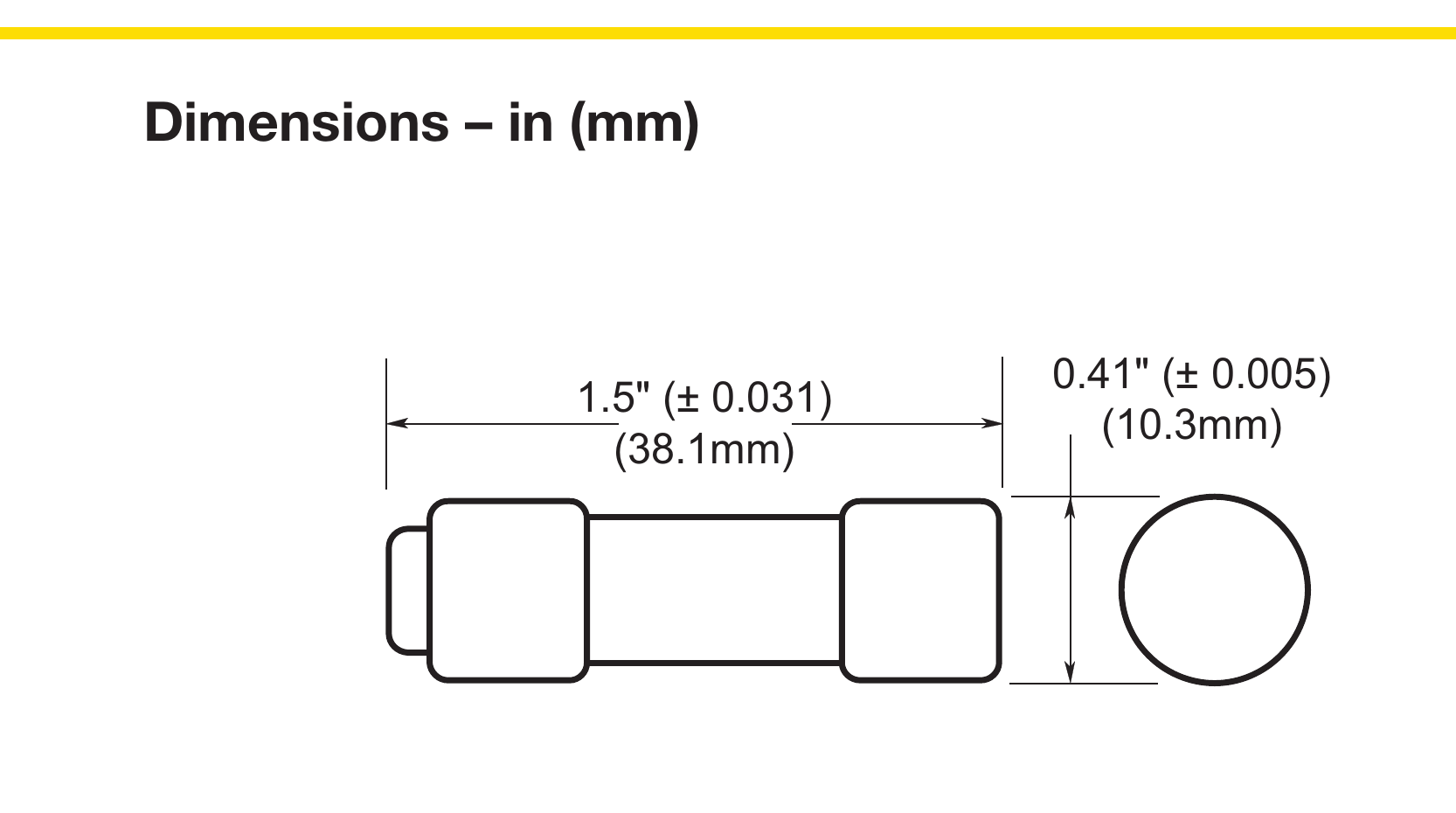

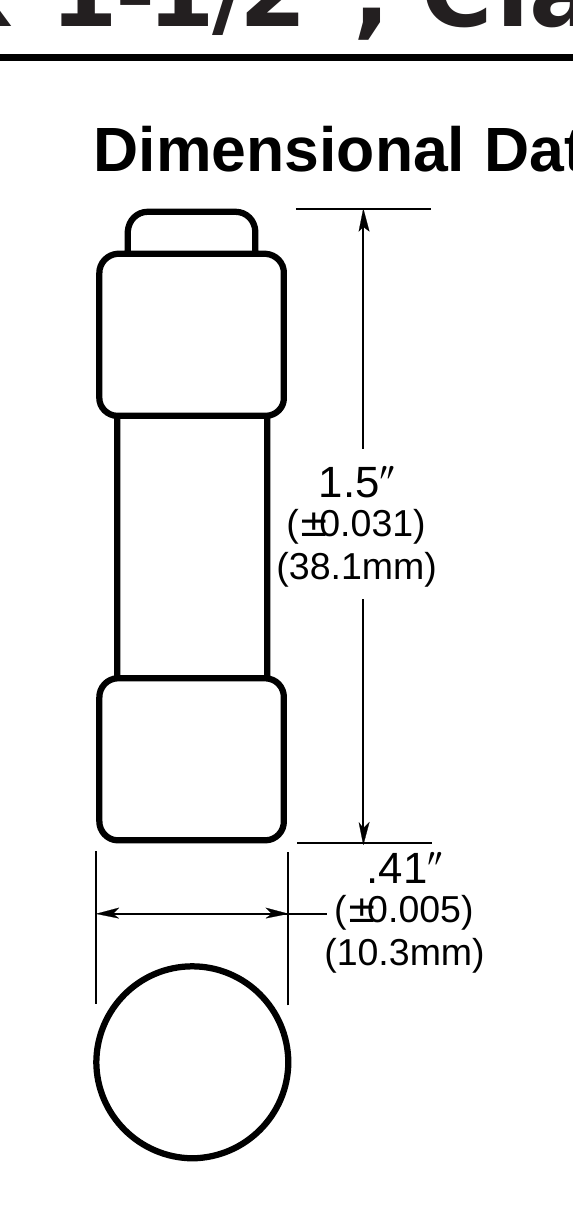

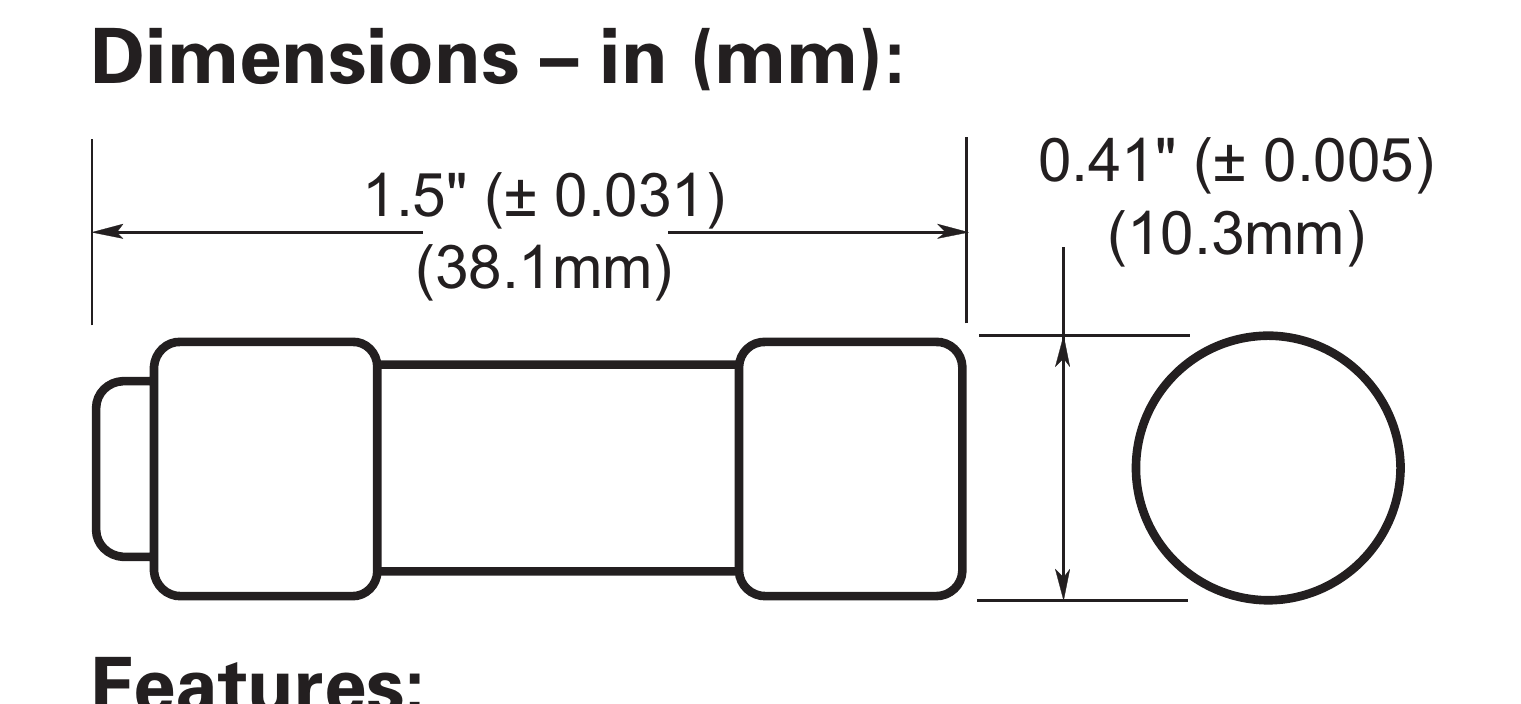

Length
1.5 inch (38.1mm)
Diameter
0.41 inch (10.3mm)
Voltage Rating600Vac
Amperage Rating20A
Interrupting Rating200kA Vac RMS Sym.
Diameter0.41 inch (10.3mm)
TypeCurrent-limiting fast-acting fuse
MaterialMelamine tube
ConnectionFerrule end x ferrule end Ferrule
ApplicationIndustrial controls panels and machinery, street lighting, general lighting, capacitors and distribution
CompliancesCE Marked, RoHS Compliant
CertificationsUL Listed, CSA Certified
Fuse IndicatorNon-indicating
Special FeaturesRejection style
