The Bussmann JKS-400 is in our catalogue: Amperage Rating 400 A, Voltage Rating 600 VAC, Interrupt Rating 200 kAIC at 600 Vac.

ChatMRO can make mistakes, so double check it

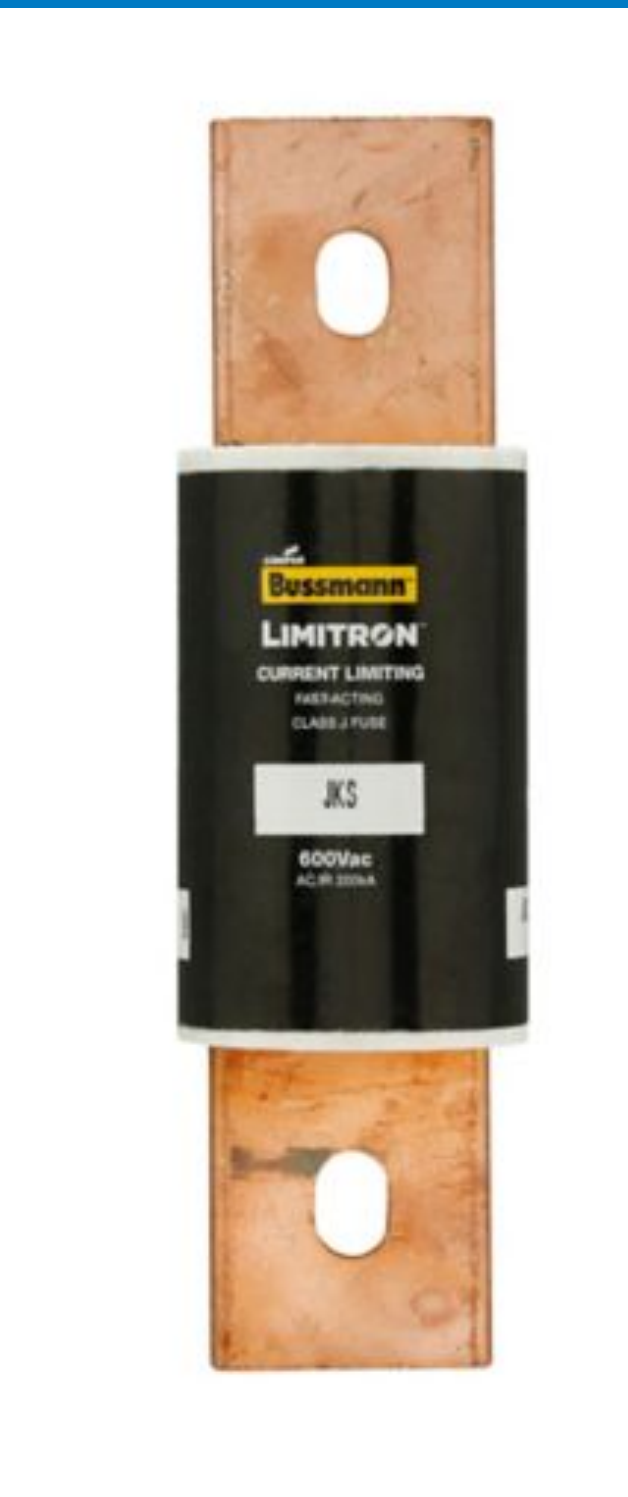

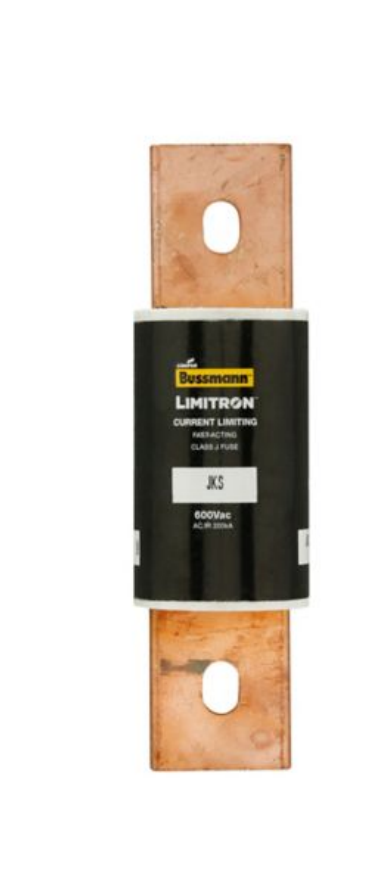

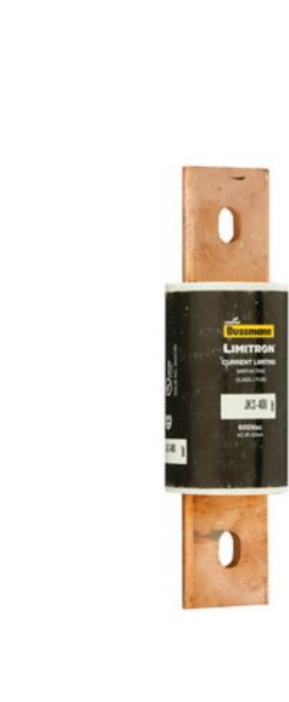

In stockClass J Fast-Acting Current-Limiting Fuse 400 A 600 VAC
Bussmann · JKS-400

Class J Fast-Acting Current-Limiting Fuse 400 A 600 VAC

$ 231.48per unit · ex. VAT
Fast-acting, current-limiting Class J fuse with 400 A current rating and 600 VAC voltage rating. Designed for industrial and commercial power panelboards and machinery disconnects. Features bolted blade ends and non-indicating operation with an interrupting rating of 200 kA at 600 Vac.
Amperage Rating
400 A
Voltage Rating
600 VAC
Interrupt Rating
200 kAIC at 600 Vac
Fuse Speed
Fast-Acting
Current Limiting
Yes
Amperage Rating400 A
Voltage Rating600 VAC
Interrupt Rating200 kAIC at 600 Vac
Fuse SpeedFast-Acting
Current LimitingYes
Connection TypeBolted Blade End x Bolted Blade End
Indicator TypeNon-Indicating

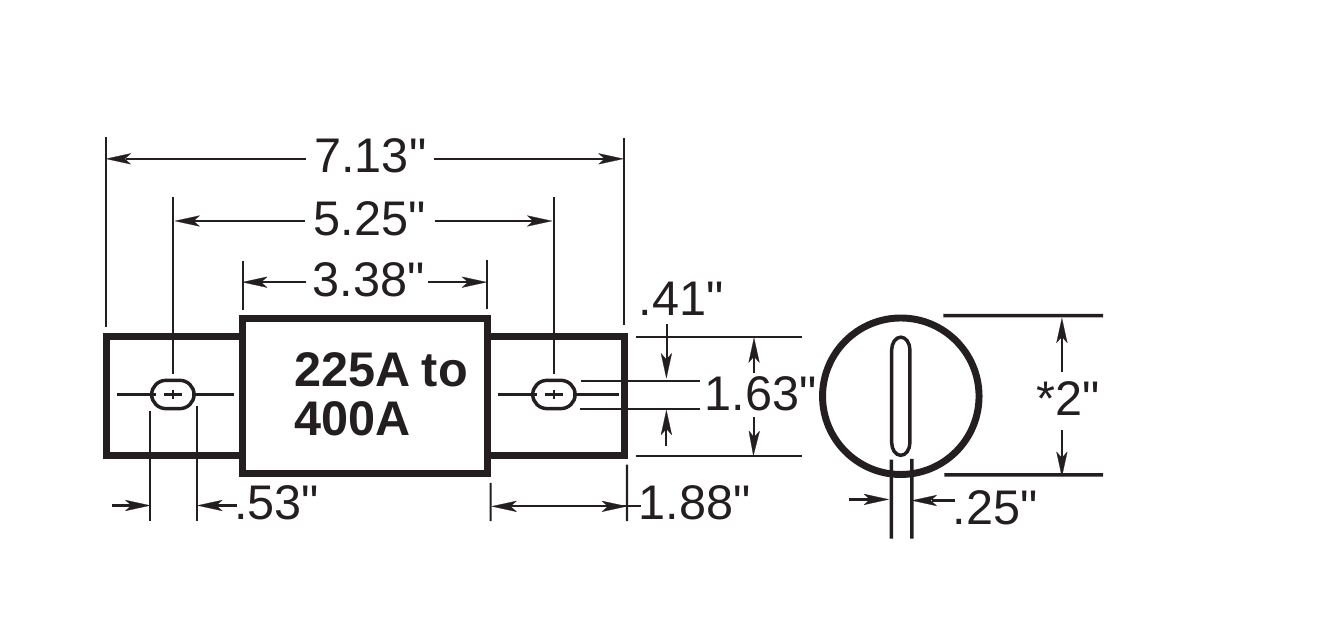

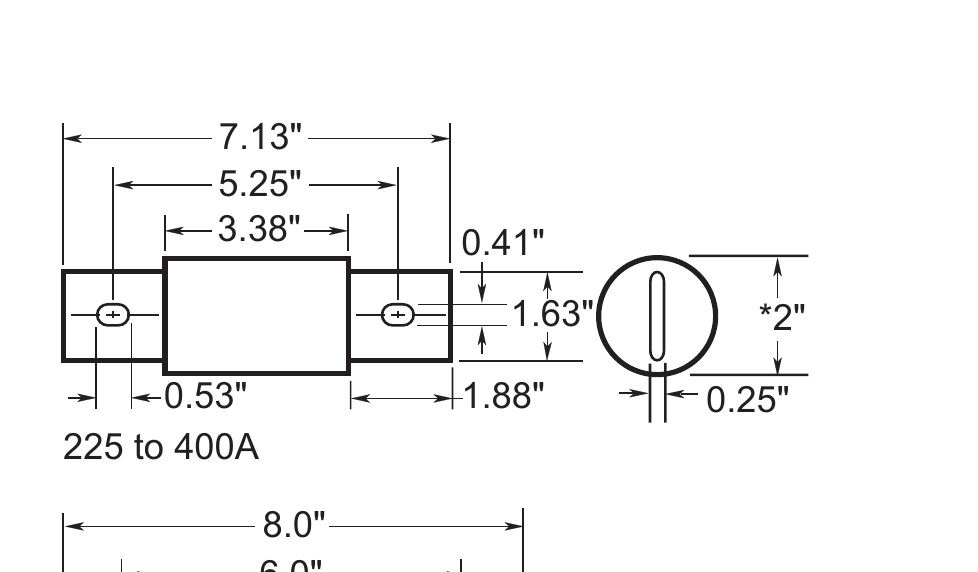

Product Length7.13 inch
Product Width2 inch
Product Height2 inch
Product Weight1.85 lb
Body MaterialMelamine
