The Eaton FNQ-R-7 is in our catalogue: Amperage Rating 7 A, Voltage Rating 600 V AC, DC Voltage Rating Not Rated.

ChatMRO can make mistakes, so double check it

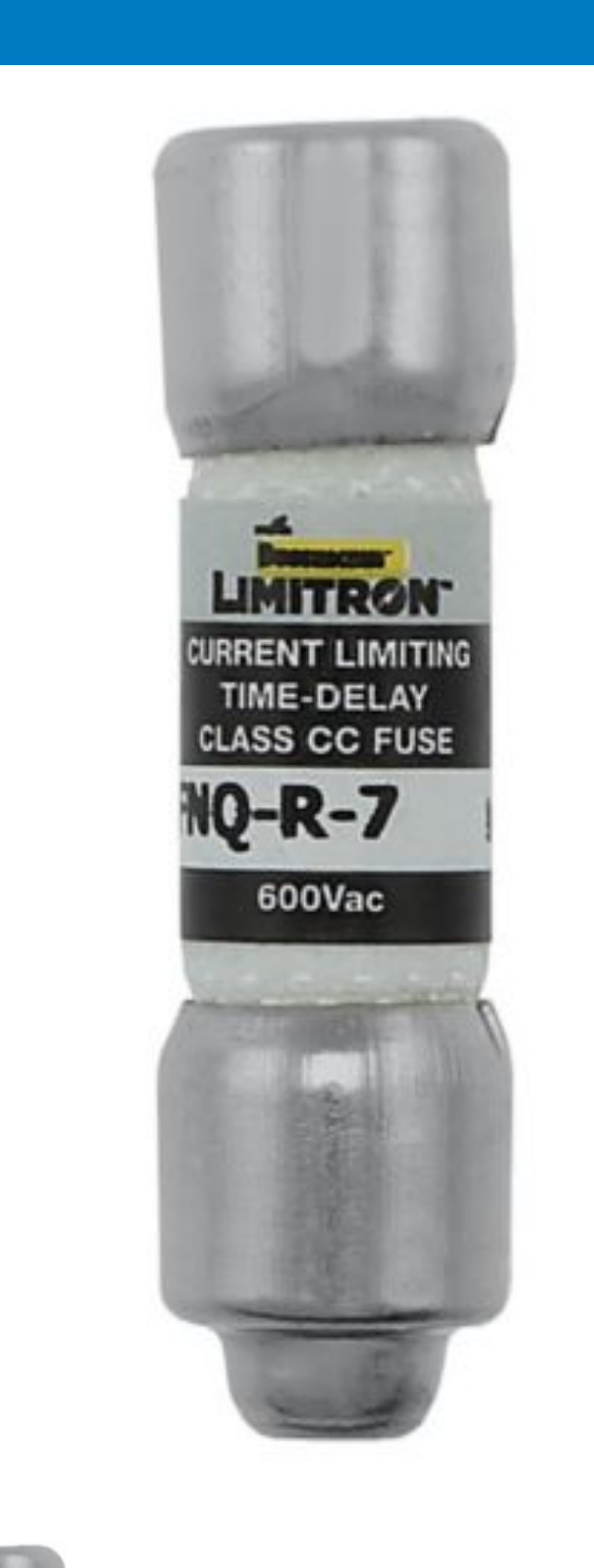

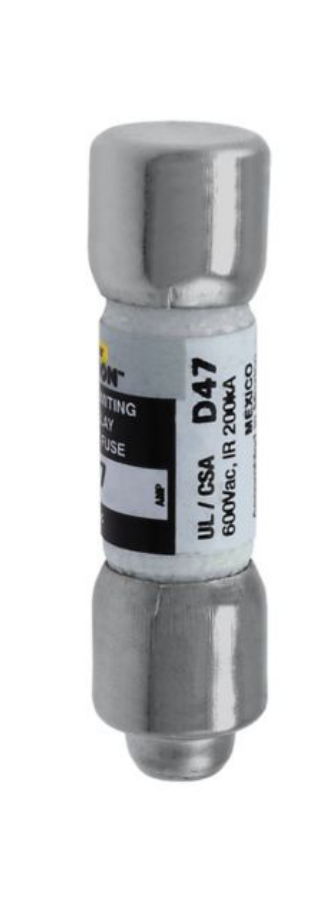

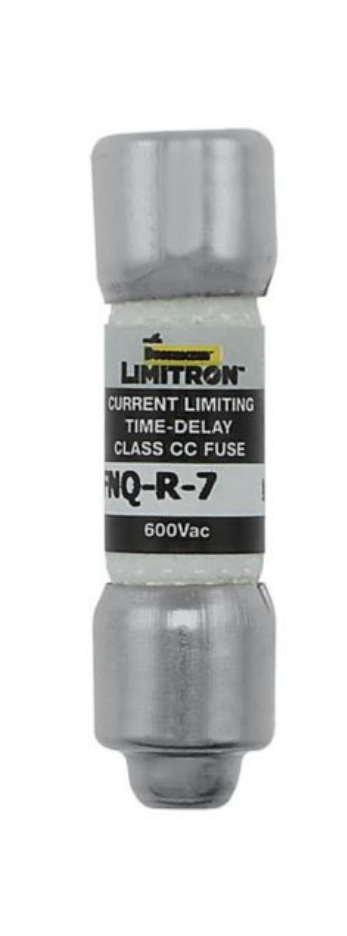

In stockClass CC Time-Delay Fuse, 7 A, 600 V AC, Non-Indicating, Cylindrical
Eaton · FNQ-R-7

Class CC Time-Delay Fuse, 7 A, 600 V AC, Non-Indicating, Cylindrical

$ 13.46per unit · ex. VAT
Current-limiting, time-delay, rejection-type fuse designed for control circuit transformer protection and industrial control applications. Features a melamine body with nickel-plated brass endcaps and provides 200 kA interrupting rating at 600 V AC. Suitable for use in isolated in-line fuse holders and rejection-style fuse blocks.
Amperage Rating
7 A
Voltage Rating
600 V AC
DC Voltage Rating
Not Rated
Interrupting Rating
200 kA RMS Sym. at 600 V AC
Response Time

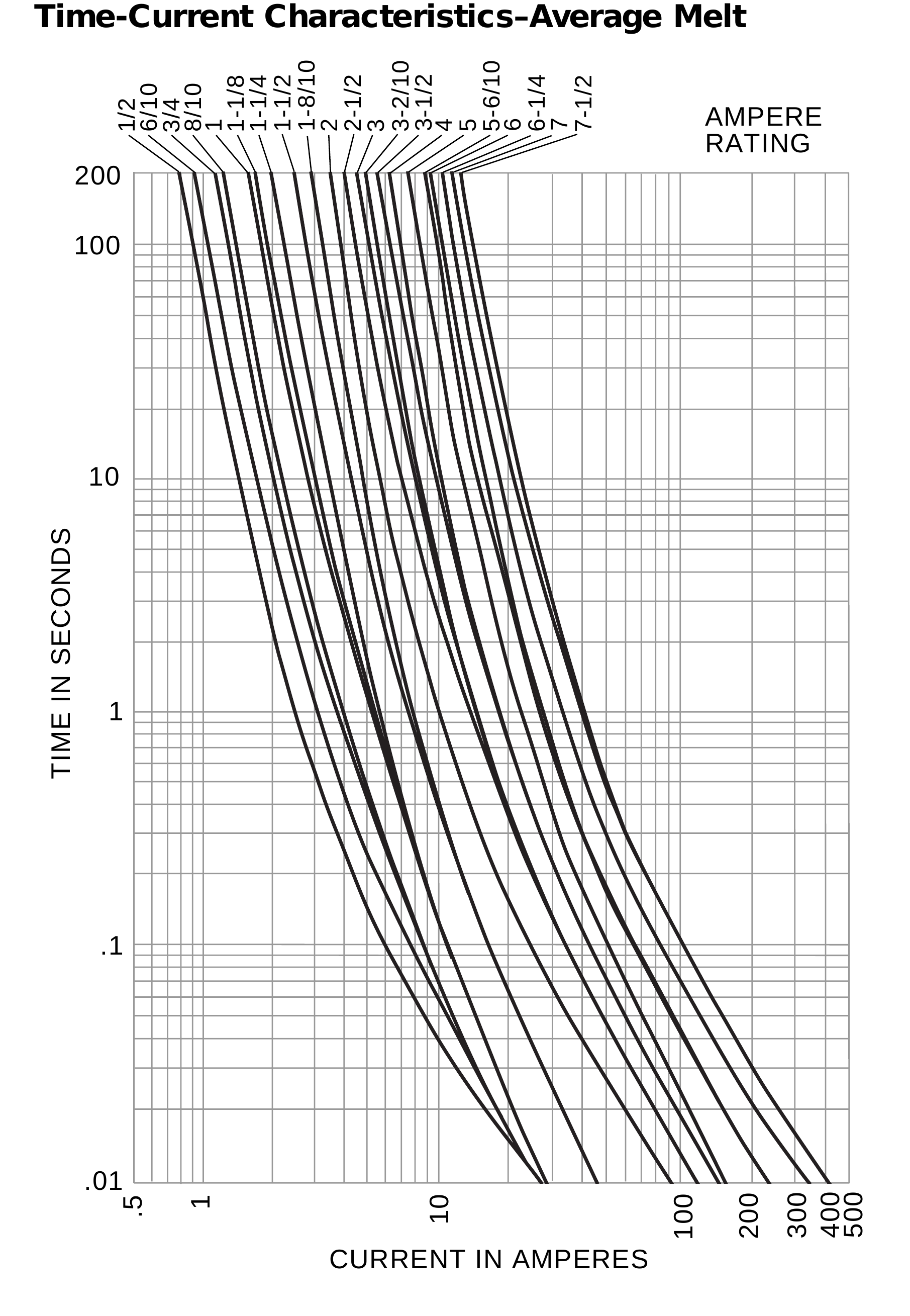

12 sec at 200 percent
Amperage Rating7 A
Voltage Rating600 V AC
DC Voltage RatingNot Rated
Interrupting Rating200 kA RMS Sym. at 600 V AC
Response Time12 sec at 200 percent
Fuse TypeTime-Delay, Dual-Element, Current-Limiting
ClassClass CC
Body MaterialMelamine tube, Nickel-plated brass endcap
Body StyleCylindrical
TerminationCartridge
Indicator TypeNon-Indicating
Dimensions13/32 inch x 1 1/2 inch (10.3 x 38.1 mm)
