In stockClass CC Time-Delay Rejection-Type Fuse 17.5A 600V AC 200kAIC
Eaton · FNQ-R-17-1/2

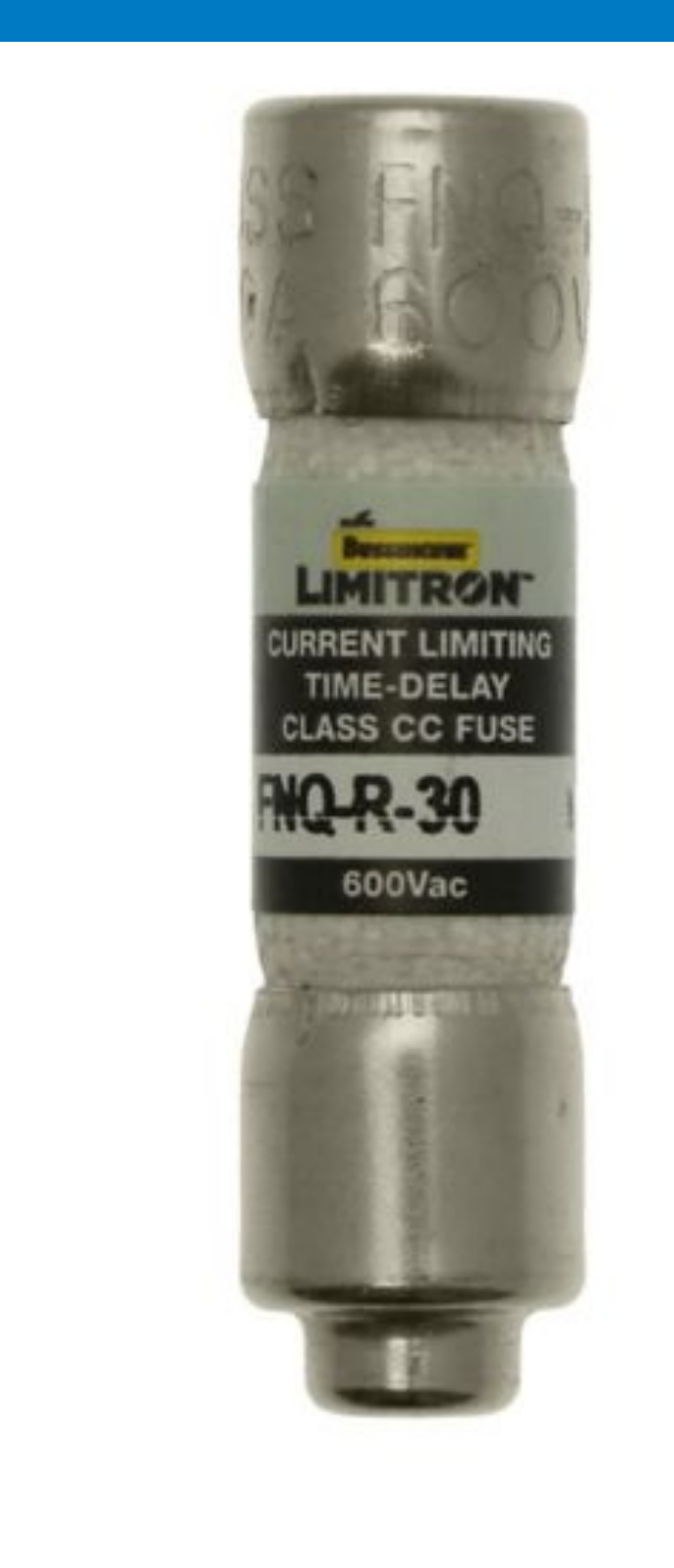

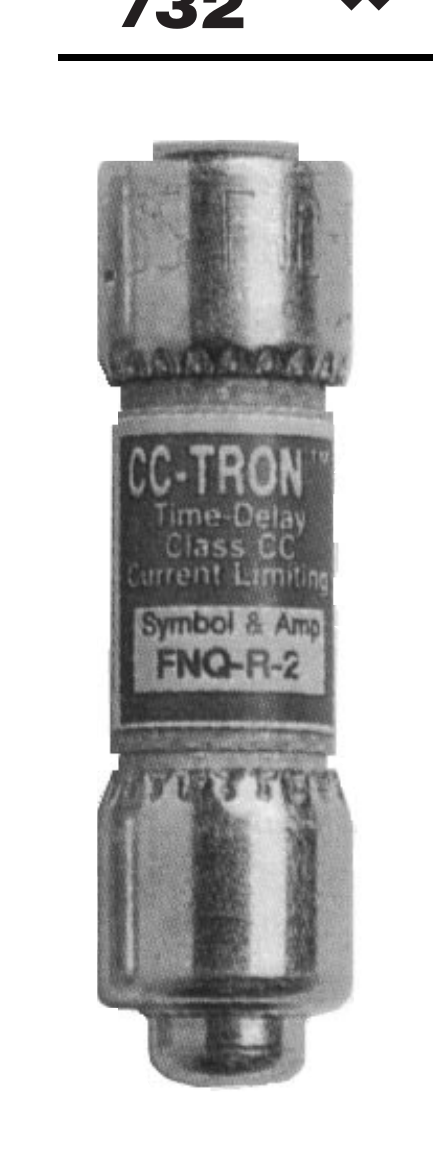

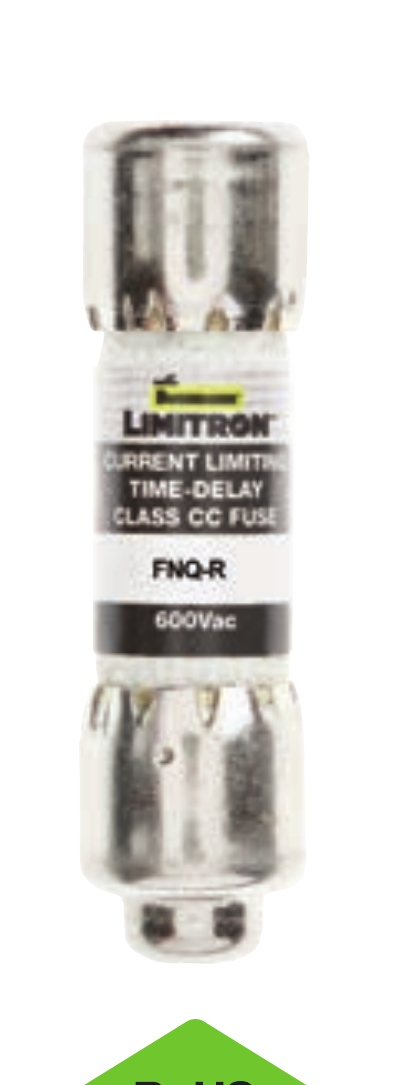

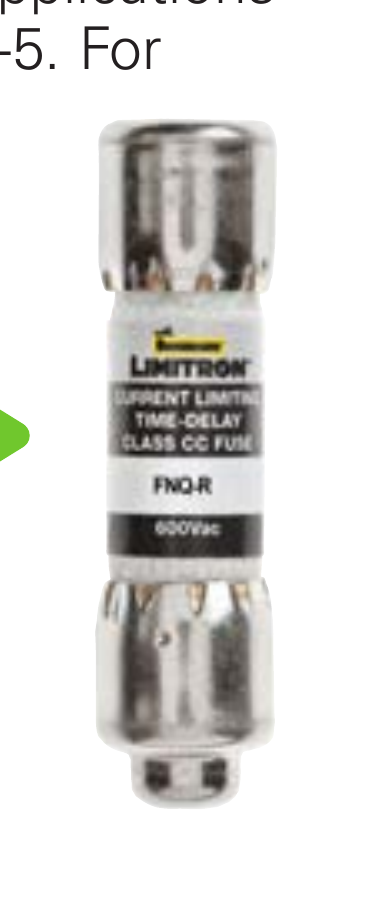

Class CC Time-Delay Rejection-Type Fuse 17.5A 600V AC 200kAIC

$ 14.67per unit · ex. VAT
Current-limiting, time-delay, rejection-type fuse designed for control circuit transformer protection and industrial control panels. Features dual-element construction for high inrush current tolerance and 200kA RMS symmetrical interrupting rating at 600V AC. Constructed with a melamine tube body and ferrule ends for secure connection.
Ampere Rating
17.5 A
Voltage Rating AC
600 V
Voltage Rating DC
300 Vdc (15-20A)
Interrupting Rating AC
200 kA RMS Sym.
Interrupting Rating DC
20 kA DC
Ampere Rating17.5 A
Voltage Rating AC600 V
Voltage Rating DC300 Vdc (15-20A)
Interrupting Rating AC200 kA RMS Sym.
Interrupting Rating DC20 kA DC

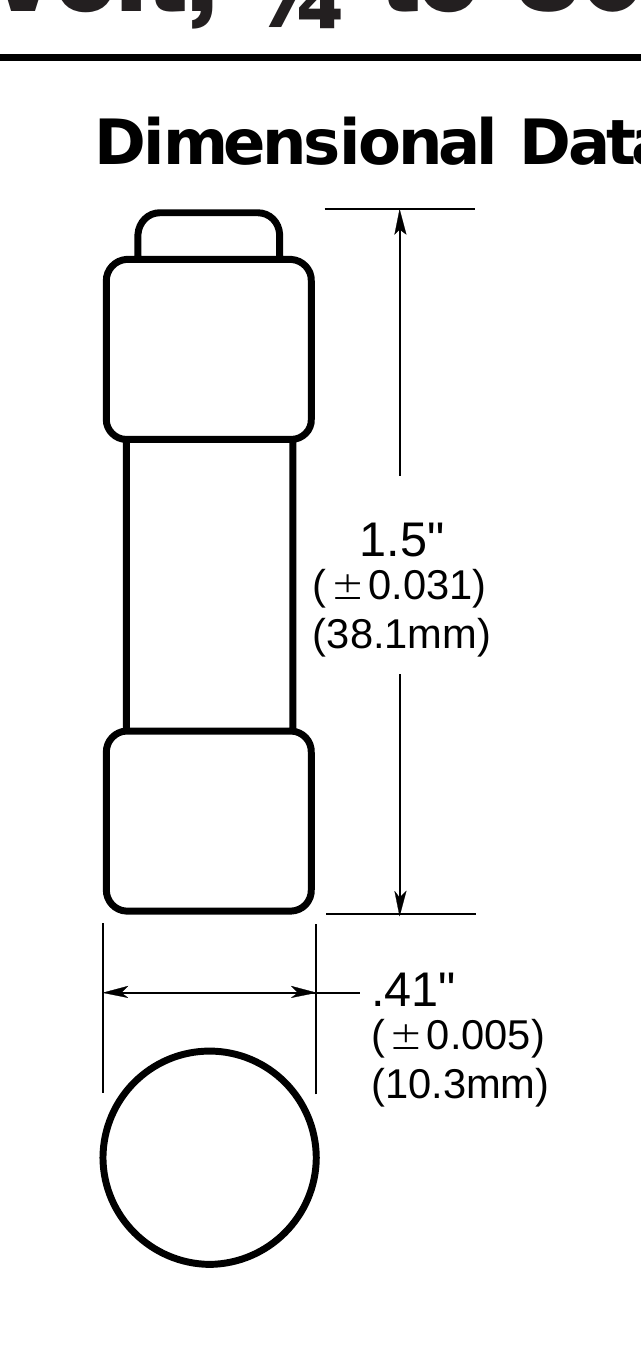

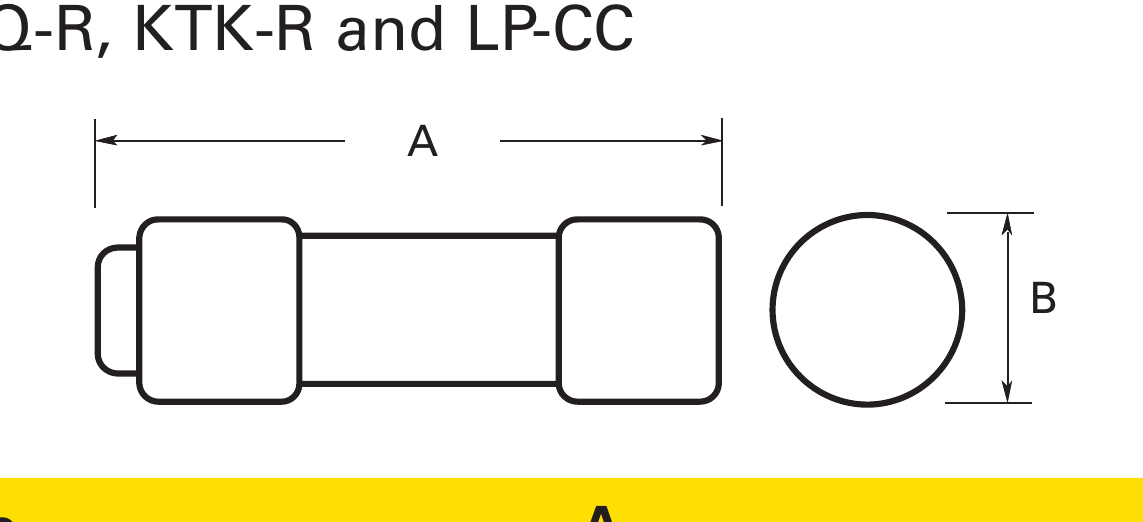

Dimensions13/32 inch x 1 1/2 inch
Body MaterialMelamine tube
ConnectionFerrule end x ferrule end

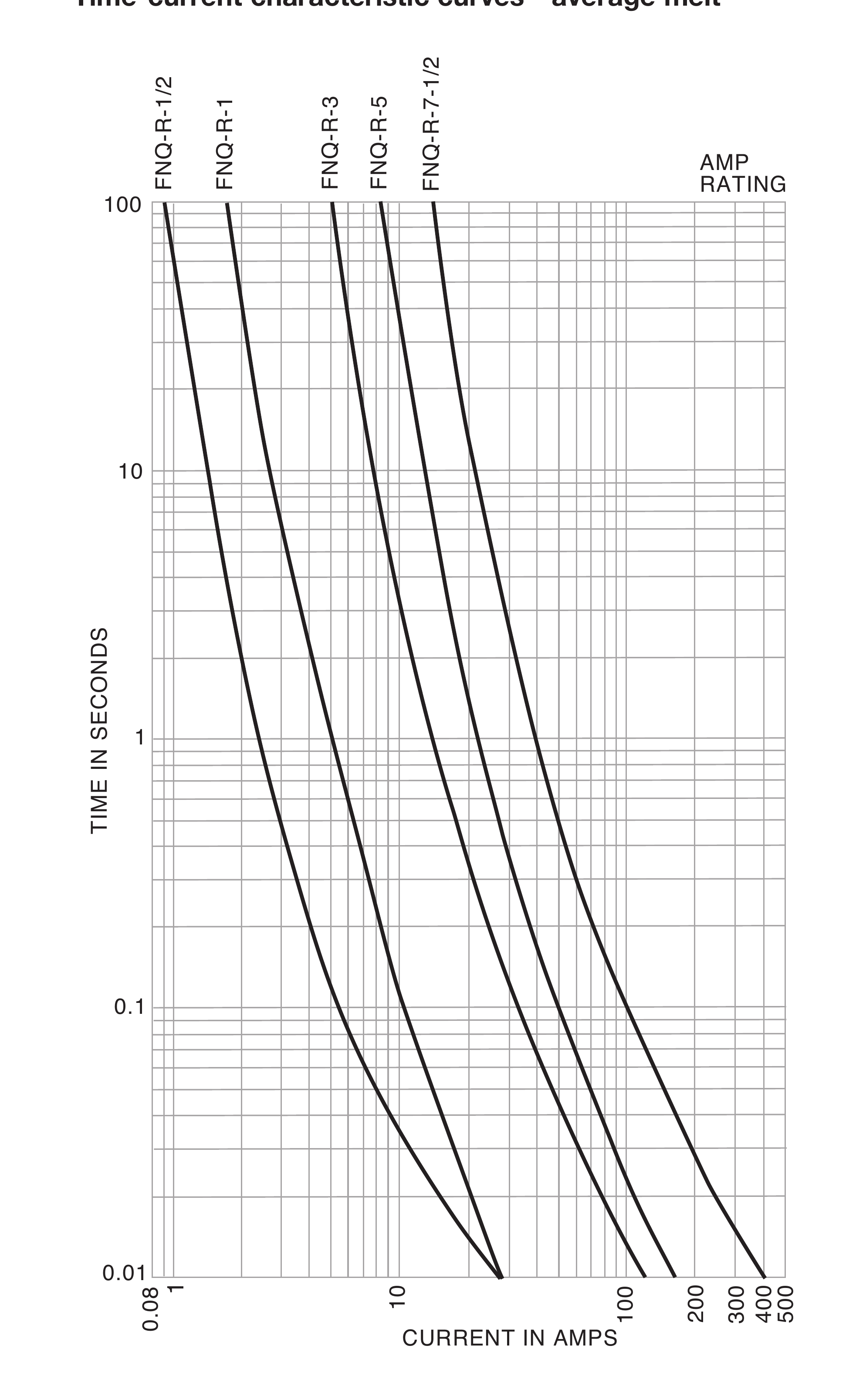

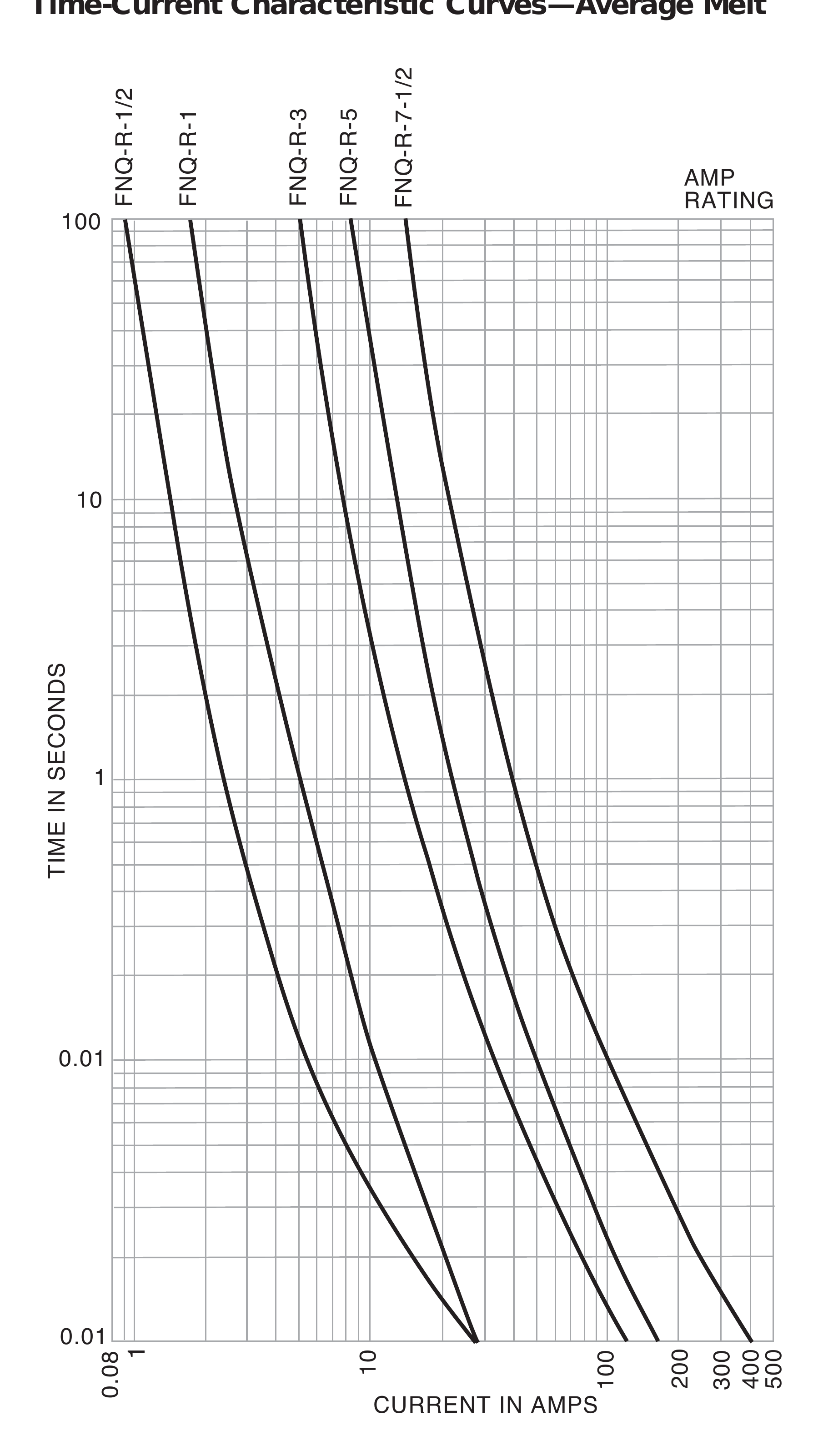

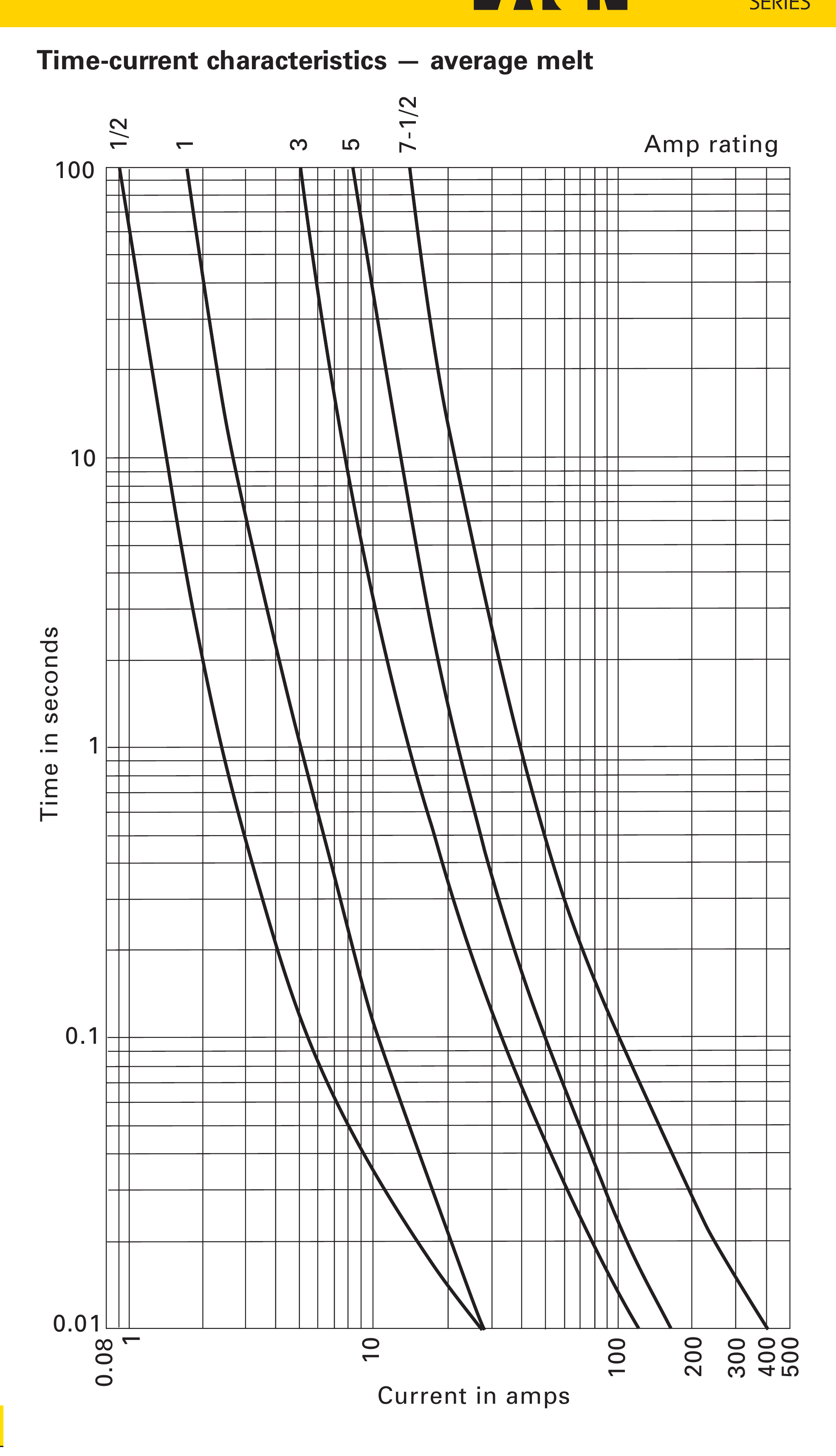

Response Time12 sec at 200 percent
Fuse IndicatorNon-indicating
Agency InformationUL Listed, Std. 248-4, Class CC, Guide JDDZ, File E4273, CSA Certified, Class CC CSA, Class 1422-01, File 53787—HRC-MISC
CompliancesCE Marked, RoHS Compliant
