The Bussmann DMM-B-44/100 is in our catalogue: Type Fast-Acting, Construction Melamine Tube, Nickel Plated Brass End Caps, Voltage Rating 1000 Volts AC/DC.

ChatMRO can make mistakes, so double check it

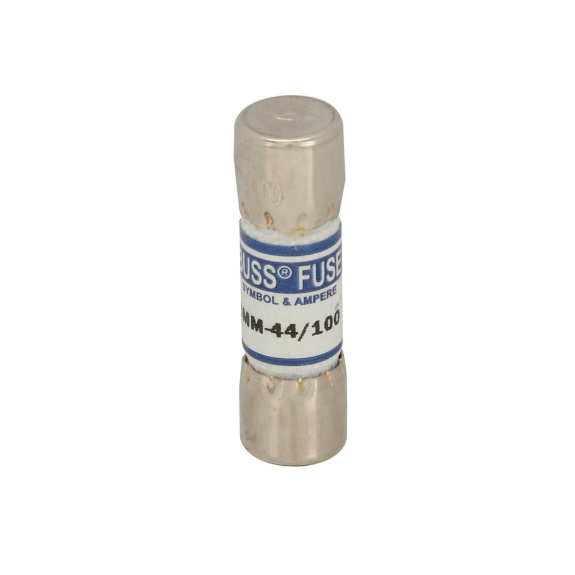

In stockFast-Acting Ferrule Fuse 0.44 A, 1000 VAC/DC, 10 kAIC

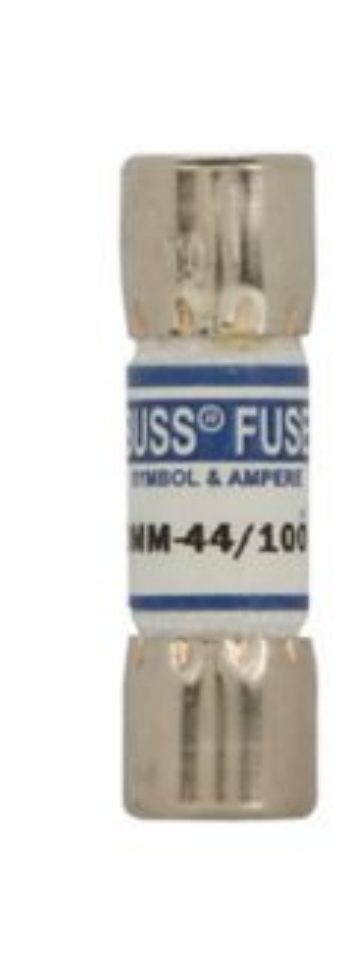

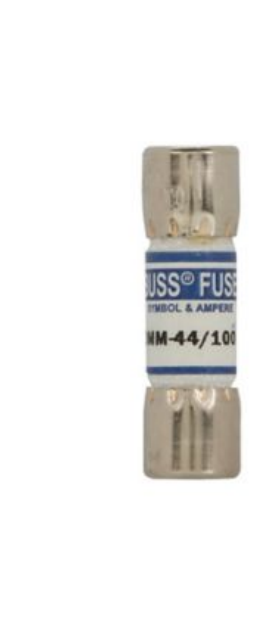

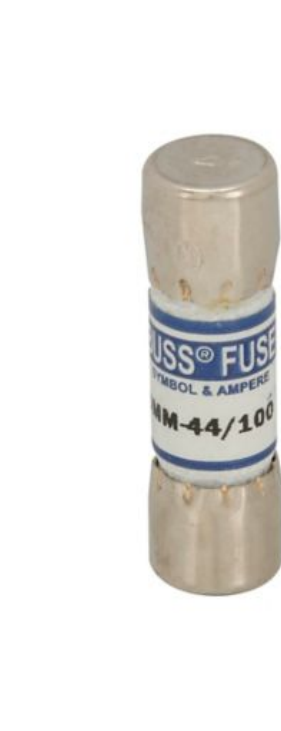

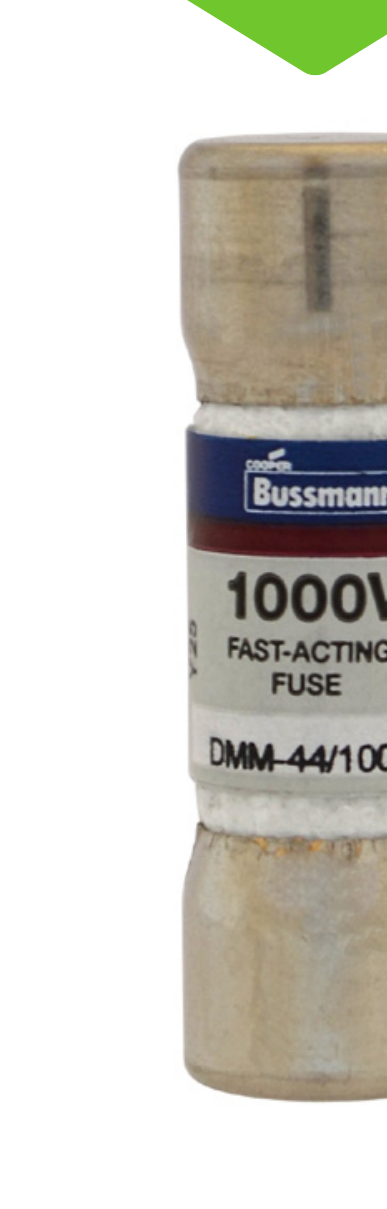

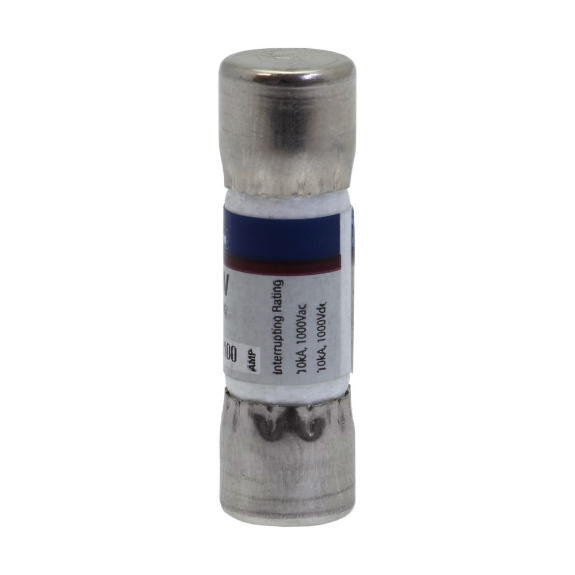

Bussmann · DMM-B-44/100

Fast-Acting Ferrule Fuse 0.44 A, 1000 VAC/DC, 10 kAIC

$ 12.97per unit · ex. VAT
Fast-acting supplemental fuse designed for use in multimeters only. Rated for 0.44 A, 1000 VAC/DC, with an interrupting rating of 10 kAIC. Intended to carry 100% of rated current indefinitely and not for branch circuit protection.
Type
Fast-Acting
Construction
Melamine Tube, Nickel Plated Brass End Caps
Voltage Rating
1000 Volts AC/DC
Interrupting Rating
10,000A, 1000 VAC, unity power factor and 10,000A, 1000 VDC with time constant of 2.2ms. Minimum interrupt 400% of rated current at rated voltage.
Maximum Temperature
28 degree Celsius in 22 degree Celsius ambient temperature when carrying 100% of rated current
TypeFast-Acting
ConstructionMelamine Tube, Nickel Plated Brass End Caps
Voltage Rating1000 Volts AC/DC
Interrupting Rating10,000A, 1000 VAC, unity power factor and 10,000A, 1000 VDC with time constant of 2.2ms. Minimum interrupt 400% of rated current at rated voltage.
Maximum Temperature28 degree Celsius in 22 degree Celsius ambient temperature when carrying 100% of rated current
Agency ApprovalsUL Recognized 1000 VDC, File E19180

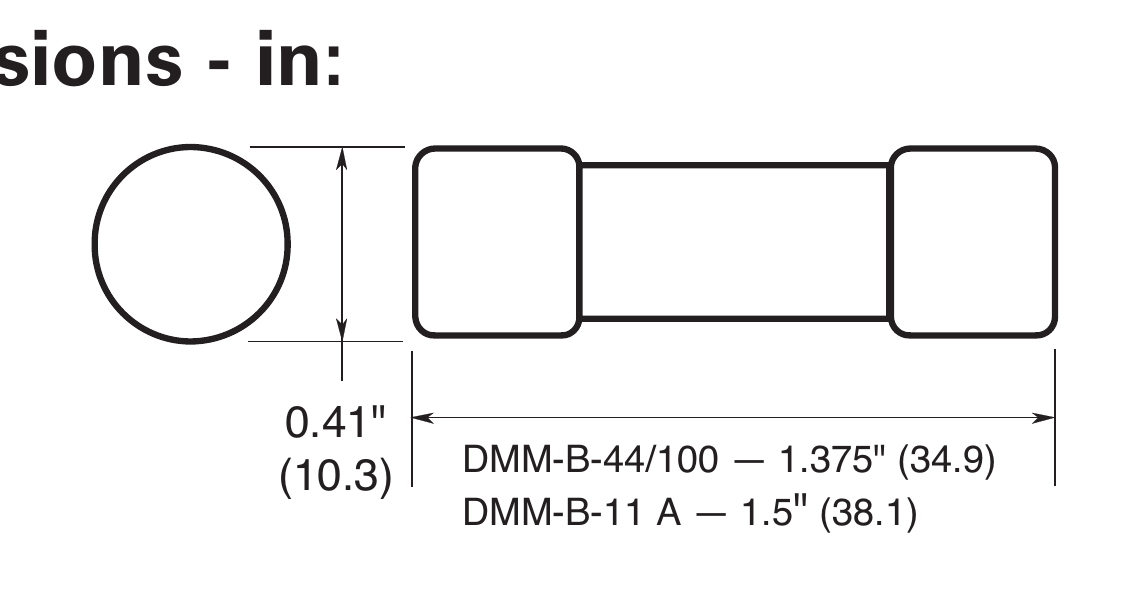

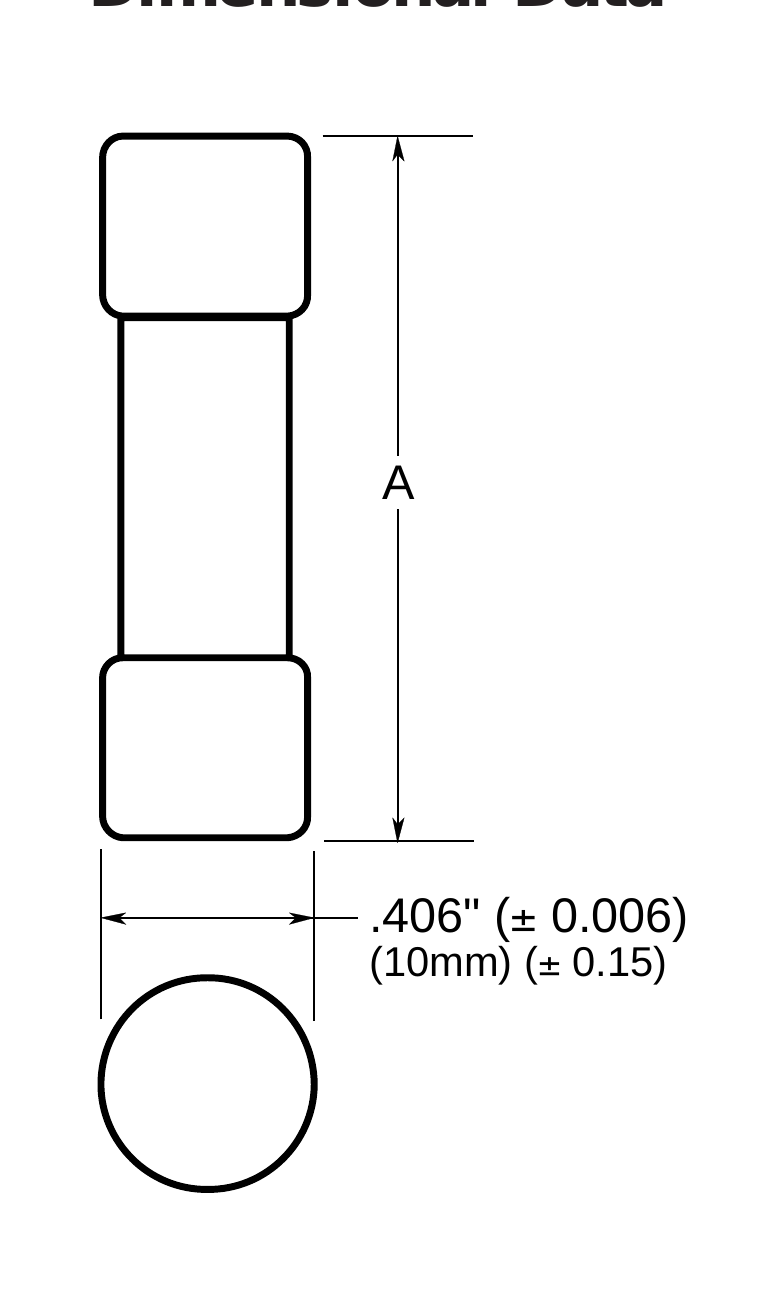

Diameter0.41 inch (10.3 mm)
ConnectionFerrule end x ferrule end
Fuse IndicatorNon-indicating
Amperage Rating0.44 A
ApplicationMultimeters only
Body MaterialMelamine
