Bussmann c10g20

The Bussmann C10G20 is in our catalogue: Size 10x38 mm, Class gG/gL, Voltage 500V AC.

ChatMRO can make mistakes, so double check it

In stock

Bussmann · C10G20

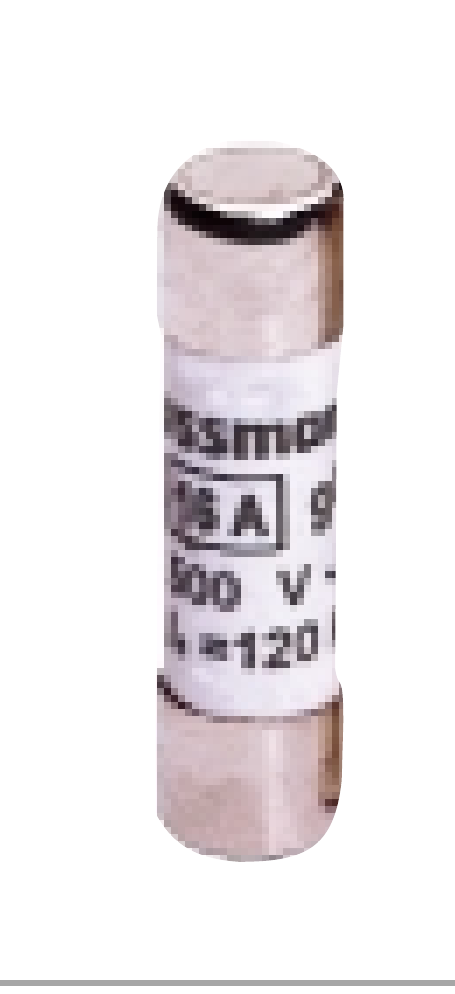

10x38 mm Industrial Cylindrical Fuse Link, Class gG/gL, 20A, 500V AC

Name: Bussmann C10G20
Brand: Bussmann
Price: 2.23 USD
Availability: InStock

$ 2.23per unit · ex. VAT

This product can be purchased in multiples of 10

Class gG/gL industrial cylindrical fuse link with 20A rated current and 500V AC voltage rating. Designed for industrial applications, compliant with IEC 60269 standards. Features 10x38 mm cartridge body and 120 kA breaking capacity.

Size

10x38 mm

Class

gG/gL

Voltage

500V AC

Rated Current

20 A

Breaking Capacity

120 kA

Size10x38 mm

ClassgG/gL

Voltage500V AC

Rated Current20 A

Breaking Capacity120 kA

Watts Loss2.00 W

Diameter10 mm

SeriesC10 Series

Body StyleCartridge Fuses

Mounting StyleHolder

Termination TypeClip

Fuse Protection TypeTime Delay/Slow Blow

MPNDescriptionPrice

C10G20IVariant - With Indicator—

CHD1038DCompatible Domestic Modular Fuse Holder - 1 Pole—

CHD1038DICompatible Domestic Modular Fuse Holder - 1 Pole With Indication—

CHD1038DNICompatible Domestic Modular Fuse Holder - 1 Pole + Neutral With Indication—

CHD10381DNCompatible Domestic Modular Fuse Holder - 1 Pole + Neutral—

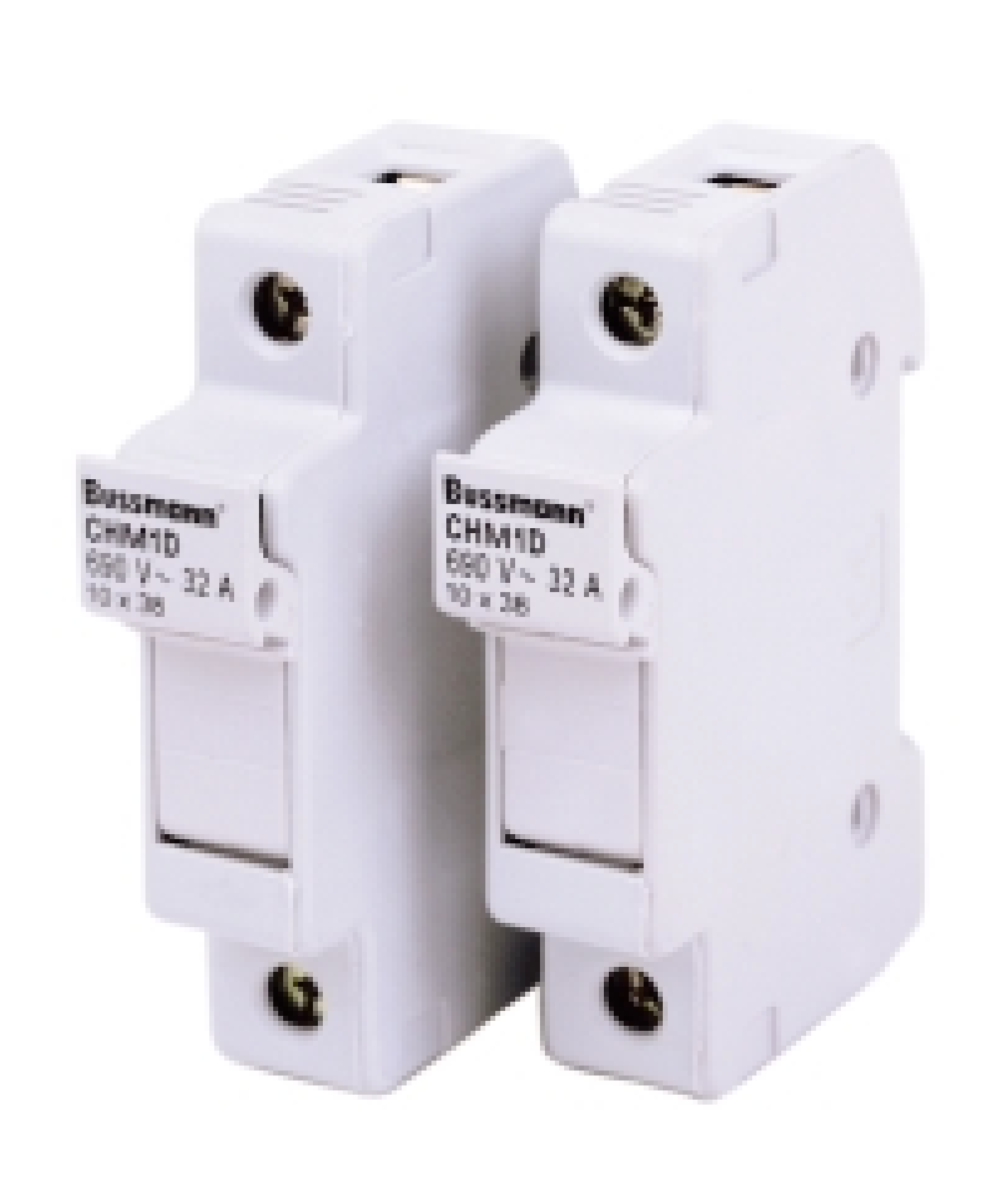

CHM1DCompatible Industrial Modular Fuse Holder - 1 Pole—
