Bussmann 250nhg02b

The Bussmann 250NHG02B is in our catalogue: Rated Current 250 A, Voltage 500Vac / 250Vdc, Size 02.

ChatMRO can make mistakes, so double check it

In stock

Bussmann · 250NHG02B

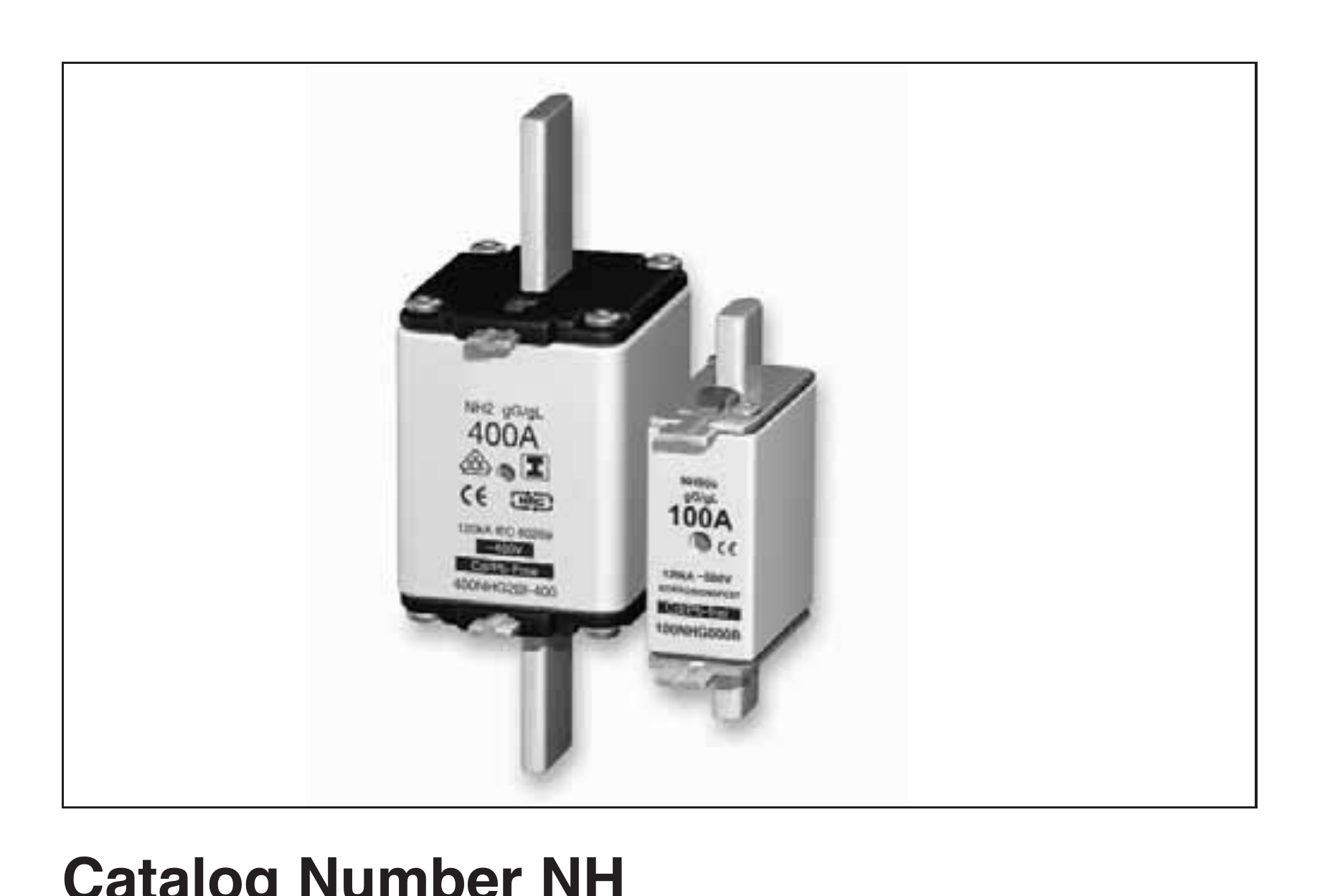

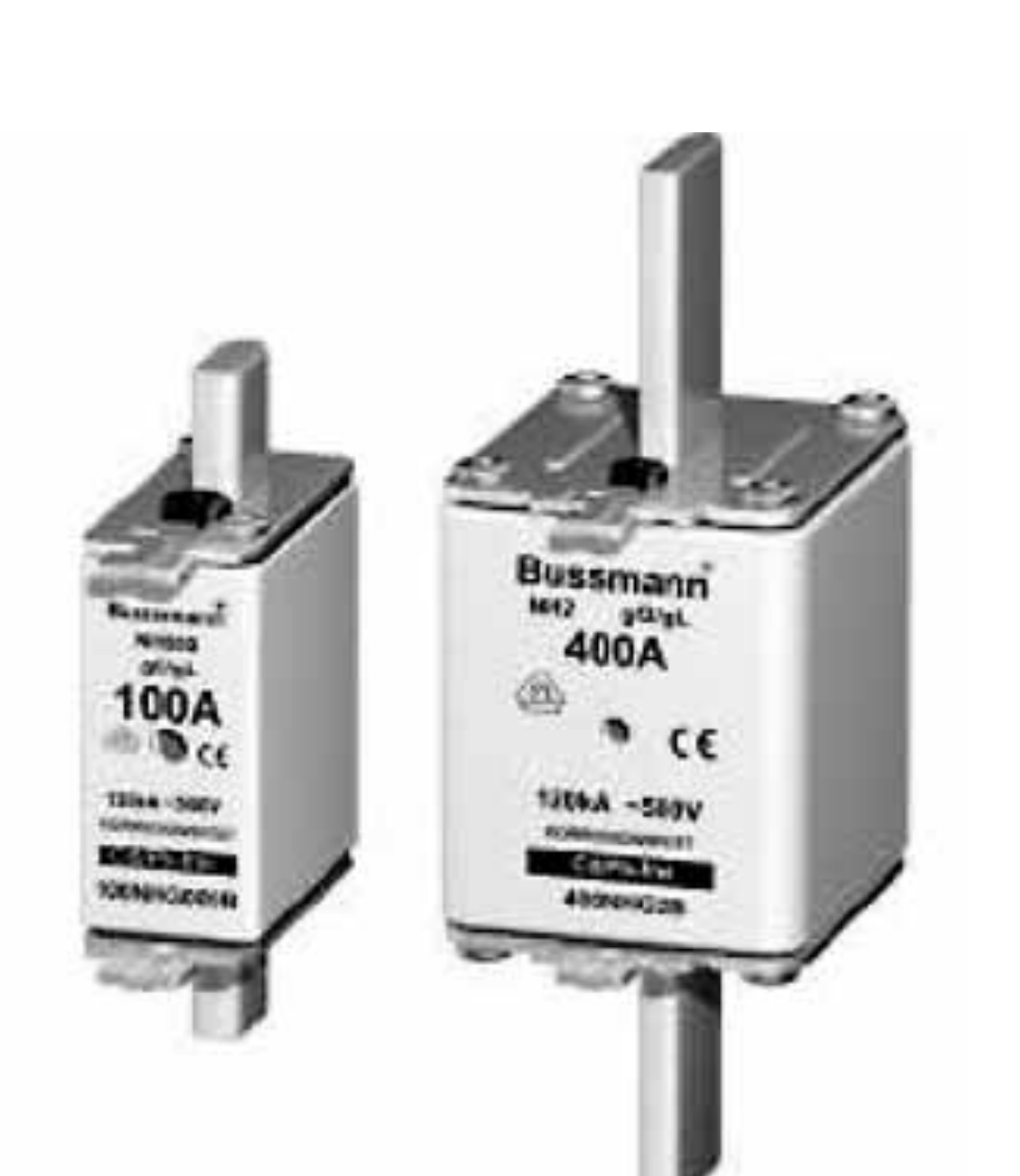

NH HRC Fuse, Size 02, 250 A, 500Vac, gG/gL Class

Name: Bussmann 250NHG02B
Brand: Bussmann
Price: 21.10 USD
Availability: InStock

$ 21.10per unit · ex. VAT

DIN square-bodied industrial fuse link with dual indication and live gripping lug. Rated for 250 A and 500Vac, compliant with IEC 60269, VDE0636, and DIN 43620 standards. Suitable for industrial, utility, solar, and wind applications.

Rated Current

250 A

Voltage

500Vac / 250Vdc

Size

Class

gG/gL

Rated Breaking Capacity

120kA

Rated Current250 A

Voltage500Vac / 250Vdc

Size02

ClassgG/gL

Rated Breaking Capacity120kA

Frequency50Hz

Operating Frequency45-62Hz

Selectivity Ratio1:1.6 up to 500Vac

Standards ApprovalsIEC 60269, VDE0636, DIN 43620 Part 1 to 4, VDE Mark and CE

Body StyleSquare

Termination TypeKnife Blade

Mounting StyleHolder

MPNDescriptionPrice

2NHG000BVariant - Size 000 | Rated Current 2 A—

4NHG000BVariant - Size 000 | Rated Current 4 A—

6NHG000BVariant - Size 000 | Rated Current 6 A—

10NHG000BVariant - Size 000 | Rated Current 10 A$ 68.04

10NHG0BVariant - Size 0 | Rated Current 10 A$ 138.16

10NHG01BVariant - Size 01 | Rated Current 10 A$ 151.61
