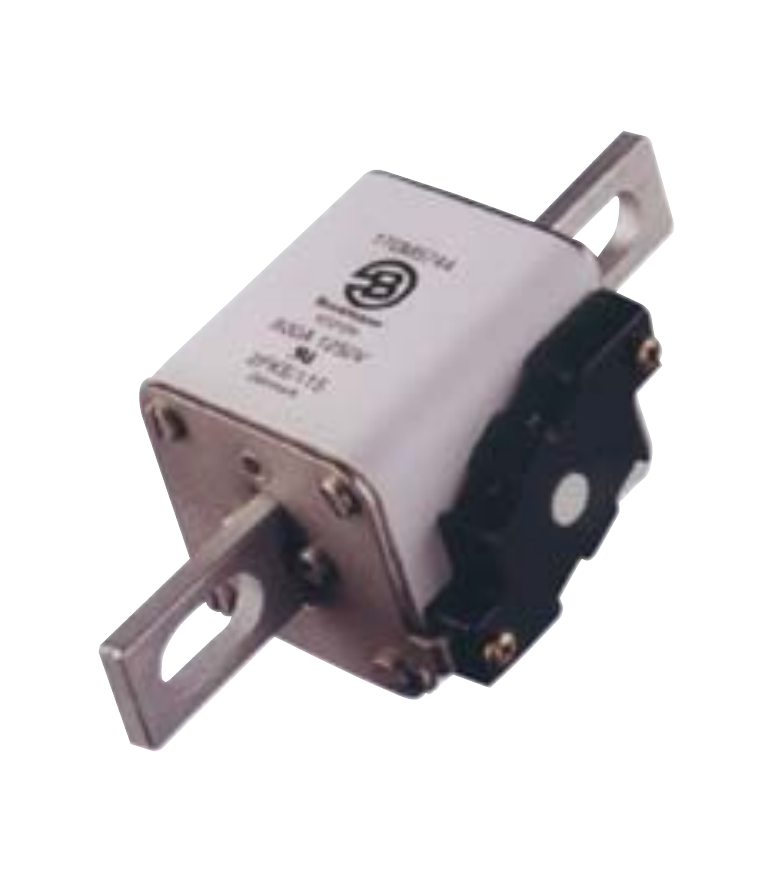

In stockSquare Body US Style High Speed Fuse, 125A, 690V/700V, Size 1*
Bussmann · 170M3613

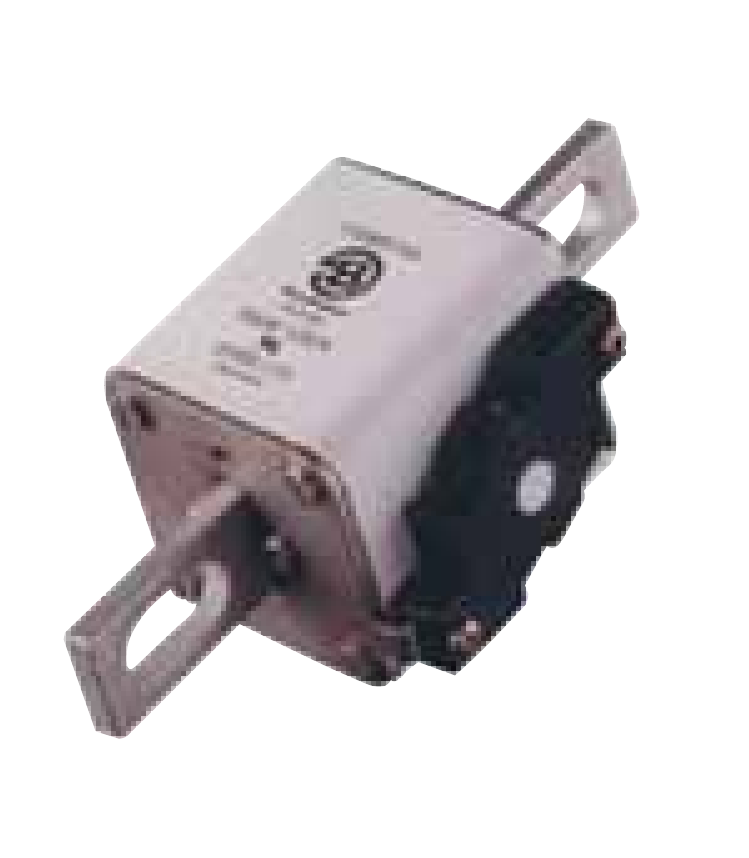

Square Body US Style High Speed Fuse, 125A, 690V/700V, Size 1*

$ 210.74per unit · ex. VAT
Square body US style high speed fuse with 125A rated current, 690V/700V AC voltage rating, and Size 1* footprint. Designed for fast-acting protection in industrial applications. Complies with IEC 60269 Part 4 and UL standards.
Size
1*
Type
-FU/- Without Indicator
Volts
690Vac (IEC) / 700Vac (UL)
Agency Information
CE, Designed and tested to IEC 60269: Part 4, UL Recognized
Electrical Characteristics Watts Loss
26 W
Size1*
Type-FU/- Without Indicator
Volts690Vac (IEC) / 700Vac (UL)
Agency InformationCE, Designed and tested to IEC 60269: Part 4, UL Recognized
Electrical Characteristics Watts Loss26 W
Electrical Characteristics I2t Pre-arc550 A² Sec
Electrical Characteristics I2t Clearing at 660V3700 A² Sec
Interrupting Rating200kA RMS Sym.
Voltage Rating (UL)700 Vac
Voltage Rating (IEC)690 Vac
Rated Current RMS125 A
BIF #17056314
