In stock12-Ton C-Head Battery Actuated Hydraulic Crimper with U-Style Die
Burndy · PAT750LI

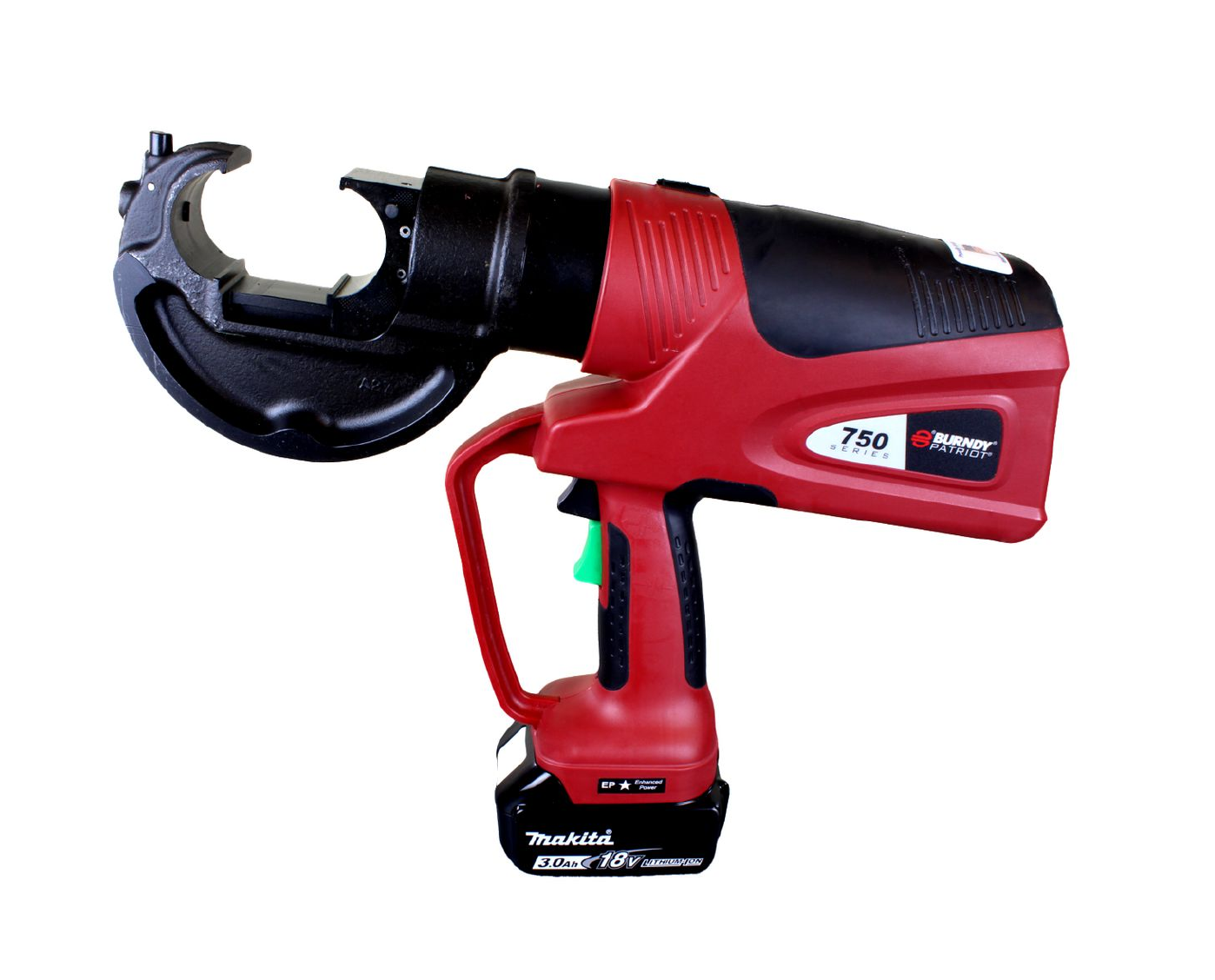

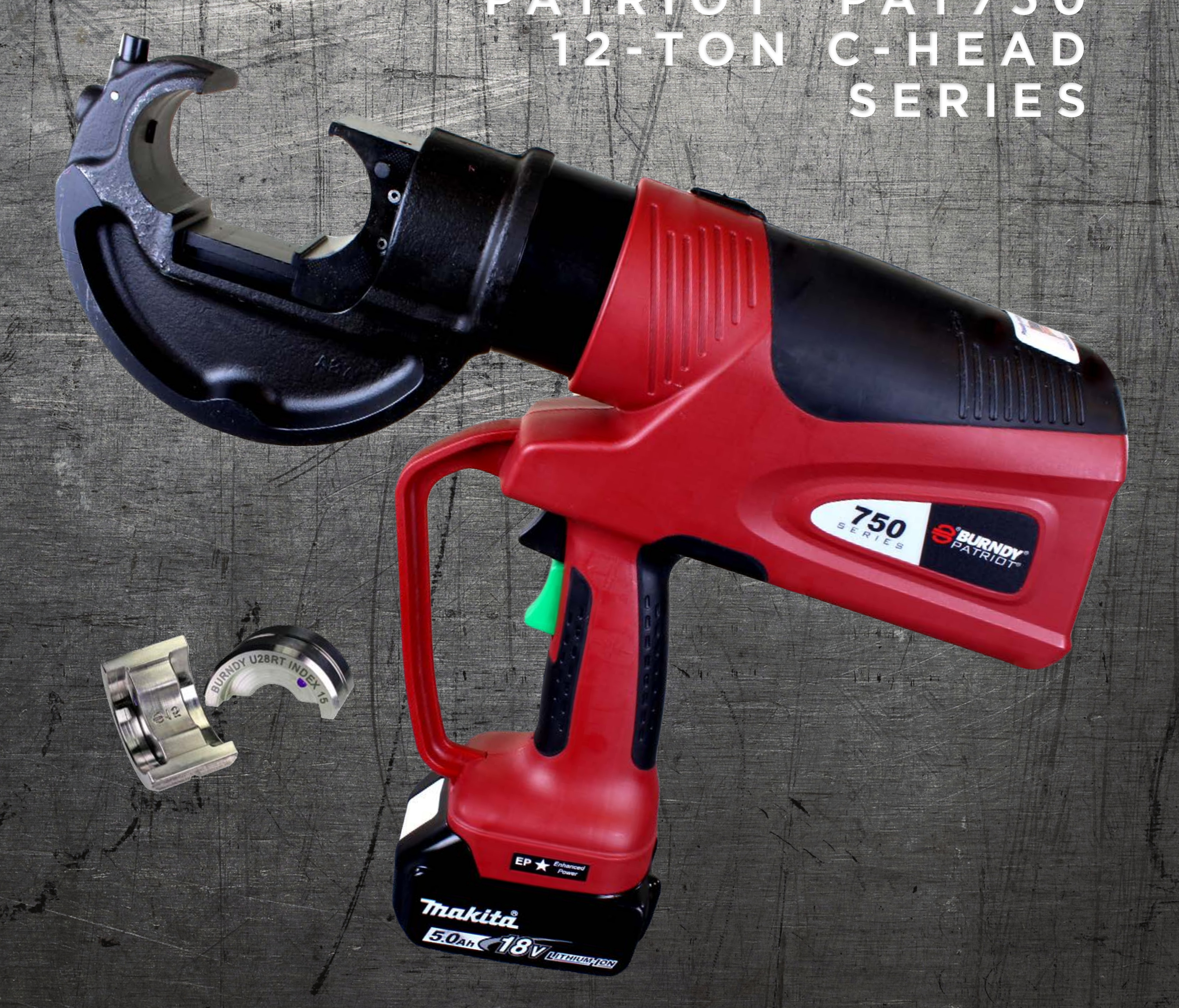

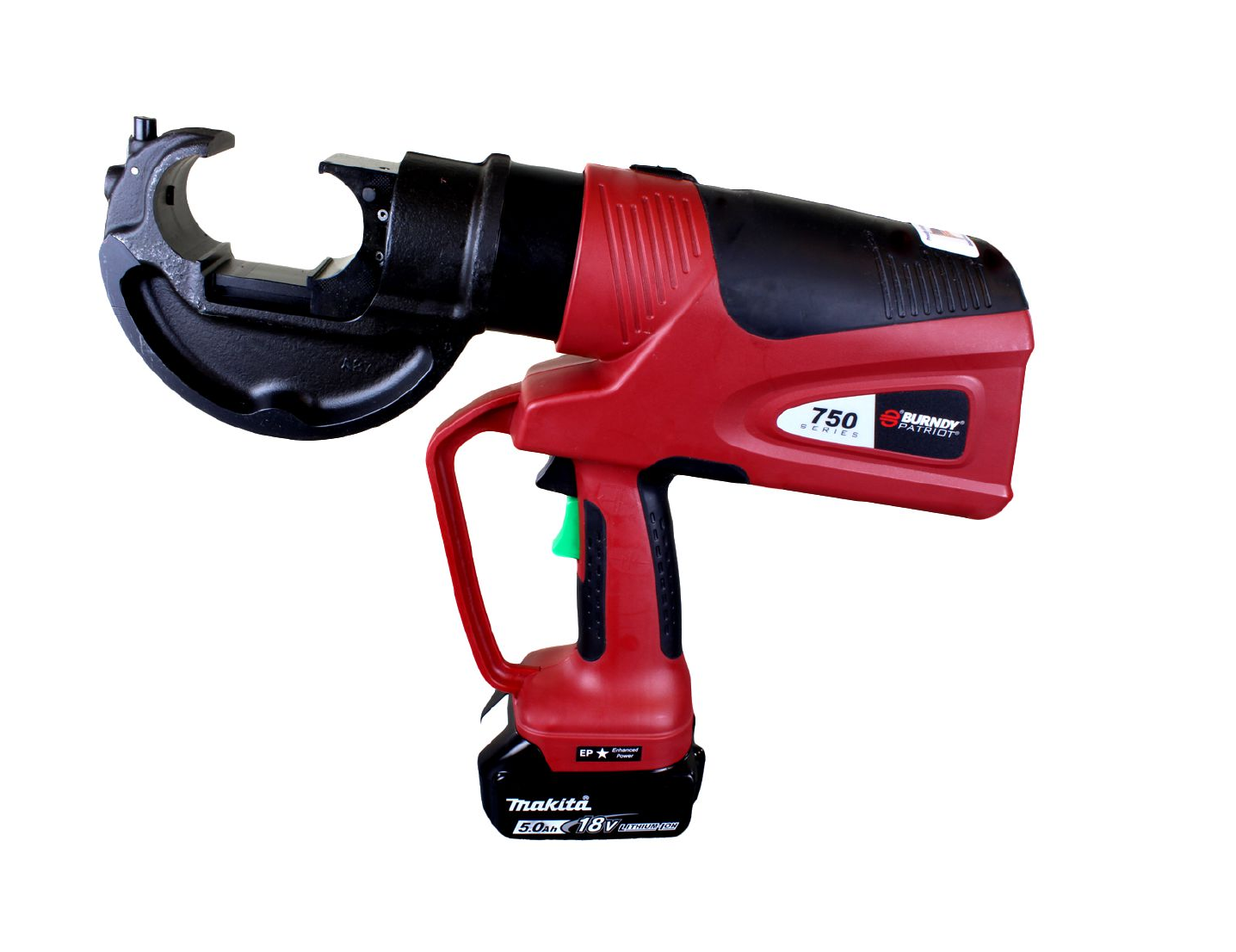

12-Ton C-Head Battery Actuated Hydraulic Crimper with U-Style Die

$ 8397.99per unit · ex. VAT

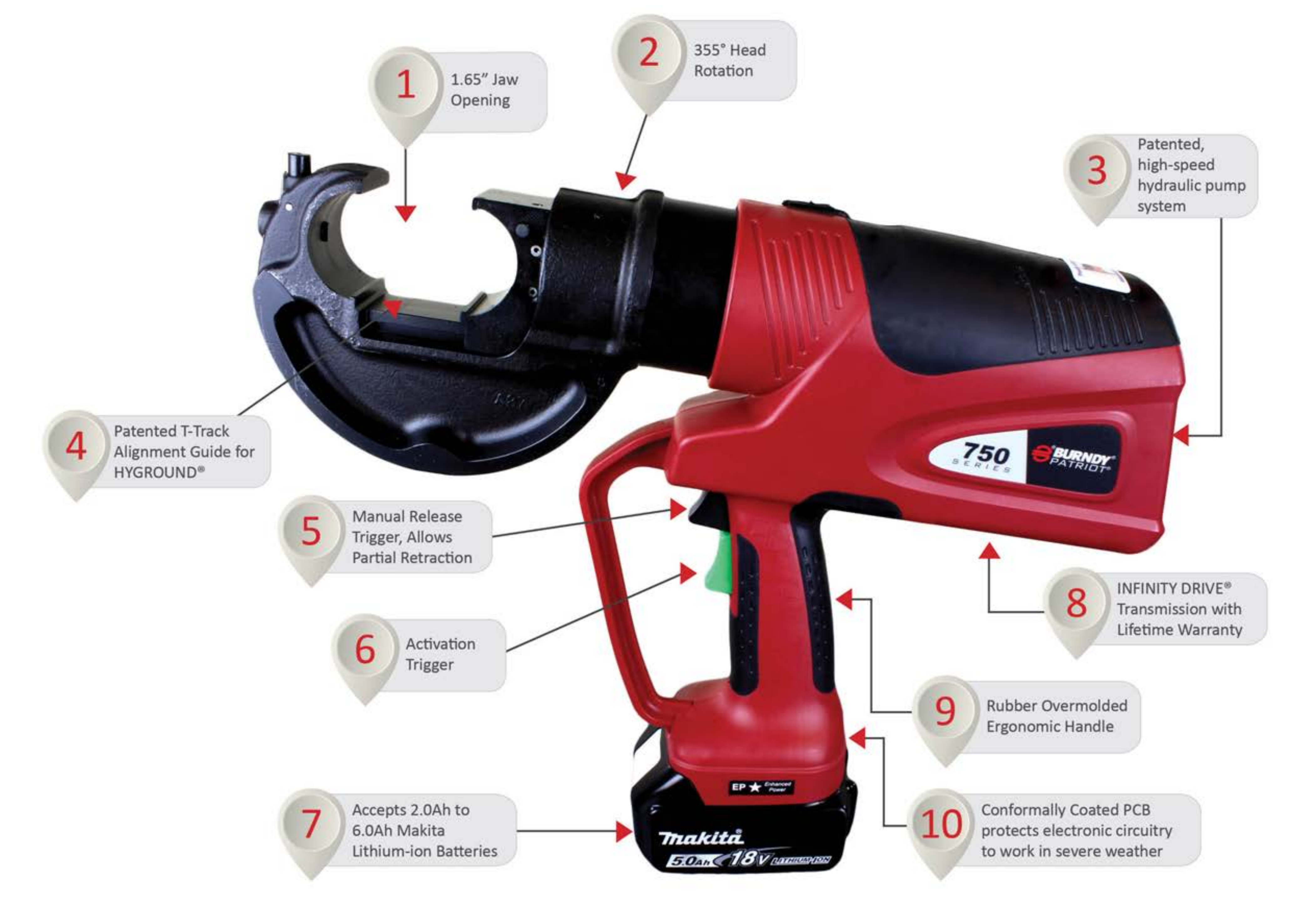

The Burndy PATRIOT® PAT750LI is a self-contained, 18V Li-ion battery-powered hydraulic crimper delivering 12 tons of crimping force. It features a C-head design with 1.65-inch jaw opening, U-style die compatibility, and supports crimping ranges for copper (#14–750 kcmil), aluminum (#8–750 kcmil), ACSR, and ground rod (1/2–1 inch). Designed for use with Makita 18V batteries, it includes a 120V-AC charger and hard case, and is suitable for tension sleeves, terminals, splices, and aerial cable applications.
Crimp Force Capacity
12 ton
Operating Voltage
18 VDC
Battery Type
3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Power Source
120V-AC Charger
Recharge Time
0.5 hr
Crimp Force Capacity12 ton
Operating Voltage18 VDC
Battery Type3.0Ah 18V Li-Ion (Accepts 2.0Ah-6.0Ah Makita LI Batteries)
Power Source120V-AC Charger
Recharge Time0.5 hr
Container TypeHard Case

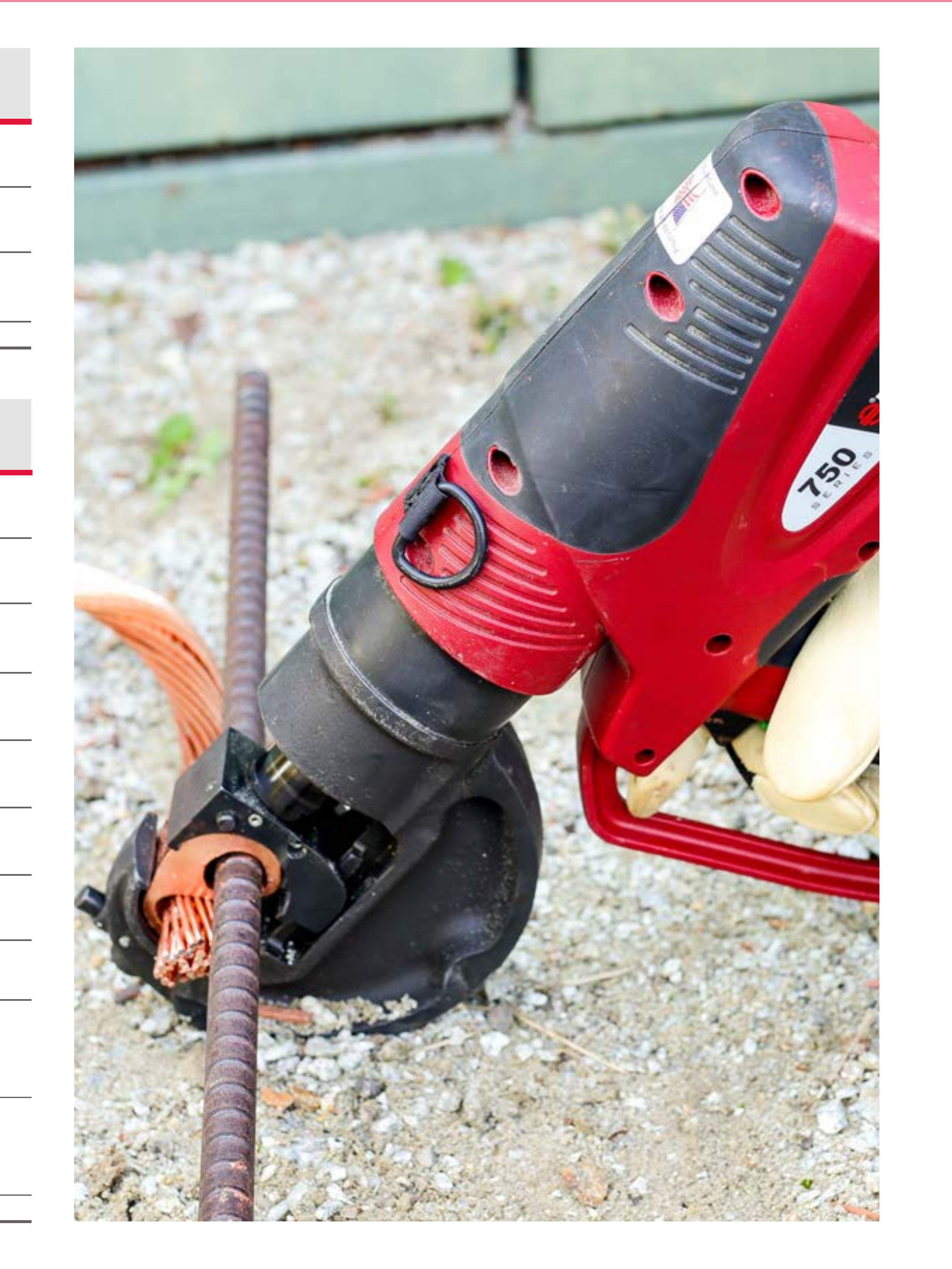

Crimping RangesCopper: #14 sol. - 750 kcmil, Aluminum: #8 sol. - 750 kcmil, ACSR: #4 AWG - 556.5 kcmil, Ground Rod: 1/2 inch - 1 inch diameter

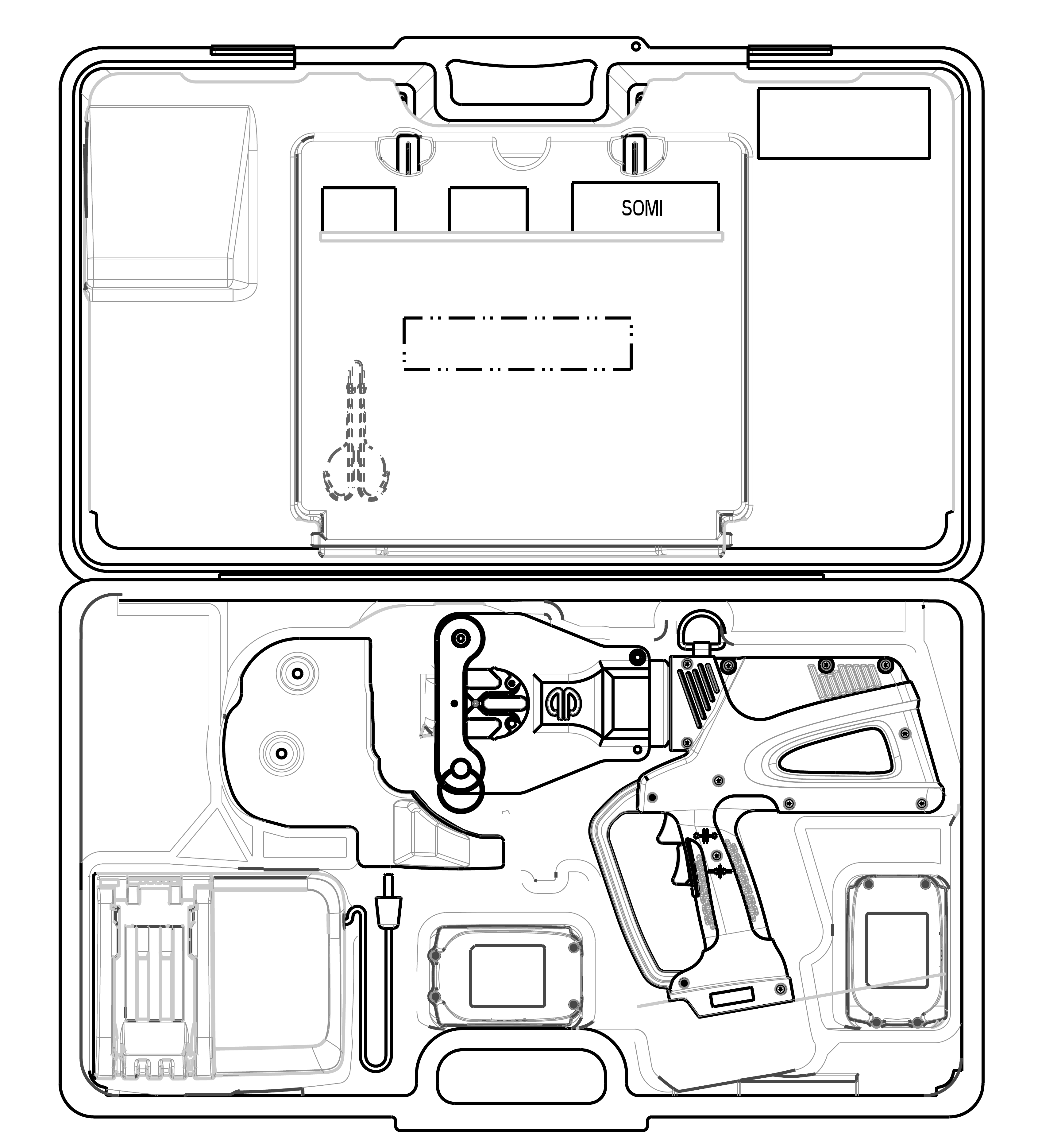

Package ContentsCrimper, (2) Batteries, Charger, Lanyard, Hard Case
Tool Weight14.25 lb (without battery)
Dimensions15.75 inch x 3.5 inch x 13.5 inch
Jaw Width1.65 inch
Die StyleU Style
