Burndy nas342n
The Burndy NAS342N is in our catalogue: Type NAS, Plated N, Material Copper Alloy.
In stock
Burndy · NAS342N

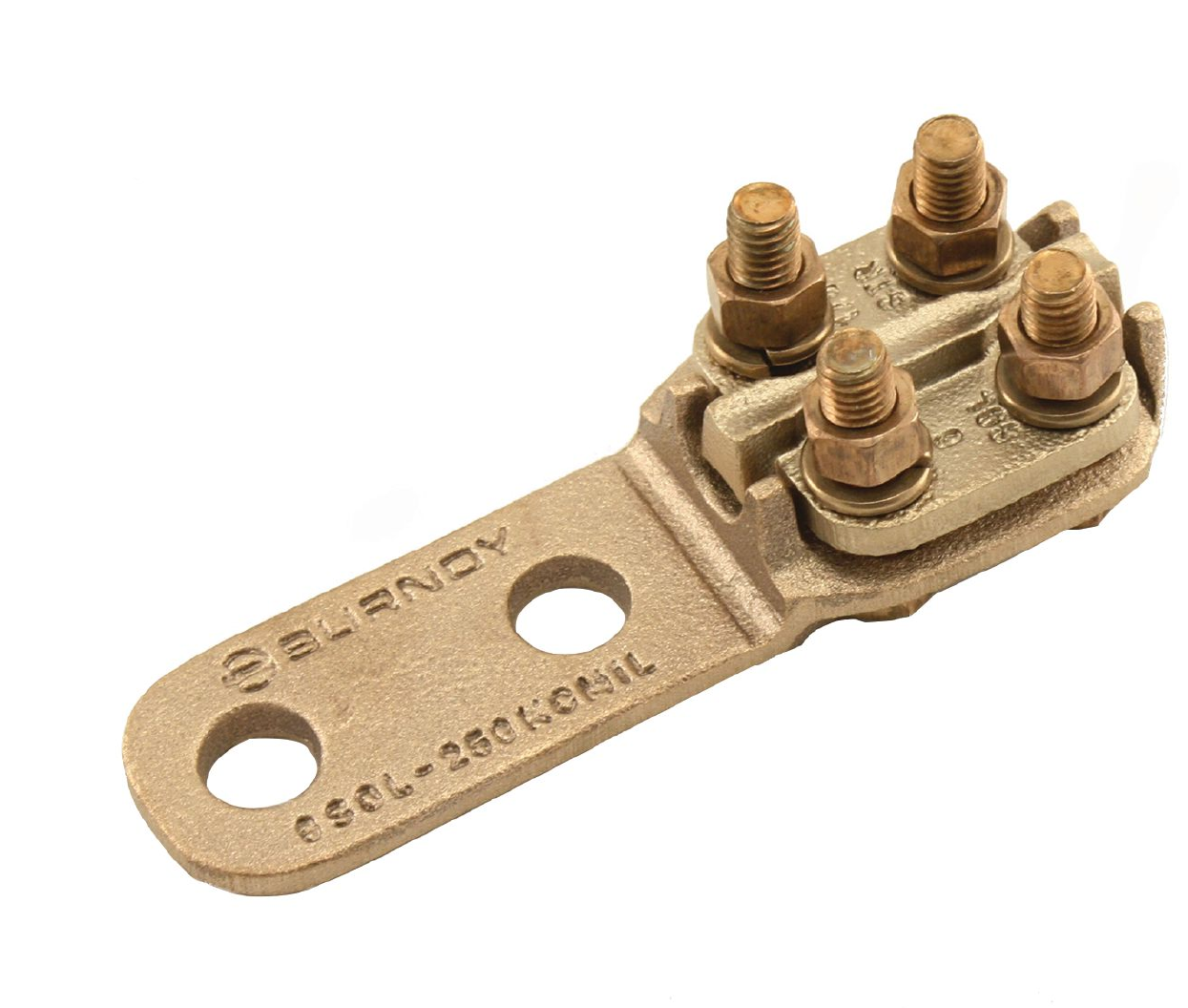

2-Hole Copper Alloy Terminal for 1/0 Sol to 500 kcmil Cable, 5.62 in Length, Cable to Pad
Cast copper alloy terminal designed for substation applications, connecting 1/0 solid to 500 kcmil stranded copper conductors to flat pads. Features a 2-hole offset pad configuration with one-wrench installation. Constructed with DURIUM™ silicon bronze hardware and compliant with EU RoHS standards.
Type
NAS
Plated
N
Material
Copper Alloy
Plating Type
Unplated
Dimension - D
3.00 inch
TypeNAS
PlatedN
MaterialCopper Alloy
Plating TypeUnplated
Dimension - D3.00 inch
Dimension - N0.62 inch
Package Width4.56 inch
Conductor TypeCU C Str-Size, CU C Solid-Size
Connector TypeTerminal
Package Height4.5 inch
Package Length6.13 inch
Package Weight6.8 lb.
Carton Quantity4
Pallet Quantity1
Dimension - Width2.20 inch
EU RoHS IndicatorYes
UPC 14 Digit GTIN00781810002377
Dimension - Height2.05 inch
Material - HardwareDURIUM™ Silicon Bronze
Dimension - B Length2.38 inch
Number Of Conductors1
Dimension - Pad Width2.00 inch
Minimum Pack Quantity1
Clamping Element DesignBody And Cap
One Wrench InstallationY
Dimension - Width Metric56 mm
Dimension - Height Metric52.1 mm
Dimension - Length Overall5.62 inch
Dimension - Width fraction2-1/5 inch
Conductor - Copper Str Size1/0, 2/0 AWG, 3/0 AWG, 4/0 AWG, 250 kcmil, 300 kcmil, 350 kcmil, 400 kcmil, 450 kcmil, 500 kcmil
Dimension - Height fraction2-1/20 inch
Conductor - Large Groove Max500 kcmil
Conductor - Large Groove Min250 kcmil
Conductor - Small Groove Max4/0 str
Conductor - Small Groove Min1/0 sol
Dimension - L Length Overall143 mm
Conductor - Copper Solid Size1/0 AWG, 2/0 AWG, 3/0 AWG, 4/0 AWG
Dimension - B Length fraction2-19/50 inch
Dimension - Hole Size fraction9/16
Conductor - Copper Str Size Range1/0 -500 kcmil
Conductor - Connection CombinationCable to Flat
Physical Attribute - Pad AlignmentOffset
Standards - RoHS Compliance StatusEX
Conductor - Copper Solid Size Range1/0 AWG-4/0 AWG
Dimension - F Width Center to Center1.75 inch
Physical Attribute - Number of Holes2
Physical Attribute - Pad OrientationStraight
Physical Attribute - Pad Configuration2 x 3 - 2 holes
Body MaterialCopper Alloy
Terminal MaterialCopper Alloy
