Burndy ks34
The Burndy KS34 is in our catalogue: Material Copper, Plating Type Unplated, Trade Name SERVIT.
In stock
Burndy · KS34

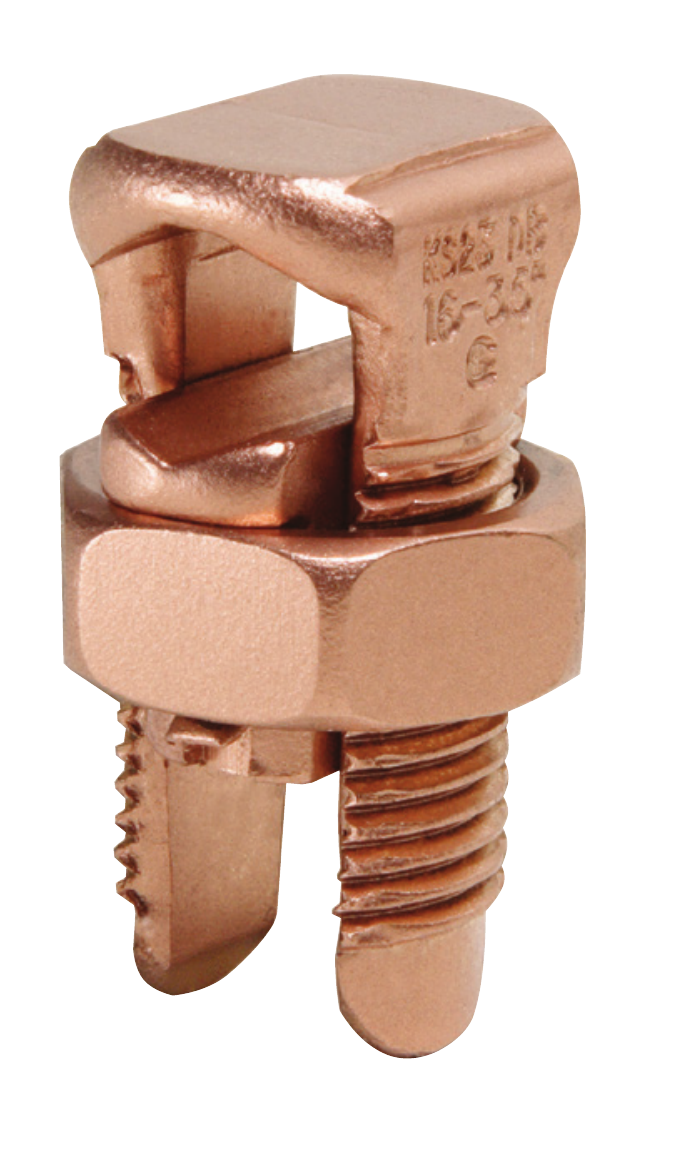

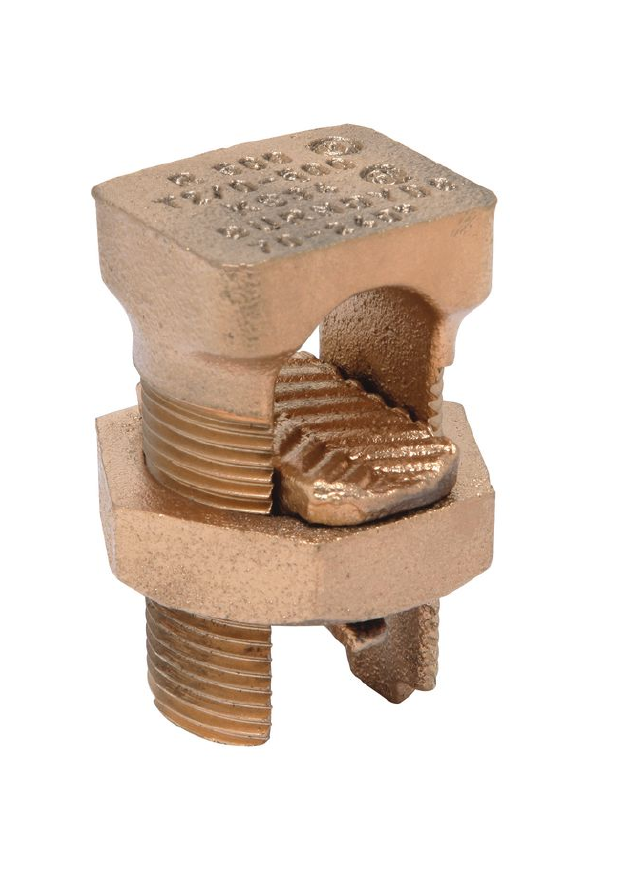

KS34 SERVIT® Split-Bolt Connector for Copper Conductors
$ 174.49per unit · ex. VAT
High-strength copper split-bolt connector designed for secure connections on copper and Copperweld conductors. Supports conductor sizes from 2/0 AWG stranded to 500 kcmil with equal run and tap configurations. Features free-running threads, wrench flats for easy gripping, and high resistance to season cracking and corrosion.
Material
Copper
Plating Type
Unplated
Trade Name
SERVIT
Type
KS
UL Listed
Yes
MaterialCopper
Plating TypeUnplated
Trade NameSERVIT
TypeKS
UL ListedYes
Certification - ETLNo
Certification - cULusNo
Certification - CSA ApprovedNo
Certification - UL RecognizedNo
EU RoHS IndicatorYes
Standards - RoHS Compliance StatusEX

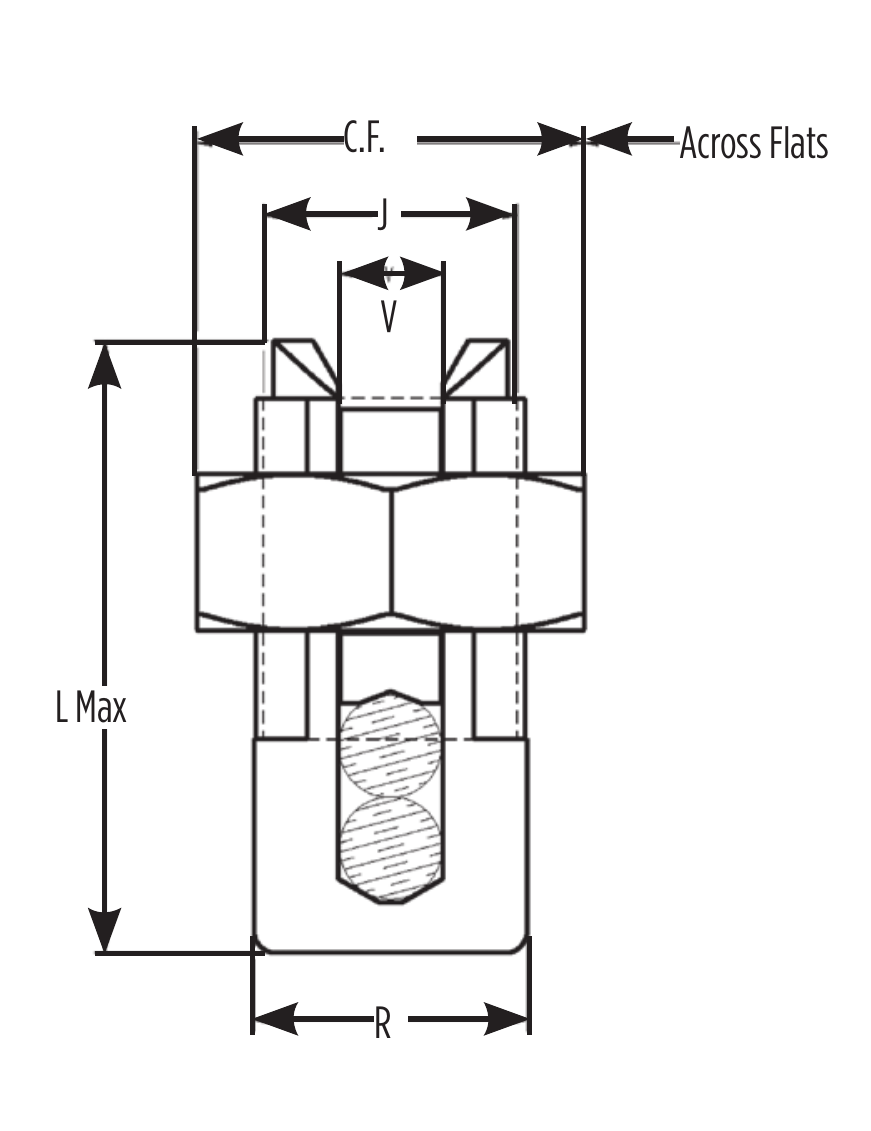

Dimension - Width1.48 inch
Dimension - B Length1.31 inch
Dimension - Length Overall2.79 inch
Dimension - Cross Flats1.82 inch
Recommended Tightening Torque825 inch-lb
Conductor - Copper Str Run Range2/0 AWG-500 kcmil
Conductor - Copper Str Tap Range2/0 AWG-500 kcmil
Conductor - Copper Solid Run Range2/0 AWG-500 kcmil
Conductor - Copper Solid Tap Range2/0 AWG-500 kcmil
Conductor - CopperWeld Str Run Range19 #6
Conductor - CopperWeld Str Tap Range19 #6
Carton Quantity12
Minimum Pack Quantity1
