Burndy ks23
ChatMRO

The Burndy KS23 is in our catalogue: Material Copper, Finish Unplated, Width 0.62 inch.

ChatMRO can make mistakes, so double check it

In stockSERVIT® Split Bolt Connector, Copper, 6 AWG–2 AWG Stranded (Run & Tap)
Burndy · KS23

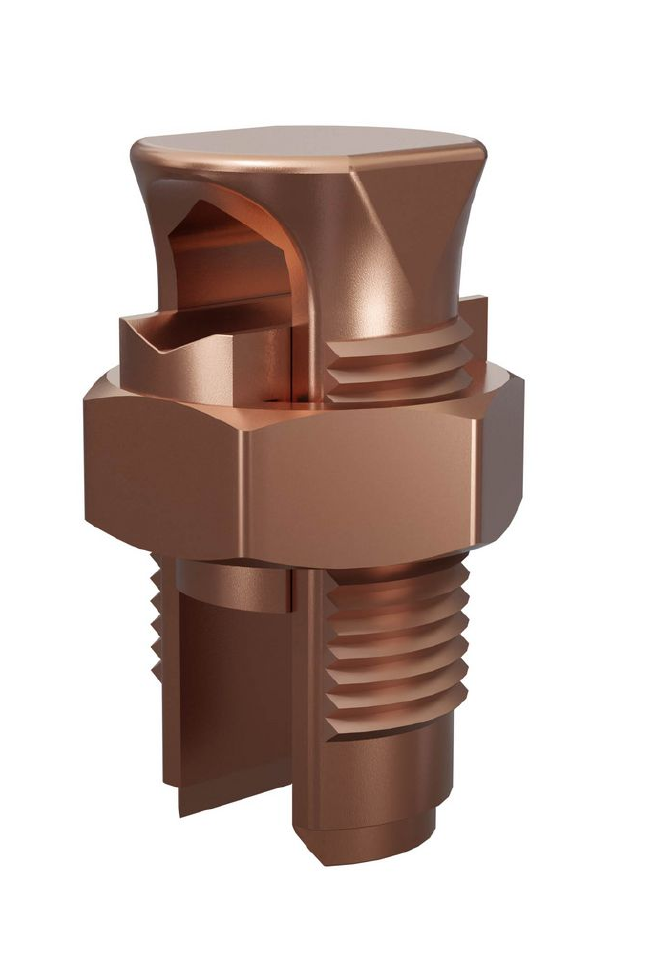

SERVIT® Split Bolt Connector, Copper, 6 AWG–2 AWG Stranded (Run & Tap)

$ 23.63per unit · ex. VAT
High-strength copper split bolt connector from BURNDY's SERVIT® line, designed for secure connections on copper and Copperweld conductors. Features free-running threads, corrosion resistance, and a square head for easy installation. Rated for a recommended tightening torque of 275 inch-lb and suitable for use in electrical grounding and power distribution applications.
Material
Copper
Finish
Unplated
Width
0.62 inch
Overall Length
1.54 inch
B Length
0.72 inch
MaterialCopper
FinishUnplated
B Length0.72 inch
Cross Flats0.82 inch
Recommended Tightening Torque275 inch-lb
Conductor - Copper Stranded Run Range6 AWG - 2 AWG
Conductor - Copper Stranded Tap Range14 AWG - 2 AWG
Conductor - Copperweld Stranded Run Range3 #7 - 5D
Conductor - Copperweld Stranded Tap Range3 #7 - 5D
Conductor - Copperweld Solid Run Range#1
Conductor - Copperweld Solid Tap Range#1
Connector TypeSplit Bolt
