Burndy kckf28
The Burndy KCKF28 is in our catalogue: Material Copper, Plating Type Unplated, UL Listed Yes.
In stock
Burndy · KCKF28

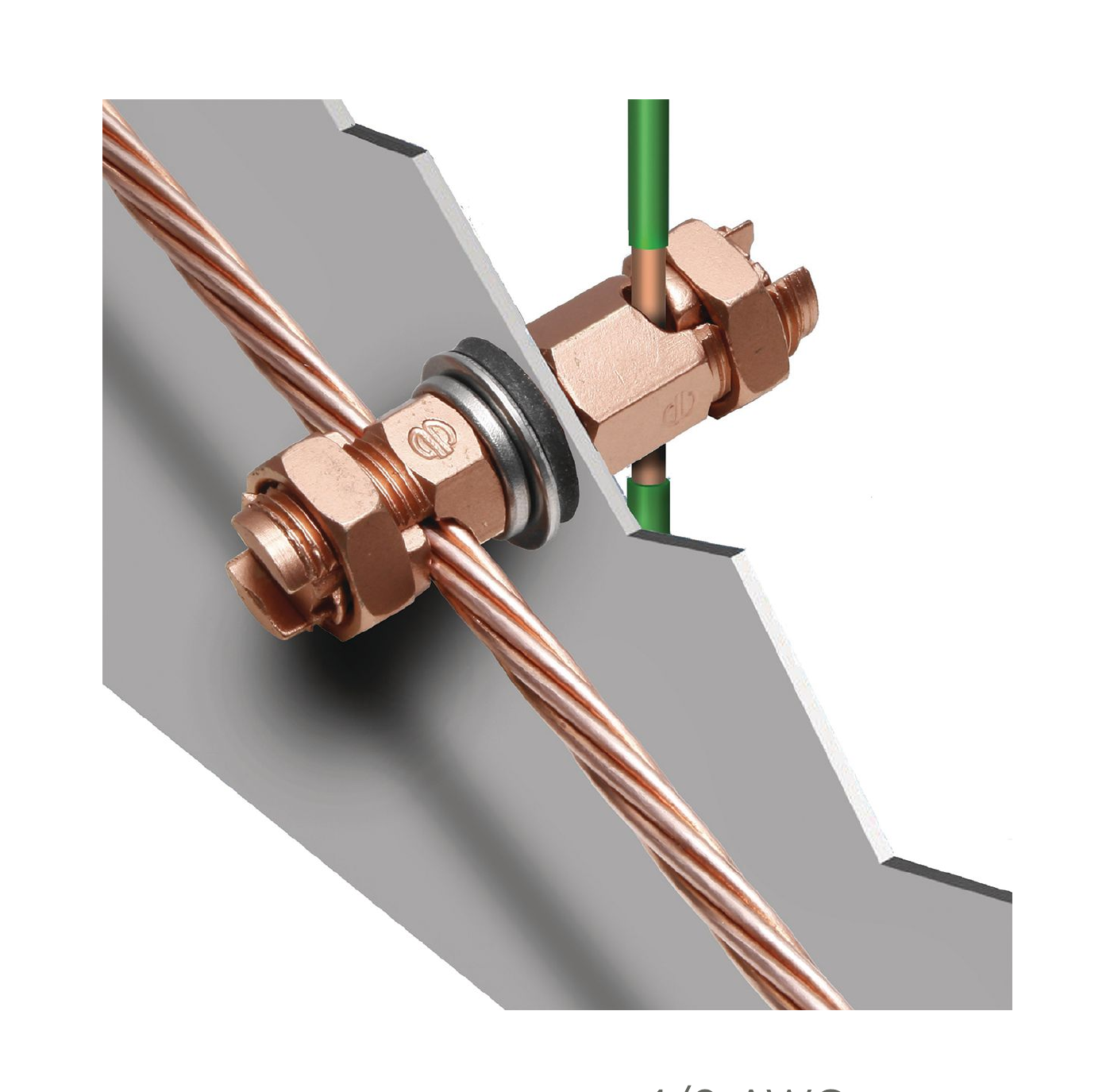

Mechanical Bulkhead Ground Connector Kit for 1 AWG to 4/0 AWG Copper Conductors
$ 525.28per unit · ex. VAT
Mechanical bulkhead ground connector kit designed for grounding and bonding applications. Accommodates copper solid and stranded conductors from 1 AWG to 4/0 AWG. Features unplated copper construction with a stud installation torque of 250 inch-lbs. Certified UL Listed with no ETL, cULus, CSA, or UL Recognized approvals.
Material
Copper
Plating Type
Unplated
UL Listed
Yes
Certification - ETL
No
Certification - cULus
No
MaterialCopper
Plating TypeUnplated
UL ListedYes
Certification - ETLNo
Certification - cULusNo
Certification - CSA ApprovedNo
Certification - UL RecognizedNo
Conductor - Copper Stranded Size Range1 AWG to 4/0 AWG
Stud Installation Torque250 inch-lbs
Nut Torque500 inch-lbs [56.5 N-m]
Post Torque250 inch-lbs [28.2 N-m]
Max Through Hole11/16 inch
Max Wall Thickness0.13 inch [3 mm]
Accommodates AWG Solid#1 (0.289 inch DIA.) to 4/0 (0.560 inch DIA.)
Accommodates AWG Stranded#1 (0.332 inch DIA.) to 4/0 (0.528 inch DIA.)
Accommodates Metric Stranded50 mm² (9.3 mm DIA.) to 95 mm² (12.8 mm DIA.)
Standards - RoHS Compliance StatusEX
EU RoHS IndicatorUnder Review
Trade NameSERVIT POST™
ApplicationDesigned to allow a ground wire to be connected from the inside of a box or enclosure to the outside of a box or enclosure

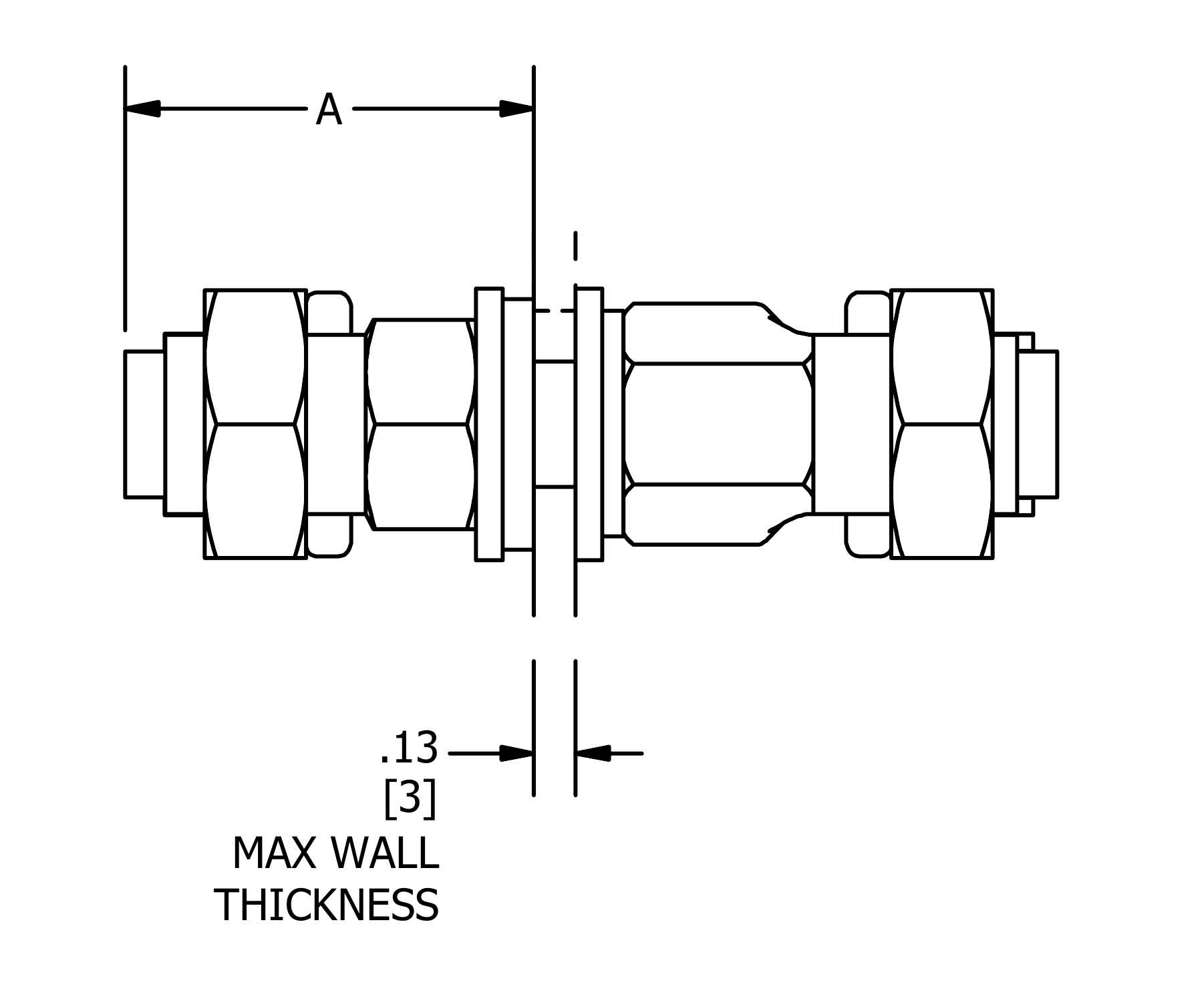

![Side view of assembled BULKHEAD SERVIT® showing dimension A and max wall thickness .13 [3]](https://d3q559o6nk5jht.cloudfront.net/PDF_FFE6J5GN4I/image/1.png)
