Banjo hb100-90
The Banjo HB100-90 is in our catalogue: Product Type Hose Barb Fitting, Fitting Shape 90° Elbow, Barb Size 1 inch.
In stock
Banjo · HB100-90

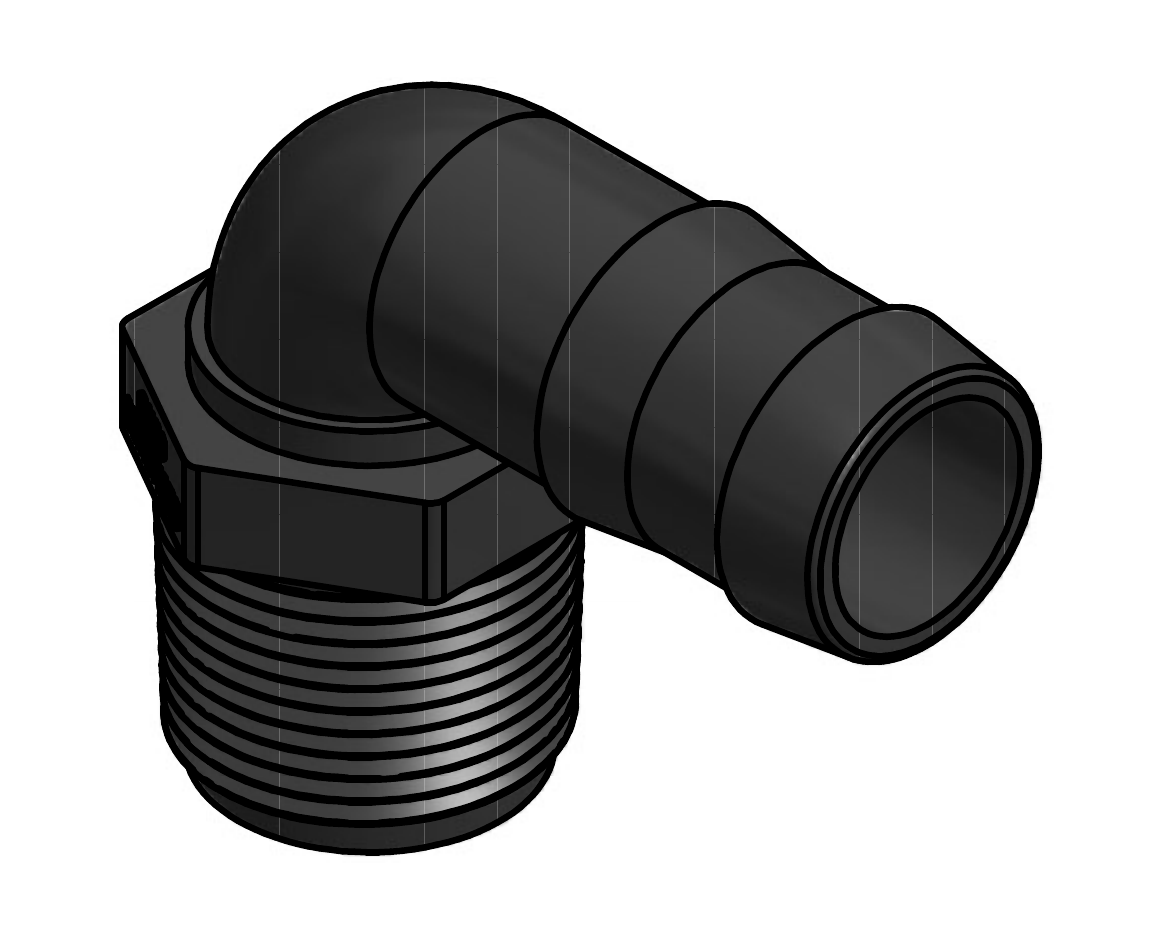

90° Hose Barb Fitting, 1" MNPT x Hose Barb, Glass Reinforced Polypropylene
$ 2.03per unit · ex. VAT
90° elbow hose barb fitting with 1 inch MNPT thread and 1 inch hose barb connection. Constructed from glass reinforced polypropylene for durability in pneumatic and hydraulic applications. Rated for 300 psi maximum pressure and operates within -20°F to 150°F temperature range.
Product Type
Hose Barb Fitting
Fitting Shape
90° Elbow
Barb Size
1 inch
Pipe Size
1 inch
Thread Size
1 inch
Product TypeHose Barb Fitting
Fitting Shape90° Elbow
Barb Size1 inch
Pipe Size1 inch
Thread Size1 inch
Thread TypeNPT
Connection TypeMNPT x Hose Barb
MaterialGlass Reinforced Polypropylene
Body MaterialGlass Reinforced Polypropylene
Fitting MaterialPolypropylene
Max Pressure300 psi
Temperature Range-20°F to 150°F
ReusableYes
Includes Shut OffNo
Vacuum RatingNot Rated
Fitting MovementRigid
Nipple Grip TypeHex
Hex Head Size1 3/8 inch
Fitting ScheduleSchedule 80
Package Quantity1

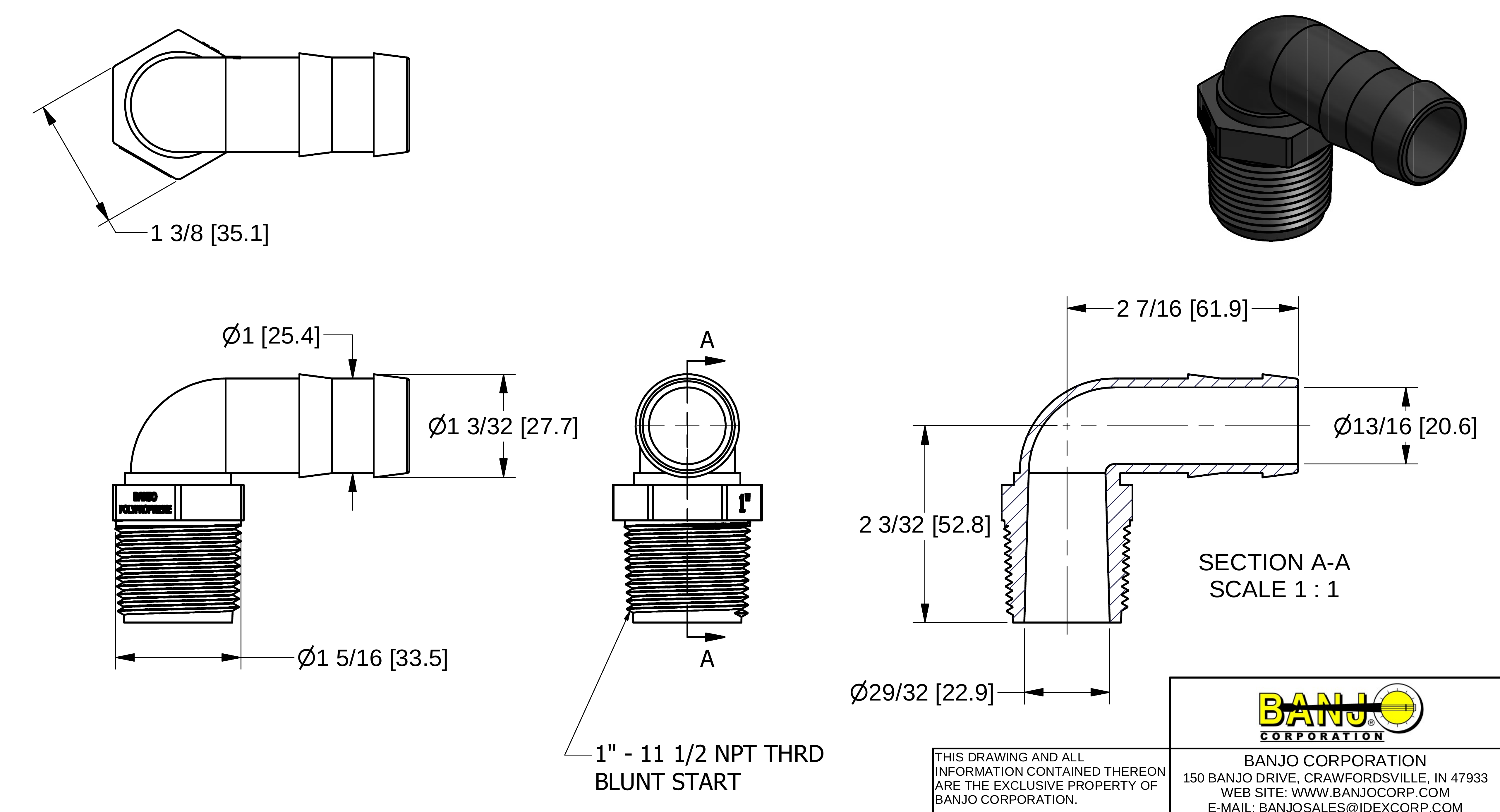

![Engineering diagram of 1" - 11 1/2 NPT x 90° HOSE BARB with dimensions and section view. Callouts include: 1 3/8 [35.1], Ø1 [25.4], Ø1 3/32 [27.7], Ø1 5/16 [33.5], 1" - 11 1/2 NPT THRD BLUNT START, 2 3/32 [52.8], Ø29/32 [22.9], 2 7/16 [61.9], Ø13/16 [20.6], SECTION A-A SCALE 1 : 1](https://d3q559o6nk5jht.cloudfront.net/PDF_332S6D1D3R/image/1.png)
