Banjo hb050-025
The Banjo HB050-025 is in our catalogue: Connection Type MNPT x Hose Barb, Barb Size 1/4 inch, Pipe Size 1/2 inch.
In stock
Banjo · HB050-025
1/2" NPT x 1/4" Hose Barb Fitting, Glass Reinforced Polypropylene
$ 1.13per unit · ex. VAT
Straight adapter hose barb fitting with 1/2" MNPT x 1/4" hose barb connection. Constructed from glass reinforced polypropylene for durability in pneumatic and hydraulic applications. Rated for 300 psi maximum pressure and operates within -20°F to 150°F temperature range.
Connection Type
MNPT x Hose Barb
Barb Size
1/4 inch
Pipe Size
1/2 inch
Fitting Size
1/2 inch x 1/4 inch
Material
Glass Reinforced Polypropylene
Connection TypeMNPT x Hose Barb
Barb Size1/4 inch
Pipe Size1/2 inch
Fitting Size1/2 inch x 1/4 inch
MaterialGlass Reinforced Polypropylene
Max Pressure300 psi
Temperature Range-20°F to 150°F
Thread TypeNPT
Fitting ShapeStraight
Fitting StyleStraight
For Hose I.D.1/4 inch
Hex Head Size15/16 inch
ReusableYes
Vacuum RatingNot Rated
Includes Shut OffNo
Fitting ScheduleSchedule 80

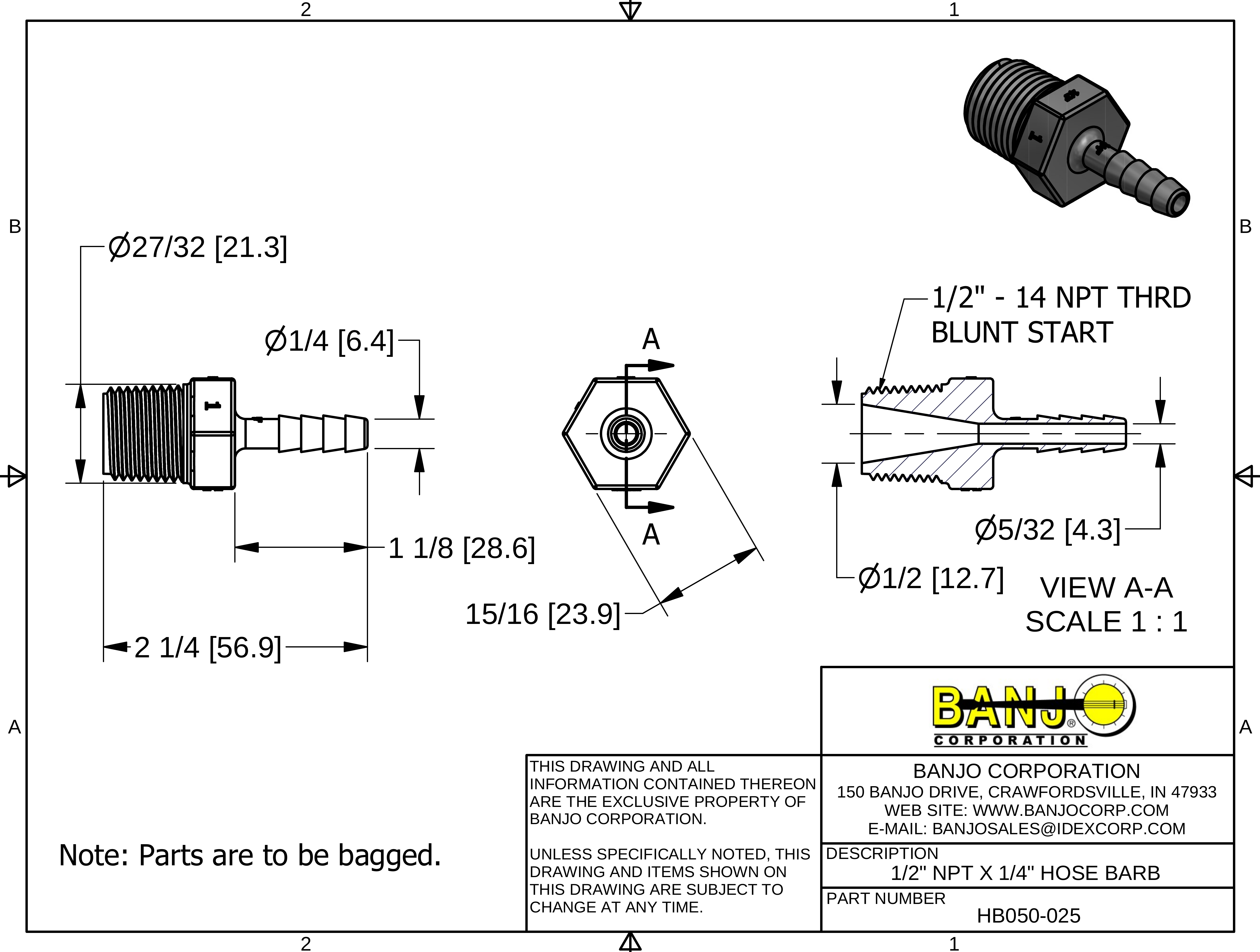

![Engineering drawing of 1/2" NPT X 1/4" HOSE BARB, part number HB050-025, showing multiple views including an isometric view, side view with dimensions, end view, and a cross-sectional view A-A. Callouts include: 1/2" - 14 NPT THRD BLUNT START, VIEW A-A SCALE 1 : 1, Ø5/32 [4.3], Ø1/2 [12.7], 15/16 [23.9], Ø27/32 [21.3], 2 1/4 [56.9], 1 1/8 [28.6], Ø1/4 [6.4]](https://d3q559o6nk5jht.cloudfront.net/PDF_XW7IRQ9QZM/image/0.png)
