Acme Electric tf279266s
ChatMRO

The Acme Electric TF279266S is in our catalogue: kVA Rating 15 kVA, Phase Single Phase, Frequency Rating 50/60 Hz.

ChatMRO can make mistakes, so double check it

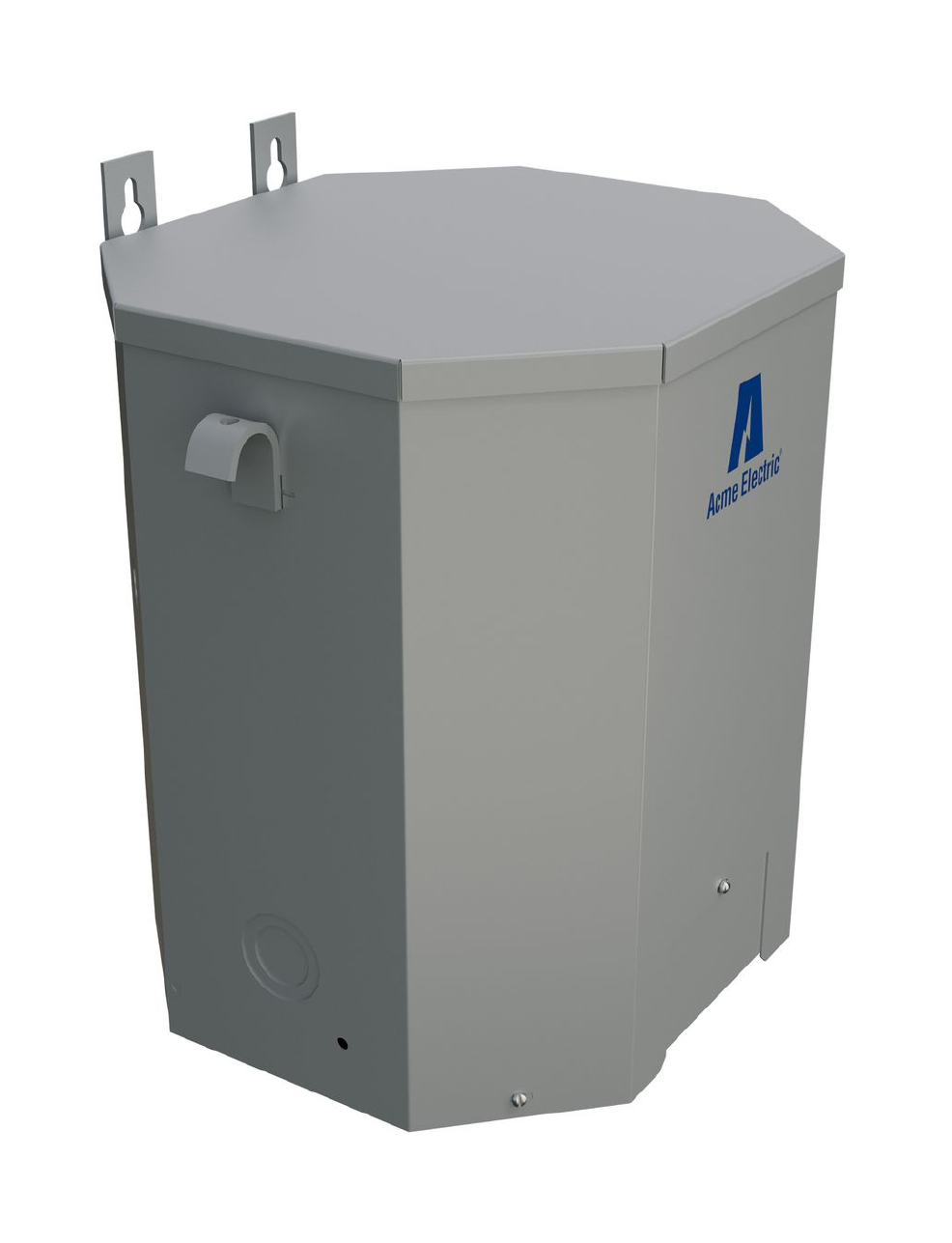

In stockLow Voltage Distribution Transformer - Single Phase, 15kVA, 190-240/380-480V Input, 120/240V Output
Acme Electric · TF279266S

Low Voltage Distribution Transformer - Single Phase, 15kVA, 190-240/380-480V Input, 120/240V Output

$ 4676.33per unit · ex. VAT
Single-phase encapsulated low-voltage distribution transformer with 15kVA capacity, designed for 50/60 Hz operation. Features NEMA 3R-rated steel enclosure with powder-coated finish, wall mounting, and electrostatic shielding. Primary voltage configurable from 190-240V and 380-480V, with 120/240V secondary output. Constructed with aluminum windings and 180°C insulation class.
KVA Rating
15 kVA
Phase
Single Phase
Frequency Rating
50/60 Hz
Primary Voltage
190/208/220/240 x 380/416/440/480 V
Secondary Voltage
120/240 V
KVA Rating15 kVA
PhaseSingle Phase
Frequency Rating50/60 Hz
Primary Voltage190/208/220/240 x 380/416/440/480 V
Secondary Voltage120/240 V
Voltage FunctionStep Down
EnclosureNEMA 3R
Mounting TypeWall
Winding MaterialAluminum
Electrostatic ShieldShielded
Insulation Class180 degree Celsius
Temperature Rise115 degree Celsius
